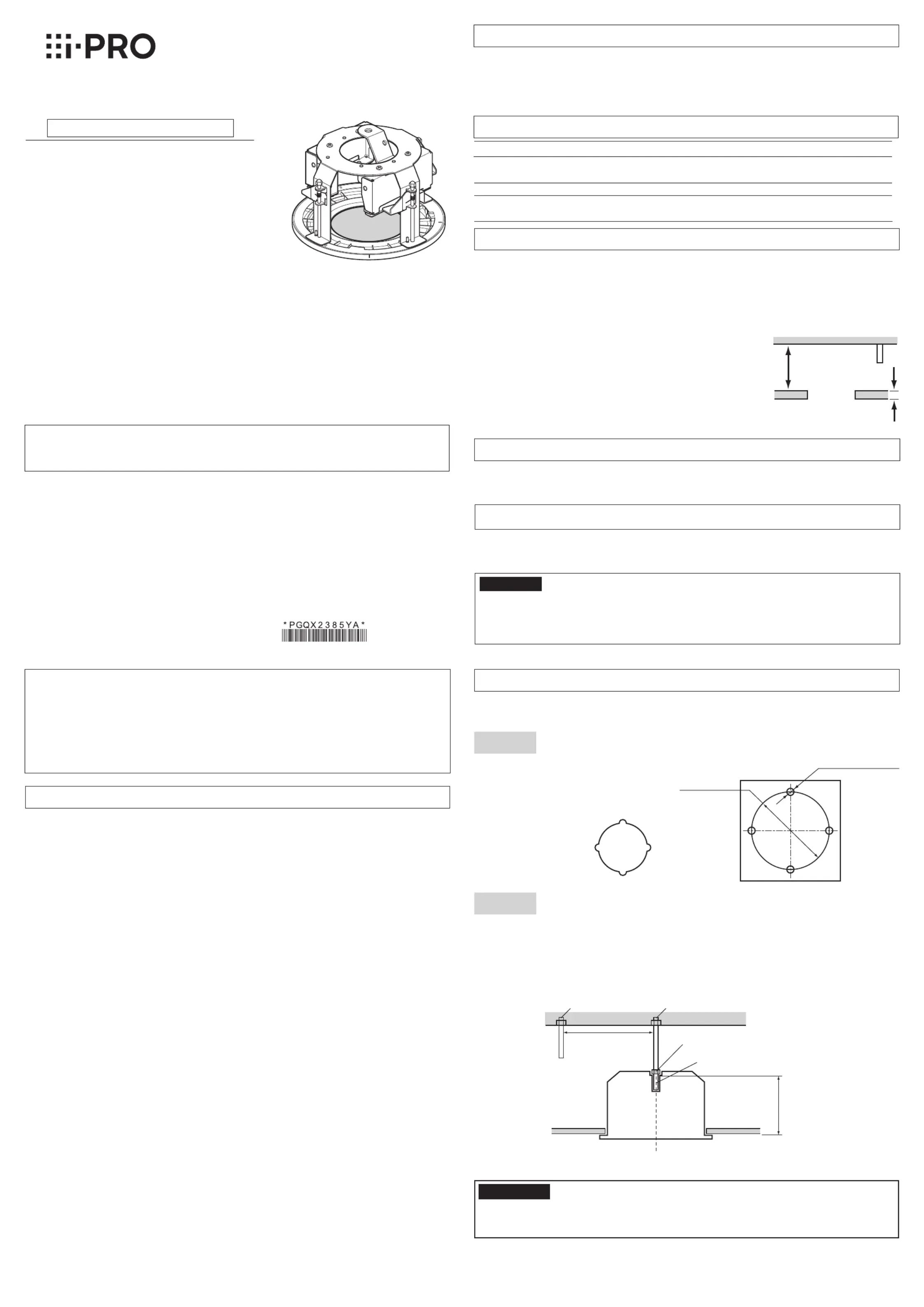

Ns0520-1042

Printed in China

Ceiling Mount Bracket

Model No. WV-QEM500-W

Operating Instructions

• Before attempting to connect or install this product, please read these instructions carefully and

save this manual for future use.

• The external appearance and other parts shown in this manual may differ from the actual product

within the scope that will not interfere with normal use due to improvement of the product.

Preface

This product is a ceiling embedded bracket that is designed to mount the network camera on a

ceiling. This bracket can be used for an area with weak pull-out strength such as plasterboard in a

double ceiling, and the embedded type makes the visible part of the camera smaller.

For the latest information about the supported cameras, refer to our support website (https://i-pro.

com/global/en/surveillance/training_support/support/technical_information <Control No.:C0501>).

Refer installation work to the dealer.

Installation work requires technique and experience. Failure to observe this may cause fire, electric

shock, injury, or damage to the product.

Be sure to consult the dealer.

Do not use this bracket except with suitable cameras.

Failure to observe this may cause a drop resulting in injury or accidents.

The measures of protection against a fall of this product shall be taken.

Failure to observe this may cause a drop resulting in injury or accidents. Be sure to install the safety

wire.

Install the product securely on a ceiling in accordance with the installation instructions.

Failure to observe this may cause injury or accidents.

Do not rub the edges of metal parts with your hand.

Failure to observe this may cause injury.

When using this product, also read the “Precautions” described in the operating

instructions for the camera to be attached.

Precautions

Installation

i-PRO Co., Ltd. assumes no responsibility for injuries or property damage resulting

from failures arising out of improper installation or operation inconsistent with this

documentation.

Caution:

• Before attempting to connect or operate this

product, please read these instructions care-

fully.

Notice:

• This product is not suitable for use in loca-

tions where children are likely to be present.

• Do not install this product in locations where

ordinary persons can easily reach.

• For information about screws and brackets

required for installation, refer to the corre-

sponding section of this document.

Included Installation Instructions

Specifications

Ambient operating temperature: –50 °C to +60 °C {–58 °F to +140 °F}

Dimensions: ø211.3 mm × 117 mm (H)* {ø8-5/16 inches × 4-19/32 inches}

*Including decorative cover thickness: 13 mm {1/2 inches}

Mass: Approx. 870 {1.92 lbs}g

Finish: Main body: Surface treatment steel sheet

Decorative cover: ABS resin

i-PRO white

■ In order to prevent injury, the product must be securely mounted to the ceiling

according to the Installation Guide of the camera.

■ This product is designed to be used indoors.

This product is not operable outdoors. Do not expose this product to direct sunlight for hours and

do not install the product near a heater or an air conditioner. Otherwise, it may cause deformation,

discoloration and malfunction. Keep this product away from water and moisture.

■Installation area for this product

Make sure that the installation area is strong enough to hold

the total weight of the camera assembly before installation.

The installation area shall have 210mm {8-9/32inches} or

more space behind the ceiling.

The thickness of the ceiling board for installation can range

between 9mm {3/8inches} and 40mm {1-9/16inches}.

■ Make sure to remove this product if it will no longer be used.

Precautions for installation

210mm

{8-9/32inches}

or more

Ceiling board: between

9mm {3/8inches} and

40mm {1-9/16inches}

Standard Accessories

Operating Instructions (this document) 1 pc. .......

Safety wire 1 pc. .................................................

Safety wire angle 1 pc. .......................................

Template A 1 pc. ................................................

Template B 1 pc. ................................................

Decorative cover 1 pc. ........................................

Refer to the operating instructions of the camera for details on the camera installation

(including the camera mounting, cable connection and adjustment).

Step 1

Put Template A (accessory) against the ceiling and make a hole.

①Make 4 holes of 12 mm {1/2 inches} in

diameter.

②Remove the center part from the template.

③ Make a hole of 180 mm {7-1/16 inches} in

diameter.

The ceiling hole shape

is shown in the drawing

at right.

Step 2

Install two anchor bolts (M10: locally procured) into the ceiling.

① Determine the anchor bolt length (for securing the mounting chassis) by use of Template B

(accessory).

② Position the nut by use of Template B (accessory) and mount the nut. (The distance between the

bottom surfaces of the ceiling board and nut shall be 134 mm {5-1/4 inches}.)

ø12 mm {1/2 inches}

(4 positions)

Ceiling face

ø180 mm

{7-1/16 inches}

Template A

IMPORTANT:

⿟

When the existing anchor bolt is used as an anchor bolt for connecting the safety wire,

make sure that the distance between the anchor bolt and camera mounting position is 1 m

{3.28 feet} or less.

Anchor bolt (M10)* 2 pcs. Nut (M10) 6 pcs. .................................... ................................................

Other items that are needed (not included)

* One anchor is used for securing the mounting chassis, and the other anchor is used for

connecting the safety wire. (See Step2)

IMPORTANT

⿟

Prepare anchor bolts according to the material and strength of the area where the product is

to be installed. The pull-out strength of the anchor bolt shall be more than 5 times of the total

weight of the installed devices (including the camera body, ceiling mount bracket, anchor

bolts, and all other parts).

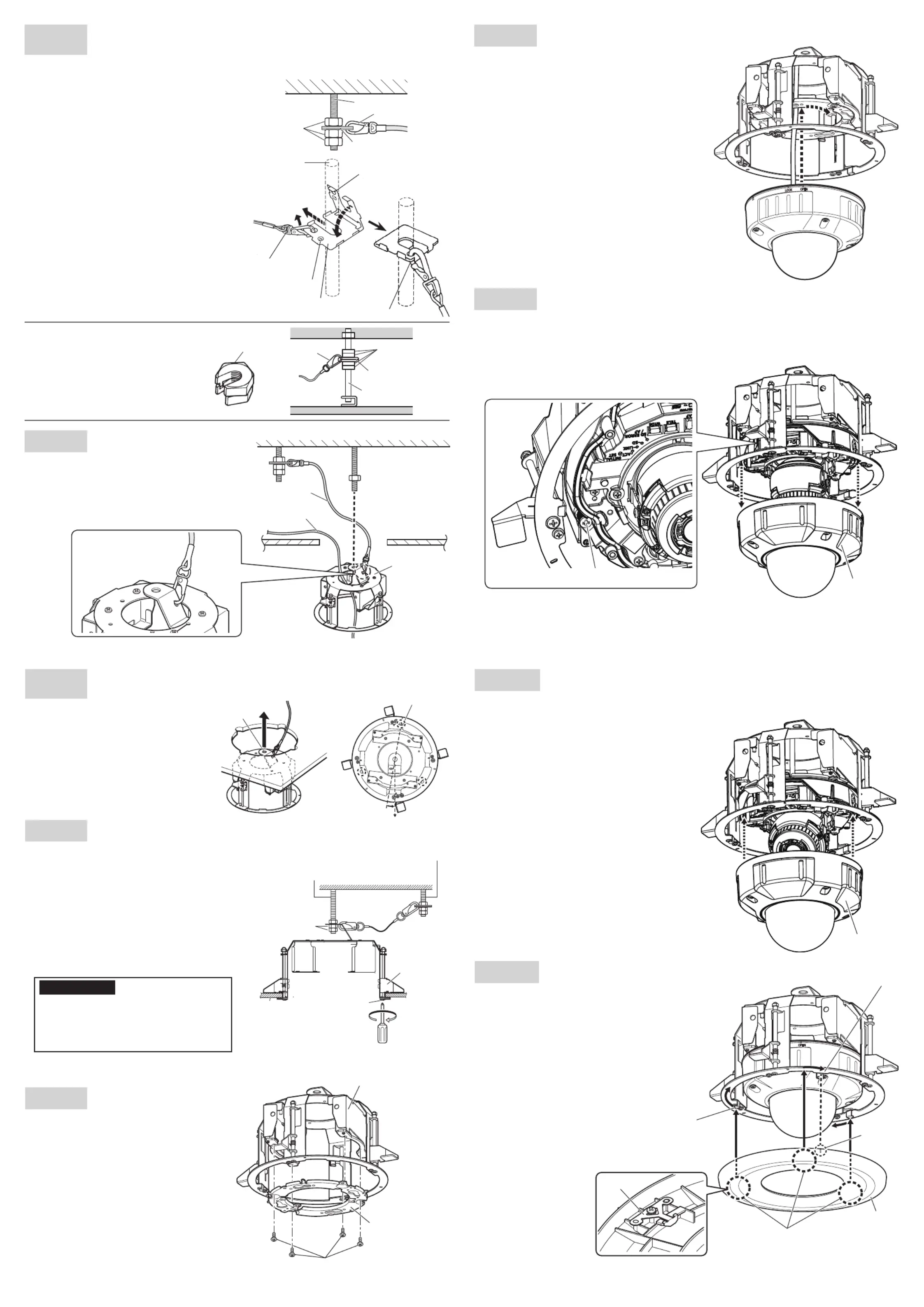

Anchor bolt

(for connecting the safety wire)

①Mount a nut

②Determine the anchor bolt length

Install the anchor bolt in the center of the hole

134 mm {5-1/4 inches}

Template B

Ceiling board

Anchor bolt

(for securing the mounting chassis)

1 m {3.28 feet} or less

For U.S. and Canada:

i-PRO Americas Inc.

For Europe and other countries:

i-PRO EMEA B.V.

https://www.i-pro.com/
