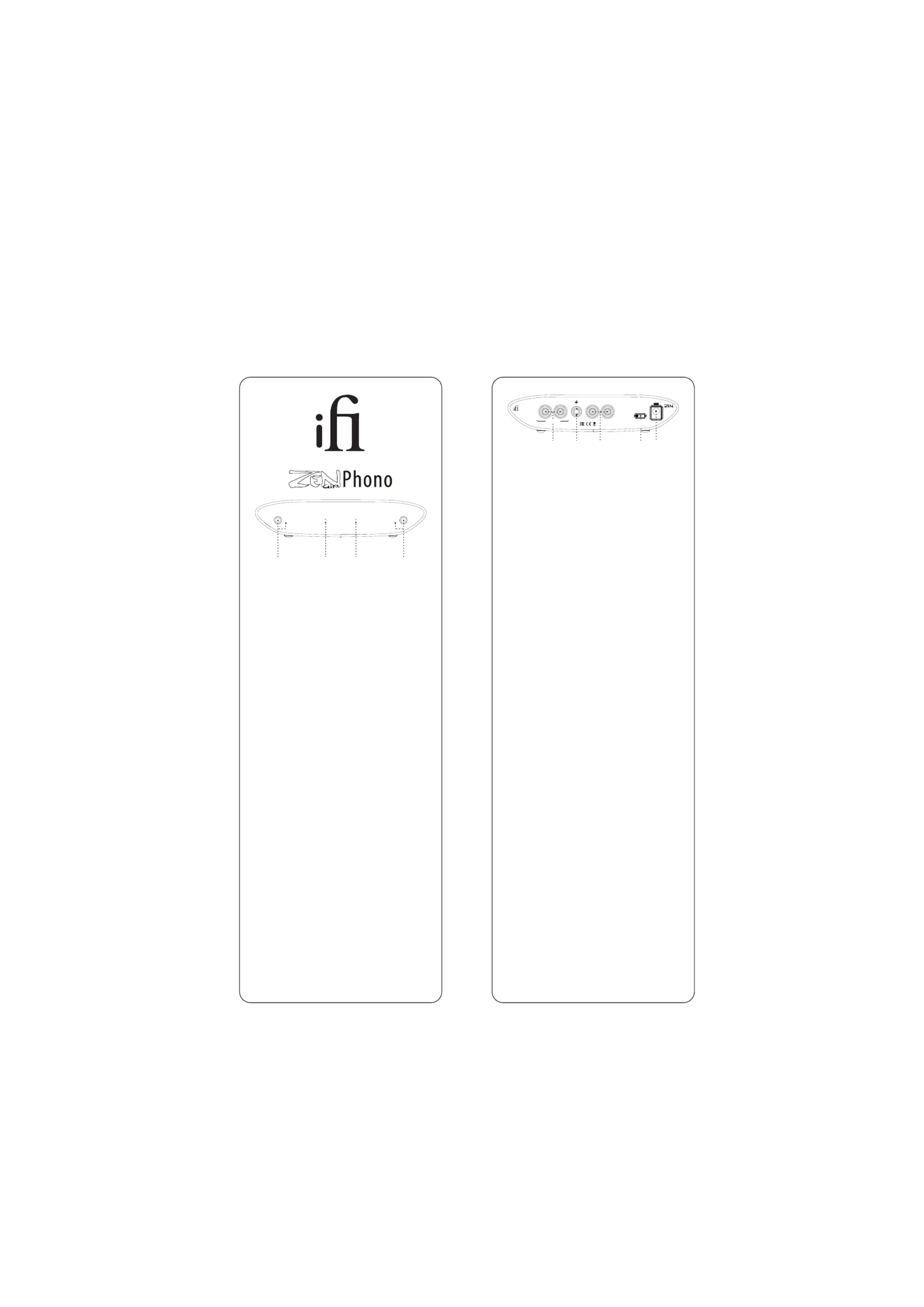

Techn ology li censed fr om AM R-Audi o, UK A ssemb led i n China

5. RCA analogue output

This is an analogue output.

6. Ground

This is the ZEN Air Phono's ground, please connect it to the

turntable's grounding wire.

7. RCA analogue input

This is the analogue input.

8. Gain channel switch

This button selects either of two gain levels:

MM: for use with MM cartridges (≥2mV)

MC: for use with MC cartridges (<2mV)

Please adjust the gain channel switch in accordance with your preference and your

turntable's specications.

9. DC 5V power

The ZEN Air Phono must ONLY be powered by 5 volts.

Tip: For best performance, an ultra-low noise p ower adapter such as the iFi iPower2 or

iPower X is recommended.

Thank you for purchasing the Phono from the ZEN Air series.

The ZEN Air Phono is a single-ended MM/MC phono stage.

1. Power ON/OFF

This is the power switch.

Note: If the unit has been powered on for a while, you need to press the power switch

twice to turn it off. This is because the MCU goes into sleep mode for less noise, so you

get to enjoy the best sonics!

2. MM input LED

This is the MM input indication. Use this setting for MM

cartridges with output voltage 2mV and higher. Please select

MM on the gain switch at the rear.

3. MC input LED

This is the MC input indication. Use this setting for MC

cartridges with output voltage <2mV. Please select MC on

the gain switch at the rear.

4. SUBSONIC Filter ON/OFF and Gain switch

unlocked

This is the SUBSONIC filter switch (short press)

The iFi-designed subsonic filter will intelligently detect

whether a subsonic frequency is a warp or a bass note. It will

eliminate the warps and let all the bass and mid-range

frequencies pass through untouched. Therefore, it will have

little effect on the sound quality.

Gain switch function unlocked (shor t press)

To change gain after the unit has been on for more than 10

minutes, short press this switch to unlock the rear gain switch (8).

Tip: To protect your device, the gain switch (8) will enter lock mode after 10 minutes and

will need to b e unlocked each time you operate it.

Ver1.0

ifi-audio.com

SUBS ONIC

FIL T ER

MM M C

PO WER

21 43

Specifications:

Power supply requirement:

Frequency Response:

Channel Separ tion:a

Max Output Voltage RMS:

Gain:

MM:

Input Impedance:

MM:

O autput Imped nce:

SNR:

MM (40dB ±1dB):

MC 64dB ±1dB): (

Ein (equivalent input noise):

0 nV | /Hz (.6 unweighted)

6.5nV | /Hz (unweighted)

Total Harmonic Distortion:

MM:

MC:

Power consumption:

Dimensions:

Net weight:

Warranty period:

Specications are subject to change without notice.

DC 5V / ≥1.0A (centre +ve)

20Hz - 20kHz (±0.15dB)

> Hz a 75dB (1k ll modes)

6.5V RMS 600 (<1% THD & N)Ω

40dB

64dB

47k

100Ω

86dB (A-weig teh d) re 1V

82dB (A-weighted) re 1V

MC 146dBV (A-weighted) -

MM -126dBV (A-weighted)

<-90dB / 0.005% re 1V

<-80dB / 0.036% re 1V

<1.8W

15 117 x 35 mm (6.2" x 4.6" x 1.4")8 x

320 g (0 l.71 bs)

12 mon ths

DC 5V

LR LR

Inp utOu t pu t s

MM MC

GAIN

Air

6 7 8 95

Phono
