The JK-82 / JK-82UK “Oasis” wireless alarm kit

1. Factory-default pre-enrolled devices

Address Device Note

03 JA-81M door detector

04 JA-80P PIR detector

48 RC-86 keyfob

49 JA-80F keypad unit

50 JA-80L indoor siren

RC-89 doorbell button*

is not delivered with the JK-82UK

2. Before installation

3. Control panel and keypad installation

Attach the Control Panel (CP)

Insert the SIM card

back-up battery to the CP

Connect the mains

5. red LED

should turn off within 1 minute If it

starts flashing instead, turn off the power (mains & battery) and

check that the SIM card functions properly in a mobile phone.

Connect up the batteries in the JA-80F keypad service

mode (if not, disconnect the keypad

batteries, check that the control panel is powered up and

reconnect the keypad batteries).

 ∗

∗

∗∗

select the desired language



 ∗

∗

∗∗ 0 8080.



98101 - texts

922 to measure the GSM signal

(if it is not, find another location for the control panel or try

another provider’s SIM card).

Exit GSM measurement mode #

Before attaching the JA-80F keypad,

wiring up a

magnetic door sensor

4. Installing the detectors and the siren

IN 2

IN 2IN 2

IN 1

IN 1IN 1

GND

GNDGND

TMP

TMPTMP

mag.senzor

ON/OFF

Reaction

RESET

1 2 3 4

OFF

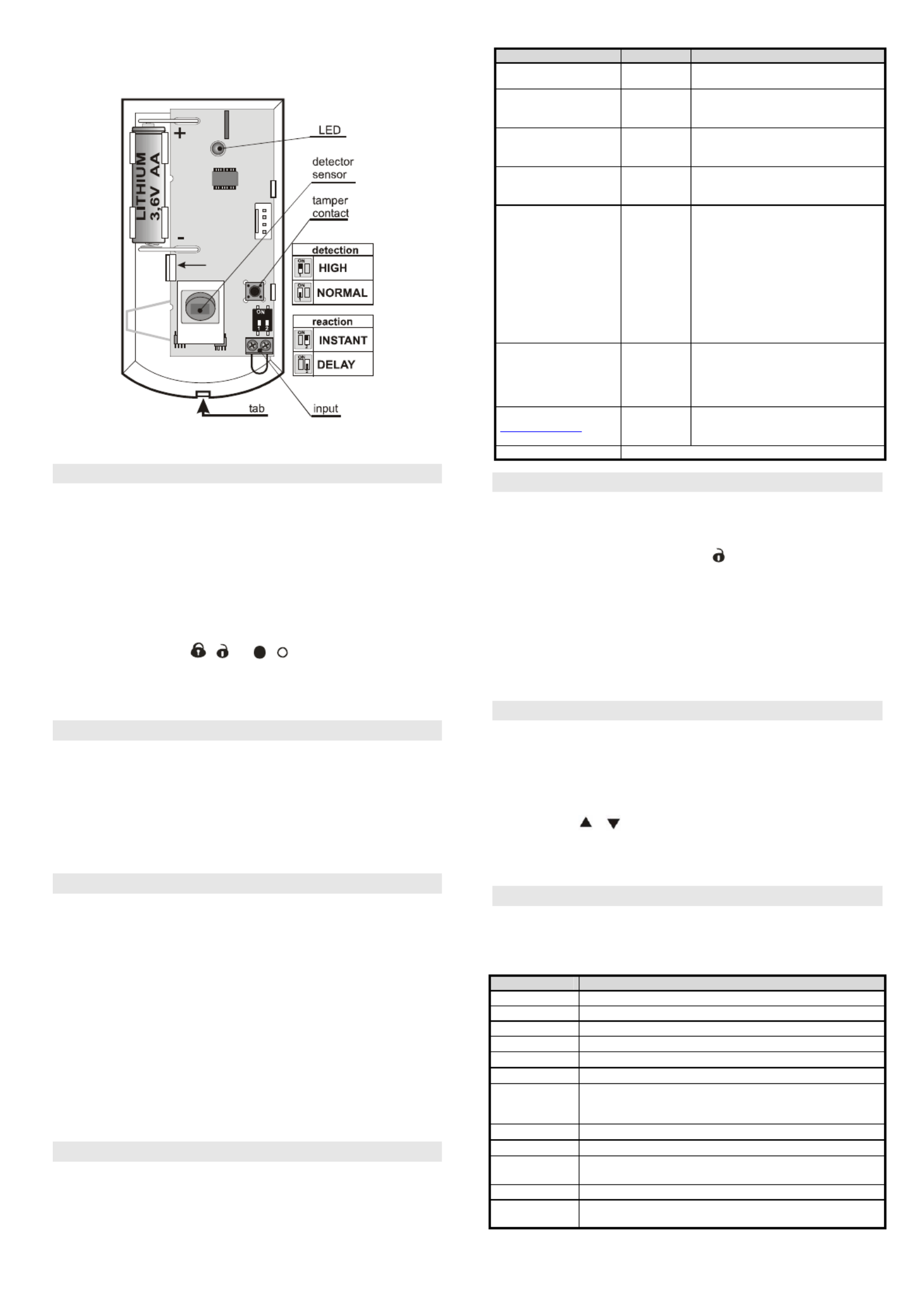

The JK-82 / JK-82UK “Oasis” wireless alarm kit 2/2 MKE58102

2. Install the JA-80P PIR motion detector about 2 to 2.5 meters above

the floor, select its reaction via the relevant internal DIP switch

(INS/DEL), connect its battery up and close the cover.

tab

3. Plug the JA-80L siren into a mains power socket

4. Test and install the RC-89 door bell button.

5. Enrolling more wireless devices

The system can be extended with more wireless devices (a maximum of

50 can be enrolled). To enroll another device, the CP should be in service

mode, if it is not enter ∗

∗

∗∗ 0 8080 (while the system is unset)

1. On the keypad, key in 1 to enter enrollment mode

2. The next vacant address is displayed (scroll to other addresses

using the arrow keys if desired)

3. Connect up the device’s battery to enroll the device to the CP.

Successful enrollment is confirmed by the A indicator lighting. The

next vacant address is then displayed.

 The RC-86 key-fob can also be enrolled by pressing and holding a

pair of its buttons + (or + )

4. byExit enrollment mode pressing the # key.

• To enroll the CP to UC-82 or AC-82 modules, enter 299 while the

CP is in service mode with the receiving module in enrollment mode.

6. Testing device functionality

1. The CP should be in Service mode, if not enter ∗

∗

∗∗ 0 8080

2. First trigger the device under test (e.g. a detector). The keypad

(with its flip cover open) then indicates triggering of the device if the

device is functioning correctly and is enrolled.

 Motion detectors are best tested within 15 minutes of closing their

covers as after that they only react to frequent movements once

every 5 minutes (to restart a device’s test mode, open and close the

detector housing again).

7. Checking a device’s radio signals

1. The CP must have its antenna connected and should be in Service

mode, if not enter ∗

∗

∗∗ 0 8080

1. Enter 298, the lowest address with enrolled device will be displayed

2. Trigger the device linked to this address – the keypad (with its flip

cover open) then shows the device’s signal strength in the range ¼

to 4/4 (it should be at least 2/4, if not, relocate the device)

 Motion detectors are best tested within 15 minutes of closing their

covers as after that they only react to frequent movements once

every 5 minutes (to restart a device’s test mode, open and close

the detector housing again).

 To test the JA-80F keypad signal, trigger the connected magnetic

door sensor or activate the keypad’s tamper sensor.

 To test the JA-80L siren signal, press the siren’s button.

3. To select the next enrolled device address use the arrow keys.

4. To exit signal measurement mode, press the # key.

8. Programming the system

1. The CP should be in Service mode, if not enter ∗

∗

∗∗ 0 8080

2. Enter the appropriate programming sequences to select the desired

functions (a complete list of them is in the CP and communicator

manuals)

Function Sequence Note

New service code 5 xxxx

xxxx

Factory default: 8080

xxxx = new code

Exit delay 20x

x=multiples of 10 sec. (e.g. 205 = 50

sec).

Factory default: 30s

Entrance delay 21x

x=multiples of 5 sec. (e.g. 204 = 20

sec.).

Factory default: 20s

Alarm duration 22x

x=1 to 8=1 to 8 minutes

9 = 15min.

Factory default: 4 min

Tel. numbers for event

reporting to telephones

81 M xx.x

∗

∗∗0

M = memory 1 to 8

Factory default reports:

M1 & 2 alarms by SMS

M3 & 4 alarms by SMS+call

M5 & 6 alarms by SMS+call &

setting/unsetting by SMS

M7 alarms by call

M8 faults by SMS

xx..x = tel. number

81 M ∗0 erases memory M

Forwarding of incoming

SMSes to the first

programmed phone

number

926 x x = 1 enabled (factory def.)

x = 0 disabled

Registration code for

www.GSMlink.cz to

your mobile phone

910 xx.x ∗

∗

∗∗0 xx.x =your mobile number

Time and date entry 4 hh mm DD MM YY

9. Testing GSM communication

1. Program your mobile phone number to memory M1

2. Exit Service mode via the # key and press both buttons on the key-fob

to trigger a Panic alarm – an alarm SMS should be sent to your mobile.

3. End the Panic alarm by pressing the button on the key-fob.

4. Call the SIM card number (it is shown in the alarm SMS report). Wait

until the call is answered by the CP (beep in the phone) and enter a valid

service code (factory default: 8080)

5. Your phone keypad should now work the same way as the system

keypad – test it.

6. End the call

7. Erase your mobile’s number from M1 and program it into M8 if you wish

to receive reports of technical troubles in the system in future.

10. Editing keypad text strings

1. The CP should be in Service mode, if not enter ∗

∗

∗∗

0 8080

2. Press and hold the ? key to enter editing mode.

3. Keys: 1 & 7 scroll through characters and numbers

4 & 5 move the cursor

2 erases the highlighted character

are for the selection of

text strings

# exits editing mode

Editing text only affects the text in that particular keypad. A more

convenient way of text editing is with a PC running Olink software.

11. Finishing off the installation

1. Exit service mode via the # key and demonstrate clearly how to

operate the system to the user(s).

2. Recommend the user to change the default master 1234 code to

a new master code.

Entry Function

code / card Setting/unsetting (arming and disarming)

ABC Complete arming (all sections)

A Partially setting A (if used)

B Partially setting AB (if used)

∗4 Reading the event memory (4 scrolls backwards)

∗5 Changing the MASTER code/card (e.g. *5 1234 2789 2789)

∗6

To create a new user code/card (e.g. *6 1234 03 3344

programs user code number 3, to erase the code enter: *6

1234 03 0000)

∗7 code/card To secretly signal operation (unsetting) under duress

∗ ∗8 a 9 PGX and PGY control (if used)

∗0 MASTER

code Maintenance mode (testing, overview of codes, bypassing,…)

# Exiting maintenance mode or terminating an incomplete entry

? Displays status details (triggered detectors, fault causes or

the status of PG outputs …..)
