Klávesnice KB-350 Antivandal 4 / 4 MEV51303 Klávesnice KB-350 Antivandal 1 / 4 MEV51303

Reset

If the master code or service code is forgotten or if you connect a new keypad, it is necessary to reset the

control unit. Disconnect power and connect the RESET jumper and after 20sec. reconnect power. After 5

seconds, disconnect the jumper. This procedure will restore the factory default settings (master code = 1234,

service code = 9999, all user codes are erased) and it will also enroll connected keypads to the control unit.

output control

PANIC mode

factory setting:

MC 1234

UC1-UC9 deleted

Code setting

setting deleting

save and exit

MC master code

UC1-UC9 user codes

operating

mode

Parameters setting

Output N.1 mode

Output N.2 mode

Panic mode

Number of attempts

Tamper output reaction

New Service Code

values default

00- latch

xx- pulse (01-99 sec)

0=off, 1=on

1-9 or 0=unlimited

must be entered 2x

Note: Although this product does not contain any harmful materials we suggest you to return the product to

the dealer or directly to the producer after usage.

KB-350M Digital Access Keypad

The KB-350M access control keypad can operate electric devices such as door locks, gates, or security

systems. It consists of two parts - a keypad and a control unit. Both parts are connected by a two-core

cable. One or two keypads can be wired to each control unit (e.g. they can be installed on both sides of a

single door). While one keypad is being accessed, the second keypad is temporarily bypassed.

A separated control unit insures maximum security. The communication in the cable from the keypad to

the control unit is encrypted with a sophisticated floating code protocol. This ensures that there is no other

way to operate the device than by entering a valid access code.

The keypad itself is made of a solid alloy and it is suitable for vandal proof applications.

Specifications

Power 10 – 16 V AC or DC, 60mA no relay on, 120 mA both relays on

Keypad connecting cable 2 core cable, max. 100 m, arbitrary polarity

Output relay (output 1) over-switching contact 1 A / 60 V

Transistor output (output 2) switches to GND – max. current 1.5 A / 25 V

Tamper output max. 100 mA / 25 V (control unit, keypad and cable tamper protection)

Power output rectified voltage from PWR input terminals - max. 1.2 A for max. 5 sec

Access codes 4, 5 or 6 digits, 1 master + 9 user codes (each code can be addressed to output 1

or 2)

Output modes programmable duration of pulse (from 1 to 99 sec.) or latch mode

Number of attempts programmable

Security grade 3 midle to high risk (EN 50131-1)

Keypad working environment outdoor use (class III), -25 °C to 50 °C (EN 50131-1)

Enclosure IP52 (EN 60529), mech. resistance IK08 (EN 50102)

Control unit working envir. indoor – general (class II), -10 °C to +40 °C (EN 50131-1)

Complies with the essential requirements of: 89/336/EC EMC Directive - Protection concerning electromagnetic

compatibility when is used for its intended purpose. Original of the conformity assessment can be found

at the web page www.jablotron.cz, section Technical support.

Installation

Keypad can be installed on a standard electro installation box (screw spacing - 60 mm).

• remove front panel - use the provided tool to unscrew the 4 screws

• connect the keypad’s terminals with the control unit’s BUS terminals using two wires (twisted pair) (e.g.

SYKFY cable), max. distance – 100 m, arbitrary polarity

• up to 2 keypads can be wired in parallel, the total length of all cables should not exceed 100 m

• reattach the keypad after powering and testing (see bellow)

Note, if you change or add a keypad, you must reset the control unit!

Control unit can be installed directly on a wall or on an installation box. Terminal descriptions follow:

C, NC, NO over-switching relay contact (output N.1), max. 1 A / 60 V, (C=common, NC=normally closed,

NO=normally opened)

TMP, TMP NC tamper output, max. 0.1 A / 25 V; opens when a control unit is opened, if any keypad is

lost, if the connecting cable is cut or shortened or if a pre-programmed number of attempts to

enter the correct code is exceeded or if a panic sequence is entered (programmable)

OUT transistor output (output N.2), max. 1.5 A / 25 V. It switches to GND when activated.

+E rectified power voltage (from PWR input terminals). It can be used for the powering of an

electric door lock etc. Maximum permanent load is 0.25 A, short period load (max. 5 sec.) -

can be 1.2 A (for electric strike release). Note that a corresponding power supply must be

used to power the unit (RWR terminals).

GND ground terminal of internal power supply

BUS, BUS bus line terminals for keypad connection. Up to 2 keypads can be connected in parallel. Twist

pair (e.g. SYKFY) is recommended, max. length – 100 m. Polarity is arbitrary. The bus is used

for both powering the keypads and for data transfer (a highly secure floating code is used).

Note, if you change keypads, you must reset the control unit.

Klávesnice KB-350 Antivandal 2 / 4 MEV51303 Klávesnice KB-350 Antivandal 3 / 4 MEV51303

PWR, PWR power supply input (10 - 16 V AC or DC). Adapter

DE20-15 or backup power supply BP-12 are

recommended.

LED indicators on the control unit:

green output relay is triggered (output N.1)

red output transistor is triggered (output N.2)

yellow tamper is triggered (TMP)

LED indicators on the keypad:

green output relay is triggered (output N.1)

red output transistor is triggered (output N.2)

yellow both output N.1 and N.2 are triggered

green flashing programming mode

red flashing keypad is bypassed (the other one is being

used or a number of attempts to enter the

code was exceeded)

First powering

Connect the RESET jumper in the control unit and switch on the power supply. After 5 seconds, disconnect

the jumper. This procedure will enroll all of the keypads into the control unit. Test the keypads by entering the

factory default code 1234. If everything is operating correctly, the green LED on the keypad should switch on.

Leave the RESET jumper disconnected.

Access codes setting

10 different access codes can be used. One code is a master code which can operate the keypad as well

as set the other user codes. The factory default master code is 1234, the other user codes are blank. All

access codes can have 4,5 or 6 digits and a corresponding output (N.1 or N.2) can be assigned to each

code.

Enter: ∗

∗

∗ ∗ 5 master code (default 1234) first. The green LED will start flashing (programming mode).

• Master code setting:

0 xx...x xx...x

∗

∗∗ ∗

∗

∗∗ y

where xx...x is a new code (4 to 6 digits), after pressing ∗ it is necessary to reenter the new code

y enter 1 or 2 to assign a corresponding output

• User codes setting:

A xx...x ∗

∗

∗∗ y

where A is a user code number (from 1 to 9)

xx...x is a new user code (4, 5 or 6 digits)

y enter 1 or 2 to assign a corresponding output

• User code deleting:

A ∗

∗

∗∗ where A is a code number (1 to 9)

To exit the code setting mode press the ∗

∗

∗ ∗ key. If you press the # key, none of the codes entered in the

current session will be stored in the memory.

Optional parameters setting

Enter: ∗

∗

∗∗ 6 service code (default 9999) in order to enter the parameters programming mode. The green

LED will start flashing.

• Working mode of output N.1 (relay):

1 xx

where xx is a period of time during which the relay is switched on (01 – 99 sec.). If 00 is entered, then the

output N.1 will be set to a latch mode (it changes its status whenever a valid assigned code is entered)

• Operating mode of output N.2 (transistor):

2 xx

where xx is a period of time during which the relay is switched on (01 – 99 sec.). If 00 is selected, then the

output N.2 will be set to a latch mode (it changes its status whenever a valid assigned code is entered)

• ∗ Panic (access under duress 7 is pressed before a valid code):

3 x

where x can be 0 = off, 1 = on (if ∗ 7 is pressed before a valid code, the TMP output is triggered for 3

seconds simultaneously with the associated output reaction)

• Number of attempts to enter an access code:

4 x

where x is the maximum number of attempts (0 = no check). If this number is exceeded, the keypad is

blocked for two minutes (can be overridden with a repeated entry of a valid code). The TMP output can

also be triggered (see following setting).

• TMP output reaction if a number of attempts to enter a code has been exceeded:

5 x

where x can be 0 = no reaction, 1 = triggered for 3 sec.

• New service code setting:

6 xx...x ∗

∗

∗∗ xx...x ∗

∗

∗∗

where xx...x is a new service code (4, 5 or 6 digits), code must be repeated after pressing ∗

∗

∗∗

To exit the programming mode press the ∗

∗

∗ ∗ key.

If you press the # key, programming will not be stored.

DE20-15 adapter

230V/50Hz

Bus line length- max. 100 m

electric strike

(Z8-12V) electric strike

(Z8-12V)

tamper

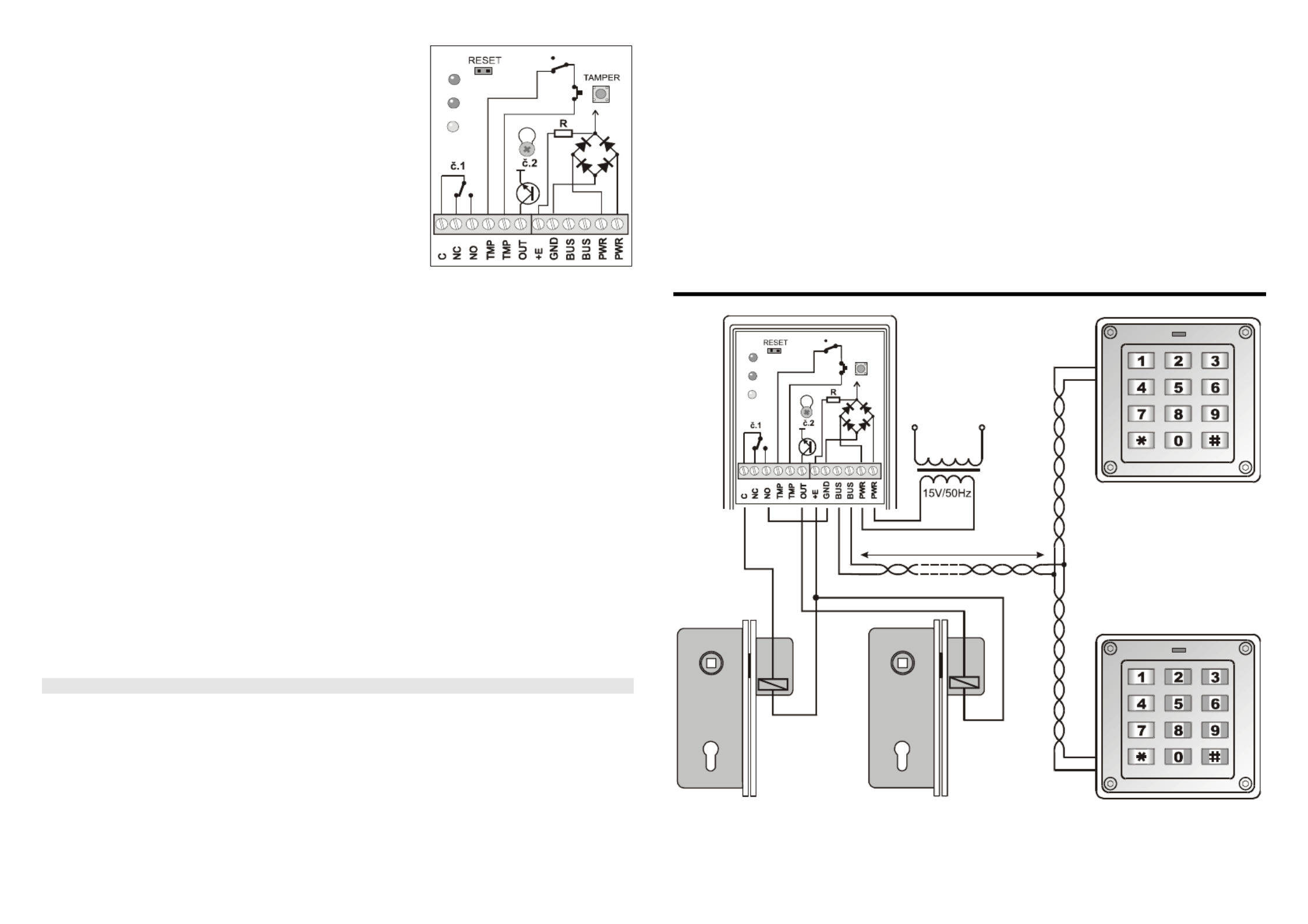

Example two doors access control. AC or DC power supply may be used. Pulse length on outputs N.1 and

N.2 should be set to 1 – 5 sec. (depending on the type of electric lock). Garage gates, parking bars etc.

can be controlled in a similar way.
