Rotary satellite insert 3-wire

Rotary satellite insert 3-wireRotary satellite insert 3-wire

Art. no.: 1733DNE

Operating instructions

Operating instructionsOperating instructions

11 Safety instructions

Safety instructions

Safety instructionsSafety instructions

Electrical devices may only be mounted and connected by electrically skilled persons.

Electrical devices may only be mounted and connected by electrically skilled persons.Electrical devices may only be mounted and connected by electrically skilled persons.

Serious injuries, fire or property damage possible. Please read and follow manual fully.

Serious injuries, fire or property damage possible. Please read and follow manual fully.Serious injuries, fire or property damage possible. Please read and follow manual fully.

Danger of electric shock. Always disconnect before carrying out work on the devise or load.

Danger of electric shock. Always disconnect before carrying out work on the devise or load.Danger of electric shock. Always disconnect before carrying out work on the devise or load.

These instructions are an integral part of the product, and must remain with the end customer.

These instructions are an integral part of the product, and must remain with the end customer.These instructions are an integral part of the product, and must remain with the end customer.

22 Intended use

Intended use

Intended useIntended use

– Extension operation of a dimmer with extension input

– Mounting in appliance box according to DIN 49073

– Operation with suitable cover

33 Operation

Operation

OperationOperation

Settings at the dimmer, which are made during commissioning, are only possible at the

main unit.

Switching light or adjusting brightness

Switching light or adjusting brightnessSwitching light or adjusting brightness

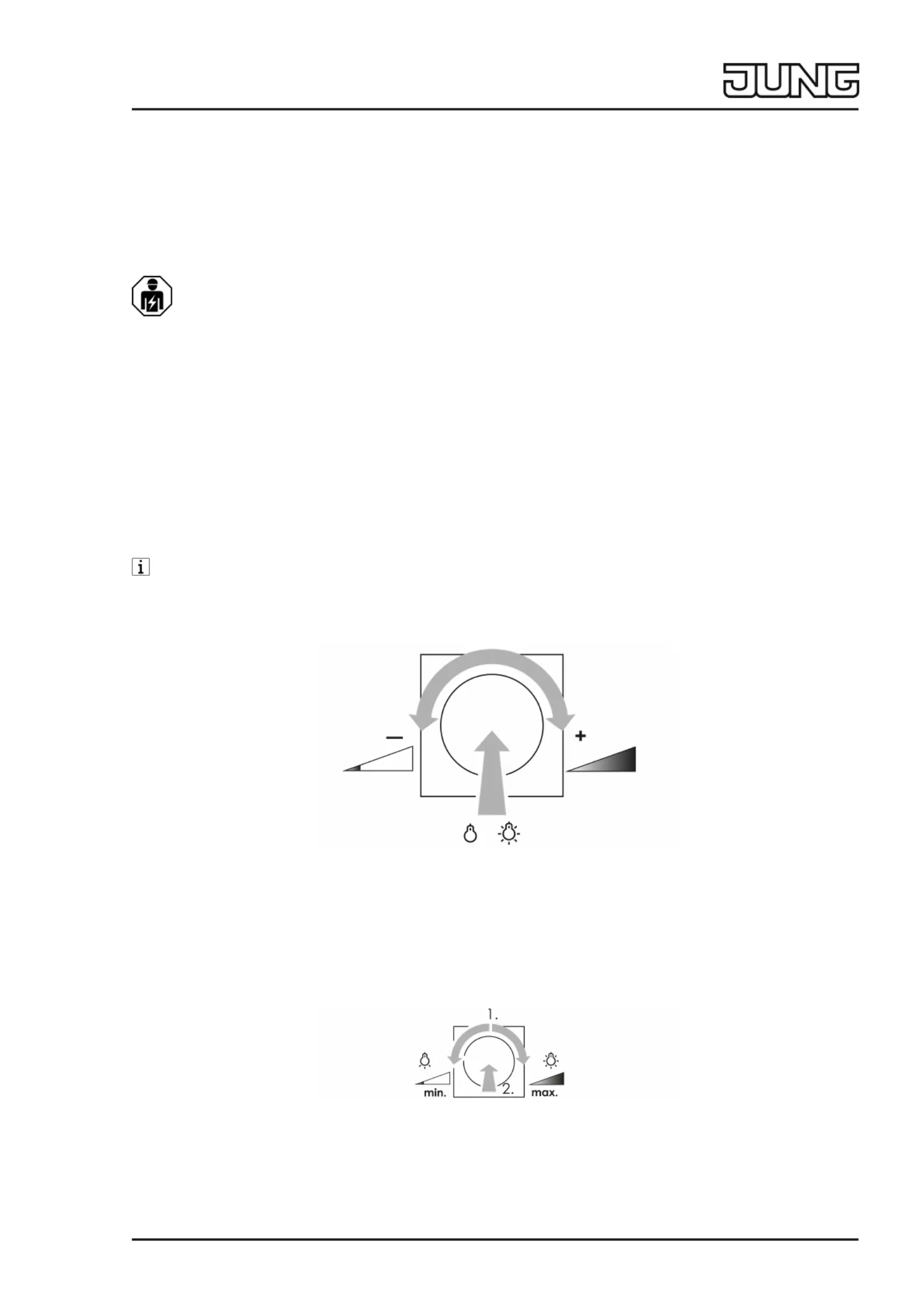

Figure1: Switching light or adjusting brightness

￭ Press the setting knob briefly: Light switches on or off (Figure 1).

￭ Turn the setting knob quickly: Brightness is changed quickly (Figure 1).

￭ Turn the setting knob slowly: Brightness is changed slowly (Figure 1).

Switching the light on at minimum or maximum brightness

Switching the light on at minimum or maximum brightnessSwitching the light on at minimum or maximum brightness

Figure2: Switching on the light at minimum or maximum brightness

￭ Turn the setting knob by a quarter turn, then press the setting knob briefly: Light switches

on at minimum brightness or maximum brightness (Figure 2).

Save switch-on brightness

Save switch-on brightnessSave switch-on brightness

￭ Adjust the brightness.

1 / 4

82598813 23.11.2018

J0082598813

LB management

LB managementLB management

Rotary satellite insert 3-wire

￭ Press the setting knob for longer than 4 seconds.

Switch-on brightness is saved. For confirmation the lighting switches off briefly and then

on again to the saved switch-on brightness.

Delete switch-on brightness

Delete switch-on brightnessDelete switch-on brightness

￭ Press the setting knob briefly: Light switches on at switch-on brightness.

￭ Press the setting knob for longer than 4 seconds.

The switch-on brightness is deleted. For confirmation, the light is switched off briefly and

switched on again. Switching on takes place at the last brightness value set.

44 Information for electrically skilled persons

Information for electrically skilled persons

Information for electrically skilled personsInformation for electrically skilled persons

4.1

4.14.1 Fitting and electrical connection

Fitting and electrical connection

Fitting and electrical connectionFitting and electrical connection

DANGER!

Mortal danger of electric shock.

Mortal danger of electric shock.Mortal danger of electric shock.

Disconnect the device. Cover up live parts.

Disconnect the device. Cover up live parts.Disconnect the device. Cover up live parts.

Fitting and electrical connection

Fitting and electrical connectionFitting and electrical connection

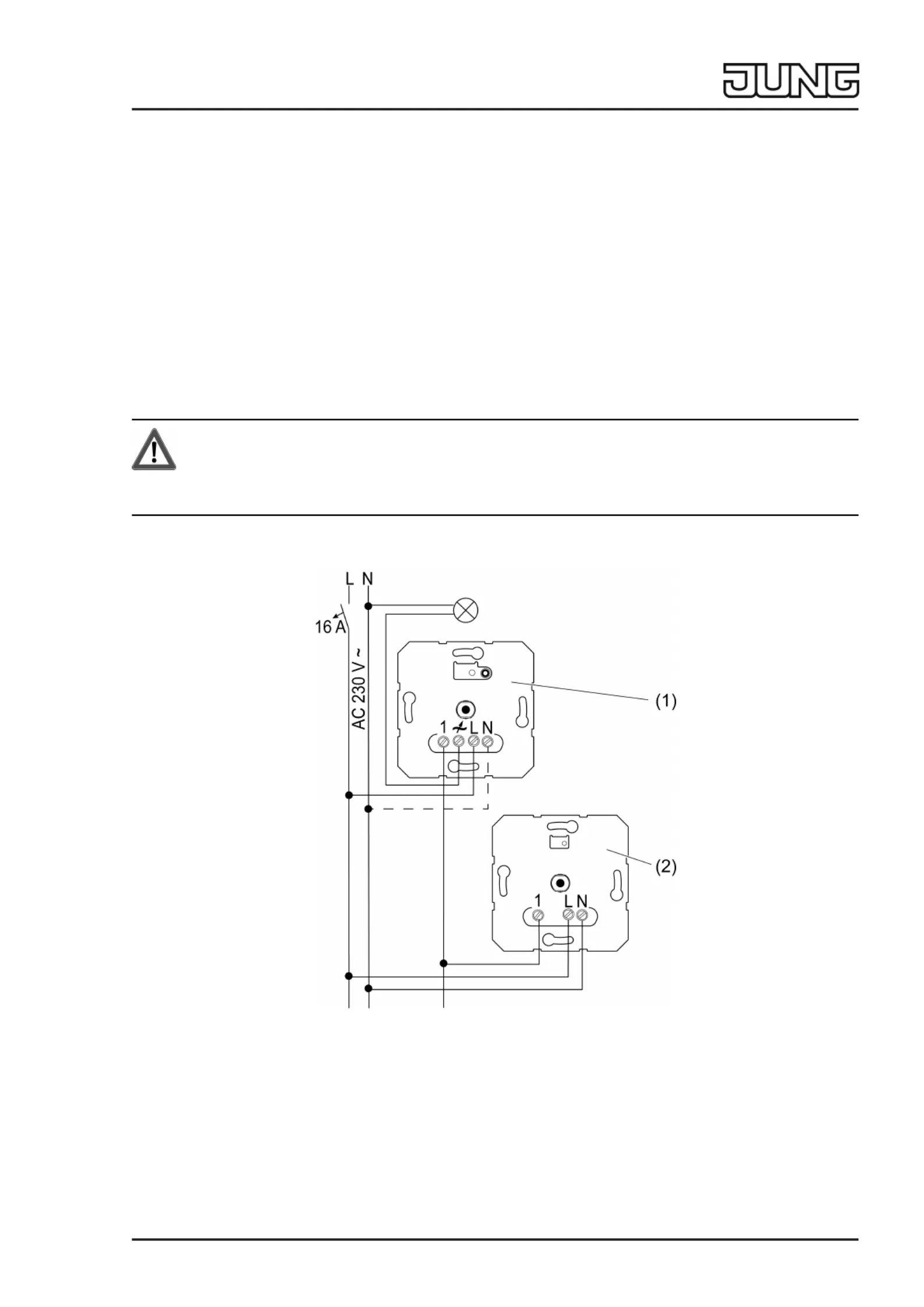

Figure3: Connection example with rotary dimmer

2 / 4

82598813 23.11.2018

J0082598813
