Side 1/11
Switch actuator / blinds actuator
Switch actuator, 4-gang / blinds actuator, 2-gang
Art. No. 2304.16 REG HE
Switch actuator, 8-gang / blinds actuator, 4-gang
Art. No. 2308.16 REG HE
Switch actuator, 16-gang / blinds actuator, 8-gang
Art. No. 2316.16 REG HE
Operating instructions
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Failure to observe the instructions may cause damage to the device and result in fire and
Danger of electric shock. Device is not suitable for disconnection from supply voltage.
Danger of electric shock on the SELV or PELV installation. Do not connect any loads for
SELV, PELV, or FELV together.
For parallel connection of several drives to an output it is essential to observe the
corresponding instructions of the manufacturers, and to use a cut-off relay if necessary.
There is otherwise risk of irreparable damage to the drives.
Use only Venetian blind drives with mechanical or electronic limit switches. Check the
limit switches for correct adjustment. Observe the specifications of the motor
manufacturers. Device can be damaged.
Do not connect any three-phase motors. Device can be damaged.
These instructions are an integral part of the product, and must remain with the end
customer.
2 Device components

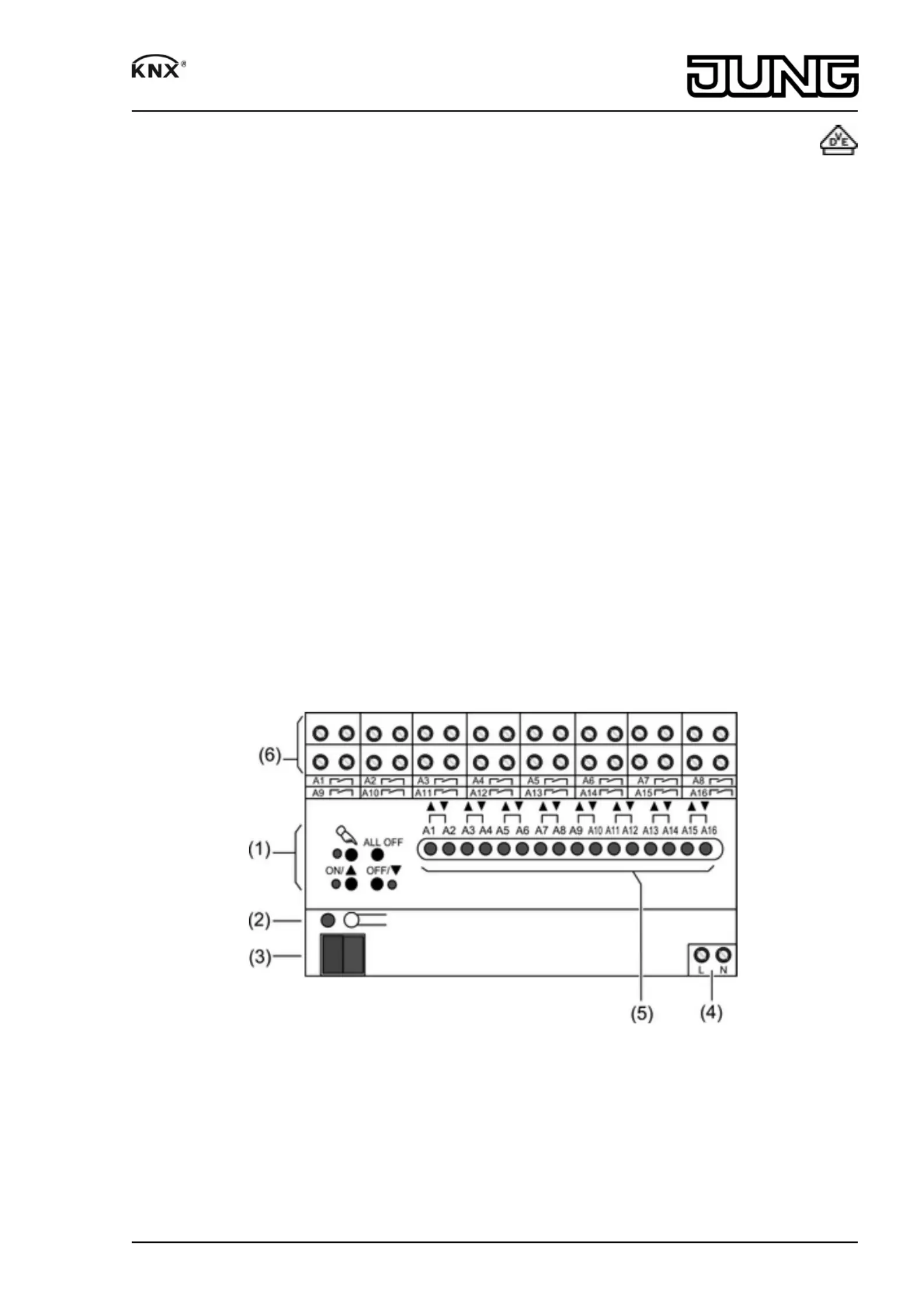

Figure 1
(1) Button field for manual operation
(2) Programming button and LEDs
(3) KNX connection
(4) Connection for mains supply
(5) Status LEDs for outputs
(6) Connection for loads
1/11
82560023
J:0082560023
05.08.2013
3 Function
System information
This device is a product of the KNX system and complies with the KNX directives. Detailed
technical knowledge obtained in KNX training courses is a prerequisite to proper
understanding.
The function of this device depends upon the software. Detailed information on loadable
software and attainable functionality as well as the software itself can be obtained from the
manufacturer´s product database.
Planning, installation and commissioning of the device are carried out with the aid of KNX-
certified software. Full functionality with KNX commissioning software version ETS3.0d
onwards.
An updated version of the product database, technical descriptions and conversion programs
and other auxiliary programs are available on our Internet website.
Intended use
- Switching of AC 230 V electrical loads with floating contacts
- Switching of electrically-driven Venetian blinds, shutters, awnings and similar hangings
- Mounting on DIN rail in small distributors
Product characteristics
- Outputs can be operated manually, construction site mode
- Feedback in manual mode and in bus mode
- Scene function
- Disabling of individual outputs manually or via bus
Characteristics switch operation
- Operation as NO or NC contacts
- Logic and restraint function
- Feedback function
- Central switching function with collective feedback
- Time functions: switch-on delay, switch-off delay, staircase lighting timer with run-on time
Characteristics blinds operation
- Suitable for 230 V AC motors
- Blind/shutter position directly controllable
- Slat position directly controllable
- Feedback of movement status, blind/shutter position and slat position
- Forced position through higher-level controller
- Safety function: 3 independent wind alarms, rain alarm, frost alarm
- Sun protection function
2/11
82560023
J:0082560023
05.08.2013
Switch actuator / blinds actuator
