Side 1/5

C Injection molded anchors

if needed with anchor threaded rod M6 or female thread M6

- WITHOUT Sieve bushing: for solid masonry and concrete

- WITH Sieve bushing: for hallow bricks

- Advantages: Mount without expansion, as such the mount can be used as often as needed, and enables the mount to be close

-to the edge (at least 100 mm distance)

- Please follow the assembly/mounting instructions provided with the products.

The instructions provide directions to all of the important set up and handling steps.

We recommend you keep these instructions for future reference.

SAFETY NOTES

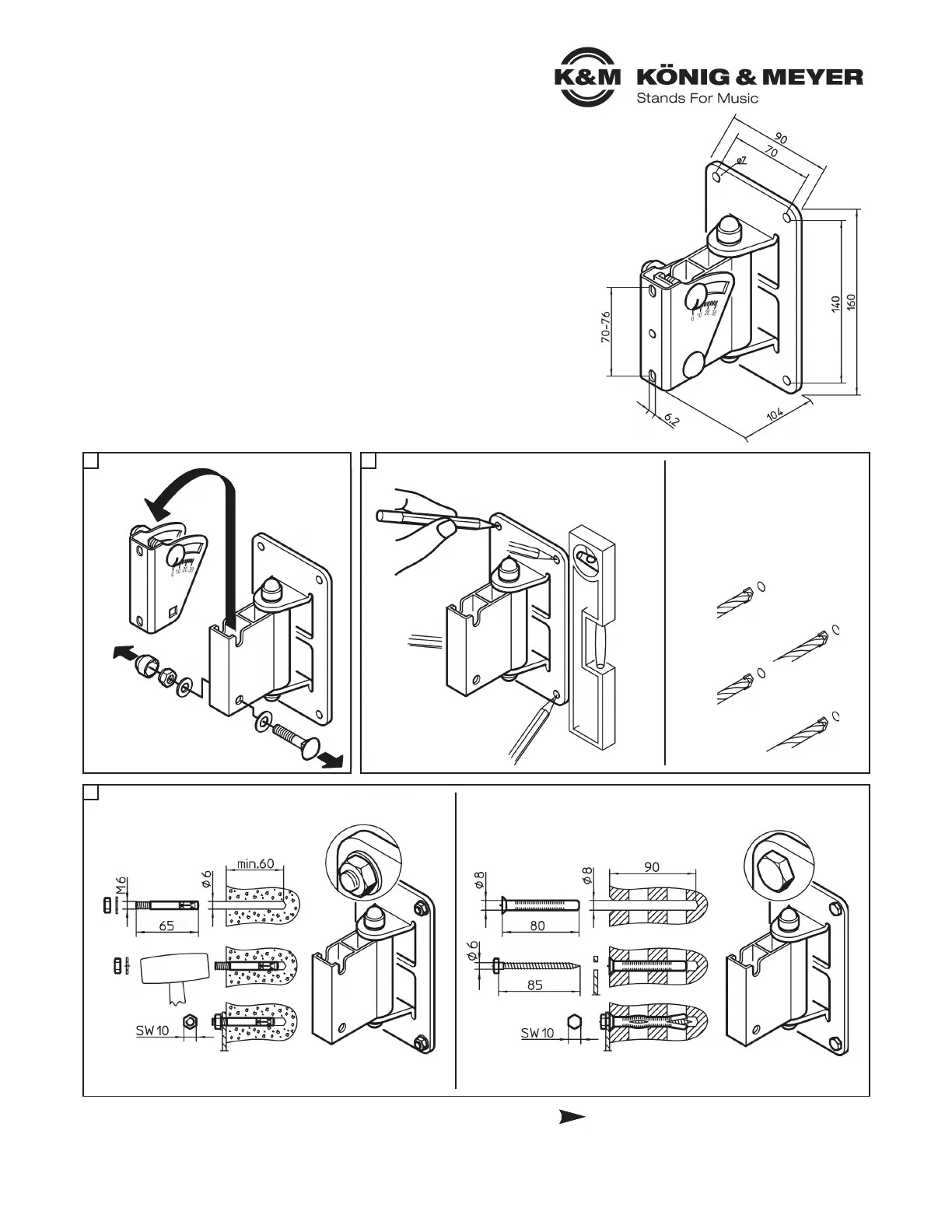

SETUP INSTRUCTIONS - Install wall mount (1-3)

Remove the swivel bracket from the wall mount

KÖNIG & MEYER GmbH & Co. KG

Kiesweg 2a, 97877 Wertheim, www.k-m.de

24471-000-55/57 Rev.04/Rev.05 03-80-841-00 2/16

24471 Speaker wall mount

- Practical and robust wall mount for speakers up to 15 kg

- Variable adjustments both for angle and direction (0-30°)

- Optional: many adapter plates for a variety of loudspeakers

- Load bearing weight max. 15 kg

- Only suitable for indoor use

- In case of damage the product may not be used.

- Only use trained technicians to install the system

- If the product is used at productions and events the Trade Association Regulations (BGV C1) (BGI 810,

-Section 3.2.3) apply. Please observe the attached SAFETY DATA SHEET ASSEMBLY ACCESSORIES

- Use 4 screws/anchors for the ceiling mount under observation of the applicable local mounting

-regulations (they may deviate from the examples presented here).

- Only mount on suitable ceilings with the corresponding assembly materials (not included in the delivery);

-Example see under Section 2. Observe the placement instructions provided by the anchor manufacturer.

- Ceilings that are too weak or have electrical and water conduits are not suitable. In case of doubt

-consult a qualified technician.

- Ensure that the screws are tight and load-bearing, in particular as regards the setting of the loudspeaker angle.

- Careful and attentive handling is required when adjusting the stand - due to the possibility of pinching or

-wedging your hand.

Installation examples: A Concrete Wall - Example: Bolt Anchors M6 x 65 B Perforated bricks - Example: Frame anchors 8 x 80 mm with wood screw 6 x 85 mm

Install the wall mount

1.a

Unscrew the

lower screws

Drill, blow out the drill hole, hammer in the anchor, position plate/mount,

set U disks, tighten nuts

Drill holes, counter sink and blow out drill hole, set the anchor, install the

plate/mount, screw in screws

1.b Remove swivel

bracket from the wall

mount

2.a

Place wall mount in

a vertical position

mark the drill holes

2.b

Drill the anchor holes 4x

- ø 6 mm for bolt anchors

- ø 8 mm frame anchors

- In the event of maintenance pay attention to possible risks (wedging, possibility of being knocked into, ladder?)

- To care for the product use a damp cloth and a non-abrasive cleaning agent

FAULT-FINDING (F) and REPAIR (R)

F: The wall mount/bracket is loose R: Check to ensure the wall is suitable (load bearing)

R: Check the screws 3and tighten/replace

R: (use a qualified technician)

F: The swivel bracket/adapter plate is loose R: Check screws 4.a 5.c, and tighten;

R: Check the loudspeaker case

F: The loudspeaker inadvertently leans forward R: Screw connections (6.a) screws not properly

R: tightened, i.e. tighten screws

CHECK, MAINTENANCE, CLEANING

TECHNICAL DATA / SPECIFICATIONS

Material

Wall plate, swivel bracket: Steel, powder coating, black

Suspension profile: Aluminum, powder coating, black

Screws: Steel, galvanized

Caps, Cushioning: Plastic (PE, PA)

Load Loudspeakers: max. 15 kg

Dimensions W x D x H: 90 x 104 x 160 mm, Box: 110 x 120 x 220 mm

Weight net: 0.9 kg gross: 1.0 kg

MOUNT SPEAKERS - DIRECT without adapter plate

4.a

Screw the speakers to the

swivel bracket.

(Screws not included

with the delivery, due

to the fact that the

required screws differ

according to the

respective loud-

speaker)

4.b Hang swivel bracket (with mounted loudspeaker)

into the wall mount/bracket

4.c

Secure the swivel bracket that

has been hung into the wall

mount. Screw the parts together

with a carriage bolt, U disk and

safety nut.

5.a Adapter plates are needed for the different connection dimensions.

5.a KÖNIG & MEYER offers a wide range of adapter plates:

6.a

Variable adjustment

from 0° to 30°.

Loosen the upper

screws and adjust

the angle

according to the

scale. Tighten the

screws.

6.b

Variable adjustment around the vertical axis.

5.b Screw the appropriate adapter plate using

5.b both safety nuts on the swivel bracket.

SETUP INSTRUCTIONS - wall mount (4-6)Install

MOUNT LOUDSPEAKER - INDIRECT, with optional adapter plate (Article No.: 24352, 24354, 24356, 24357, 24358, 24359)

SETTINGS

5.c Screw the loudspeaker to

5.c the adapter plate

(Screws M6x14 only delivered

with Adapter Plate 6; Not with

Adapter Plates 1-5 due to the

fact that the loudspeakers

require different screws)

5.d Hang the swivel bracket (with mounted

loudspeaker) into

the wall mount.

5.e Secure the swivel support arm

5.e with a lock screw, U disk and

5.e safety nut. Place the cap on

5.e the bolt.

For this use the

previously

loosed screw

(See Section 1.a).

ACCESSORIES;

2x Safety nuts M6 (for Adapter Plates 1-6) >5.b

2x Screws M6x14 + U Disks (only for Adapter Plate 6 - fits GENELEC Ser.8000) >5.c
