Side 1/20
WX
SUBWOOFERAMPLIFIER
SIGNAL MONO-MODULATED CHANNEL
WX10000 1.
©2007 Stillwater Designs
Caution The Kicker WX amplifier outputs extremely high voltage signals
from the voice coil (speaker) outputs and can cause serious injury or death
from electrocution. It is imperative to read the manual carefully and follow all
of the recommended safety precautions before installing the WX amplifier.
English Version
Versión Español
Amplificador con Subwoofer y Modulación de Señal de Vía Única
Manual del Propietario
Deutsche Version
Subwoofer Verstärker Signal Moduliert Mono-Kanal
Benutzerhandbuch
Version Française
Ampli Subwoofer Modulé par Signal Mono Canal
Manuel d'utilisation
Advertencia El amplificador del Kicker WX transfiere señales de voltaje extremadamente
alto de las salidas de la bobina de voz (altavoz) y puede ocasionar heridas de gravedad o
la muerte por electrocución. Antes de instalar el amplificador WX, es imprescindible leer
detenidamente este manual y cumplir con todas las medidas de seguridad que se
recomiendan.
Achtung Der Kicker WX-Verstärker erzeugt äußerst hohe Spannungssignale an den
Ausgängen zu den Schwingspulen (Lautsprechern), was zu ernsthaften Verletzungen oder
Tod durch Stromschlag führen kann. Man muss die Anleitung sorgfältig lesen, um allen
empfohlenen Sicherheitsvorkehrungen vor der Aufstellung des WX-Verstärkers zu folgen.
Attention La bobine mobile (speaker) de l'ampli Kicker WX envoie des signaux de sortie à
voltage extrêmement élevé qui peuvent entraîner des sérieuses blessures ou même la
mort par électrocution.Il est impératif de lire attentivement le manuel et de suivre les
recommandations de sécurité avant d'installer l'ampli WX.
2007 WX 10000-1 4in1 v01.qxp 4/25/2008 1:46 PM Page 1
WX10000.1AMPLIFIER
Authorized Kicker Dealer:
Purchase Date:
Amplifier Model Number:
Amplifier Serial Number:
__________________________
__________________________
__________________________
__________________________
2
WX10000.1
Signal Mono-Modulated Channel
WX.1SeriesAmplifier
Owner’sManual
Congratulations on your
KICKER purchase
Please record your purchase
information and keep your sales
receipt for validation of warranty.

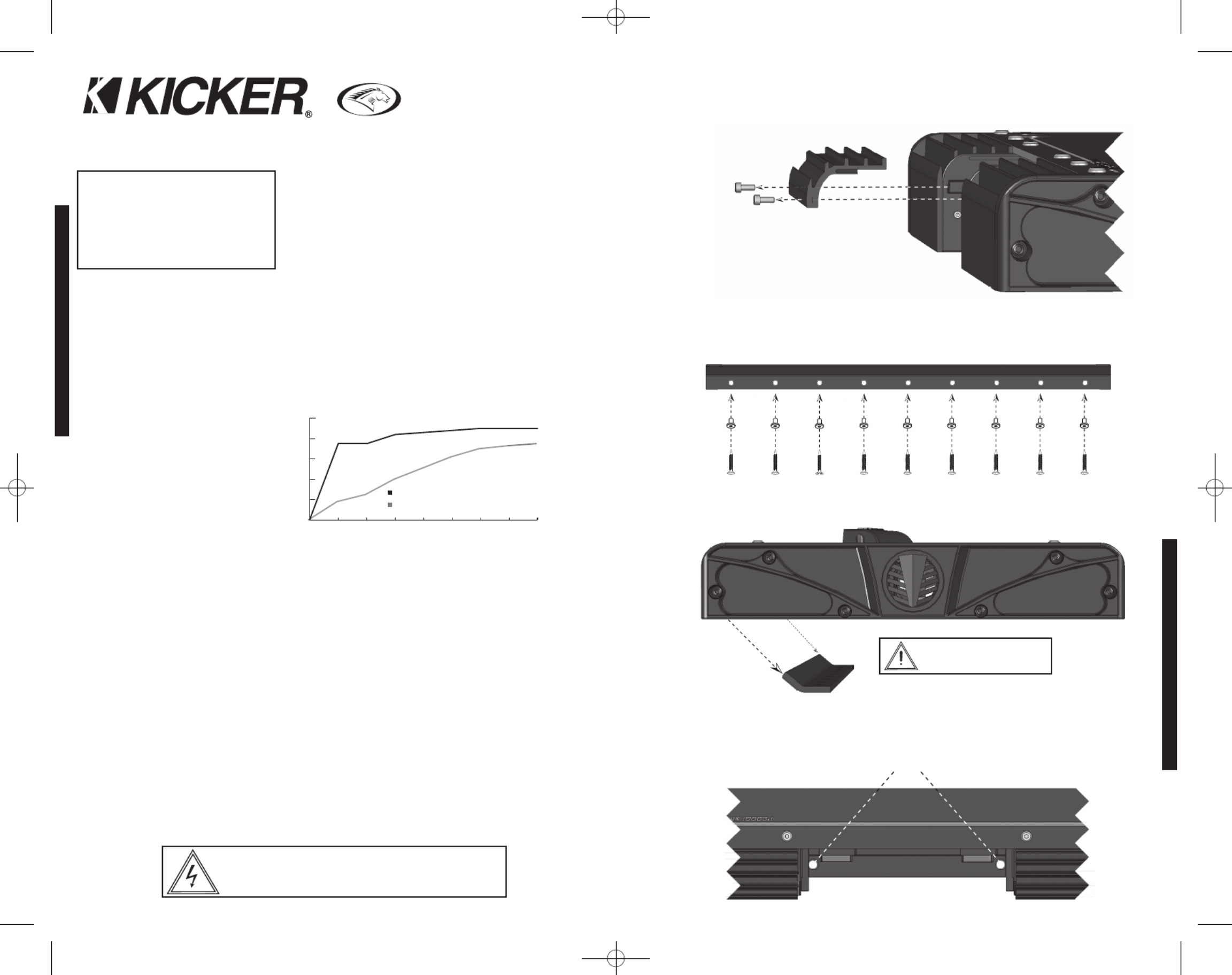

F u ig re 2
Control Panel iel hSd
Mou cknting Bra et
N dine lie (9) Supp
Screw Insulators
N dine lie (9) Supp
#10 (5mm) screws
Mou cknting Bra et
W far rse liho Amp ier
Mounting Holes
Control Panel
(Top View)
3
R h cemove t e two (2) s rews
se ring ntr anelcu ht e co ol p
s t t e ahield o h mp . lifier chassis
R h o h hemove t e contr l panel s ield from t e
a s t e n t emplifier o h mounting les ho o h bottom
p hlate of t e control panel will essi le be a cc b .
B h fefore mounting t e ampli ier, be s t a e s a e t e ure here is d quate p c in h mou ponting sition
t e t e lo tak h contro panel iel an easil hsd on r o off d to y access li ier h t e amp f ’s controls.
Af mpter determining ht e best mounting position for t e a h lifier, u o dse nting ra et as te late ht e mou b ck amp t rill
nine les wit it int riate ati ns tta ra nting (9) ho h a 3/16” (4.8mm) b o t e ah pprop loc o . A ch t eh b cket hto t e mou
l n t e s 0 s t r g t e l e socatio with h nine (9) upplied #1 (5mm) crews inserted h ou h h nine in (9) c ud d crew insulators.
Sli ar rse er nting ra et an insert ntingd he t e W ho ov ht e mou b ck d ht e mou
b h o h h fra etck into t e mounting sl t on t e bo om of tt t e ampli ier.
Loc ddate h t e a itional mounting holes on t e h bottom plate of t eh control panel se nting les as te late. U ht e mou ho amp
to drill tw les singo ho u a t e a r l t e t e l 3/16” (4.8mm) bit into h pp opriate oc cuations. Se re h bottom plate of h contro panel
wit rewsh t eh two (2) #10 (5mm) sc . You are lel osy res relponsible for secu y f youastening li ier in h t e amp f r e i v h cle.
INSTALLATION
INSTALLATION
1.
2.
3.
4.
5.
Th mpe a lifier is ver eay h vy.
A cssistan e ma ey b necessary
t to lif an sitid po o h n t e amplifier.
0
20
40
60
80
100
% YEFFICIENC
KICKER PATENT PENDIN SI NAL MOD G G - ULATED GDESI N
H GH QU Y GI ALIT CLASS D DESI N
PO ER O TP T KW U U ( W)
0.1 0.2 0.5 1 0.2.04.08.0 10
9 %0
75%
The Kicker Warhorse amplifier was specifically designed for competition car audio. Sporting 10,000
RMS watts of pure Kicker power, the ultra-high-efficiency design of the WX amplifier revolutionizes
traditional methods of amplification. While most amplifiers use a power supply combined with an
amplification circuit to amplify the audio signal, the Warhorse skips a step by amplifying the audio
signal directly from its patent pending signal-modulated power supply. The signal-modulated power
supply amplifies each polarity of the audio signal separately through its two voice coil outputs to
optimally drive dual-voice coil subwoofers and provide a competitive edge in SPL contests. From gold
plated power connectors and low profile planar transformers to the latest Texas Instruments DSP
technology, no expense was spared to make the Warhorse the most powerful and efficient mono
amplifier in mobile audio.
Installation . . . 2 as easy as 1, , 3
1.
Mounting
Choose a structurally sound location to mount your Kicker amplifier. The amplifier should
be mounted as close as possible to the battery network and be electrically isolated from the vehicle
ground. The distance from the battery network to the amplifier should not exceed 48” (122cm). It is
important to mount the amplifier before running any wires or supplying power to the amplifier. The
amplifier secures to the vehicle with an insertable mounting bracket used in combination with two
mounting holes located on the bottom plate of the control panel. You are solely responsible for securely
fastening the WX amplifier in your vehicle.
Before mounting the amplifier, the control panel shield must be removed. The control panel should
remain accessible for adjustment, leaving enough room to access the mounting holes and remove or
attach the control panel shield. Make sure there are no items behind the area where the screws will be
driven. Choose a location that allows at least 4” (10cm) of open ventilation for the amplifier. After
choosing the best location, secure the mounting bracket to the vehicle. Use the bracket as a template
to drill nine (9) holes with a 3/16” (4.8mm) bit into the appropriate locations. Attach the bracket to the
mounting location with the nine (9) supplied #10 (5mm) screws inserted through the nine (9) included
screw insulators.
Next, slide the amplifier over the mounting bracket and into the mounting slot. Make sure the mounting
bracket is properly inserted into the mounting slot and locate the two mounting holes on the bottom
plate of the control panel. Use the mounting holes as a template and drill two (2) holes using a 3/16”
(4.8mm) bit into the appropriate locations. Secure the bottom plate of the control panel with the two (2)
#10 (5mm) screws.
Caution The Kicker WX amplifier outputs extremely high voltage signals
from the voice coil (speaker) outputs and can cause serious injury or death
from electrocution. It is imperative to read the manual carefully and follow all
of the recommended safety precautions before installing the WX amplifier.
The patent pen ing signal lated -modu d
d hesign of t e War rse li ier isho amp f ht e
mo fu d st power l an efficient design
a a i 0vailable in ile mob ud o, d rate at 9 %
e i a 2 l aff cien at ll wercy fu po with ohm o d.
The graph compares the War rseho
amplifier’s e i t t ff cien ratingscy o hose of
in stan lass li iersdustry dard C D amp f .
F uig re 1
Model:
SubwooferAmplifier
WX10000.1
2007 WX 10000-1 4in1 v01.qxp 4/25/2008 1:46 PM Page 2
