KDS-17DEC Quick Start
P/N:
2900- 301679QS
Rev:
1
Scan for full manual
This guide helps you install and use your KDS 17DEC- for the first time.
Go to www.kramerav.com/downloads/KDS-17DEC to download the latest user manual and check if
firmware upgrades are available.
Step 1: Check what’s in the box
KDS-17DEC 4K60 4:4:4 AVoIP Decoder
1 Bracket set for each product
1 Quick start guide

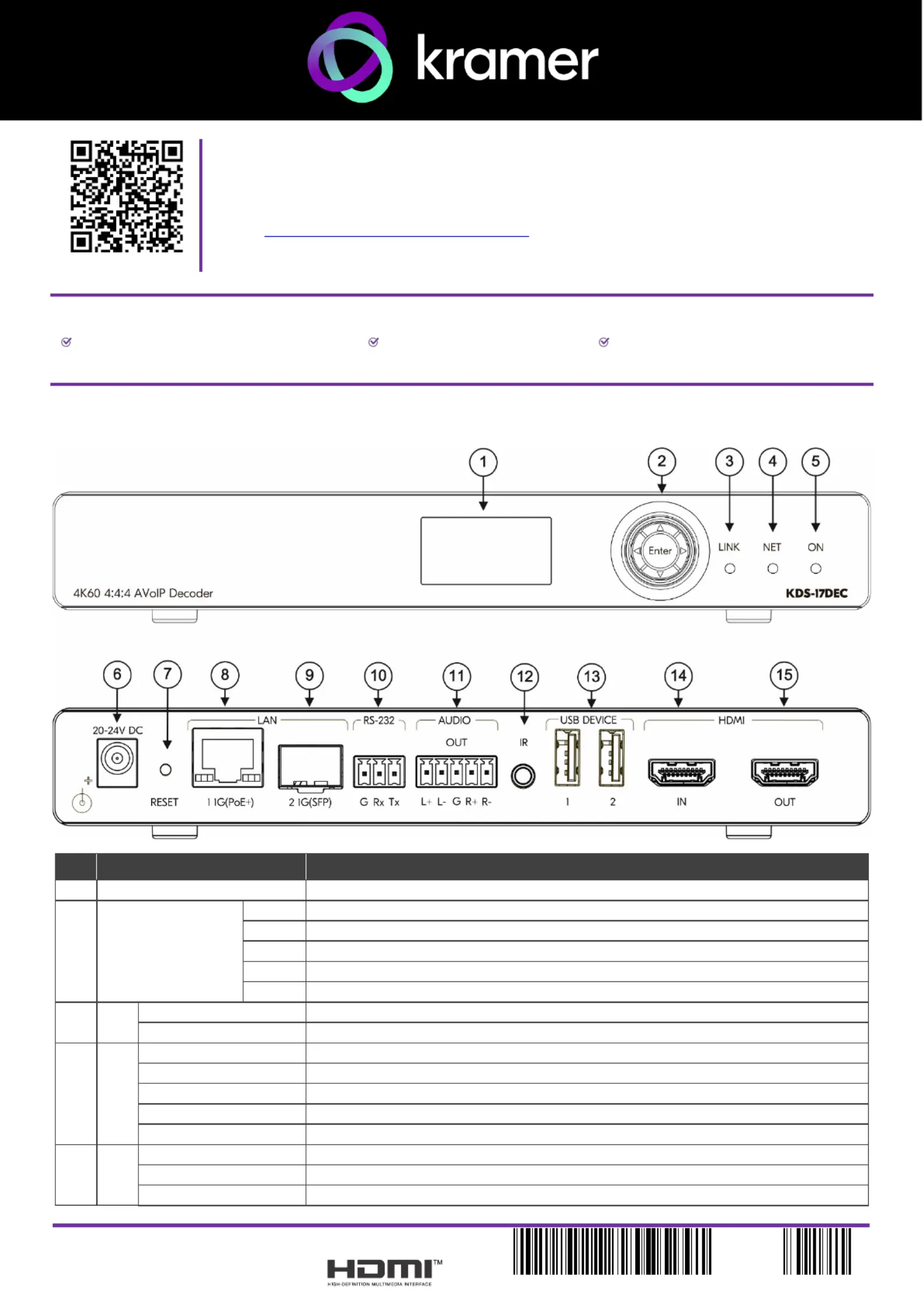

Step 2: - Get to know your KDS 17DEC
# ction Feature Fun
1
LCD Display
Use for device configuration such as unique channel/AV stream setting.
2
Menu Navigation
Button
Press to return to the previous menu.
Press to go to the next menu.
Press to move up to the next configuration parameter.
Press to move down to the next configuration parameter.
Enter
Press to accept changes.
3
LINK
LED
Lights Green
A link is established from KDS- 17DEC to KDS- EN17 and A/V signals are being received.
Flashes Green
A link is established, but no valid AV signal is detected.
4
NET
LED
Off
No IP address is acquired.
Lights Green
A valid IP address has been acquired.
Flashes Green Very Fast
When a device identification command is sent (F ind me), flashes for 60 seconds.
Lights Yellow
No DHCP found, device falls back to IP address in subnet range 192.168.0.0/16.
Lights Red
Security is blocking IP access.
5
ON
LED
Lights Green
Device power is on.
Flashes Green Fast
Firmware is downloaded in the background.
Flashes Green Very Fast
A device identification command is sent (Find me), and flashes for 60 seconds.
# ction Feature Fun
Lights Yellow
Device falls back to the default IP address (192.168.1.40).
Lights Red
Security is blocking IP access.
Flashes Red
On fallback address acquiring, flashes continuously in a slow 0.5/10sec cadence.
6
20 24- V DC Connector
Connect to the optional 20 power adapter-24V DC (purchased separately).
7
RESET Recessed Button
Press and hold for 10 seconds to reset the device to its factory default values. All LEDs
flash.
8
LAN 1: 1G(PoE+)
RJ- 45 Port
Connect to the LAN. KDS-17DEC is powered by PoE+ (power over Ethernet) delivered
through the LAN PoE+ port, unless the optional 20 24V DC power adapter is attached.-
Unicast: C onnected for streaming either directly from the encoder or via LAN.
Multicast: Encoder is connected to multiple decoders.
9
LAN 2: 1G SFP OUT IN
Plug in an SFP (Small Form Factor Pluggable optical or copper transceiver for Ethernet )
traffic over cable.
10
RS- -232 3 pin Terminal Block
Connector
Connect to an RS-232 device to use as a Gateway and bi-directional signal extension
(even when no AV signal is extended).
11
AUDIO OUT 5-pin Terminal
Block Connector
Connect to a balanced analog stereo audio acceptor.
12 IR 3.5 Mini Jack Connect to an IR sensor or emitter for bi directional signal extension (even when no AV -
signal is extended). Expected voltage for IR receiver - ( V). 3.3
13
USB Type A Charging Ports
(1 and 2)
Connect to USB devices, for example, to a speakerphone and webcam.
14
HDMI IN Connector
Connect to an HDMI source.
15
HDMI OUT Connector
Connect to an HDMI acceptor.

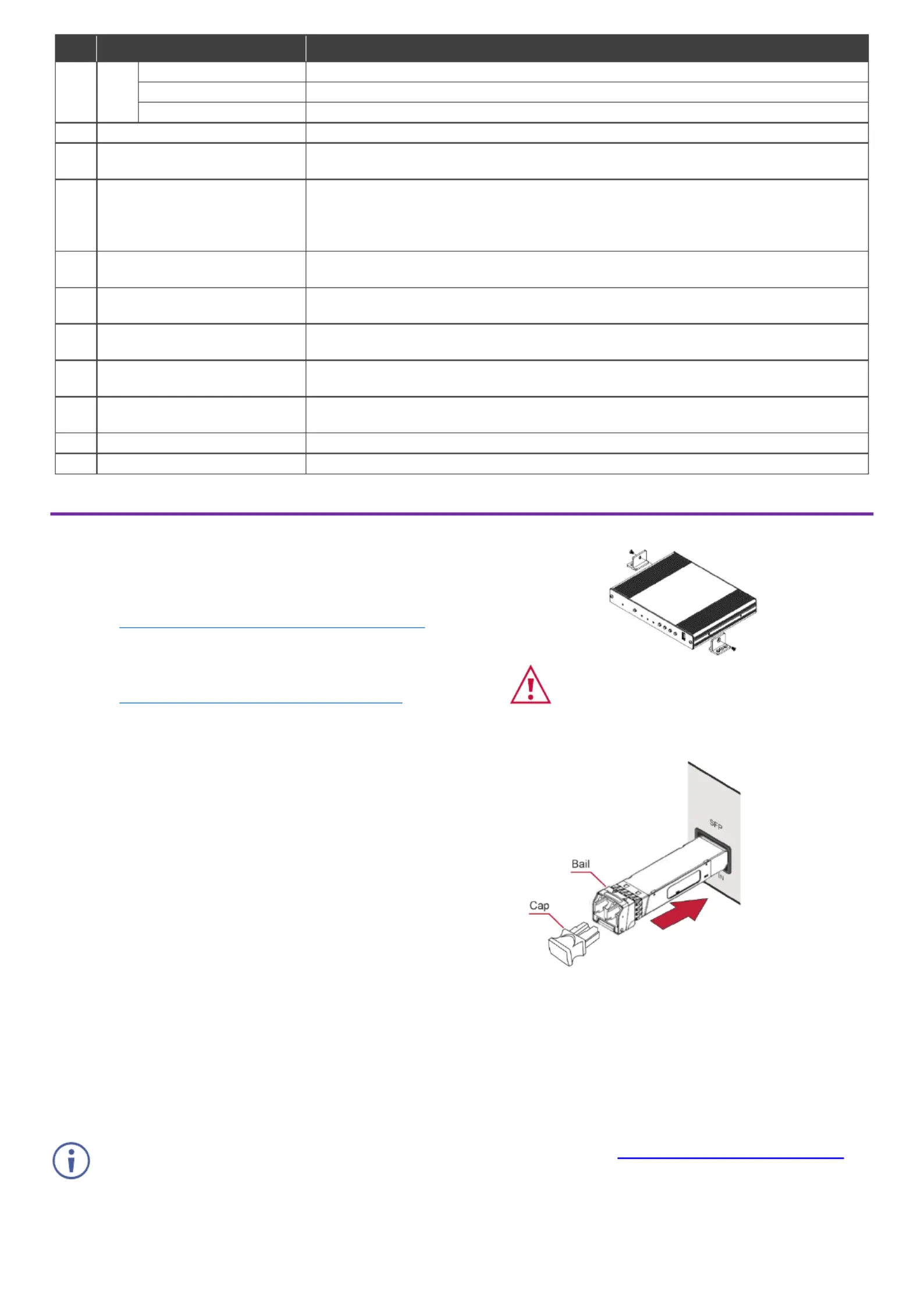

Step 3: -Mount KDS 17DEC
Install
KDS-17DEC
using one of the following methods:
• Attach the rubber and place the unit on a flat surface.feet
• Fasten a bracket (included) on each side of the unit and attach it to a flat surface
(see www.kramerav.com/downloads/KDS-17DEC).
• Mount the unit in a rack using the recommended rack adapter
(see www.kramerav.com/product/KDS-17DEC).
• Ensure that the environment (e.g., maximum ambient temperature &
air flow) is compatible for the device.
• Avoid uneven mechanical loading.
• Appropriate consideration of equipment nameplate ratings should be
used for avoiding overloading of the circuits.
• Reliable earthing of rack-mounted equipment should be maintained.
To install the SFP MM/SFP SM Kramer recommended transceiver
:
1. Pull the bail out and remove the currently installed transceiver,
insert the protective cap and store in a safe place.
2. Make sure the bail of the new transceiver is pushed up, in the
closed position.
3. Insert the new transceiver into the relevant optical device SFP slot
and push it in until it clicks.
4. Remove the protective cap and store it in a safe place for future
use.
Warning: Connecting the SFP connector to an LC(APC) fiber connector
may cause poor performance and damage the connector!
Warning: Class 1 Laser Product
• Invisible laser radiation present.
• -Avoid long term viewing of laser.
• Avoid the use of magnifying viewing aids or instruments (such as binoculars, telescopes, microscopes and
magnifying lenses, but not spectacles or contact lenses).
• Avoid placing optical devices in the emitted beam that could cause the concentration of the laser radiation to
be increased.
To achieve specified extension distances, use the recommended Kramer cables
available at www.kramerav.com/product/KDS 17DEC- .
Using third
- party cables may cause damage!
