4x4 4K HDR HDBaseT Matrix Kit with HDCP 2.2

MXV-0404-H2A-KIT

Quickstart Guide

MXV-0404-H2A-KIT Quickstart Guide | 190219

UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)

support@wyrestorm.com

1 of 4

WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features prior to starting the

installation process.

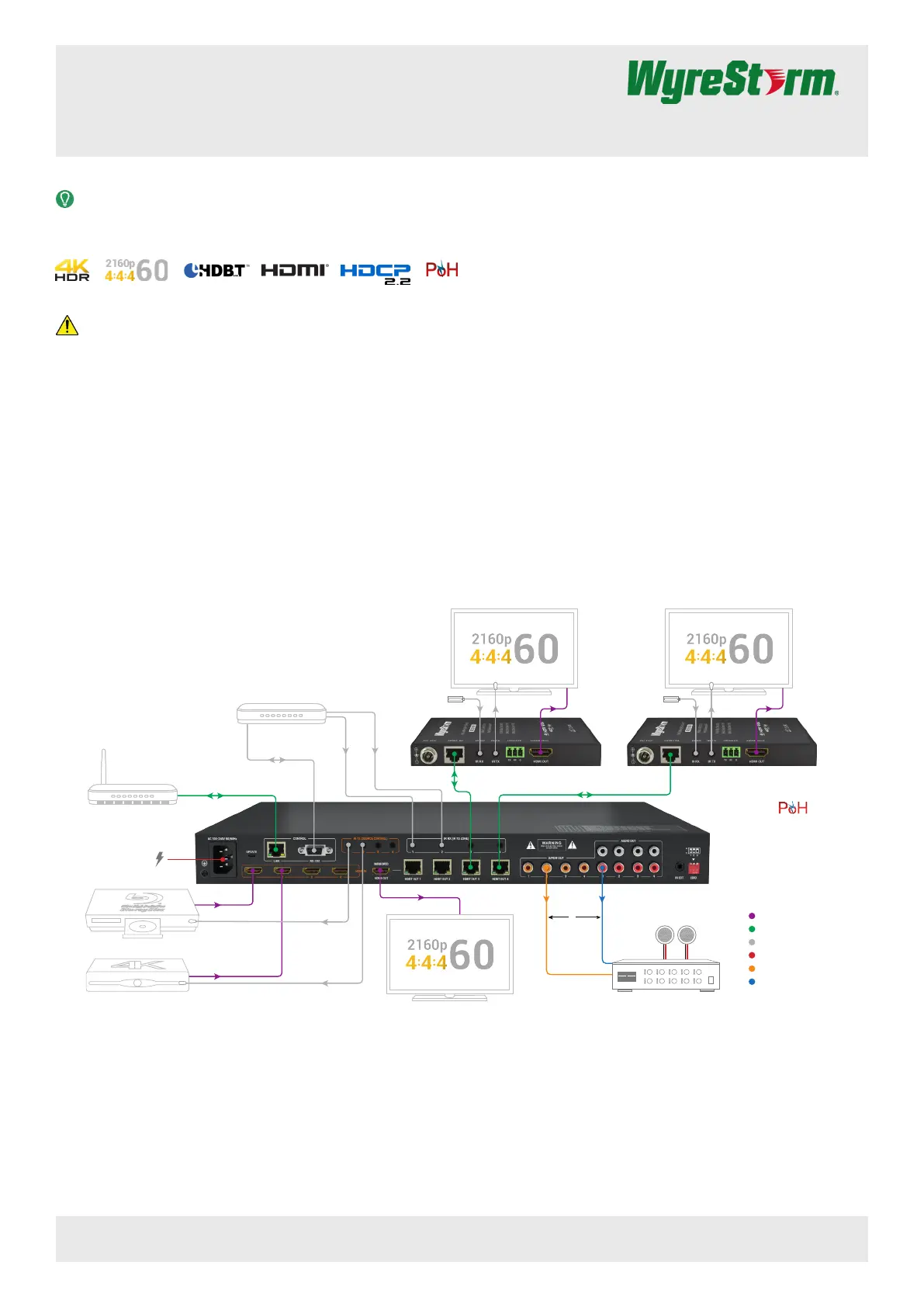

Basic Wiring Diagram

IMPORTANT! Installation Requirements

• Visit the product page to download the latest rmware, document version,

additional documentation, and conguration tools.

• Read through the Wiring and Connections section for important wiring

guidelines before creating or choosing premade cables.

• While this product supports CEC, WyreStorm cannot guarantee

compatibility with all forms of CEC communication.

In the Box

1x MXV-0404-H2A-KIT Matrix

4x MXV-0404-H2A-KIT Receivers

1 x AC Power Cord with EU pins

1 x AC Power Cord with US pins

1 x AC Power Cord with UK pins

1 x AC Power Cord with AU pins

1x IR Remote

4x IR Emitter

4x IR Receiver

1x IR Receiver for Matrix IR Ext.

2x Matrix Mounting Brackets with screws

8x Receiver Mounting Brackets with screws (2 per RX)

1x Quickstart Guide (this document)

HDMI to display

IR TXIR RX

HDMI from source

IR TX

HDMI to display

LAN Cat6a/7

AC Mains

Power

Cat6a/7

Display Mirrored to

HDBaseT Output

Blu-ray Player

Satellite Box

MXV-0404-H2A-KIT (Receiver) MXV-0404-H2A-KIT (Receiver)

Ampliﬁer

Matrix Control Only

IRIR

Control System

CAB-IR-LINK (Sold Separately)

Wireless Router

MXV-0404-H2A-KIT

(Matrix)

Receivers

KEY

HDMI

HDBaseT / Ethernet

Control

Power

Digital Audio

Analog Audio

HDMI to display

IR TXIR RX

MXV-0404-H2A-KIT Quickstart Guide | 190219

UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)

support@wyrestorm.com

2 of 4

Wiring and Connections

WyreStorm recommends that all wiring for the installation is run and terminated prior to making connections to the switcher. Read through this section in it’s

entirety before running or terminating the wires to ensure proper operation and to avoid damaging equipment.

IMPORTANT! Wiring Guidelines

• The use of patch panels, wall plates, cable extenders, kinks in cables, and

electrical or environmental interference will have an adverse effect on

signal transmission which may limit performance. Steps should be taken

to minimize or remove these factors completely during installation for best

results.

• WyreStorm recommends the use of shielded category cable to minimize

signal noise and interference.

• WyreStorm recommends using pre-terminated HDMI cables due to the

complexity of these connector types. Using pre-terminated cables will

ensure that these connections are accurate and will not interfere with the

performance of the product.

IR TX/RX Guidelines

• Using WyreStorm infrared emitters and receivers is the best way to ensure

that most IR coding formats are transmitted and received by the NetworkHD

system. Other 3rd party emitters and receivers can be used; however, these

devices must operate in the same manner as the WyreStorm devices.

• Due to differences in IR across 3rd party control systems their IR ports

should never be connected directly to a NetworkHD system as an

incompatibility may exist. WyreStorm offers a cable that compensates for

voltage differences as well adjusts for differences in the pins used within the

port. Refer to the CAB-IR-LINK product page for more information.

IR TX Port Pinout

Connection for IR TX (transmit) uses a 3.5mm (1/8in) mono plug.

Tip: Anode

Sleeve: Cathode (IR Signal)

IR RX Port Pinout

Connection for IR RX (receive) uses a 3.5mm (1/8in) stereo jack that outputs

+5V DC to power the included IR receiver.

Tip:

Ring: IR Signal

+5V DC

Sleeve: Ground (GND)

Audio Wiring

This matrix contains audio connections for Analog Audio as well as S/PDIF digital.

Analog Audio

Tip: Audio Postive (+)

Shield: Audio Negative (-)

S/PDIF Digital Coax Audio

Tip: Signal (+)

Shield: Ground/Return (-)

RS-232 Wiring

Most control systems and computers are DTE where pin 2 is RX, this can vary from device to device. Refer to the documentation for the connected device for pin

functionally to ensure that the correct connections can be made.

Matrix RS-232 Port

3rd Party Device

Pin 2 TX (Transmit) ---> To ---> RX (Receive)

Pin 3 RX (Receive) ---> To ---> TX (Transmit)

Pin 5 G (Ground) ---> To ---> G (Ground)

WyreStorm Connector

Note: Pins not shown in table have no connection.

Receiver (RX) RS-232 Port

3rd Party Device

Pin 1 TX (Transmit) ---> To ---> RX (Receive)

Pin 2 RX (Receive) ---> To ---> TX (Transmit)

Pin 3 G (Ground) ---> To ---> G (Ground)

WyreStorm Connector

Produkt Specifikationer

Mærke:	WyreStorm
Kategori:	AV forlænger
Model:	MXV-0404-H2A-KIT
Type:	AV sender & modtager
Vekselstrømsindgangsspænding:	100 - 240 V
Vekselstrømsindgangsfrekvens:	50 - 60 Hz
Bredde:	440 mm
Dybde:	300 mm
Højde:	43.5 mm
Vægt:	4060 g
Produktfarve:	Sort
Understøttede videotilstande:	1080p, 2160p
Opbevaringstemperatur (T-T):	-20 - 70 °C
Relativ luftfugtighed ved drift (H-H):	10 - 90 %
Relativ luftfugtighed ved opbevaring (H-H):	10 - 90 %
HDCP:	Ja
Ethernet LAN:	Ja
Driftstemperatur (T-T):	0 - 45 °C
Maksimal opløsning:	4096 x 2160 pixel
Forbindelsesteknologi:	Ledningsført
Lyd-output kanaler:	5.1 kanaler
Strømforbrug (maks.):	85 W
Bæredygtighedscertifikater:	RoHS
Modtager vægt:	240 g
Lydsystem:	Multikanal
Maksimal overførselsafstand:	70 m
Maksimal opdateringshastighed:	60 Hz
HDMI-version:	2.0
HSMI-indgang:	9
RJ-45 indgangs-porte:	4
Antal HDMI-udgange:	4
Modtager dimensioner (BxDxH):	136.4 x 74.2 x 15.2 mm
RS-232 indgangsporte:	2
HDCP-version:	2.2
Fjernbetjening (IR) indgang:	6
Fjernbetjening (IR) udgang:	5
HDBaseT-port:	Ja
Understøttede kabeltyper:	Cat6, Cat6a, Cat7, HDMI
Båndbredde:	9.2 Gbit/sek.
RJ-45 udgangs-porte:	8
HDBaseT certificeret:	Ja
Udvidet display identifikationsdata (EDID):	Ja
Understøtter forbrugerelektronik (CEC):	Ja
Strømforbrug (modtager) (maks):	8 W
