4K HDBaseT™ Low Prole Receiver

with Scaling & Dual Ethernet Ports

RX-70-4K-SCL v1

Quickstart Guide

IMPORTANT! Installation Requirements

• Install the latest rmware to ensure that all features described in this

document are available.

• The following items are required for Setup and Conguration.

o PC or Mac

o Telnet and Terminal software such as PuTTY.

o USB to 3-pin Port Adapter Cable (Included)

o Network router and/or switch for quick conguration after installation

without the need to connect directly.

In the Box

1x RX-70-4K-SCL Scaling Receiver

1x 12V DC 3A Power Supply

1x AC Cable

2x 3-pin Phoenix Connector

1x IR Emitter

1x IR Receiver

1x USB to 3-pin RS-232 Port Adapter Cable

2x Mounting Brackets

1x Quickstart Guide (this document)

Additional Information

Setup and control of the receiver for functions such EDID and audio

volume commands can be found in the RX-70-4K-SCL API. This and other

documentation pertaining to this product can be found in the Downloads Tab

located on the product page at WyreStorm.com.

RX-70-4K-SCL v1 Quickstart Guide | 171107

UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)

support@wyrestorm.com

1 of 4

WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features prior to starting the installation

process.

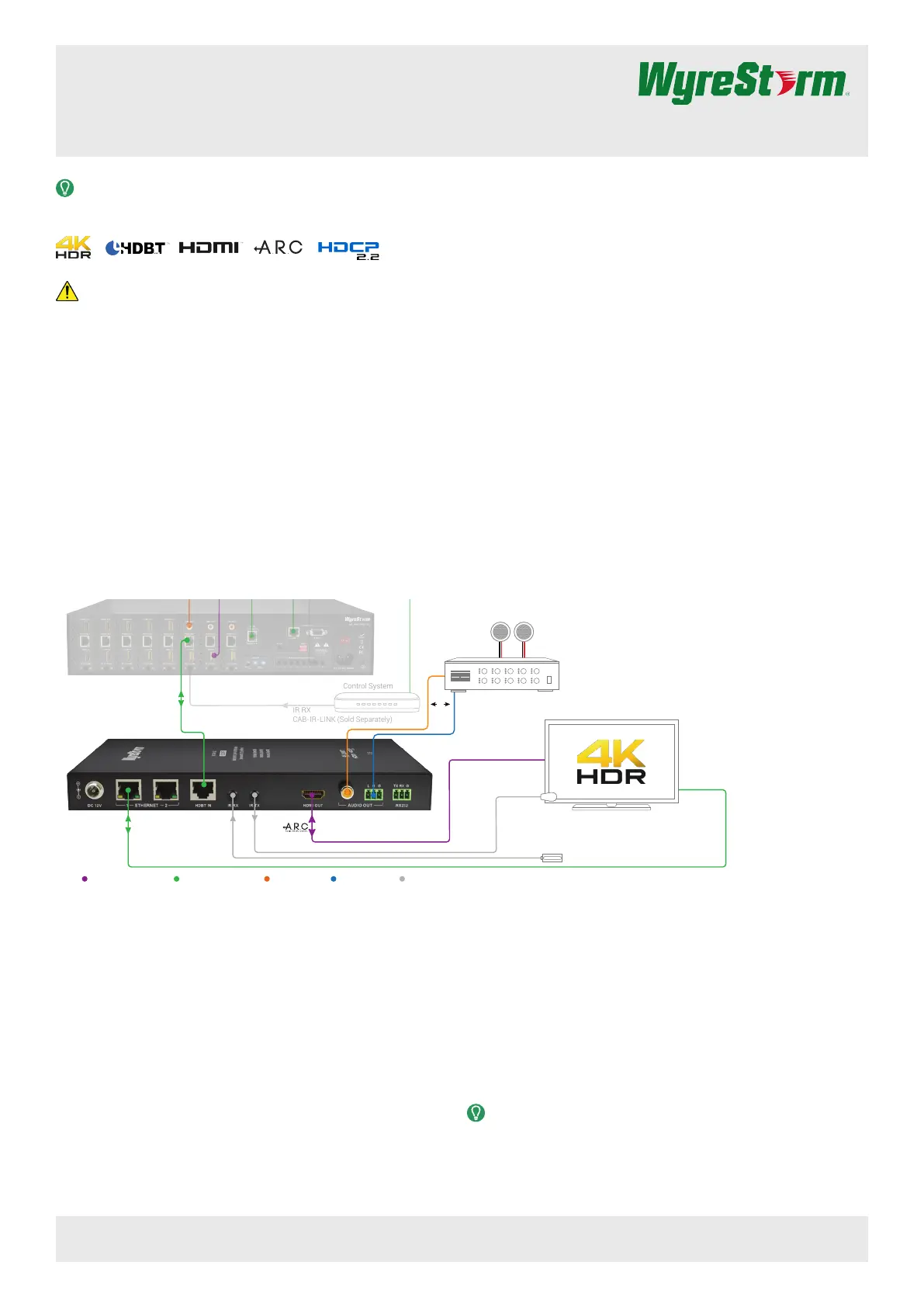

Basic Wiring Diagram

RX-70-4K-SCL

H2 Matrix with ARC

UHD Display

HDMI In

IR Emitter

IR Recei

Ampliﬁer

ver

Ethernet

Cont

rol System

IR RX

CAB-IR-LINK (Sold Separately)

Cont

IRDigital Audio Analog Audio

Key

HDMI/Digital Video HDBaseT/Ethernet

Troubleshooting

No or Poor Quality Picture (snow or noisy image)

• Verify that power is being supplied to all devices in the system and that they

are powered on.

• Verify that all source and HDBaseT connections are not loose and are

functioning properly.

• Verify that the transmitter or matrix, receiving device, and display support

the output resolution congured in the receiver. Refer to Video Resolutions

in the Specications table before determining cable type and length.

• Verify that the receiving device and display support the output resolution of

the source.

• If transmitting 3D or 4K, verify that the HDMI cables used are 3D or 4K rated.

No or Intermittent 3rd party Device Control

• Verify that the IR cable(s) is properly terminated.

See IR RX (Receiver) Wiring.

• Verify that the IR emitter is located near the IR receiver on the device.

• Verify that the connected matrix is connected to a network

switch or router.

• Verify that the RS-232 cable is properly terminated per

the RS-232 Wiring section.

Troubleshooting Tips:

• WyreStorm recommends using a cable tester or connecting the cable to

other devices to verify functionality.

• Use a ashlight to locate the IR sensor behind any tinted panels on the

device being controlled. It will likely appear as a small round disc.

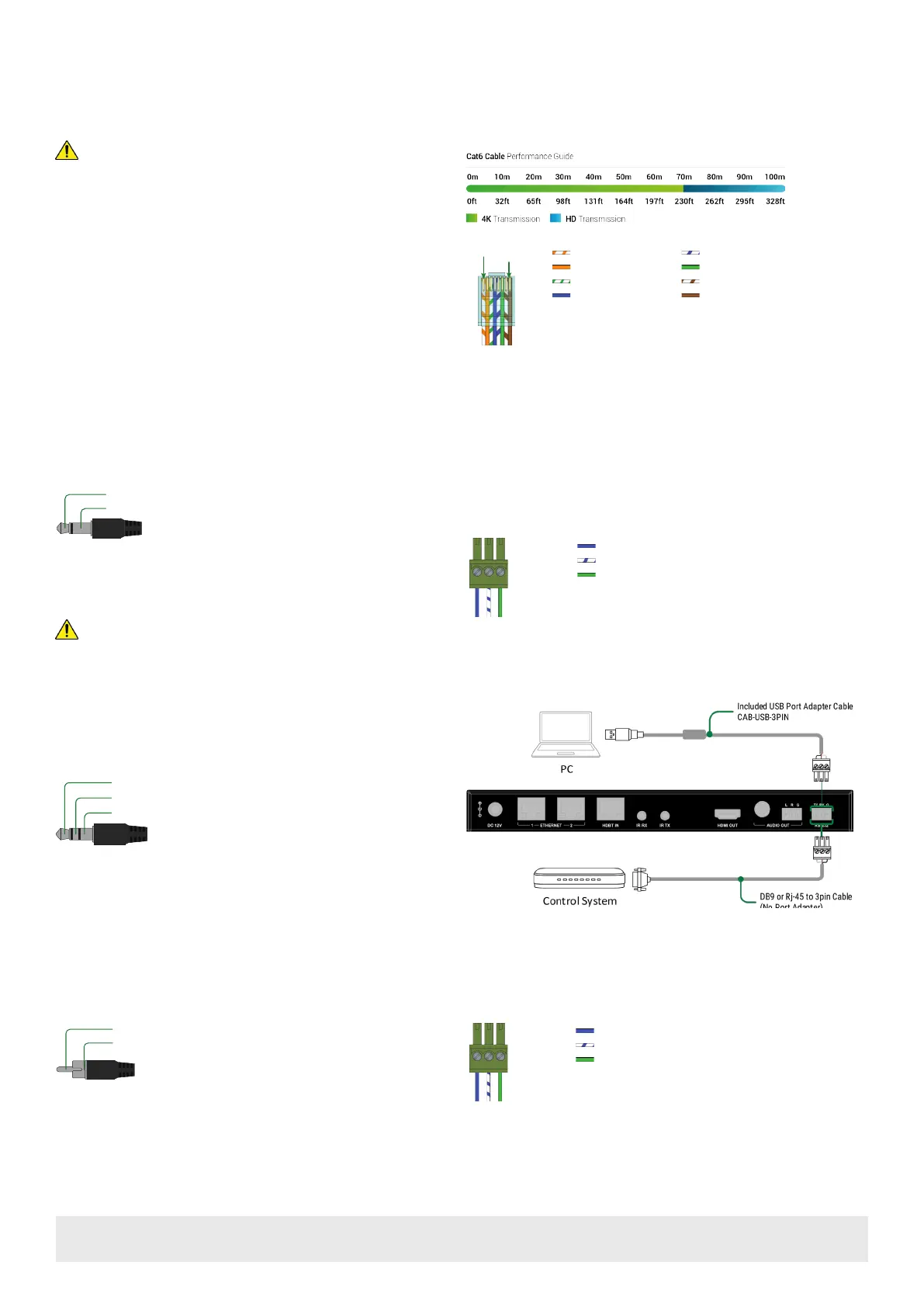

Wiring and Connections

WyreStorm recommends that all wiring for the installation is run and terminated prior to making connections to the switcher. Read through this section in this

entirety before running or terminating the wires to ensure proper operation and to avoid damaging equipment.

HDMI/HDBaseT Wiring

IMPORTANT! HDMI/HDBaseT Wiring Guidelines

• The use of patch panels, wall plates, cable extenders, kinks in cables, and

electrical or environmental interference will have an adverse effect on HDMI

and Ethernet transmission limiting performance. Steps should be taken to

minimize or remove these factors completely during installation for best

results.

• WyreStorm recommends using high quality HDMI cables such as

WyreStorm Express to ensure the highest content performance available.

• The type of category cable used and length can restrict the available video

resolution. While Cat5e can be used, WyreStorm recommends using Cat6

or higher to ensure the highest content performance available. See Video

Resolutions in the Specications table before determining cable type and

length.

Pin 1

Pin 8

Wire colors shown follow EIA/TIA-568B standard.

Pin 1:

Pin 2:

Pin 3:

Pin 4:

Pin 5:

Pin 6:

Pin 7:

Pin 8:

White/Orange

Orange

White/Green

Blue

White/Blue

Green

White/Brown

Brown

Control Wiring

IR TX (Emitter) Wiring

Connection for IR TX (transmit) uses a 3.5mm (1/8in) mono plug.

Tip: Anode/5V

Sleeve: Cathode/IR Signal

IR RX (Receiver) Wiring

Connection for IR RX (receive) uses a 3.5mm (1/8in) stereo jack that outputs

+5V DC to power the included IR receiver.

IMPORTANT! IR TX Connection Guidelines

• 3rd party IR receivers may require a different voltage, refer to the

documentation provided with the IR receiver before making any connections

to avoid damaging the device.

• When connecting to an IR control system use the WyreStorm CAB-IR-LINK

cable. This cable compensates for differences between the WyreStorm RX

and the control systems TX connection.

Visit the CAB-IR-LINK product page for details.

Tip:

Ring: IR Signal

+5V DC

Sleeve: Ground (GND)

RS-232 Wiring

RS-232 Connection Guidelines

Most control systems and computers are DTE where pin 2 is RX, this can vary

from device to device. Refer to the documentation for the connected device for

pin functionality to ensure that the correct connections can be made.

Wire colors shown follow EIA-561 standard.

Pin 1:

Pin 2:

TX (Transmit)

RX (Receive)

Pin 3:

Ground (GND)

1 2 3

Connecting to a PC or Control System

Connection to a PC requires the use of the included USB to 3-pin Port Adapter

cable in order for a port to be provided on the PC.

Audio Wiring

The audio outputs on the receiver can be used to output de-embedded audio from the source to an external amplier in the remote location.

Audio Out

S/PDIF Digital Coax

Tip: Signal (+)

Shield: Ground/Return (-)

Analog Audio 3-pin Phoenix

Pin 1:

Pin 2:

Left Positive (+)

Right Positive (+)

Pin 3: Ground (GND)

Wire colors shown are for pin identiﬁcaiton only and do not

represent any wiring standard.

1 2 3

RX-70-4K-SCL v1 Quickstart Guide | 171107

UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)

support@wyrestorm.com

2 of 4

Produkt Specifikationer

Mærke:	WyreStorm
Kategori:	AV forlænger
Model:	RX-70-4K-SCL
Type:	AV-modtager
Vekselstrømsindgangsspænding:	100 - 240 V
Vekselstrømsindgangsfrekvens:	50 - 60 Hz
Bredde:	234.4 mm
Dybde:	143.5 mm
Højde:	25 mm
Vægt:	660 g
Produktfarve:	Sort
Understøttede videotilstande:	1080p, 2160p
Opbevaringstemperatur (T-T):	-20 - 70 °C
Relativ luftfugtighed ved drift (H-H):	10 - 90 %
Relativ luftfugtighed ved opbevaring (H-H):	10 - 90 %
HDCP:	Ja
Ethernet LAN:	Ja
Driftstemperatur (T-T):	0 - 45 °C
Maksimal opløsning:	4096 x 2160 pixel
Forbindelsesteknologi:	Ledningsført
Lyd-output kanaler:	5.1 kanaler
Strømforbrug (maks.):	7.2 W
Udgangsstrøm:	2 A
Bæredygtighedscertifikater:	RoHS
Driftsspænding:	12 V
Maksimal overførselsafstand:	70 m
Maksimal opdateringshastighed:	60 Hz
Ekstern strømadapter:	Ja
Digital koaksial lydudgang:	1
RJ-45 indgangs-porte:	3
Antal HDMI-udgange:	1
Stativ-montering:	Ja
Lydudgang:	3pin Phoenix
RS-232 indgangsporte:	1
HDCP-version:	2.2
HDBaseT-port:	Ja
Understøttede kabeltyper:	Cat6, Cat6a, Cat7, HDMI
Båndbredde:	9.2 Gbit/sek.
3,5 mm ind:	Ja
HDBaseT certificeret:	Ja
Udvidet display identifikationsdata (EDID):	Ja
Understøtter forbrugerelektronik (CEC):	Ja
