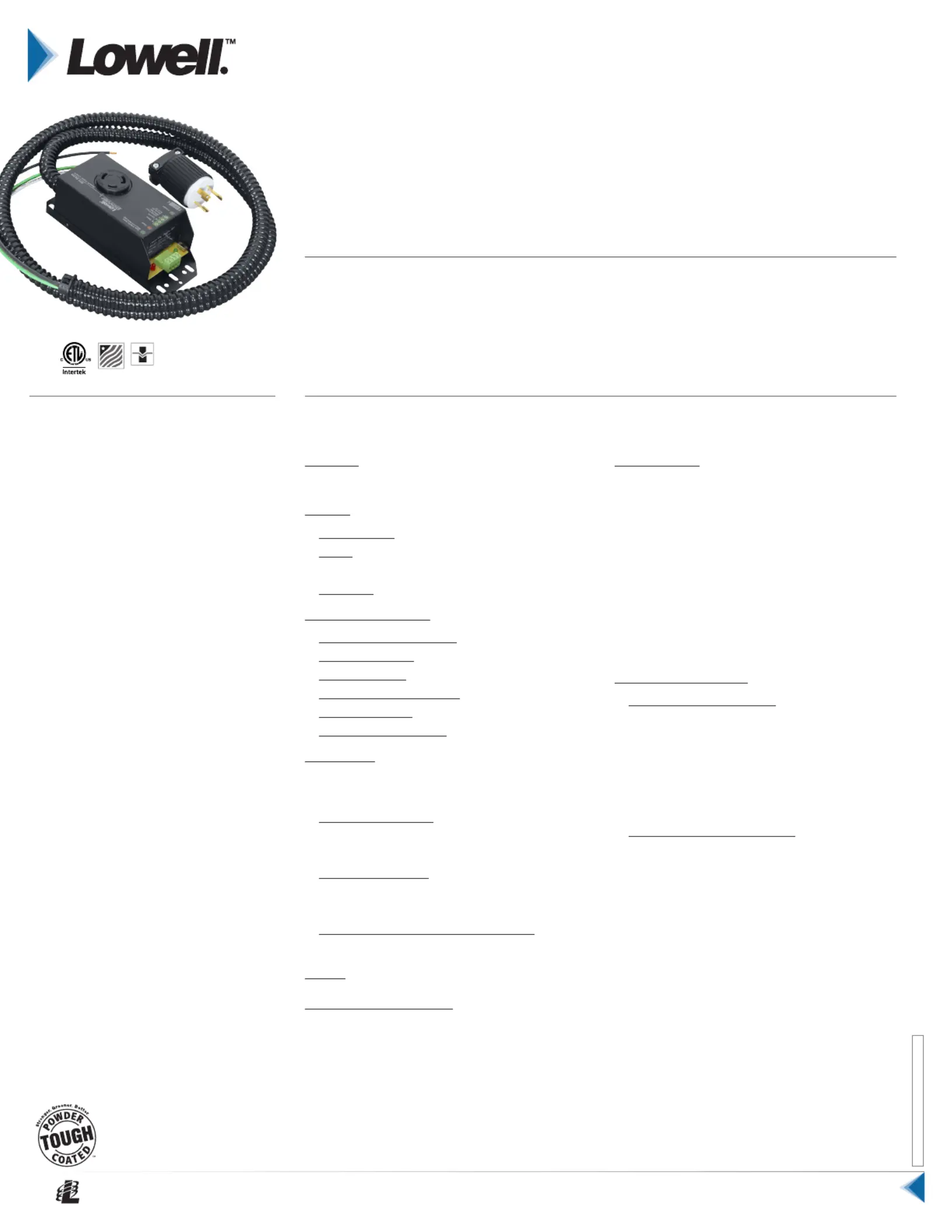

Side 1/2

INTERNAL USE ONLY: PN 24327

Lowell strives to provide accurate information while reserving the right to change specications and/or improve manufacturing methods without prior notication.

Spec 1229

Model RPC-30-SHW | Rev. 1-11-2023 | pg. 1/2

REMOTE POWER CONTROLS can be combined with a variety of switches or sequencers for an intrinsically

safe, low voltage method of controlling AC power to equipment at remote locations. Controlling power

distribution without directly accessing equipment minimizes the potential for unauthorized access, while

simplifying activation and deactivation of equipment.

Note: RPCs require an external trigger for activation (order separately).

Ideal for Lowell switches featuring main-

tained closure (order separately):

RPSB-P Black wall plate w/rocker switch

RPSW-P White wall plate w/rocker switch

RPSW-KP White wall plate w/key switch

RPSB-R Rack panel w/rocker switch

RPSB-KR Rack panel w/key switch

Model No.

RPC-30-SHW

Remote Power Control

actives remote equipment external trigger required—

FEATURES

CHASSIS: Steel chassis (8.00"L x 3.25"W x

2.75"H) with black finish and mounting holes.

POWER:

• Power Rating: 125VAC 60Hz 30A

• Outlet: NEMA L5-30R (includes mating NEMA

L5-30P plug)

• : 1/2" non-metallic exible conduit (6 ft.) Hardwired

SURGE PROTECTION:

• Maximum Surge Current: 20,000A

• VPR (UL 1449-3): 400V

• Response Time: 1 nanosecond

• EMI/RFI Noise Reduction: 20dB@100kHz

• Protection Mode: Line to Neutral

• Ground Contamination: None

ACTIVATION: The RPC must be connected to an

external control for activation and deactivation

(choose one):

• Dry Contact Closure: Connect to SPST switch,

power sequencer, or independent control sys-

tem with dry contact closure.

: Contact Coil Rating

- Voltage: 24VDC

- Current: 37.5mA

• Voltage Trigger (5-24V AC or DC 5mA):

DSP connection.

ORIGIN: Made in the U.S.A. with global components

THIRD PARTY APPROVAL: ETL Listed to

UL60065 (U.S. and Canada)

INSTALLATION: The RPC is typically installed

near the equipment to be controlled. Low voltage

cable is run from its terminal strip to a control

switch (or other control method).

• Systems can be configured with multiple RPCs

controlled by a single "Maintained Closure"

switch or voltage trigger source.

• Systems can also be congured with a single

RPC controlled by multiple "Momentary Closure"

switches and Lowell's MSM2 module (which

converts momentary closure to maintained).

COMPATIBLE DEVICES: (order separately)

• SPST Switch (RPS Series): Low voltage wall-

mount or rack-mount switch:

– Switch with maintained closure con-

nects directly to RPC.

– Switch with momentary closure requires

Lowell conversion module MSM2

placed between the switch and RPC.

• Power Sequencer (SEQ Series): A low volt-

age sequencer can be used with the RPC

for time-delayed activation and deactivation

of connected equipment. Lowell standalone

sequencers will require a switch for activation,

while Lowell rack-mount sequencers include a

switch. See product spec sheets for information.

Certied

US Steel

Made In USA

with Global

Components

A&E SPECIFICATIONS:

The device for remotely controlling AC power shall be Lowell model RPC-30-SHW, which shall feature a

8.00"L x 3.25"W x 2.75"H steel chassis with black powder epoxy finish, 125VAC 60Hz 30A power rating,

NEMA L5-30R outlet, L5-30P plug, 6 ft. non-metallic flexible conduit, and basic surge protection up to

20,000A. The unit shall require an external trigger for activation (not included).

INTERNAL USE ONLY: PN 24327

Lowell strives to provide accurate information while reserving the right to change specications and/or improve manufacturing methods without prior notication.

Spec 1229

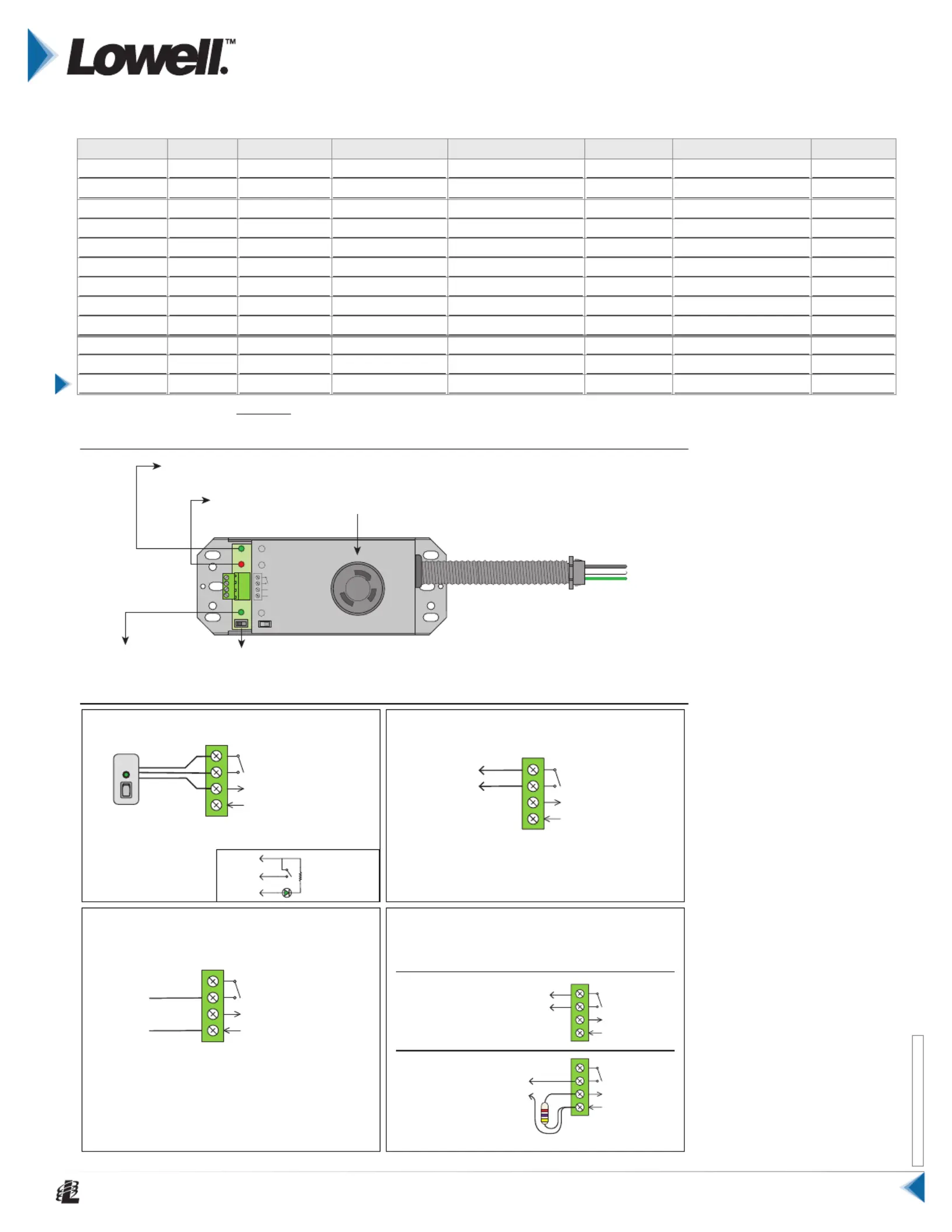

Model RPC-30-SHW | Rev. 1-11-2023 | pg. 2/2

Norm

Test

Activated

Power

Input 5v-24v

AC or DC

+24VDC Out

Common

Switch

Surge Protection Active

When Lit (-S models only)

GREEN LED (surge protection)

ON = protection active

OFF = protection compromised

Connect

equipment

to be controlled

by RPC

1/2” non-metallic

exible conduit (6 ft.)

Snap-in

connector

RED LED (AC power indicator)

ON = power applied to unit

OFF = no power to unit

TEST SWITCH

TEST = AC power applied to outlets (bypassing external controls)

NORM = external control connections enabled

GREEN LED (outlet power indicator)

ON = power applied to outlets

OFF = no power to outlets

RPC DIAGRAM:

10-gauge wire

(THHN)

Connect to

appropriate

125VAC

power source

Line (black)

Neutral (white)

Ground (green)

( + )

( – )

No Conn.

Voltage

Input

RPC TYPICAL CONTROL METHODS

(low voltage, limited current Class 2 wiring):

5V-24V, AC or DC, 5mA

ON = voltage applied

OFF = voltage removed

Switch Schematic

Switch Switch SPST

LED

2.2K 1/2W Resistor Common

+24V Out

No Conn.

Follow polarity indicators, if any, on sequencer/controller

(rating: 24V, 37.5mA)

ON = connection applied (closed)

OFF = connection removed (open)

No Conn.

( + )

Com ( – )

+24VDC Output (250mA max.)

Switch

Common

Trigger Input (5V-24V AC or DC)

+24VDC Out (250mA max.)

Switch

Common

Trigger In (5V-24V AC or DC)

+24VDC Out (250mA max.)

Switch

Common

Trigger In (5V-24V AC or DC)

EXAMPLE 1: SPST switch with MAINTAINED closure.

See Lowell RPS Series models listed on pg. 1.

Lowell

SPST Switch

with MAINTAINED

closure

EXAMPLE 2: Sequencer or Control System.

Lowell SEQ Series sequencer or control system by others.

Sequencer

or Control

System

EXAMPLE 3: Voltage Input.

Voltage input from external control system (by others).

ADD Resistor, 4.7 K 1/2W min.

(not included).

EXAMPLE 4: Fire Alarm Panel Interface.

Application Example: RPC controls power to music/paging system.

A signal from Fire Alarm Panel forces music/paging system OFF

so an alarm can be heard.

Alarm

System

Normally Closed (N.C.) line

from Fire Alarm System.

Closed loop from Fire Alarm

Panel holds RPC ON. When loop

is opened by Fire Alarm Panel,

the RPC turns OFF.

Normally Open (N.O.) line

from Fire Alarm System.

Voltage from +24V Out,

through a resistor,* to

Trigger In holds power to

outlet ON. Shorting Trigger In

to Com via Fire Alarm Panel contact

closure forces power to outlet OFF.

+24VDC Out (250mA max.)

Switch

Common

Trigger In (5V-24V AC or DC)

No Conn.

Alarm

System

+24VDC Out (250mA max.)

Switch

Common

Trigger In (5V-24V AC or DC)

No Conn.

SERIES OVERVIEW

Model No. Chassis Outlets Input Power Rating Surge Suppression ConnectionsExternal Activation Required

RPC-15 Standalone NEMA 5-15R (2) 6' attached cord 125VAC 60Hz 15A --- Dry contact closure Terminal Strip

RPC-15-S Standalone NEMA 5-15R (2) 6' attached cord 125VAC 60Hz 15A Dry contact closure Terminal StripYes

RPC-15-SCD-RJ Standalone NEMA 5-15R (2) 6' attached cord 125VAC 60Hz 15A Dry contact closure or VT* TS or RJ45Yes

RPC-15-U Standalone IEC C13 (2) 6' detachable cord (2) 100-240VAC 50/60Hz 15A --- Dry contact closure or VT* Terminal Strip

RPC-20-CD Standalone NEMA 5-20R (2) 6' attached cord 125VAC 60Hz 20A --- Dry contact closure or VT* Terminal Strip

RPC-20-SCD Standalone NEMA 5-20R (2) 6' attached cord 125VAC 60Hz 20A Dry contact closure or VT* Terminal StripYes

RPC-20-SCD-RJ Standalone NEMA 5-20R (2) 6' attached cord 125VAC 60Hz 20A Dry contact closure or VT* TS or RJ45Yes

RPC-3N1 Standalone NEMA 5-15R (8) 6' attached cord 125VAC 60Hz 15A --- Dry contact closure Terminal Strip

RPC-4CD Rack-mount NEMA 5-15R (8) 6' attached cord 125VAC 60Hz 15A --- Dry contact closure Terminal Strip

RPC-20-HW Standalone NEMA 20A (2) 6'  exible whip 125VAC 60Hz 20A --- Dry contact closure or VT* Terminal Strip

RPC-20-SHW Standalone NEMA 20A (2) 6'  exible whip 125VAC 60Hz 20A Dry contact closure or VT* Terminal StripYes

RPC-30-SHW Standalone Twistlock 30A (1) 6'  exible whip 125VAC 60Hz 30A Dry contact closure or VT* Terminal StripYes

* VT indicates the RPC can also accept a voltage trigger provided by an independent control system.
