POWER RATING: 120VAC, 60Hz, 20A (each circuit)

CHASSIS: 60” x 2” x 2” steel chassis with black powder epoxy finish

TERMINATION: Hardwired non-metallic flexible conduit with pigtail leads rotates in any

direction. It can be trimmed in the field if needed.

CIRCUITS & RECEPTACLES: A total of 20 I.G. receptacles (10 duplex) are wired into six

independent cicuits and grouped as shown in photo. Connections are made via pigtail

leads that are tagged according to circuit.

• Circuit 1 powers three (3) NEMA 5-20R I.G. duplex receptacles

• Circuit 2 powers two (2) NEMA 5-20R I.G. duplex receptacles

• Circuit 3 powers two (2) NEMA 5-20R I.G. duplex receptacles

• Circuit 4 powers one (1) NEMA 5-20R I.G. duplex receptacle

• Circuit 5 powers one (1) NEMA 5-20R I.G. duplex receptacle

• Circuit 6 powers one (1) NEMA 5-20R I.G. duplex receptacle

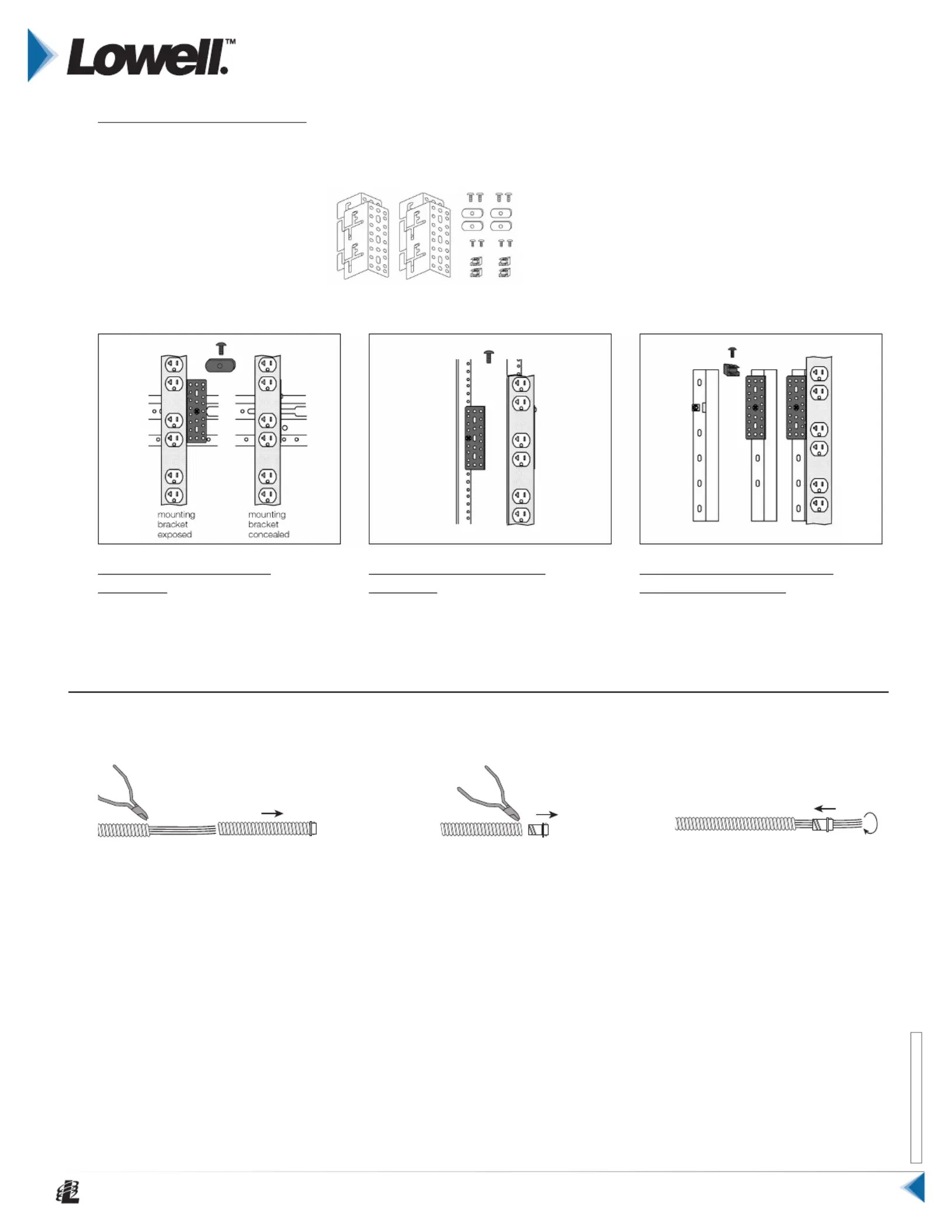

UNIVERSAL MOUNTING BRACKETS: The universal brackets allow for power strip instal-

lation in a variety of applications with receptacles facing front, center or rear. Brackets are

engineered with multiple mounting points and include two types of hardware to facilitate

easy installation in a rack with adjustable or fixed rails, to a wall, or under a desk/counter.

The brackets can be mounted so they are exposed for easy access or concealed beneath

the power strip for an aesthetically cleaner installation.

CERTIFICATION: ETL Listed in U.S./Canada

ORIGIN: Assembled in U.S.A. with global components

Six-circuit power strip with insulated ground (isolated ground or I.G.) receptacles is made to

safely power equipment in installations that require multiple AC power circuits. Features 20

receptacles (10 duplex). Requires 35U panel space (minimum).

ACS Series Model No.

ACS-2020-IG-6C-HW

AC Power Strip w/Six Circuits

FEATURES

Certied

US Steel

Assembled

In USA

with Global

Components

A&E SPECIFICATIONS

The six-circuit power strip shall be Lowell model ACS-2020-IG-6C-HW, which shall feature

20 NEMA 5-20R insulated ground (isolated ground) receptacles (10 duplex) wired into six

independent circuits. Circuit one shall have three grouped duplex receptacles; circuits two

and three shall each have two grouped receptacles; circuits four, five and six shall each have

one duplex receptacle. Termination shall be via a six-foot non-metallic flexible conduit with

numbered pigtail leads. The steel chassis with black powder epoxy finish shall measure 60”

x 2” x 2”. It shall include universal mounting brackets and hardware. The power strip shall

be ETL Listed and shall be made in the U.S.A. with global components.

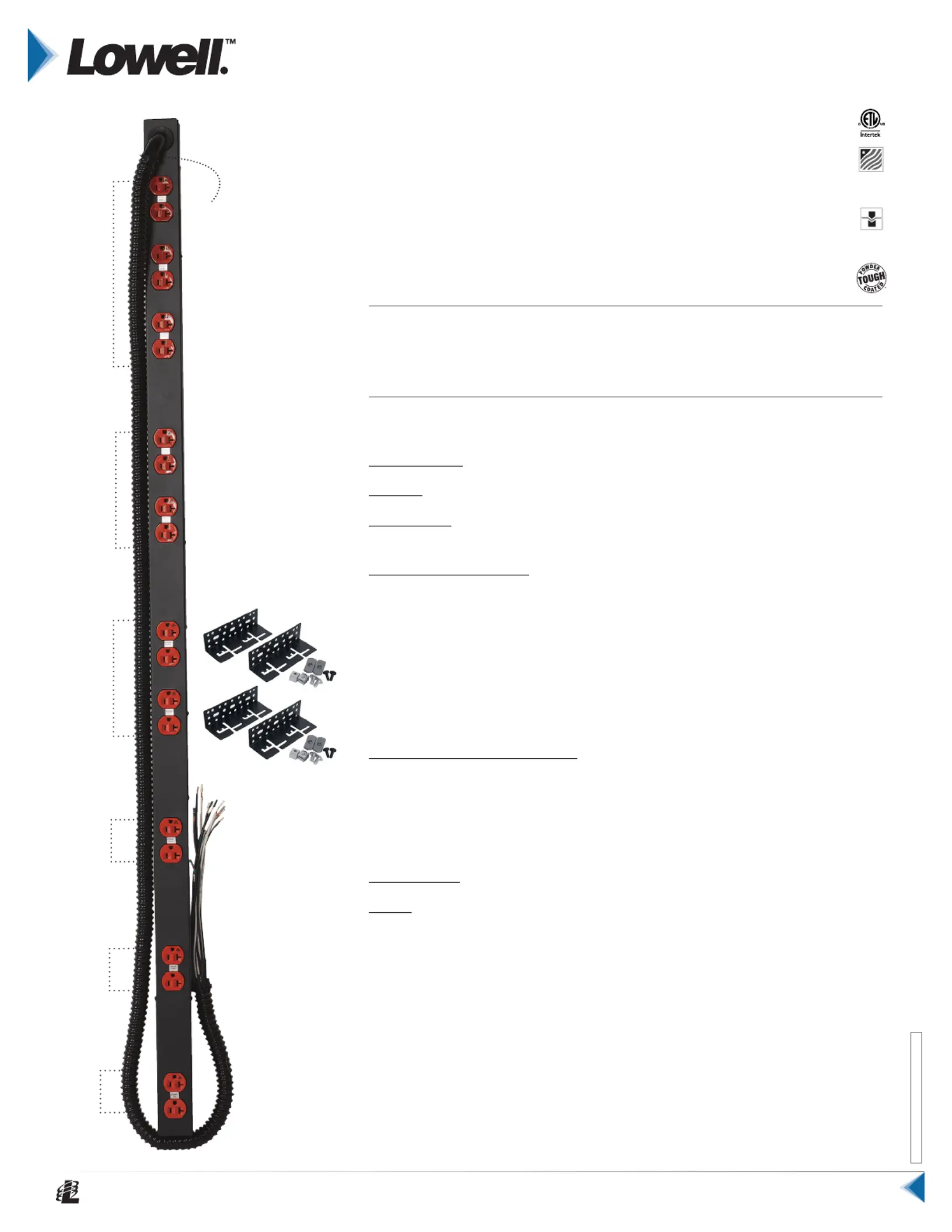

The 6 ft. non-metallic

exible conduit rotates

in any direction.

CIRCUIT 1:

Three duplex ( 20A )

CIRCUIT 2:

Two duplex ( 20A )

CIRCUIT 3:

Two duplex ( 20A )

CIRCUIT 4:

One duplex ( 20A )

CIRCUIT 5:

One duplex ( 20A )

CIRCUIT 6:

One duplex ( 20A )

Pigtail leads are tagged

according to circuit

Mounting brackets

INTERNAL USE ONLY: PN 24233

Lowell strives to provide accurate information while reserving the right to change specications and/or improve manufacturing methods without prior notication.

Spec 2167

Model ACS-2020-IG-6C-HW | Rev. 12.20.23 | pg. 2/3

3) REATTACH CONNECTOR:
