Side 1/8

Fo ld Fo ld Fo ld

READ ME FIRST

QUICK INSTALL GUIDE

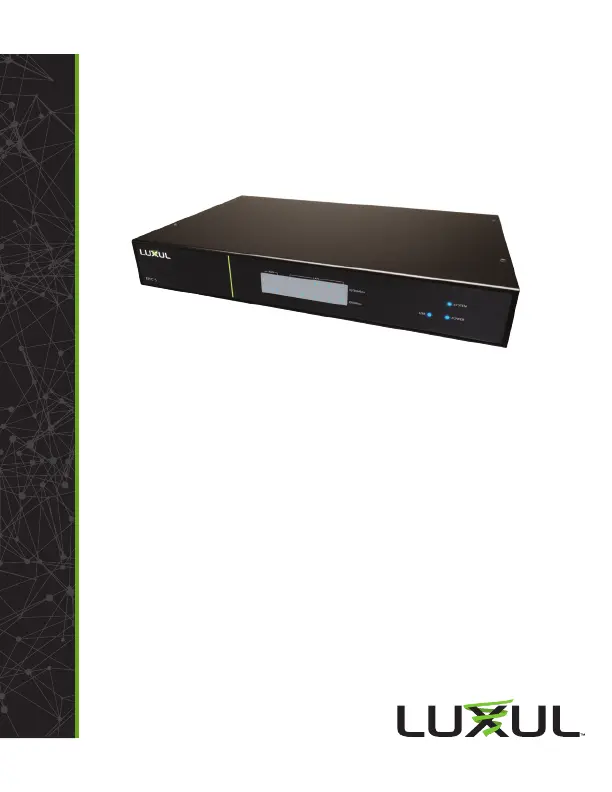

Epic 5

High-Performance Gigabit Router

ABR-5000

Includes:



High-Performance Gigabit Router



Rack Mount Kit



Rubber Feet



Power Cord

SETUP AND CONFIGURATION

Physical Installation

The Epic 5 can be rack-mounted or used as a desktop router. Install the

router in a stable/safe place to avoid any possible damage. Make sure there is

adequate space around the router for ventilation and proper heat dissipation.

Avoid placement in direct sunlight. Do not place heavy articles on the router

and verify the ground connection of the outlet is functioning properly.

Desktop/Shelf Installation

For desktop/shelf installation, attach the four rubber feet to the corner

indentations on the bottom of the router, then place the router on

a solid, level platform.

Rack Installation

Use the included L brackets for convenient installation in a 19-inch server or AV

rack. As shown below, use four screws to attach the L-shaped brackets on both

sides of the router then mount it horizontally in the rack. Use your desired

hardware to ax the router supports to the rack.

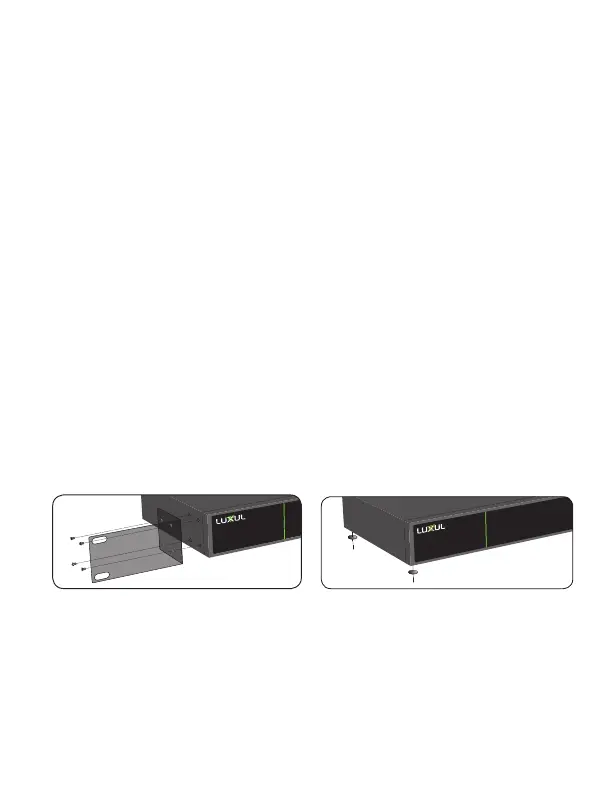

Install Brackets for Rack-Mounting Attach Feet for Desktop Installation

Connecting Ethernet and Power

Before you attempt to conﬁgure the router, test the Internet connection to

verify that it is functioning properly. Once Internet access is conﬁrmed to

be working, follow the steps below for installation and conﬁguration.

Connecting Ethernet

Luxul recommends at least Cat-5e unshielded twisted pair (CAT5e UTP)

cabling. To ensure best performance and stable data transmission at 1000

Mbps, use Category-6 unshielded twisted pair (CAT6 UTP).

1. Connect the WAN: Connect the Internet cable from a telco/ISP

modem/router to the dedicated WAN 1 port on the Epic 5.

2. Connect the LAN: Connect a cable from the dedicated LAN 1 port on

the Epic 5 to a switch, access point, or computer.

For best performance, and to maximize available ports, Luxul recommends

connecting all LAN devices to a Luxul switch, then connecting that switch

to the Epic 5 LAN port via a single Ethernet cable.

n NOTE: Connect all LAN devices to a Luxul switch, then connect that

switch to the router for best results.

Connecting Power

Use the included power cable to connect the router to a surge-protected

outlet. The AC input socket and power switch are on the rear panel. The

built-in power supply supports 100~240VAC at 50/60Hz.

Sales

801-822-5450

sales@luxul.com

Technical Support

801-822-5450

support@luxul.com

LUX-QIG-ABR-5000-v7

No part of this document may be modiﬁed or adapted in any way, for any purposes without permission in

writing from Luxul. The material in this document is subject to change without notice. Luxul reserves the

right to make changes to any product to improve reliability, function, or design. No license is granted, either

expressly or by implication or otherwise under any Luxul intellectual property rights. An implied license

only exists for equipment, circuits and subsystems contained in this or any Luxul product.

Connected are all trademarks and or registered trademarks of Luxul Wireless, Inc. All other trademarks and

registered trademarks are property of their respective holders.

Fo ld Fo ld Fo ld

READ ME FIRST

QUICK INSTALL GUIDE

Epic 5

High-Performance Gigabit Router

ABR-5000

Includes:



High-Performance Gigabit Router



Rack Mount Kit



Rubber Feet



Power Cord

SETUP AND CONFIGURATION

Physical Installation

The Epic 5 can be rack-mounted or used as a desktop router. Install the

router in a stable/safe place to avoid any possible damage. Make sure there is

adequate space around the router for ventilation and proper heat dissipation.

Avoid placement in direct sunlight. Do not place heavy articles on the router

and verify the ground connection of the outlet is functioning properly.

Desktop/Shelf Installation

For desktop/shelf installation, attach the four rubber feet to the corner

indentations on the bottom of the router, then place the router on

a solid, level platform.

Rack Installation

Use the included L brackets for convenient installation in a 19-inch server or AV

rack. As shown below, use four screws to attach the L-shaped brackets on both

sides of the router then mount it horizontally in the rack. Use your desired

hardware to ax the router supports to the rack.

Install Brackets for Rack-Mounting Attach Feet for Desktop Installation

Connecting Ethernet and Power

Before you attempt to conﬁgure the router, test the Internet connection to

verify that it is functioning properly. Once Internet access is conﬁrmed to

be working, follow the steps below for installation and conﬁguration.

Connecting Ethernet

Luxul recommends at least Cat-5e unshielded twisted pair (CAT5e UTP)

cabling. To ensure best performance and stable data transmission at 1000

Mbps, use Category-6 unshielded twisted pair (CAT6 UTP).

1. Connect the WAN: Connect the Internet cable from a telco/ISP

modem/router to the dedicated WAN 1 port on the Epic 5.

2. Connect the LAN: Connect a cable from the dedicated LAN 1 port on

the Epic 5 to a switch, access point, or computer.

For best performance, and to maximize available ports, Luxul recommends

connecting all LAN devices to a Luxul switch, then connecting that switch

to the Epic 5 LAN port via a single Ethernet cable.

n NOTE: Connect all LAN devices to a Luxul switch, then connect that

switch to the router for best results.

Connecting Power

Use the included power cable to connect the router to a surge-protected

outlet. The AC input socket and power switch are on the rear panel. The

built-in power supply supports 100~240VAC at 50/60Hz.

Sales

801-822-5450

sales@luxul.com

Technical Support

801-822-5450

support@luxul.com

LUX-QIG-ABR-5000-v7

No part of this document may be modiﬁed or adapted in any way, for any purposes without permission in

writing from Luxul. The material in this document is subject to change without notice. Luxul reserves the

right to make changes to any product to improve reliability, function, or design. No license is granted, either

expressly or by implication or otherwise under any Luxul intellectual property rights. An implied license

only exists for equipment, circuits and subsystems contained in this or any Luxul product.

Connected are all trademarks and or registered trademarks of Luxul Wireless, Inc. All other trademarks and

registered trademarks are property of their respective holders.

Produkt Specifikationer

Mærke:	Luxul
Kategori:	Router
Model:	Epic 5 ABR-5000
Tænd-/slukkontakt:	Ja
Vekselstrømsindgangsspænding:	110 - 220 V
Vekselstrømsindgangsfrekvens:	50 - 60 Hz
Bredde:	305 mm
Dybde:	186.5 mm
Højde:	44.5 mm
Vægt:	1720 g
Produktfarve:	Sort
Ethernet LAN-porte (RJ-45):	8
Ethernet LAN-datahastigheder:	10,100,1000 Mbit/s
Intern hukommelse:	2000 MB
Husmateriale:	Metal
Hurtig installationsvejledning:	Ja
Kabler inkluderet:	Vekselstrøm
Certificering:	CE, FCC
Ethernet WAN:	Ja
DSL WAN:	Ingen
SIM-kort slot:	Ingen
3G/4G kompatibilitet USB-modem:	Ingen
Kabelteknologi:	10/100/1000Base-T(X)
VPN-support:	PPTP, L2TP, IPsec
Portvideresendelse:	Ja
DHCP-klient:	Ja
DHCP-server:	Ja
Webbaseret administration:	Ja
Knap til nulstilling:	Ja
Servicekvalitet support (QoS):	Ja
Firewall:	Ingen
Gæsteadgang:	Ja
LED-indikatorer:	LAN, Power, System, USB, WAN
Strømkilde type:	Vekselstrøm
USB version:	3.2 Gen 1 (3.1 Gen 1)
Antal USB-porte:	1
Bæredygtighedscertifikater:	RoHS
Intern hukommelsestype:	DDR3
Lagermedie:	Flash
Intern lagerkapacitet:	8 GB
Indgangsstrøm:	0.3 A
Firmware kan opgraderes:	Ja
Ethernet-grænsefladetype:	Fast Ethernet, Gigabit Ethernet
Indbygget processer:	Ja
Auto MDI/MDI-X:	Ja
VLAN understøttelse:	Ja
Stativ-montering:	Ja
Varmeafgivelse:	46.4 BUT/t
Gigabit Ethernet (kobber) porte, antal:	7
Rackkapacitet:	1U
Trafikkontrol:	Ja
