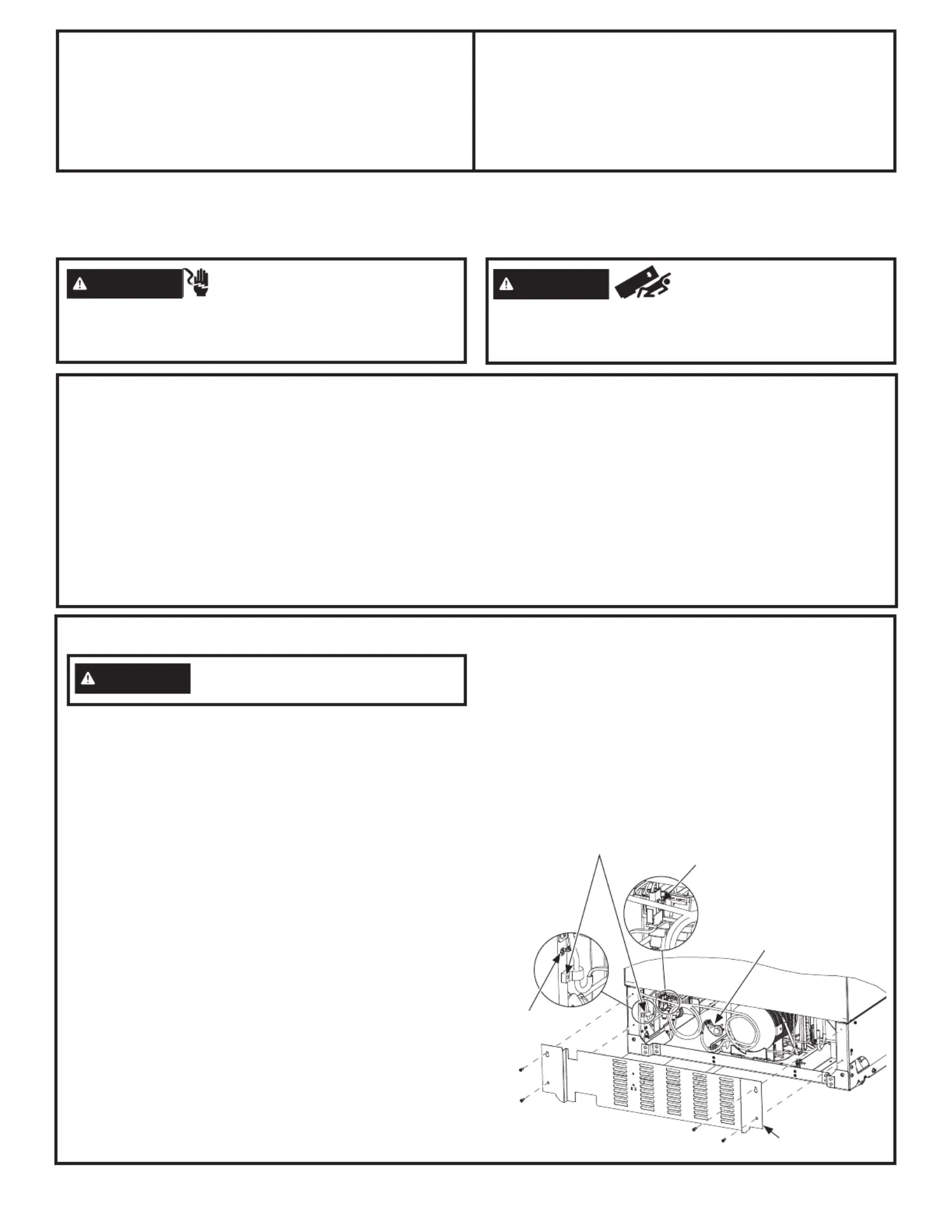

31-1000194 Rev. 0 09-19 GEA

Installation

Instructions

ZKR42N - 42” Trim Retro Kit

ZKR48N- 48” Trim Retro Kit

Before you begin - Read these instructions completely and carefully.

Note to Installer: Be sure to leave these instructions with the Consumer.

Note to Consumer: Keep these instructions with your Installation Instructions for future reference.

This kit provides for the installation of trim retro kit components needed for 2 Column models side by side in a 41-1/2”

or 47-1/2” opening which is 24” deep.

Parts List:

- Water line jumper

- Water fitting tee

- 2 power cords

- RH and LH Case side trims

- 42” or 48” Case top trim

- #8 Phillips head trim screws

- 2 corner keys

- #6 Phillips head corner key screws

Tools and Materials Required:

- Adjustable wrench

- #2 Phillips screwdriver

- 1/4” driver / socket

INSTALL WATER LINE JUMPER/TEE

Ŷ Connect the jumper water line from the ZKR42N or

ZKR48N Trim Retro Kit to the house cold water line.

Tighten the compression nut hand tight, then tighten

one additional turn with a wrench. Overtightening can

cause leaks!

Ŷ Connect the other end of the jumper water line to the

water fitting tee supplied in the trim retro kit. Tighten

the compression nut hand tight, then tighten one

additional turn with a wrench. Overtightening can

cause leaks!

CHANGE POWER CORD

Longer power cords are required for retro fit installation.

Power cords are included in 42” ZKR42N and 48”

ZKR48N.

Replace power cords on both units. Both units can be

plugged into the same electrical supply receptacle.

Remove existing short power cord with string

assembly:

Ŷ Remove 1/4” hex screws attaching rear access cover.

1. Unplug 3-pin power cord connector inside the

machine compartment (press on sides to release

locking tabs).

2. Remove power cord green ground 1/4” hex screw.

3. Remove strain relief 1/4” hex screw.

WARNING

Electrical Shock Hazard.

To avoid the risk of electric shock, make sure the power

cord is not plugged into the wall outlet.

WARNING

Tip Over Hazard. This

appliance is top heavy. Use extreme caution with moving

to prevent tipping over which could result in death or

serious injury.

WARNING

Connect to potable water supply

only.

Power

Cord

Rear Access

Cover

Strain Relief

Screw

Step 3

3-Pin

Power Cord

Connector

Step 1

Green Ground

Screw

Step 2

Installation Instructions

FOLLOW ALL INSTALLATION INSTRUCTIONS PROVIDED WITH THE APPLIANCE

TO COMPLETE THE DUAL INSTALLATION

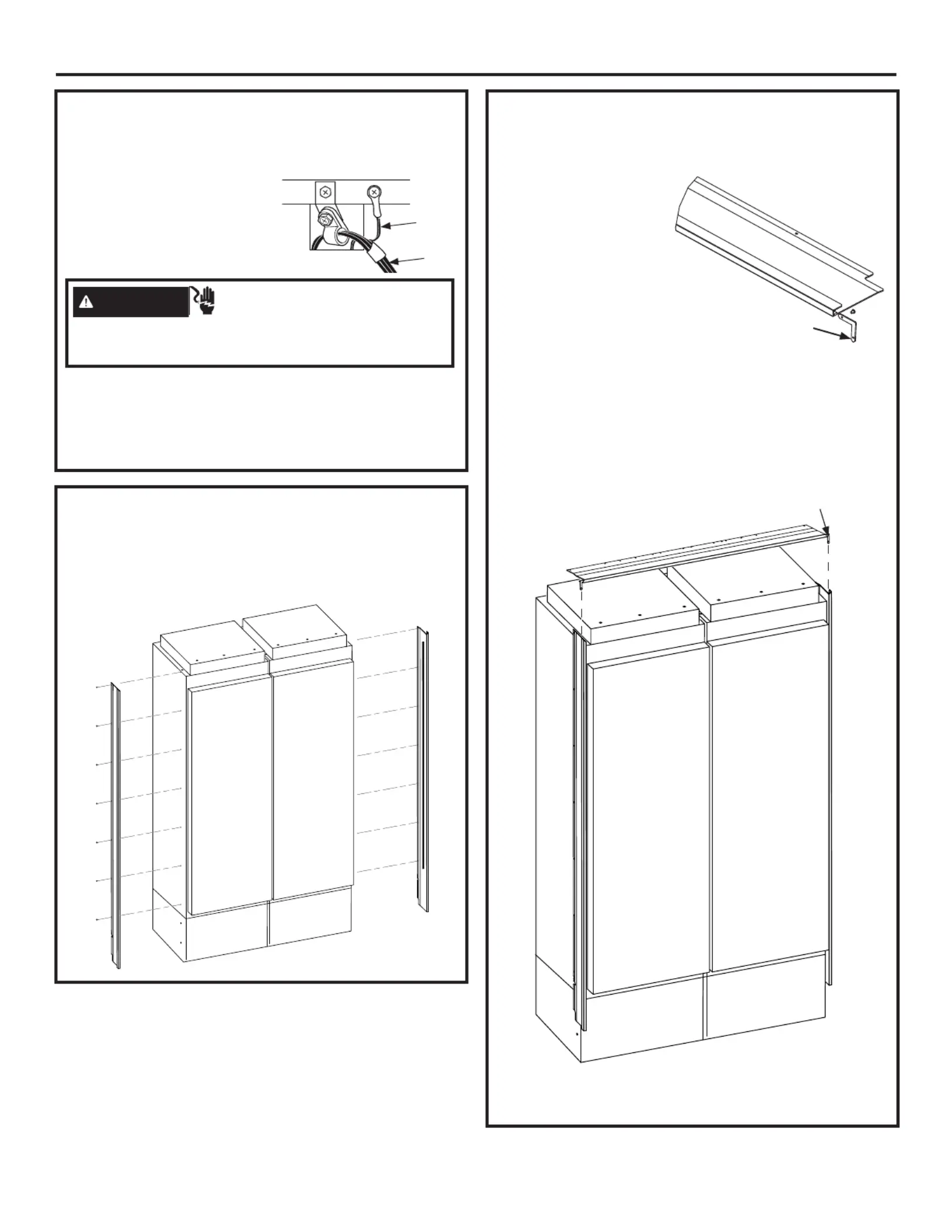

CHANGE POWER CORD (CONT.)

Install new longer power cord:

1. Plug in the 3-pin connector (make sure locking tabs

are engaged).

2. Install the power cord

green ground screw.

3. Install the power cord

strain relief.

Ŷ Replace rear access cover. Make sure the power

cord and ground wire are properly routed through the

access cover cut-out.

Repeat all steps for second unit.

CASE TRIM INSTALLATION (CONT.)

Ŷ Pre-assemble the trim kit top rail and corner keys.

One corner key should be installed to each end of

the top trim. Use the

provided #6 Phillips

head screw in the

corner key to ensure

that the key is snugly

fit to the top trim,

but be sure not to

overtighten the screw

to prevent damage to

the parts.

Ŷ Fit the top trim and side trim rails together by sliding

the exposed edges of the corner trim into the right

and left trim kit side rails. Press downward on the

top trim until each corner key is fully seated in each

side rail. Use the provided #6 Phillips head screws to

ensure each corner key is snugly fit to each trim kit

side rail.

Ŷ Secure the top trim to the case by using the provided

1/4” hex head screws (6 screws).

CASE TRIM INSTALLATION

Ŷ Install the trim kit side rails to the exposed right and

left case walls using the provided #8 Phillips head

screws - 7 screws per side.

WARNING

Electrical Shock Hazard.

To avoid the risk of electric shock, make sure to re-install

the ground screw after changing the power cord.

Ground

Wire

Power

Cord

Step 2

Step 3

Top Trim

with Keys

Corner Key
