Side 1/8

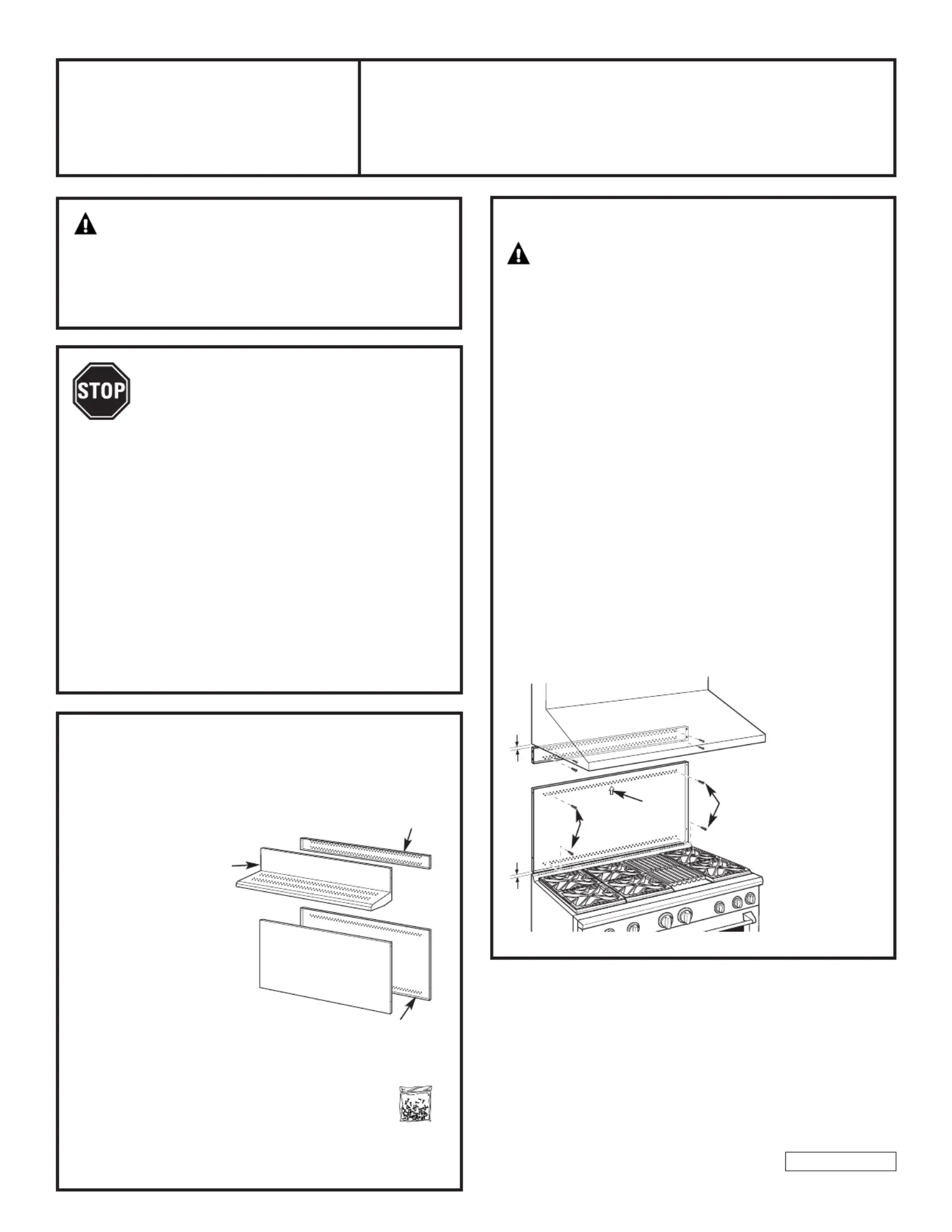

Installation ZXADJB30PSS, ZXADJB36PSS, ZXADJ48PSS

Instructions 30" to 36" Adjustable Backsplash

31-10692

04-08 JR

TOOLS AND MATERIALS REQUIRED

•

Gloves to protect against sharp edges

•

T-15 and #2 Phillips scr

ewdrivers

• Drill with 3/32" and 9/64" bits

• Safety glasses

• Level

• Pencil

This Kit Includes

• Top wall support

• Bottom wall support

•

op cover with shelf

• Bottom cover

• Hardware package with

– 9 Stainless Steel Torx 15 #8

self-tapping screws

– 9 Phillips #2 pan head wood #10 screws

– 3 Stainless Steel #2 truss head

#10 screws (for alternate

installation method)

WARNING:

To prevent ignition of combustible materials,

the entire back wall above the range must

be protected by a backsplash constructed

of non-combustible material.

INSTALL THE WALL SUPPORT PANELS

ARNING:

The wall support panels

must be securely fastened to the wall. Failure to

do so could result in damage or personal injury.

IMPORTANT: This backsplash is designed to cover the wall

between the bottom of the hood and the top of the range.

The vent hood should be installed over the rangetop or

range before installing this backsplash.

• Install and level the Range/Rangetop according

to the product installation instructions.

• Remove backsplash packaging and protective film.

• Locate wall studs on each side. Where studs are not

available, plan to use wall anchors (not provided).

• Use a level to pencil 2 horizontal lines on the wall,

one 1/8" below the vent hood and the other 1/8" above

the Range/Rangetop. This 1/8" space allows the cover

panels to overlap the wall supports.

• Secure the top wall support panel to the wall with 4 wood

screws, through the outermost studs.

• Use 4 wood screws to secure the bottom wall support

panel. The center slot should be positioned at the top.

The gap between the top and bottom support panels

will be covered by the top cover with shelf.

1/8″

Secure the top

panel to the wall

with 4 wood

screws

1/8″

Secure

the bottom panel

to the wall with

4 wood screws

Center

Arrow

Wood Screws

ood

Screws

Top Wall

Suppor

Top Cover

with Shelf

Bottom Cover

Bottom Wall Support

Hardware

Package

BEFORE YOU BEGIN

Read these instructions completely

and carefully.

IMPORTANT: Save these instructions for local

inspector’s use.

IMP

ORTANT

: OBSERVE ALL GOVERNING CODES

AND ORDINANCES.

NOTE TO INSTALLER: Be sure to leave these

instr

uctions with the Consumer

TE TO CONSUMER: Keep these instructions

with your Owner’s Manual for future reference.

• This backsplash adjusts to fit the space between

the top of the range and the bottom of the hood,

om 30 Min. t"

o 36" Max. height

• Maximum shelf load-bearing weight is 40 lbs.

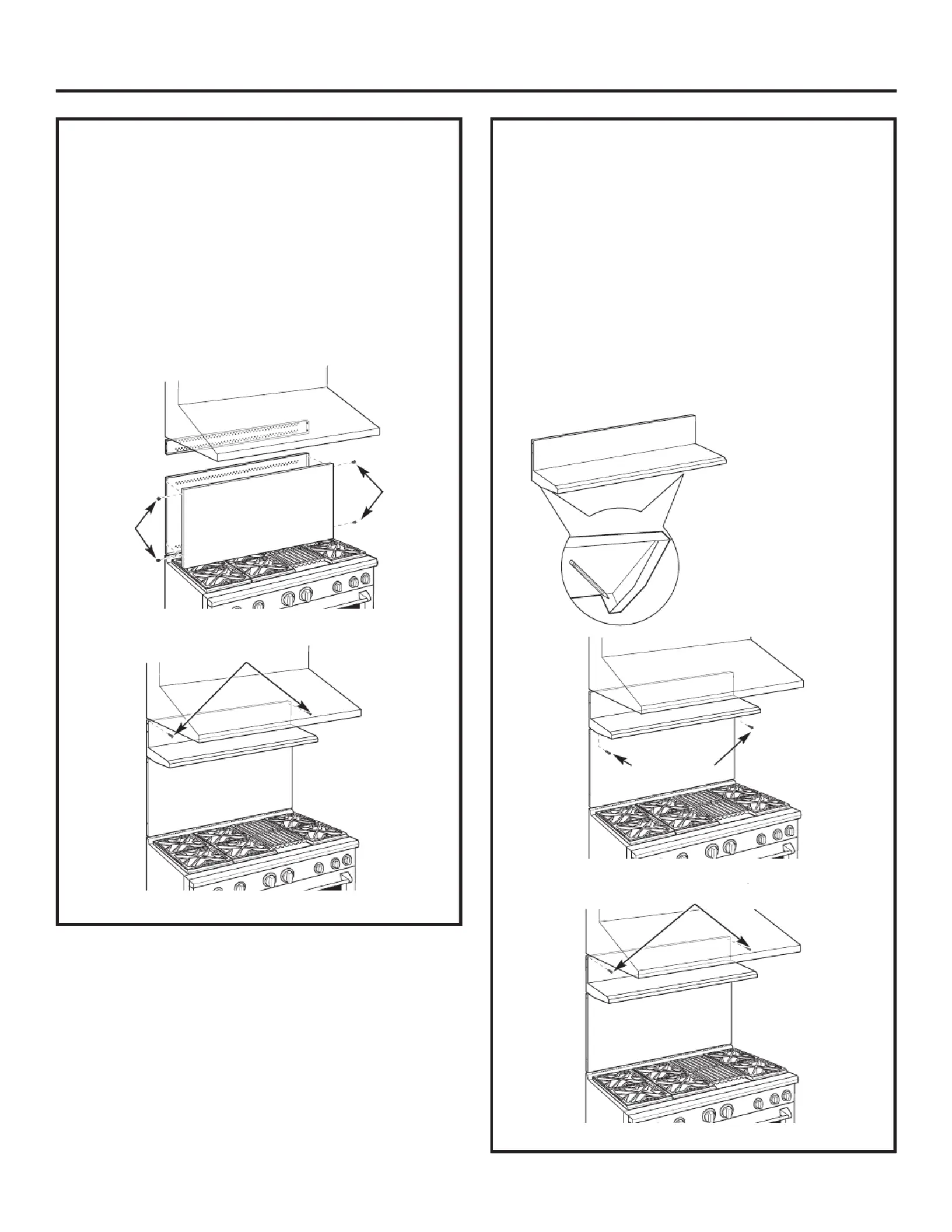

INSTALL COVER PANELS (cont.)

ALTERNATE METHOD: When side access is blocked

• Install bottom cover over the bottom support while

driving one screw into each side.

• Hold top cover in place while marking screw

locations, just below shelf support and onto bottom

cover.

• Remove the shelf and drill a 9/64" diameter

hole in the pencil-marked locations.

• Mount the top cover over the top support

and secure the front cover with screws through

the drilled holes on each side.

• Install screws through each top corner.

ZXADJB30PSS, ZXADJB36PSS, ZXADJB48PSS Accessory Installation

INSTALL COVER PANELS

See alternate method if side access is blocked.

• Hold the bottom cover over the bottom support

while driving one screw (provided) into each side.

• Place the top cover with shelf over the top wall

support. If you have access to the sides, secure

the panel with two screws on each side.

• Secure the top cover with shelf to the top

support with screws through the front of the panel,

at the top corners. Use one screw on each side.

Shelf

Install

Screw

Cover Panel

Install

Screw

Mark Scr

ew Locations

for Alternate Method

Install Screw in Top Corner on Each Side

Install Screw

on Each Side

Install Corner Screws
