Side 1/4

Safety Information

READ AND SAVE THESE INSTRUCTIONS

CAUTION

To reduce the risk of re and

electric shock, install this blower only with range

hood models ZVWS361S, ZVWS481S, ZVIS361S,

AND ZVIS481S manufactured by GE Appliances.

BEFORE YOU BEGIN

Read these instructions completely and carefully.

IMPORTANT — Save these instructions

for local inspector’s use.

IMPORTANT — Observe all governing

codes and ordinances.

Note to Installer — Be sure to leave these

instructions with the Consumer.

Note to Consumer — Keep these instructions with

your Owner’s Manual for future reference.

Skill Level — Installation of this appliance requires

basic mechanical and electrical skills.

Completion Time — 1 to 3 hours.

Proper installation is the responsibility of the installer.

Product failure due to improper installation is not

covered under the warranty. See Owner’s Manual for

warranty information.

CAUTION

Due to the weight and size of these

vent hoods and to reduce the risk of personal injury

or damage to the product, TWO PEOPLE ARE

REQUIRED FOR PROPER INSTALLATION.

WARNING

To reduce the risk of fire or electrical

shock, do not use this range hood with any external

solid-state speed control device. Any such alteration

from original factory wiring could result in damage to

the unit and/or create an electrical safety hazard.

TO REDUCE THE RISK OF FIRE, USE ONLY

METAL DUCTWORK.

WARNING

TO REDUCE THE RISK OF FIRE,

ELECTRICAL SHOCK OR INJURY TO PERSONS,

OBSERVE THE FOLLOWING:

Use this unit only in the manner intended by the

manufacturer. If you have any questions, contact

the manufacturer.

B. Before servicing or cleaning the unit, switch the

power off at the service panel and lock the service

disconnecting means to prevent the power from

being switched on accidentally. When the service

disconnecting means cannot be locked, securely

fasten a prominent warning device,such as a tag,

to the service panel.

CAUTION

FOR GENERAL VENTILATING USE

ONLY. DO NOT USE TO EXHAUST HAZARDOUS

MATERIALS, EXPLOSIVE MATERIALS OR

VAPORS.

WARNING

TO REDUCE THE RISK OF FIRE,

ELECTRICAL SHOCK OR INJURY TO PERSONS,

OBSERVE THE FOLLOWING:

Installation work and electrical wiring must be done by

qualified person(s) in accordance with all applicable

codes and standards, including fire-rated construction.

Sufficient air is needed for proper combustion and

exhausting of gases through the flue (chimney) of

fuel burning equipment to prevent back-drafting.

Follow the heating equipment manufacturer’s

guidelines and safety standards, such as those

published by the National Fire Protection Association

(NFPA), the American Society for Heating,

Refrigeration and Air Conditioning Engineers

(ASHRAE) and the local code authorities. When

applicable, install any makeup (replacement) air

system in accordance with local building code

requirements. Visit for available GEAppliances.com

makeup air solutions.

When cutting or drilling into walls or ceilings, do not

damage electrical wiring and other hidden utilities.

Ducted systems must always be vented to the

outdoors.

Local codes vary. Installation of electrical connections

and grounding must comply with applicable codes.

In the absence of local codes, the vent should be

installed in accordance with National Electrical Code

ANSI/NFPA 70-1990 or latest edition.

CAUTION

To reduce risk of fire and to properly

exhaust air, be sure to duct air outside—do not vent

exhaust air into spaces within walls or ceilings or into

attics, crawl spaces or garages.

31-7000329 Rev. 2 02-25

Installation Instructions

Range Hood Integral Blower

ZXIB610

If you have questions, call GE Appliances at 833-4BODEWELL (833.426.3393) or

visit our website at: GEAppliances.com/service.

231-7000329 Rev. 0

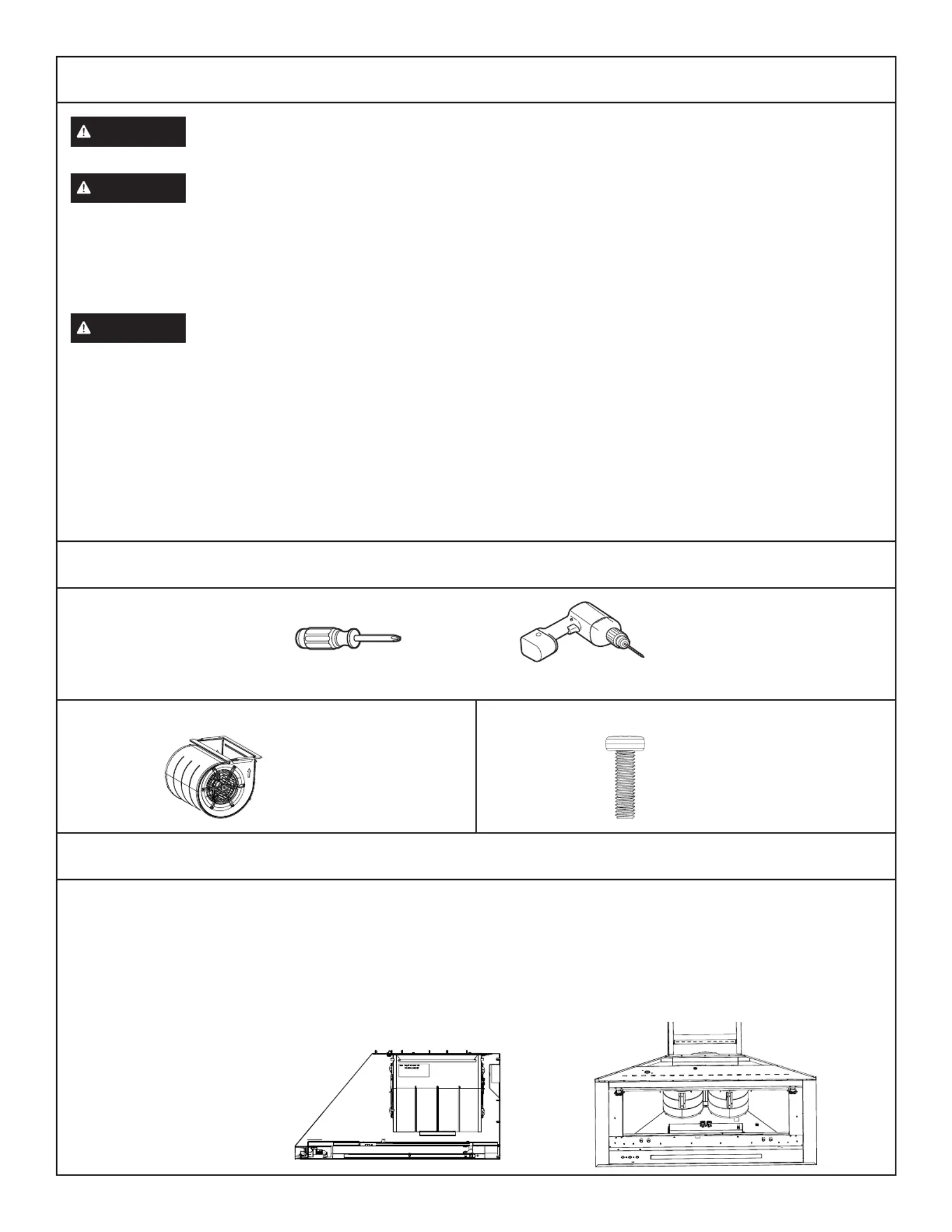

Safety Information

WARNING

To Reduce The Risk Of Fire, Electric Shock Or Injury To Persons, Do Not Use Replacement Parts That

Have Not Been Recommended By The Manufacturer (e.g. Parts Made At Home Using A 3D Printer).

WARNING

TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

A. Never leave surface units unattended at high or medium settings. Boilovers cause smoking and greasy spillovers that may

ignite. Heat oils slowly on low or medium settings.

B. Always turn hood ON when cooking at high heat or when flambéing food (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn

Beef Flambé).

C. Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.

D. Use proper pan size. Always use cookware appropriate for the size of the surface element.

WARNING

TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE,

OBSERVE THE FOLLOWING*:

A. SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT

BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.

B. NEVER PICK UP A FLAMING PAN—You may be burned.

C. DO NOT USE WATER, including wet dishcloths or towels—a violent steam explosion will result.

D. Use an extinguisher ONLY if:

1. You know you have a Class ABC extinguisher, and you already know how to operate it.

2. The fire is small and contained in the area where it started.

3. The fire department is being called.

4. You can fight the fire with your back to an exit.

*Based on “Kitchen Fire Safety Tips” published by NFPA.

Installation Preparation

TOOLS NEEDED

PARTS INCLUDED

Integral Blower

PARTS NEEDED (included with Range Hood)

4 Pieces Blower

Screw M4 x 13mm

Installation Instructions

NOTES: Each blower has four through holes for securing by machine screws to the hood body; two of which are key holes. All

four holes are used with the 36” but only two are used with the 48”, as the 48” uses a lip on the body to secure one side of the

motor for ease of assembly.

1. Noting which holes are key holes, pre-install the relevant screws to the body.

2. Install the blower(s) by inserting and sliding the keyhole over the screw(s).

3. Install the remaining screws through the regular holes of the blower(s) to the hood body.

4. Tighten all screws.

5. Install the blower wire harness connector(s) to the control box connector(s).

Phillips screwdriver

Electric drill with #2 Phillips

and 6” driver extension
