Side 1/2
Before you begin - Read these instructions completely and carefully.
Note to Installer: Be sure to leave these instructions with
the Consumer.
Note to Consumer: Keep these instructions with your
Installation Instructions for future reference.
This kit provides for the installation of the Stainless Steel Door Panel Assemblies and Stainless Steel Toe Kicks
WARNING
Tip Over Hazard.
These appliances are top heavy, especially with any
ward which could result in death or serious injury. Read
and follow the entire installation instructions for securing
the appliance with the anti-tip system before installing
door panel kit.
WARNING
Door Trim Pinch Point
Hazard
Improper installation can lead to a finger pinch point haz-
ard between the side door trim and the cabinets when
operating the door, especially with children. To minimize
this risk you must follow the installation instructions for
cabinet dimensions, trim assembly, and door stop angle.
AVERTISSEMENT
Risque de pincement
sur la garniture de porte
Une installation mal effectuée représente un risque
de pincement de doigts entre la garniture latérale de
porte et les armoires lors de la manipulation de la porte,
spécialement pour les enfants. Pour minimiser le risque,
vous devez respecter les instructions d’installation
selon les dimensions de l’armoire, l’assemblage de
garniture et l’angle de butée de la porte.
ADVERTENCIA
Riesgo de Lastimadura
con el Borde de la Puerta
Una instalación inadecuada puede conducir a riesgos de
pellizcos de dedos entre el borde lateral de la puerta y
los gabinetes al utilizar la puerta, especialmente con los
niños. A fin de minimizar este riesgo, usted deberá seguir
las instrucciones de instalación para dimensiones de
gabinetes, ensambles de bordes y ángulos de detención
de puertas.
ZK3SN364WRH
Single Door Right-Hand Stainless Steel
Door Panel Kit
ZK3SN369WLH
Single Door Left-Hand Stainless Steel Door
Panel Kit
ZKSB3H3CVSS Single Door Minimalist Handle Kit
ZKSB3H3PVSS Single Door Statement Handle Kit
ZKSB4H4CVSS French Door Minimalist Handle Kit
ZKSB4H4PVSS French Door Statement Handle Kit
AVERTISSEMENT
Risque de
basculement
Ces électroménagers sont lourds dans le haut, en par-
ticulier avec une porte ouverte, de sorte qu’ils doivent
être fixés afin de prévenir un basculement vers l’avant
pouvant occasionner des blessures graves ou la mort.
Veuillez lire et suivre la totalité des instructions d’instal-
lation afin de fixer votre électroménager par un disposi-
tif antibasculement avec le système anti-bascule avant
d’installer le kit de panneau de porte..
ADVERTENCIA
Riesgo de Caídas
Estos electrodomésticos son inestables, especialmente
asegurados a fin de evitar caídas hacia adelante que
podrían resultar en la muerte o en lesiones graves.
Lea y siga todas las instrucciones de instalación para
asegurar el aparato con el sistema antivuelco antes de
instalar el kit del panel de la puerta.
Installation
Instructions
31-1000802 Rev. 0
Stainless Steel
Door Panel Kit
Components Included Quantity
Stainless Steel Top Door Panel (Single Door Kit) 1
Stainless Steel Right Top Door Panel (French Door Kit) 1
Stainless Steel Left Top Door Panel (French Door Kit) 1
Stainless Steel Middle Drawer Panel 1
Stainless Steel Bottom Drawer Panel 1
Stainless Steel Toe Kick 1
M4 Phillips Screws 48
Tools and Materials Required:
Phillips #2 bit/driver, M4, M5 hex keys (included with unit) or bits/drivers.
Instructions for this kit are also included in the full installation instructions included with the unit.
Les instructions de cette trousse sont également incluses dans les instructions d’installation complètes
fournies avec l’appareil.
Las instrucciones de este kit también están incluidas en las instrucciones de instalación completas enviadas
junto con la unidad.
For the full owner’s manual, visit our website at monogram.com.
Pour une version française du manuel du propriétaire complet, visitez notre site Web à .monogram.ca
Para obtener una versión en español del manual del propietario completo,
visite nuestro sitio web en .monogram.com
TOE KICK INSTALLATION
Ŷ7KLVNLWSURYLGHVDVWDLQOHVVVWHHOWRHNLFNIRUDVLQJOH
integrated unit installation. Refer to the unit installation
instructions for information on custom toe kicks and
stainless steel standard and dual installation toe kicks.
ŶThe toe kick attaches to the refrigerator by using a
magnet that can be found in the box of parts that was
taped to the side of the unit.
ŶAdhere magnet to back side of toe kick. The surface of
the toe kick where the magnet is to be placed must be
clean and free of foreign material.
Center magnet vertically and
horizontally.
ŶPosition toe kick on bottom
portion of the front access cover.
Printed in the United States 06-2531-1000802 Rev. 0
Installation Instructions

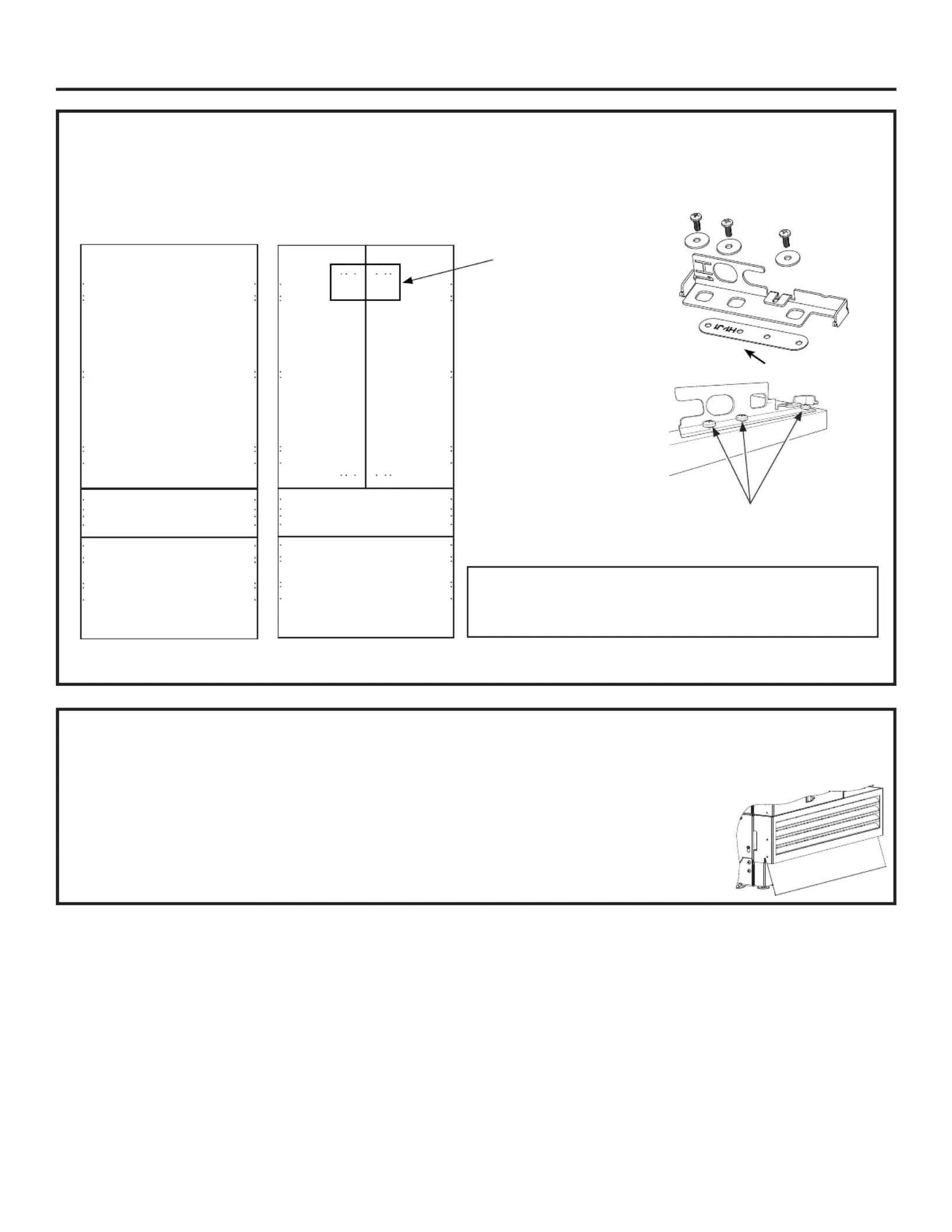

PANEL PREP
Ŷ Panel brackets are shipped with the refrigerator in
the convertible (middle) drawer. Use the M4 machine
screws provided with the stainless steel door panel kit
to install brackets. Do not tighten screws.
Ŷ Install Monogram Statement or Minimalist handles
(sold separately). Follow instructions provided in the
handle kit.
Do not tighten the screws, you will do
that after assembly process and left
to right alignment.
Single Door
Rear View of Panels
French Door
Rear View of Panels
* G1 brackets
(and bottom H1
and J1 brackets
for French door
model) will be
installed after
door panels are
hung.
TOP
PANEL
MIDDLE
PANEL
BOTTOM
PANEL
D1
G1
E1
F1
D1
E1
A1
G1
B1
C1
A1
B1
LEFT
TOP PANEL
RIGHT
TOP PANEL
MIDDLE
PANEL
BOTTOM
PANEL
D1
J1 H1
H1 J1
G1
E1
A1
G1
B1
F1
D1
C1
A1
E1
B1
*
*
*
*
*
*
Follow the remainder of the stainless steel door
panel installation instructions in the unit installation
instructions to adjust and secure the door panels.
During the installation
of J1 and H1 brackets,
use a small washer
for every screw and
install the H1/J1 shim
(provided with the unit)
beneath the bracket as
shown in the illustration.
H1/J1 Shim
