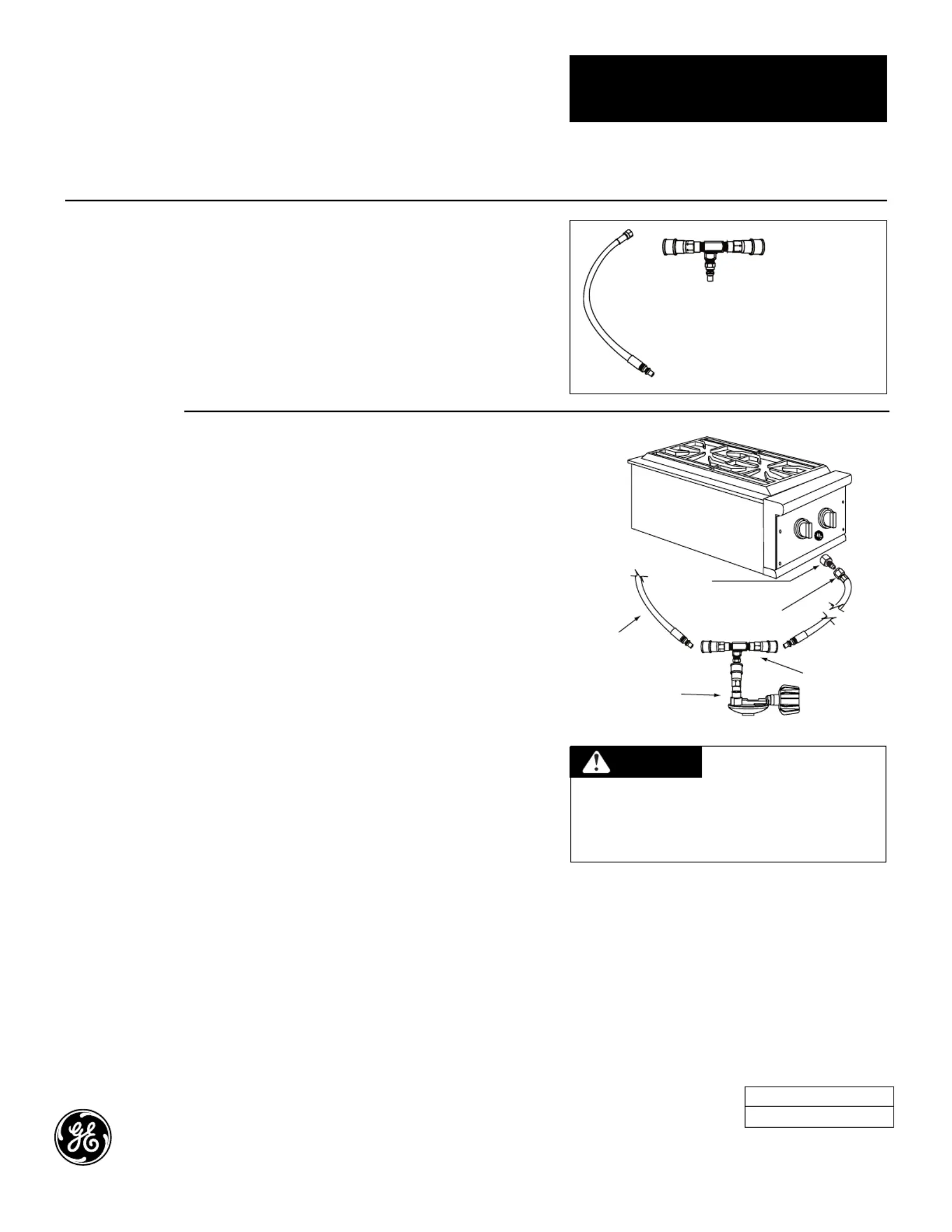

GE Monogram

Assembly Instructions

For Combination Installation of 27" Gas Grill and Dual Burner Outdoor Cooktop

ZX27QDC

LP Quick Disconnect Tee

Use this kit when installing a Monogram Dual

Burner Outdoor Cooktop (Model ZX2L)

onto a 27" LP Gas Grill installed on a cart.

(Model ZGG27L21 and ZGG27L20)

This kit provides a Quick Disconnect Tee and

a quick disconnect hose.

Quick Disconnect Tee

and

24" Quick Disconnect Hose

Pub. No. 49-80044

Dwg. No. 164D4290P013

Printed in USA

(N.D. 675) 8/00

11196

Monogram.

General Electric Company

Louisville, KY 40225

• Completely close the main valve on the LP

tank supplying the grill.

• Apply joint compound to the threaded end

of the cooktop gas inlet.

• Tighten the 1/2" NPT x 3/8" flare fitting to

the cooktop gas outlet. Do not use threading

compound on the male threads.

• Attach hose to end of fitting and tighten.

NOTE: To connect the Quick Disconnect

couplings, pull back and hold the outer sleeve

of the female coupling while inserting the

male hose end. Release the outer sleeve to

lock. To test the connection, firmly grasp each

part and attempt to pull apart. Once locked,

they should not separate.

• Route the cooktop LP hose through the

panel bushing on the right side of the cart.

• Insert the male hose end from the cooktop

burner into one end of the quick disconnect

tee.

• Attach the hose from the grill to the opposite

female end of the quick disconnect tee.

• Secure the bottom male end of the quick

disconnect tee to the female quick

disconnect LP tank regulator assembly.

WARNING

TEST FOR LEAKS

A complete gas tightness check must be

performed at the installation site. DO NOT

USE A FLAME TO CHECK FOR GAS

LEAKS.

• Do not use the burner until all connections

have been leak tested.

• Repeat leak test after each LP tank change or

gas re-connect.

Refer to “Test for Leaks,” Step 4 in the

Installation Instructions, for the outdoor

cooktop.

Quick

Disconnect

Tee

To L.P.

Regulator

To Manifold

of Grill

24" Quick

Disconnect Hose

1/2" NPT x

3/8" Flare

Fitting
