Monogram

Assembly Instructions

Before you Begin – Read these instructions completely and carefully.

Note To Installer: Be sure to leave these instructions with the Consumer.

Note to Consumer: Keep these instructions with your Owner’s Manual for future reference.

If you received a damaged Grill Cart, you should contact

your dealer.

Assembly of this grill cart requires basic mechanical skills.

Proper assembly is the responsibility of the installer.

Step 1:

Remove

Packaging

Open the box and remove the contents.

Remove packaging and protective film.

Locate the hardware accessory package and

check contents.

24" and 27" Outdoor Cooking Center

Grill Carts

Models ZX24CTBSS/ZX27CTACSS

For Monogram local service in your area, 1.800.444.1845.

For Monogram service in Canada, 1.888.880.3030.

For Monogram Parts and Accessories, call 1.800.626.2002.

NOTE:

Carts must be completely assembled before any gas

connections are made.

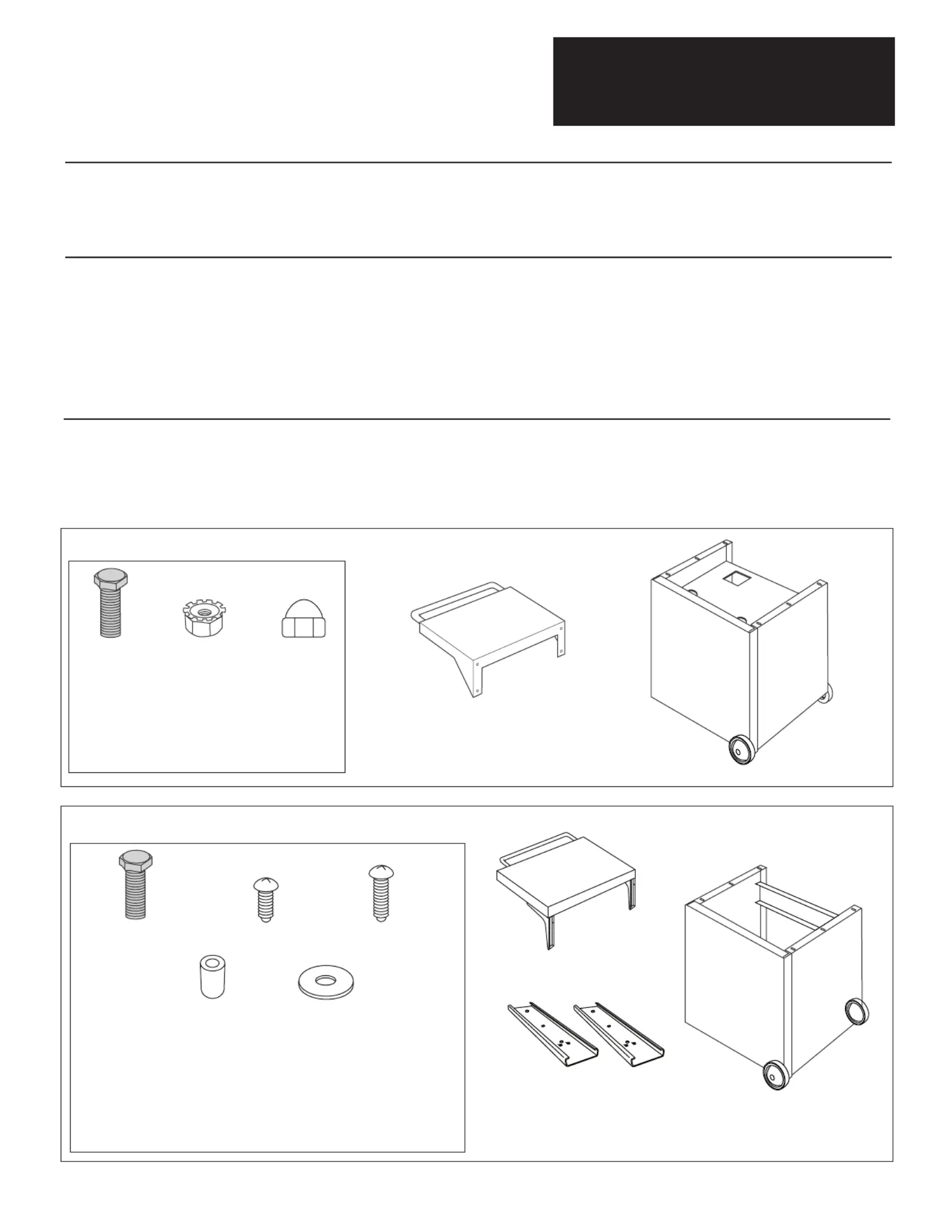

24” Grill Cart

1/4-20 x 3/4"

Hex Bolts

1/4-20 Hex

Keps Nuts

Shelf with

Handle

Cart

27” Grill Cart

1/4-20 x 1/2" Hex Bolts

Flat Washers

Shelf Brackets

10-24 x 1/2" Screws

Fold-Down Shelf

Cart

Shelf Stops

10-24 x 1-1/8" Screws

1/4-20 Acorn

Lock Nut

ITEM QUANTITY

1/4-20 x 3/4" HEX BOLTS 4

1/4-20 HEX KEPS NUTS 8

1/4-20 ACORN LOCK NUTS 8

ITEM QUANTITY

1/4-20 x 1/2" HEX BOLTS 4

10-24 x 1/2" SCREWS 4

10-24 x 1-1/8" SCREWS 2

ALUMINUM SHELF STOPS 3/8 x 3/8 2

1/4 x 3/4" WASHER FLT SS 4

Tools

You Will

Need

Step 2

Mount Grill

Onto Cart

• Two 7/16" wrenches or socket with

6" extension.

• Phillips head screwdriver

• Gloves to protect against sharp edges

• The grill base has 1/4–20 bolts with two

nuts pre-installed on each corner. Remove

bottom nuts on each corner and set aside.

• Check to be sure the remaining nuts on the

bottom of the grill are tight.

• Lower the grill onto the cart.

• Route the attached hose through the large

square cutout in the top of the cart as you

position the grill onto the cart.

• The bolts on the bottom of the grill should

go through the four corner holes in the top

of the cart.

• Install the four nuts on each corner to the

grill bolts protruding through the cart.

• Remove the four acorn lock nuts (1/4–20)

from the hardware bag.

• Install one acorn lock nut onto each bolt

protruding through the cart at each corner.

Le gril est extremement

lourd, Il faut deux personnes pour le

soulever et le mettre ur un chariot.

PRUDENCE

The grill is extremely heavy.

2 people are required to lift and place the

grill onto the cart.

CAUTION

Step 3

Mount Side

Shelf Onto

24" Grill

• The shelf should be installed after the grill

has been secured to the cart.

• Open the grill lid.

• Remove the 8 nuts and 4 bolts from the

hardware bag.

• Install bolts through the grill and secure

with nuts. Tighten.

• Mount shelf onto the four bolts. Secure with

nuts and tighten.

• Install the four remaining acorn lock nuts

onto the four shelf bolts.

NOTE: The additional nut installed between the

grill and shelf serves as a spacer that will help

keep the shelf cool during long periods of cooking.

24” Grill Cart

Assembly Instructions

Use Four Bolts, 8 Nuts and 4 Acorn Lock Nuts to Secure the

Shelf to the Grill
