MX-HPA Fully Balanced Headphone Amplifier
- 1 - Issue 1.1
The ultimate in balanced and single ended headphone listening.
The MX HPA is a very high performance fully balanced headphone amplifier Class “A”
in a beautifully designed and executed casework.
unit features two inputs, balanced and single ended. These are separate and an The
input select switch allows choice between separate balanced and single-ended sources.
These inputs accept normal line-level signals of 300mV nominal (suitable for 30mV-
>3V) from a wide range of equipment.
Gain switching is provided to allow boost for higher impedance headphones, so the
unit is compatible with all dynamic headphones regardless of impedance. It is
recommended to use the LOW setting for headphones of 200 ohms or less; the HIGH
setting for headphones over 200 ohms or particularly insensitive headphones.
The front panel XLR/JACK sockets are dual purpose; it is possible to use either one or
two - terminated headphones; pairs of standard 6.25mm ¼” stereo Jack
or
a
single
pair
of headphones, terminated in two three-pin male XLR plugs.
The necessary single ended/ balanced mode switching is carried out automatically on
connection of the headphone(s).
MX-HPA Fully Balanced Headphone Amplifier
- 2 - Issue 1.1

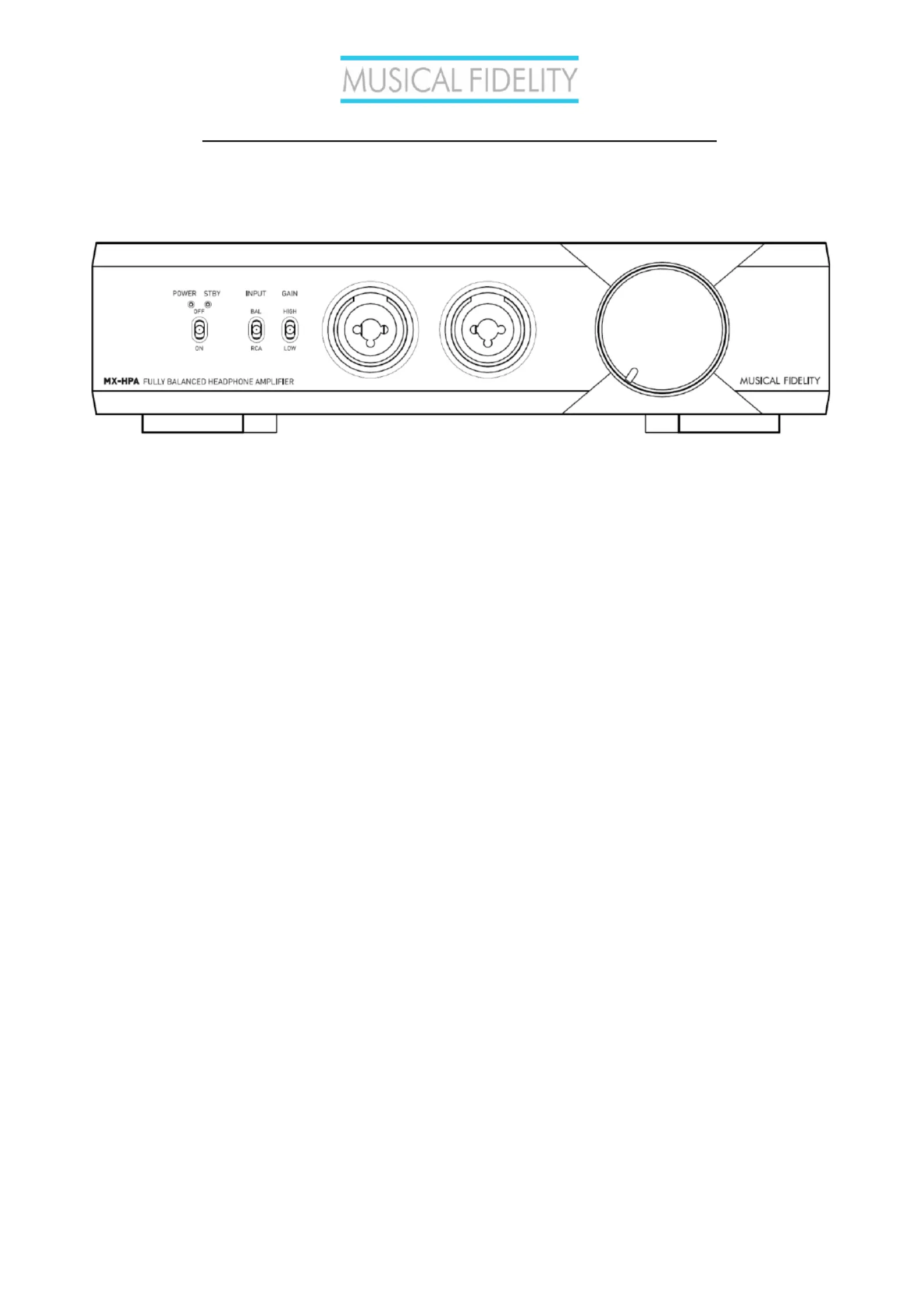

FRONT VIEW
POWER GAIN HEADPHONE OUTPUTS
OFF/STDBY = HIGH (AS SINGLE ENDED STEREO JACKS) VOLUME
☼
ON = LOW OUTPUT 1 OUTPUT 2 CONTROL ☼
INPUT SELECT HEADPHONE OUTPUTS
BALANCED (AS BALANCED HEADPHONE XLRs)
RCA LEFT OUT RIGHT OUT
REAR VIEW
RIGHT INPUTS LEFT
XLR RCA XLR RCA IEC
BALANCED RIGHT ANCED LEFT MAINS BAL
INLET
XLR SOCKET PINOUTS
XLR Balanced input
and output lead
connections:
(for reference only, no
XLR signal leads
supplied)
Pin:
Functions: (line input/output)
Functions: (headphone outputs)
1
Ground (cable shielding)
Ground (not necessarily used)
2
Normal polarity ("hot" or “+”)
Transduc er “+”
3
Inverted polarity ("cold" or “-“)
Transducer “ “-
