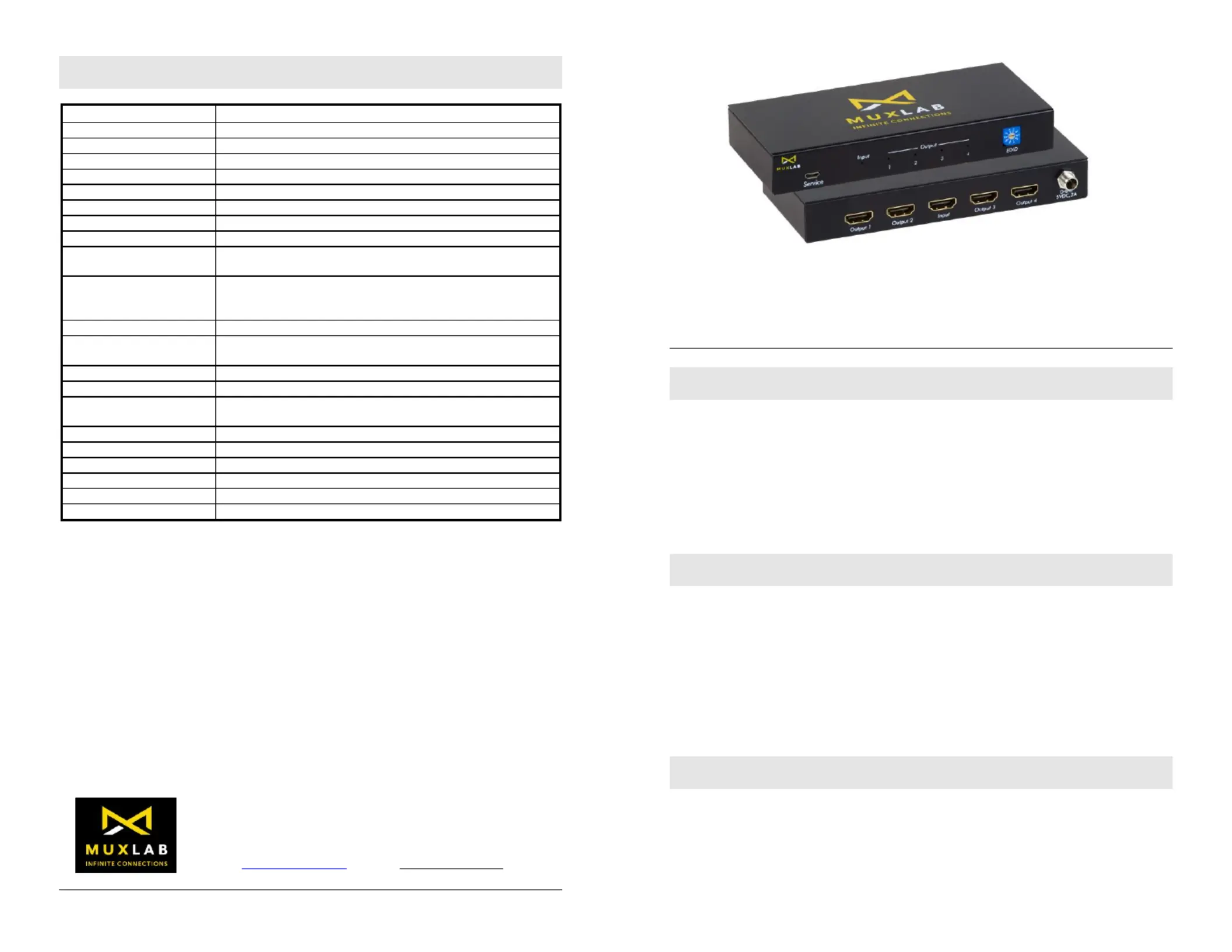

Side 1/2

2321 Cohen St, Saint-Laurent, QC Canada H4R 2N7

Tel: (514) 905-0588 Fax: (514) 905-0589

Toll Free (North America): (877) 689-5228

E-mail: URL: www.muxlab.com info@muxlab.com

Specications

Environment

HDMI 2.0a

Devices

Ultra HD -Ray, projectors, monitors, TV, PC, laptops. Blu

Transmission

Transparent to the user.

Video Bandwidth

18 Gbps

Frequency Range

25 to 600 MHz

Signals

HDMI 2.0a protocol.

HDCP

Revision 1.4 & 2.2 compliant.

Connectors

HDMI receptacle.

Rotary Switch

For setting the EDID to be sent to the source

LEDs

Power: Blue

Input & Output Link: Blue

Resolution

480i to 1080p @ 50/60 FPS

1080p @ 24/50/60 FPS

3840 X 2160 @ 24/25/30/60 FPS

Color

8, 10 & 12 bit

Aud io

LPCM 7.1CH, Dolby TrueHD, Dolby Atmos, DTS-HD Master

Audio and DTS:X

Cable

HDMI cable of appropriate length for video resolution selected.

Power Supply

One (1) 110-240V/5VDC , 1A power supply

Temperature

Operating: 0° to 40°C Storage: -20° to 60°C

Humidity: up to 90% non-condensing

Enclosure

Metal enclosure

Dimensions

6.06” x 2.72” x 0.91” (155 mm x 68 mm x 24 mm)

Weight

1.1 lbs (0.5 Kg)

Compliance

Regulatory: FCC, CE, RoHS

Warranty

1 year

Order Information

1 6 4 HDMI Splitter, 4K/60 0050 1X

1X 4K 00504 MI SplitterHD , /60 (1 6)

Quick Installation Guide

Overview

The HDMI 1x4 Splitter (1 6) allows one (1) HDMI source to be distributed to 0050

up to four (4) HDMI displays. The splitter supports up to 4K (3840 X 2160) video

and HD audio. The splitter is HDCP 1.4 & 2.2 compliant, supports EDID

management and features LED diagnostics Additionally, all connectors are on the .

rear panel for neater cabling. Applications include; commercial and residential AV

systems, classroom projector systems, digital signage, boardroom systems,

collaborative PC systems, medical information systems.

Pre-Installation Check

Identify the connectors as indicated on the product diagram above. LEDs are

located on the front and the connectors and mode switch on the rea r.

Installation

In order to install the 4 HDMI Splitter, please follow the steps below: 1X

1. Connect the HDMI video source to the input HDMI connector of the splitter

with an appropriate HDMI cable.

2. Connect the HDMI display equipment to the output HDMI connectors of the

splitter with appropriate HDMI cables.

3. Use the Rotary switch to select the EDID that will be sent to the HDMI source

device as indicated on the Rotary switch table.

4. Connect the 5 VDC power supply to the splitter rst, and then plug the power

supply into an AC power outlet.

5. Power on the HDMI equipment and verify the image quality.

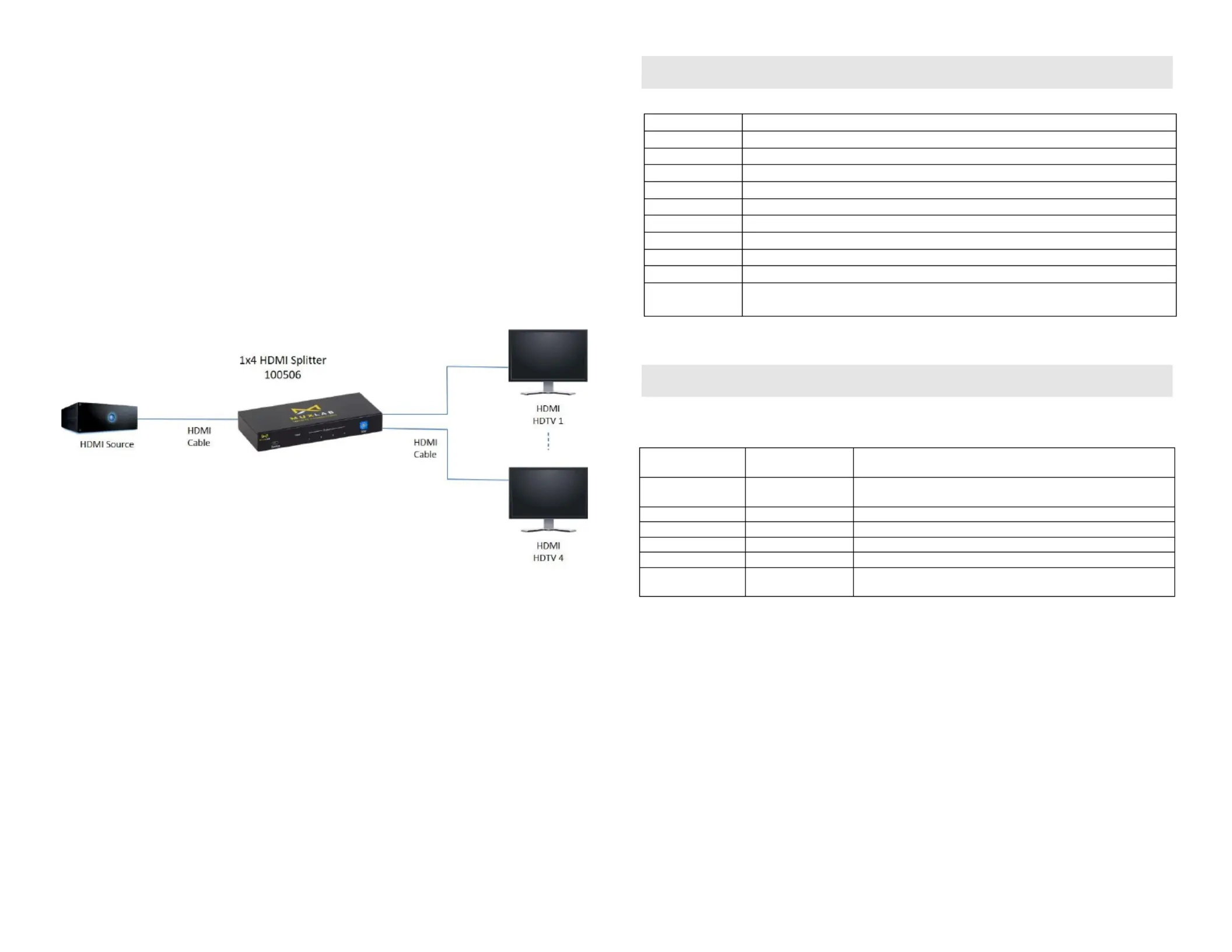

6. The following diagram shows the nal conguration.

Mode Switch Selection

Use the Rotary switch to select the EDID that will be sent to the HDMI source device.

Position

Function

Auto (Mix EDID)

EDID Ultra-HD (3840X2160@60Hz) 7.1 Audio –

EDID Ultra-HD (3840X2160@60Hz) 2.0 Audio –

EDID Ultra-HD (3840X2160@30Hz) 7.1 Audio –

EDID Ultra- (3840x2160@30Hz) 2.0 Audio HD –

EDID Full-HD (1080p, 3D, 12bit 7.1 Audio ) –

EDID Full-HD (1080p, 8bit 2.0 Audio ) –

EDID 1080i 7.1 Audio –

EDID 1080i 2.0 Audio –

Learn EDID of the device connected to Output 1 and send it intact to

the input port

Troubleshooting

The following table describes some of the symptoms, probable causes and possible solutions

in regard to the installation of the 4 HDMI Splitter. 1X

Picture/

Sound

Probable Cause

Possible Solution

No Image

Wiring

Check continuity

Check correct wiring

No Image

Synchronization

Power o the source and displays, then power them back on.

Flickering Image

Synchronization

Check HDMI cable length against industry standards.

Choppy Sound

Synchronization

Check HDMI cable length against industry standards.

Noise in image

Weak signal

Check HDMI cable length against industry standards.

Green or pink

hue

HDMI cables

Check HDMI cables and replace as needed.

If you still cannot diagnose the problem, please call MuxLab Customer Technical Support at

877-689-5228 (toll-free in North America) or (+1) 514-905-0588 (International).
