Side 1/2

8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5

Tel: (514) 905-0588 Fax: (514) 905- 0589

Toll Free (North America): (877) 689- 5228

E-mail: videoease@muxlab.com URL: www.muxlab.com

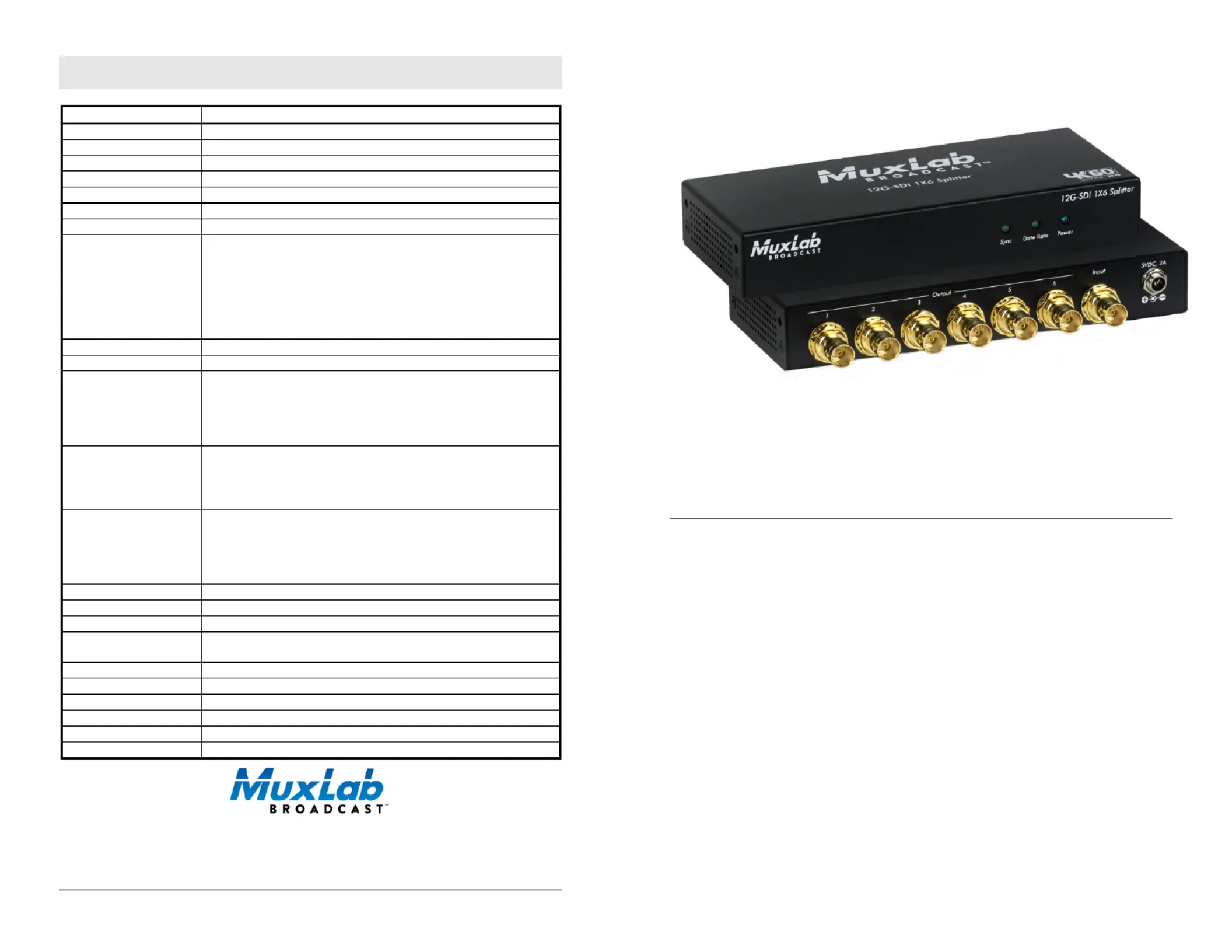

Specications

Environment

12G-SDI, 6G-SDI, 3G-SDI, HD-SDI & SD-SDI.

Devices

Camera projectors, monitors, TV. ,

Transmission

Transparent to the user.

Detection

Auto Detection of the 12G/6G/3G/HD/SD-SDI Signal.

Bandwidth

11.88bps & 11.88/1.001Gbps

Data Rates

1.485, 2.97, 5.96 & 11.88 Gbps

Output Impedance

75Ω

Signals

SDI protocol.

Supported Resolution

12G-SDI: 2160p50/59.94/60Hz (4:2:2)

6G-SDI: (4:2:2) 2160p23.98/24/25/29.97/30Hz

3G-SDI: 1080p50/59.94/60Hz (4:2:2)

HD-SDI: 1080p/23.98/24/25/29.97/30Hz

720p/50/59.94/60Hz

1080i/50/59.94/60 Hz

SD-SDI: NTSC (59.94Hz), PAL (50Hz)

Audio

Up to 8 Audio Channels.

Ancillary Data

Supported

Input Signal

12G-SDI : SMPTE ST2082

6G-SDI : SMPTE ST2081

3G-SDI: SMPTE , 425M 424M

HD-SDI: SMPTE 292M, 296M

SD-SDI : SMPTE 259M, 344M

Connectors

One (1) BNC Female 75 Ohms, Gold Plated for input.

Six (6) BNC Female 75 Ohms, Gold Plated for outputs.

One (1) Locking Barrel Jack 2.1mm Power Connector.

Note: RG59 coaxial cables not included.

Cable Equalization

12G-SDI up to 150ft (45m)

6G-SDI up to 300ft (90m)

3G-SDI up to 300ft (90m)

HD-SDI up to 500ft (150m)

SD-SDI up to 1000ft (300m)

Cable

RG-59 or better cable required.

Power Supply

One (1) 110-240V/5VDC power supply with interchangeable blades.

Power Consumption

5.0 Watt (Max)

Temperature

Operating: 0° to 40°C Storage: -20° to 60°C

Humidity: Up to 90% non-condensing

Enclosure

Metal

Dimensions

3.1” x 3.3” x 1.2” (79mm x x 84mm 27mm)

Weight

1.7 s (0. kg) lb 78

Compliance

Regulatory: FCC, CE, RoHS Flammability: 94V0

Warranty

2 years

Order Information

50071 128 G-SDI 1x6 Splitter, 4K/60

12G-SDI 1X6 Splitter, 4K/60

500718

Quick Installation Guide

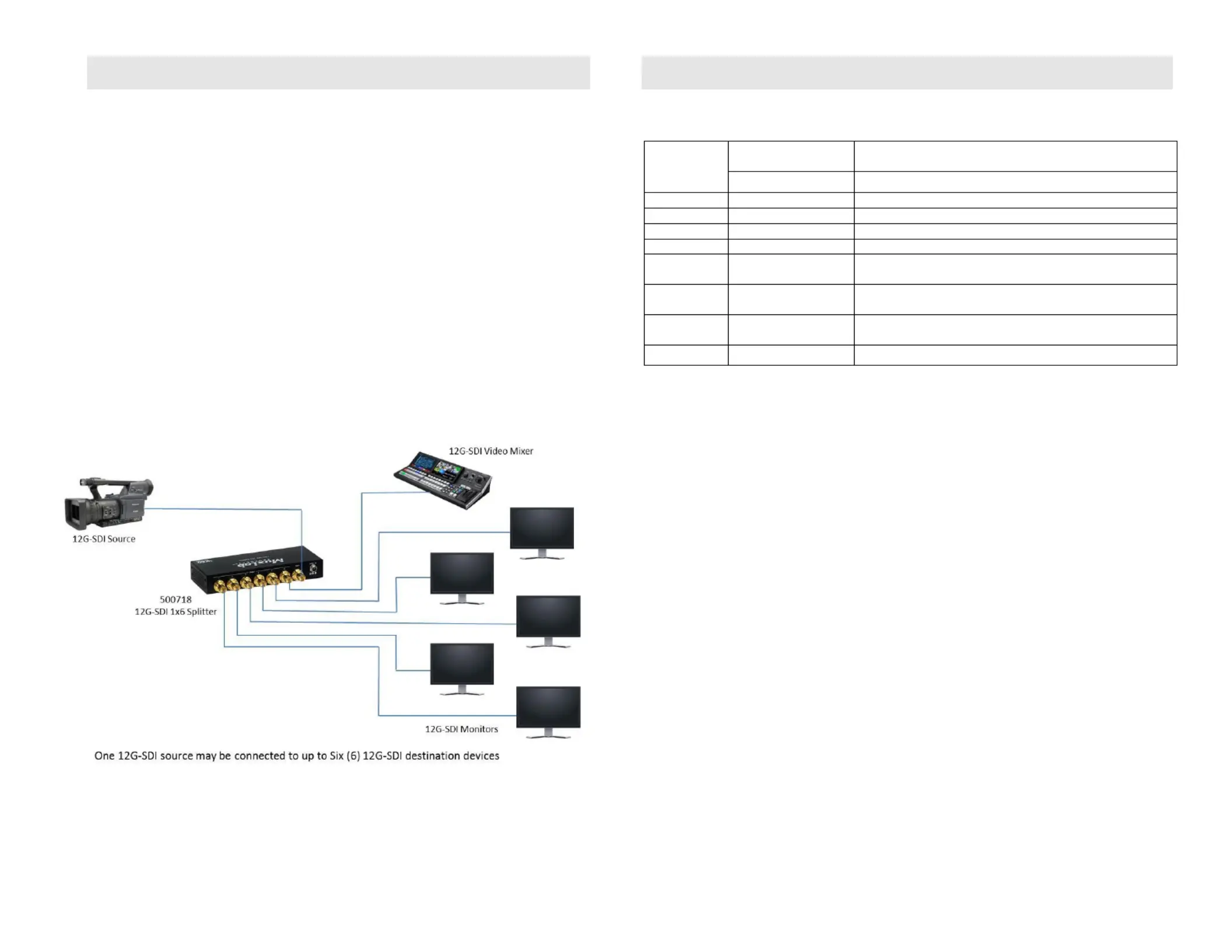

Overview

The G-SDI 1x6 Splitter, 4K/60 (500 8) allows one (1) 12G/6G/3G/HD/SD-SDI 12 71

source to be distributed and amplied to up to six (6) 12G/6G/3G/HD/SD-SDI displays.

The splitter supports up to 4K (3840 X 2160) video and HD audio, including 480i (SD-

SDI), 720p/1080i (HD-SDI) 1080p (3G-SDI), 4K/30 (6G-SDI) and 4K/60 (12G-SDI), .

The device automatically detects the 12G/6G/3G/HD/SD-SDI signal and -clocks and re

regenerates the signal at the output for extending distances between source and displays.

Additionally, all connectors are on the rear panel for neater cabling.

Applications

Applications include video production, broadcasting, outside broadcasting vehicle, SDI

camcorder, studio- -studio, post production, live events, medical imaging display, to

mobile video.
