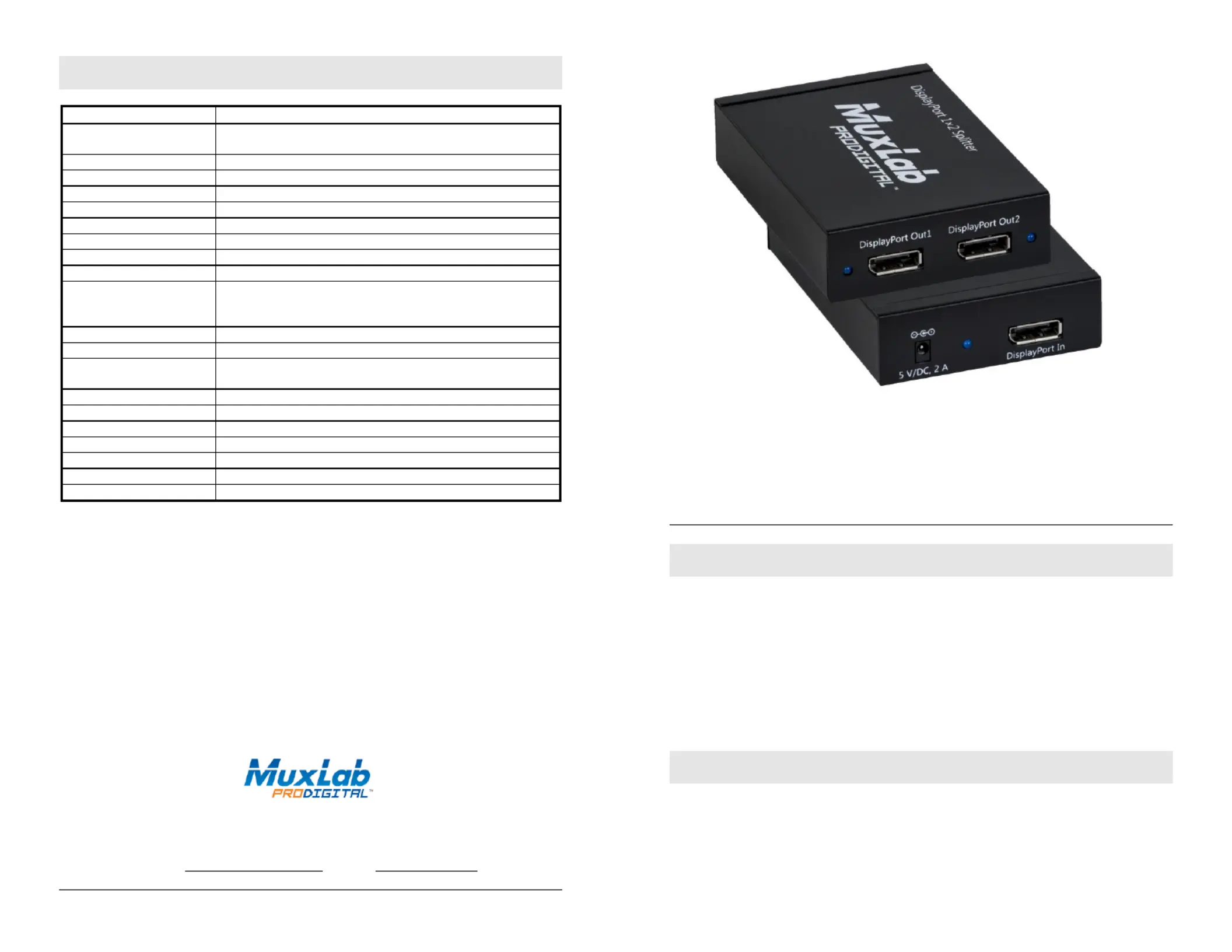

Side 1/2

8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5

Tel: (514) 905-0588 Fax: (514) 905- 0589

Toll Free (North America): (877) 689- 5228

E-mail: videoease@muxlab.com URL: www.muxlab.com

Specications

Environment

DisplayPort 1.2a

Devices

Installation of DisplayPort or Mini DisplayPort output source

equipment with DisplayPort input monitors

Transmission

Transparent to the user.

Video Bandwidth

21.6 Gbps (5.4Gbps per lane)

Signals

DisplayPort 1.2a & Dual mode DisplayPort protocol

Transport

Supports Single Stream Transport ( ) SST

Resolution

Up to 3840 X 2160 @ 60 FPS

HDCP

Revision 1.4 compliant.

Audio

LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio

Connectors

DisplayPort receptacle.

Cabling Requirement

Input port : 1x Standard DisplayPort Cable

Output port : 2x Standard DisplayPort Cables

(Select appropriate cable length for video resolution selected)

LEDs

Input & Output Link: Blue

Power Supply

One (1) 110-240V/5VDC , 2A power supply

Temperature

Operating: 0° to 40°C (32° to 104°F)

Storage: -20° to 60°C (-4° to 185°F)

Humidity

Maximum 90% (non-condensing)

Enclosure

Black metal enclosure

Dimensions

4.33” x 2.95” x 1.00” (110 mm x 75 mm x 25 mm)

Weight

0.55lbs (250g)

Compliance

Regulatory: FCC, CE, RoHS

Warranty

2 years

Order Information

500505 DisplayPort 1.2a 1x2 Splitter, SST

DisplayPort 1.2a 2 Splitter, SST 1x

(500 ) 505

Quick Installation Guide

Overview

The DisplayPort 1.2a 1×2 Splitter, SST (500505) allows you to duplicate identical

DisplayPort 1.2a content from one DisplayPort connector to two monitors. The

splitter supports up to 4K (3840 X 2160) video and HD audio. The splitter is

HDCP 1. compliant and features LED diagnostics. Applications include; 4

commercial and residential AV systems, classroom projector systems, digital

signage, boardroom systems, collaborative PC systems, medical information

systems.

Pre-Installation Check

Identify the connectors as indicated on the product diagram above. LEDs are

located on the front and rear of the unit, next to each connector to indicate traic.

Installation

In order to install the DisplayPort 1.2a 2 Splitter , please follow the steps below: 1x , SST

1. Connect the DisplayPort video source to the input DisplayPort connector of

the splitter with an appropriate DisplayPort cable, while respecting

DisplayPort cable length standards.

2. Connect the DisplayPort display equipment to the output DisplayPort

connectors of the splitter with appropriate DisplayPort cabl , while es

respecting DisplayPort cable length standards.

3. Connect the 5 VDC power supply to the splitter rst, and then plug the power

supply into an AC power outlet.

4. Power on the DisplayPort equipment and verify the image quality.

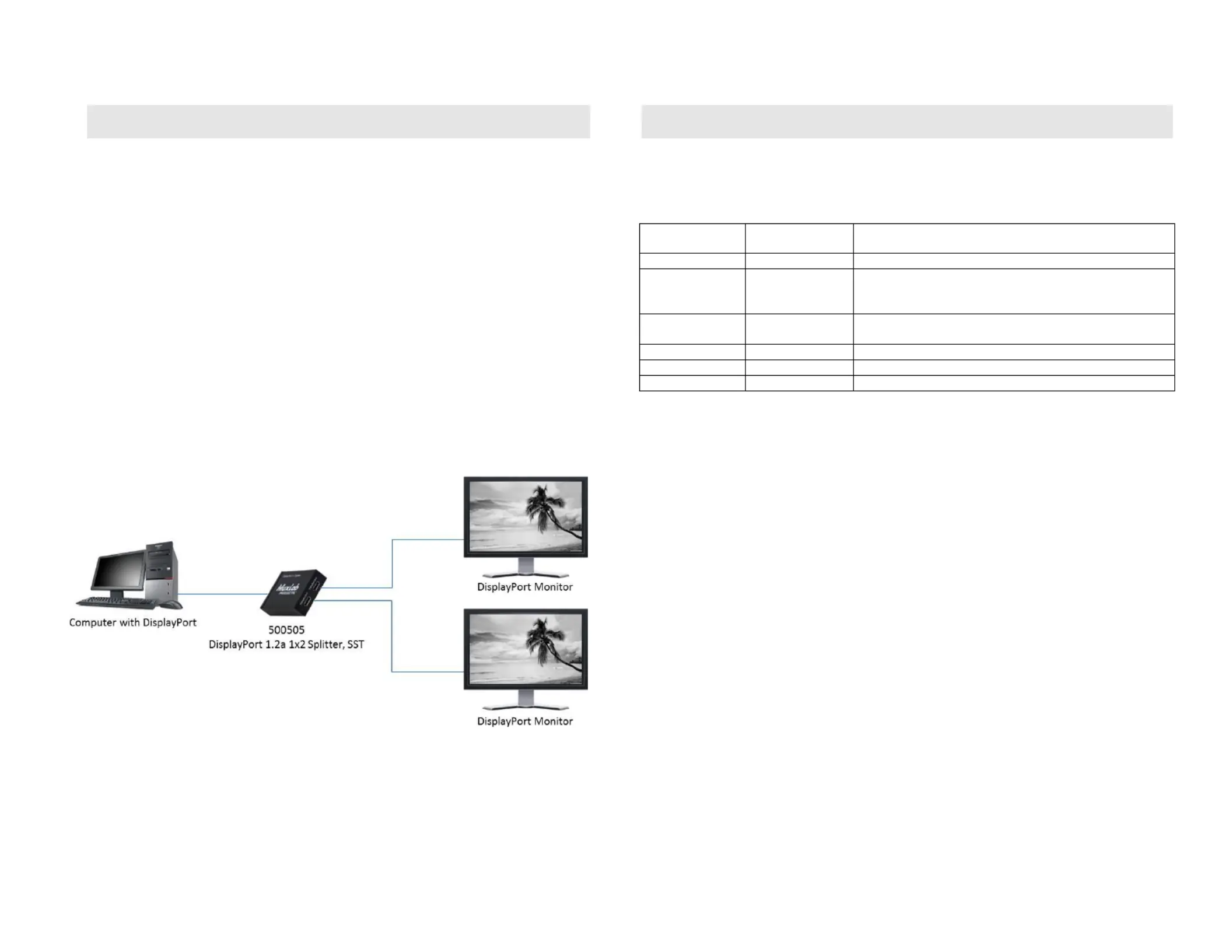

5. The following diagram shows the nal conguration.

Troubleshooting

The following table describes some of the symptoms, probable causes and possible solutions

in regard to the installation of the DisplayPort 1.2a 1x2 Splitter, SST If you still cannot .

diagnose the problem, please call MuxLab Customer Technical Support at 877- -689 5228

(toll-free in North America) or (+1) 514- -0588 (International). 905

Picture/

Sound

Probable Cause

Possible Solution

No Image

Power

Check Power Supply connection

No Image

DisplayPort

Cable Wiring

Check cable continuity

Check for correct wiring

Check for damaged cable

No Image

Synchronization

Power o the source and displays, then power them back

on.

Flickering Image

Synchronization

Check DisplayPort cable length against industry standards.

Choppy Sound

Synchronization

Check DisplayPort cable length against industry standards.

Noise in image

Weak signal

Check DisplayPort cable length against industry standards.
