Side 1/2

2321 Cohen Road, Saint-Laurent, Quebec, Canada. H4R 2N7

Tel: (514) 905-0588 Fax: (514) 905-0589

Toll Free (North America): (877) 689-5228

E-mail: URL: www.muxlab.com

info@muxlab.com

Specications

Environment

12G-SDI, 6G-SDI, 3G-SDI, HD-SDI & SD-SDI.

Devices

Camera, projectors, monitors, TV.

Transmission

Transparent to the user.

Detection

Auto Detection of the 12G/6G/3G/HD/SD-SDI Signal.

Bandwidth

11.88bps & 11.88/1.001Gbps

Data Rates

1.485, 2.97, 5.96 & 11.88 Gbps

Output Impedance

75Ω

Signals

SDI protocol.

Supported Resolution

12G-SDI: 2160p50/59.94/60Hz (4:2:2)

6G-SDI: 2160p23.98/24/25/29.97/30Hz (4:2:2)

3G-SDI: 1080p50/59.94/60Hz (4:2:2)

HD-SDI: 1080p/23.98/24/25/29.97/30Hz

720p/50/59.94/60 Hz

1080i/50/59.94/60 Hz

SD-SDI: NTSC (59.94Hz), PAL (50Hz)

Audio

Up to 8 Audio Channels.

Ancillary Data

Supported

Input Signal

12G-SDI : SMPTE ST2082

6G-SDI : SMPTE ST2081

3G-SDI: SMPTE 424M, 425M

HD-SDI: SMPTE 292M, 296M

SD-SDI : SMPTE 259M, 344M

Connectors

One (1) BNC Female 75 Ohms, Gold Plated for input.

Four (4) BNC Female 75 Ohms, Gold Plated for outputs.

One (1) Locking Barrel Jack 2.1mm Power Connector.

Note: RG59 coaxial cables not included.

Cable Equalization

12G-SDI up to ft (230 70m)

6G-SDI up to 330ft (100m)

3G-SDI up to 594ft (180m)

Cable

RG-59 or better cable required.

Power Supply

One (1) 110-240V/5VDC power supply with interchangeable blades.

Power Consumption

3.0 Watt (Max)

Temperature

Operating: 0° to 40°C Storage: -20° to 60°C

Humidity: Up to 90% non-condensing

Enclosure

Metal

Dimensions

3.19” x 1.61” x 0.95” (81mm x 41mm x 24mm)

Weight

0.37lbs (0.17kg)

Compliance

Regulatory: FCC, CE, RoHS Flammability: 94V0

Warranty

2 years

Order Information

5007 G-SDI 4 Splitter, 4K/60 27 12 1x

12 1XG-SDI 4 Splitter, 4K/60

500 277

Quick Installation Guide

Overview

The G-SDI 4 Splitter, 4K/60 (5007 ) allows one (1) 12G/6G/3G/HD/SD-SDI 12 1x 27

source to be distributed and amplied to up to four (4 12G/6G/3G/HD/SD-SDI )

displays The splitter supports up to 4K (3840 X 2160) video and HD audio, including .

480i (SD-SDI), 720p/1080i (HD-SDI) 1080p (3G-SDI), 4K/30 (6G-SDI) and 4K/60 ,

(12G-SDI) The device automatically detects the 12G/6G/3G/HD/SD-SDI signal and -. re

clocks and regenerates the signal at the output for extending distances between source

and displays Additionally, all connectors are on the rear panel for neater cabling. .

Applications

Applications include video production, broadcasting, outside broadcasting vehicle, SDI

camcorder, studio- -studio, post-production, live events, medical imaging display, to

mobile video.

Installation

1. 1x Identify the connectors on the G-SDI 12 4 Splitter as indicated on the

product labels above.

2. Connect the source to the 12G-SDI Input of the splitter.

3. our Connect up to f (4 display(s) to the 12G-SDI Outputs of the splitter. )

4. Connect the 5 VDC power supply to the splitter rst, and then plug the power

supply into an AC power outlet. If power is present, the power LED of the

splitter will be illuminated.

Note: Power ON the G-SDI 4 Splitter, 4K/60 only after all connections are 12 1x

made.

5. Power the equipment and verify the image quality.

6. The appropriate Data Rate LED will be ON to show the input signal rate speed

and that the signal is lock . ed

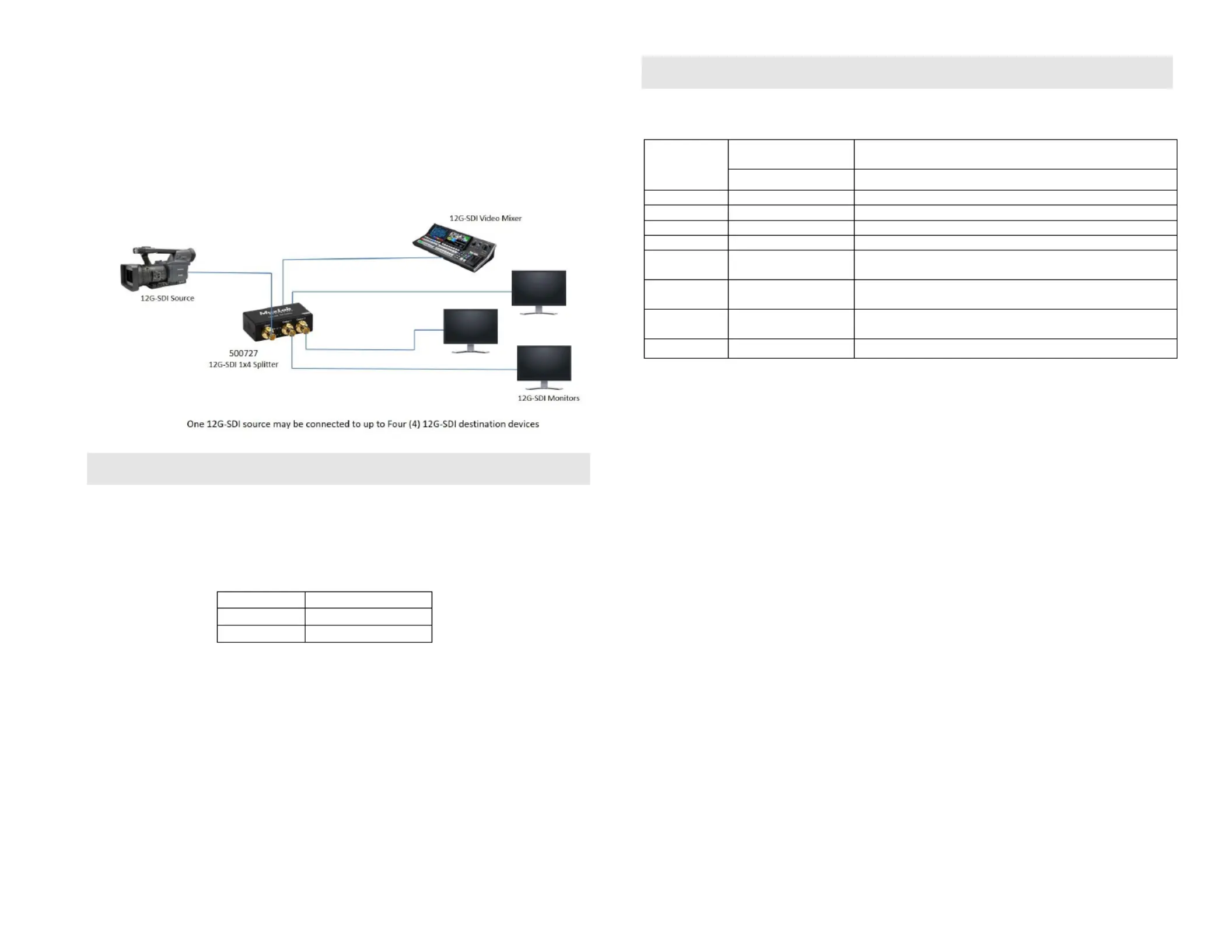

7. The following diagram shows the nal conguration.

Output Pairing

The outputs of this device work in pairs. Due to the high frequency and low jitter

requirement for 12G-SDI signals, to have the best performance it is strongly

recommended to use ohm terminator if a paired SDI tput port is not in use. a 75 ou

Please see the following table for the 12G-SDI output pairing:

Output Port

Pair A

Output 1 & 2

Pair B

Output 3 & 4

Troubleshooting

The following table describes some of the symptoms, probable causes and possible solutions

with respect to the installation of the G-SDI 4 Splitter, 4K/60: 12 1x

Symptom

Probable

Cause

Possible

Solutions

No Image

No power

• Check power connections

No Image

Source

• Check if the source is sending a signal.

No Image

Resolution

• Check if the source resolution is valid.

No Image

Coaxial Cable

• Check the coaxial cable.

No Image

Coaxial Cable distance

• Check the coaxial cable distance for the corresponding

resolution (see Specications table).

No Image

Coaxial Cable Quality

• Check the coaxial cable type. It should be an RG-59 or better

coaxial cable.

Flickering


Synchronization

• Check the coaxial Cable Quality or distance.

Choppy sound

Synchronization

• Check the coaxial Cable Quality or distance.

If you still cannot diagnose the problem, please call MuxLab Customer Technical Support at

877-689-5228 (toll-free in North America) or (+1) 514-905-0588 (International).
