Side 1/2

8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5

Tel: (514) 905-0588 Fax: (514) 905-0589

Toll Free (North America): (877) 689-5228

E-mail: videoease@muxlab.com URL: www.muxlab.com

Specifications

Environment

Composite video (NTSC, PAL, SECAM). Line level analog audio. IR Remote.

Devices

DVD players, VCR, satellite receivers, MPEG players, laptops, notebooks,

monitors, LCD projectors, CCD cameras, video switchers, sequencers, digital

video servers, video multiplexers, video splitters, video converters and other

composite video equipment.

Transmission

Transparent to the user

Composite Video Audio

Bandwidth

DC to 6 MHz 20 Hz to 20 KHz over the

distance range

Impedance

75 ohms 600 ohms min.

Max. Input

1.1 Vp-p 1.1 Vp-p

Insertion Loss

Less than 2 dB per pair over the frequency

range from DC to 6 MHz

Less than 2 dB per pair over the

frequency range

Return Loss

Better than 15 dB over the frequency range N/A

Common Mode

Rejection Ratio

Greater than 40 dB over the frequency range N/A

Max. Distance via

Cat 5E/6

UTP/STP Cable

2,200 ft (670 m)

IR: Please refer to IR vendor specifications

3,250 ft (990 m)

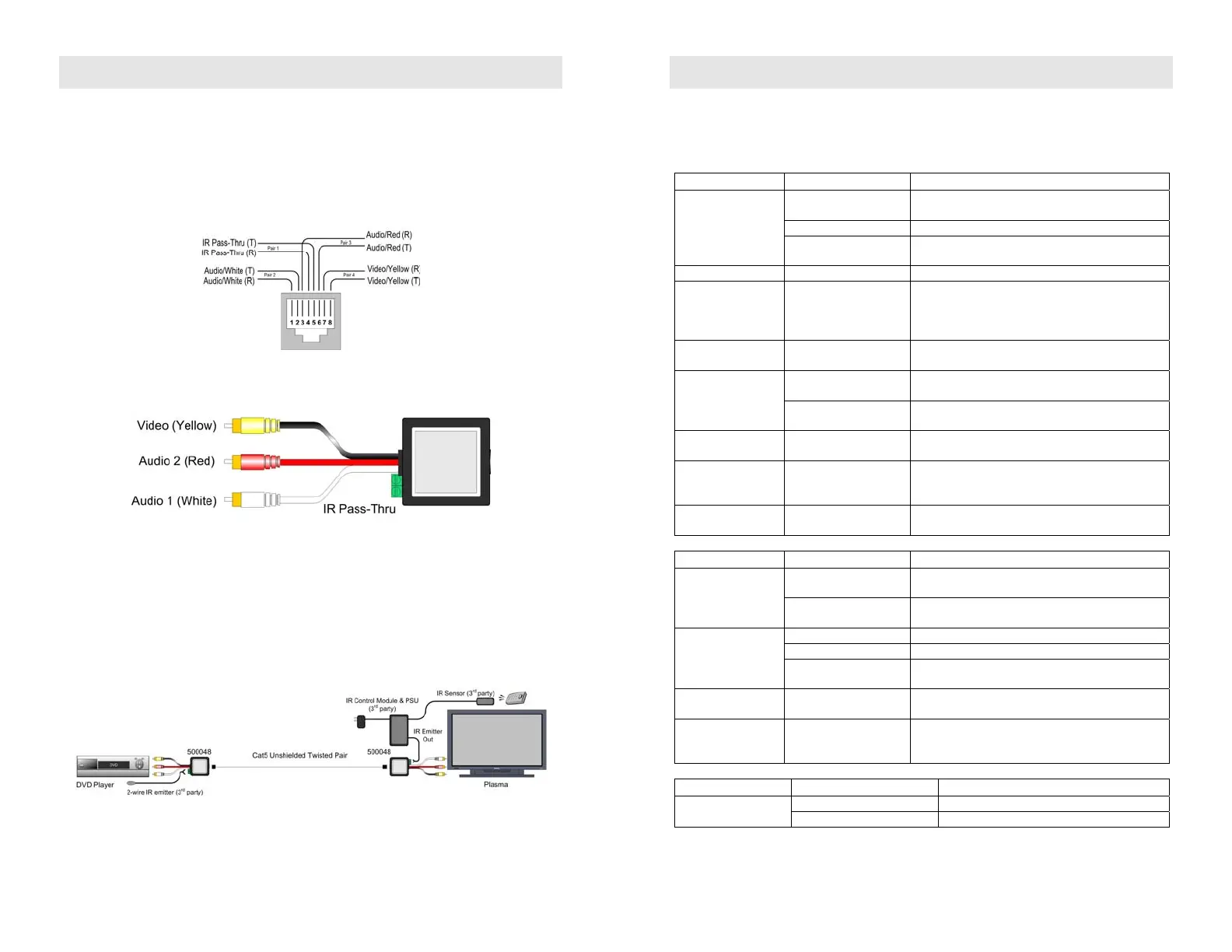

Pin Configuration

(RJ45)

Video: Pins 7(R) & 8(T)

IR Pass-Thru: Pins 4(R) & 5(T)

Reverse Polarity Sensitive

Audio 1: Pins 1(R) & 2(T)

Audio 2: Pins 3(R) & 6(T)

Cable:

Cat 5E/6

UTP/STP

24 AWG or lower solid copper twisted pair wire

Impedance: 100 ohms at 1 MHz

Maximum capacitance: 20 pf/ft

Attenuation: 6.6 dB/1,000 ft at 1 MHz

Connectors

500048: Three RCA-M connectors: Video (yellow) & stereo audio (red, white)

500049: Three RCA-F connectors: Video (yellow) & stereo audio (red, white)

One (1) 2-pole terminal block for IR emitter pass-through

One (1) RJ45 for Cat 5E/6

Temperature

Operating: 0º to 55ºC

Storage: -20º to 85ºC

Humidity: Up to 95% non-condensing

Enclosure

Fire retardant plastic

Dimensions

500048: 2.40” x 2.25” x 1.00” (6.10 x 5.72 x 2.54 cm) plus 6” (15 cm) cable

leads for video and stereo audio

500049: 2.40” x 2.25” x 1.00” (6.10 x 5.72 x 2.54 cm)

Weight

3.1 oz (89 g)

Warranty

Lifetime

Order

Information

500048 Stereo AV/IR Pass-Thru Balun, M

500049 Stereo AV/IR Pass-Thru Balun, F

Stereo AV / IR Pass-Thru Balun

500048, 500049

Quick Installation Guide

Overview

The Stereo AV/IR Pass-Thru Balun (500048, 500049) allows one (1) composite video,

one (1) stereo audio and one (1) IR emitter signal to be transmitted via a single Cat 5E/6

cable in a point-to-point connection. The Stereo AV/IR Pass-Thru Balun features full

audio bandwidth response for high fidelity applications and features built-in color-coded

cable leads for ease of installation. The Stereo AV/IR Pass-Thru Balun also works in

conjunction with third party IR Remote Control equipment. This enables the IR Emitter

to connect to the IR control module using the same Cat 5E/6 cable as video and audio,

allowing for more cost-efficient cabling. Some applications include: Classroom video

distribution, commercial and home audio/video systems, hospital video training, video

conferencing, and video kiosks
