* Before changing these settings, set the function key to the "Setting mode". When finished, set back to the
"Operation mode".
Wrong wiring or connection failure. Check the wires and connector.
Wrong wiring or connection failure. Check the wires and connector.
When the above procedures (1-3) are not followed, an error
(Red & Green blinking) occurs.
Make sure to use the sensor only in "Operation Mode".
The sensor does not operate properly in "Setting Mode".
The actual detection area may become smaller depending on the ambient light, the color / material of
the object or the floor as well as the entry speed of the object.
The sensor may not be activated when the entering speed of an object or a person is slower than
50mm / sec. or faster than 1,500mm / sec.
Left area width adjustment
Right area width adjustment
Mounting
surface
3-1.Setting the sensitivity
Normally set to "Middle". "Low" decreases the sensitivity and "High / S-High" increases
the sensitivity. Refer to the chart below for the suitable sensitivity to each installation
environment.
3-2.Setting the presence detection timer
The presence detection timer can be selected from 4 settings. To comply with
EN 16005, set the timer "30sec." or longer.
3-3.Setting the area width
3-4.Setting the frequency
The actual detection area may become smaller depending on the ambient light, the color / material of
the object or the floor as well as the entry speed of the object.
The sensor may not be activated when the entering speed of the object or a person is slower than
50mm / sec. or faster than 1,500mm / sec.
NOTE
NOTE
NOTE
0
500
500
Mounting
surface
: Detection area : Emitting area
0 500 1,000-500-1,000-1,500 1,500
0
500
500
0 500 1,000-500-1,000-1,500 1,500
Mounting height : 2,000(6' 6")
NOTE
01.0 1.02.0 2.0
2.8
2.0
2.2
2.4
2.6
3.0
Follow these steps to change the settings of dipswitches.
1.Change the function key from "Operation Mode" to "Setting Mode".
2.Change the dipswitches setting.
3.Change the function key back to"Operation Mode".
The left and right width can be adjusted by combining dipswitches 5,6,7 and 8.
Referring to the chart below, select dipswitches 5 and 6 for the left and
dipswitches 7 and 8 for the right area width adjustment.
Special attention to the setting is required when the door is used often by the elderly or children.
Please adjust the sensitivity and presence detection timer according to your risk assessment.
Mounting height [ mm (feet,inch) ]
2,000 (6' 6") 2,200 (7' 2") 2,500 (8' 2") 3,000 (9' 10") For example
Floor condition
Low reflection Middle Middle High S-High -Carpet
-Dark color floor
Middle reflection Low Middle Middle -Concrete
High reflection Low Low Middle High -Tile
-Marble
Entry into
detection area
Stand-by
Green Red Green
Output
Area depth angle adjustment
The detection area can be adjusted up to 5° away from the door (Deep) or 5° towards the door (Shallow).
Adjust the required detection area by turning the depth adjustment screw wth a screw driver. Check the detection area
position with Red LED of the Operation LED using a tool such as a reflecting mirror.
For the compliance with EN 16005, the required fine adjustments applying the EN 16005 test conditions are recommended.
To enable the presence detection, do not enter the detection area
for 10 seconds after setting the timer.
Mounting height : 2,200(7' 2")
: Sensor
2.0
2.2
2.4
2.6
2.8
3.0
Deep Shallow
S-High
[mm(feet,inch)]
[m]
[m]
[m]
[m]
Dipswitches
Function key
Operation Mode
Setting Mode
21 21
21 21
Low S-HighHighMiddle
43 43
43 43
30sec. 180sec.60sec.
65 65 6565
Dipswitches
No spots
eliminated Eliminated Eliminated Eliminated
Area
spots
87 87 8787
Dipswitches
No spots
eliminated Eliminated Eliminated Eliminated
Area
spots
99
Setting2Setting1
0.5 -0.5 0.5 -0.5 0.5 -0.5
None
Check the operation according to the chart below.
Status
Entry
Outside of
detection area
Operation
LED
1. Always keep the detection window clean. If dirty, wipe the window lightly with a damp cloth.
(Do not use any cleaner or solvent.)
2. Do not wash the sensor with water.
3. Do not disassemble, rebuild or repair the sensor yourself, otherwise electric shock may occur.
4. When an operation LED blinks green, contact your installer or service engineer.
5. Always contact your installer or service engineer when changing the settings.
6. Do not paint the detection window.
Power OFF
WARNING
NOTE
1. When turning the power ON, always walk-test the detection area to ensure proper operation.
2. Do not place any objects that move or emit light in the detection area. (e.g. Plant, illumination, etc.)
1
2
3

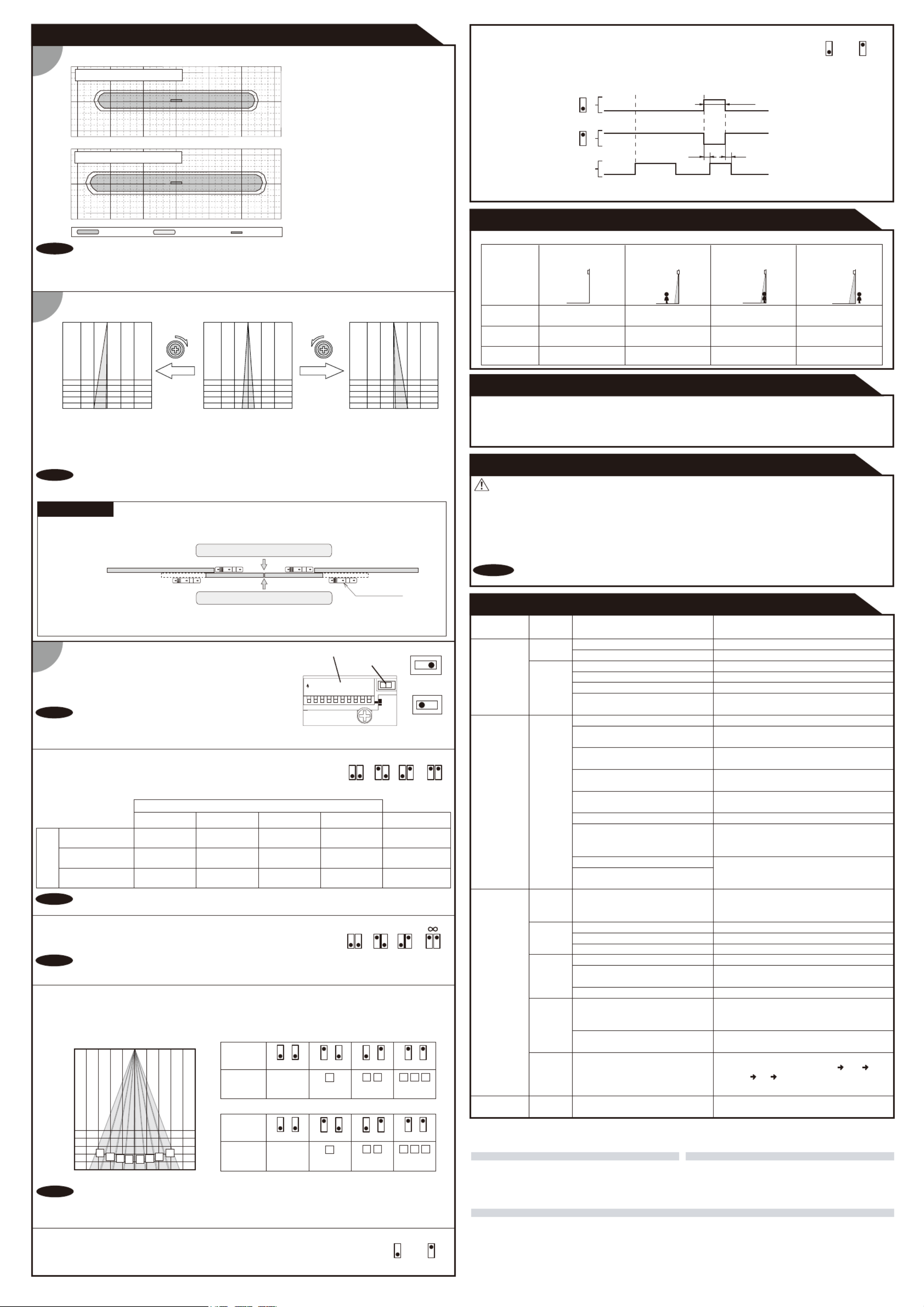

ADJUSTMENTS
2.0
2.2
2.4
2.6
2.8
3.0
2.0
2.2
2.4
2.6
2.8
3.0
Make sure the detection area does not overlap with the door / header,otherwise ghosting / signal saturation
may occur.
Do not place any highly reflecting objects in the detection area, otherwise signal saturation may occur.
Dipswitch settings
NOTE
1234 5 678
1 1 2 1 2 3
8 7 8 6 7 8
NOTE
CHECKING
Outside of
detection area
- Stand-by Motion/Presence
detection active
COMPLIED STANDARDS
INFORM BUILDING OWNER / OPERATOR OF THE FOLLOWING ITEMS
When using more than two sensors close to each other, set the different frequency for each sensor
by dipswitch 9.
Test input
(from door controller)
Safety / Test output
(to door controller)
High
< Test input and Safety / Test output timing chart >
*The test input delay time is the time period between the test input and safety / test output.
3-5.Setting the test input
Set dipswitch 10 according to the test input from the door controller.
10
10
LowHigh
Low
Objects that move or
emit light in the detection area.
(Ex.Plant, illumination, etc.)
Remove the objects.
Sensitivity is too high. Set the sensitivity lower(*).
Wet floor. Check the installation condition referring to
INSTALLATION on the reverse side.
The exhaust emission or fog pen-
etrate into the detection area.
Remove the objects.
Adjust the detection area to "Deep" (Outside).
Problem Operation
LED Possible cause Possible countermeasures
None Set to the stated voltage.Power supply voltage.
Wrong wiring or connection failure.
Fast
Green
blinking
Sensor failure.
Signal saturation.
Dirty detection window. Wipe the detection window with a damp cloth.
(Do not use any cleaner or solvent.)
Sensitivity is too low. Set the sensitivity higher(*).
The detection area overlaps with
the door / header.
Adjust the detection area to "Deep" (Outside).
Door opens
when no one
is in the
detection area.
(Ghosting)
Unstable Vibration of the header. Set the sensitivity lower.
Water drops on the detection window. Use the rain-cover (Separately available).
Or install in a place keeping the waterdrops off.
The detection area overlaps
with that of another sensor.
The detection area overlaps
with the door / header.
Reflecting objects in the detection area.
Or reflecting light on the floor.
Door remains
open
Red Sudden change in the detection area. Check (*).ADJUSTMENTS 3-1 & 3-2
If the problem still persists, hard-reset the
sensor.(Turn the power OFF and ON again.)
Slow
Green
blinking
Check the wires and connector.
Contact your installer or service engineer.
Remove highly reflecting objects from the
detection area. Or lower the sensitivity.
Or change the area angle.
Check (*).ADJUSTMENTS 3-4
TROUBLESHOOTING
Wrong setting of dipswitches.
Red &
Green
blinking
Door does not
open when a
person enters
the detection
area.
Unstable Wrong detection area positioning. Check (*).ADJUSTMENTS 1 , 2 & 3
Sensitivity is too low. Set the sensitivity higher(*).
Short presence detection timer. Set the presence detection timer longer(*).
Door remains
closed
Proper
Proper
1. Set the function key to "Setting Mode"
2. Change dipswitch 10 setting (ON OFF ON
or OFF ON OFF)
3. Set the function key back to "Operation Mode".
Wrong setting of dipswitches. Check (*).ADJUSTMENTS 3-5
Dirty detection window. Wipe the detection window with a damp cloth.
(Do not use any cleaner or solvent.)
Wrong setting of function key. Set to "Operation Mode".
1 43 52 6 98 107
ON
INFRARED FINDER
Detection Area
Detection Area
1. Turn the depth adjustment screw to the right (Deep) to place the detection area most away from the door.
2. Set INFRARED FINDER sensitivity to "H" (High) and place it on the floor as shown below.
Area depth adjustment with INFRARED FINDER (Separately available)
REFERENCE
3. Turn the depth adjustment screw to the left (Shallow) until the emitting area is placed at the position where
INFRARED FINDER is in the low detection status (Slow Red blinking).
ON OFF ON
OFF
Detection area according to the test conditions required by EN 16005.
Test conditions required by EN 16005
Floor : Grey paper
Detection object :
EN 16005 CA reference body
Speed of detection object :
50mm / sec.
Sensor setting
Area angle : 0°
Sensitivity : "Middle"
Area width : 8 Spots
Test conditions
Test inputDetection
* t2 =Test input delay time
(10msec.)
t1(>t2)
t2 t2
OPTEX Technologies Inc.
Corporate Headquarters
North and South American Subsidiary
3882 Del Amo Blvd., Suite 604 Torrance, CA 90503 U.S.A.
TOLL-FREE: 800 877 6656 FAX.: +1 310 214 8655
WEBSITE: www.optextechnologies.com
East Coast Office
OPTEX Co.,LTD. OPTEX Technologies B.V.
Manufacturer European Subsidiary
5-8-12 Ogoto Otsu 520-0101, Japan
TEL.: +81(0)77 579 8700 FAX.: +81(0)77 579 7030
WEBSITE: www.optex.co.jp
Tiber 2, 2491 DH The Hague, The Netherlands
TEL.: +31(0)70 419 41 00 FAX.: +31(0)70 317 73 21
E-MAIL: info@optex.nl WEBSITE: www.optex.nl
8510 McAlpines Park Drive, Suite 108 Charlotte,
NC 28211 U.S.A.
TOLL-FREE: 800 877 6656 FAX.: +1 704 365 0818
WEBSITE: www.optextechnologies.com
EN 12978+A1:2009
EN 61496-3:2001 clause 4. 3. 5 and 5. 4. 7. 3
EN 16005:2012 Machinery Directive 2006/42/EC
Notified Body: TÜV SÜD Product Service GmbH, Daimlerstraße 40 60314 Frankfurt Germany
EN ISO 13849-1:2008 EN ISO 13849-2:2008EMC Directive 2004/108/EC
