For Technical Support: www.panduit.com/resources/install_maintain.asp
INSTALLATION INSTRUCTIONS
© Panduit Corp. 2020 FS165A
Page 1 of 5
HD Flex 12 Port Splice Cassette
Part Number(s): See Table 1
Table 1:
Product Family Cassette part
number
Cassette Description
24-Fiber LC Splice Cassette
(pre-loaded with discrete pigtails)
FHSZA-24-10P 24-Fiber OM4 LC, Discrete Pigtails, Ultra IL
FHS9N-24-10P 24-Fiber OSC LC, Discrete Pibtails, Standard IL
FHS9N-24-LAP 24-FIber OSC LP/APC, Discrete Pigtails, Standard IL
24 Fiber LC Splice Cassette
(pre-loaded with ribbon pigtails)
FHSZA-24-10R 24-FIber OMM4 LC, Ribbon Pigtails, Ultra IL
FHS9N-24-10R 24-Fiber OSC LC, Ribbon Pigtails, Standard IL
FHS9N-24-LAR 24-Fiber OS2 LC/APC, Ribbon Pigtails, Standard, IL
12 Fiber SC Splice Cassette
(pre-loaded with discrete pigtails)
FHSZA-12-03P 12-Fiber OM4 SC, Discrete Pigtails, Ultra IL
FHS9N-12-03P 12-Fiber OS2 SC, Discrete Pigtails, Standard IL
FHS9N-12-3AP 12-Fiber OM2 SC/APC, Discrete Pigtails, Standard, IL
12-Fiber SC Splice Cassette
(pre-loaded with ribbon pigtails
FHSZA-12-03R 12-Fiber OM4 SC, Ribbon Pigtails, Ultra IL
FHS9N-12-03R 12-Fiber OS2 SC, Ribbon Pigtails, Standard IL
FHS9N-12-3AR 12-Fiber OS2 SP/APC, Ribbon Pigtails, Standard IL
Splice Only Cassette FHSN-24 Splice Only Cassette, No Front Connectivity
For complete HD Flex Fiber Cassette Enclosure installation instructions, visit www.panduit.com and search FS111.
WARNING: UNMATED CONNECTORS MAY EMIT INVISIBLE LASER RADIATION. MAIN-
TAIN DUST CAPS ON UNMATED CONNECTORS. CAUTION: Fiber optic cable is sensitive to
excess pulling, bending, and crushing forces. Consult the manufacturer’s cable specifications
sheet for specific cable to use.
For Technical Support: www.panduit.com/resources/install_maintain.asp
INSTALLATION INSTRUCTIONS
© Panduit Corp. 2020 FS165A
Page 2 of 5
Contents
24 Splice LC Splice Cassette pre-loaded with discrete pigtails
• (24) 40mm Discrete Split Sleeves
• (4) Pan-TyTM Cable Ties
24 Fiber LC Splice Cassette pre-loaded with ribbon pigtails
• (24) 40mm Ribbon Splice Sleeves
• (4) Pan-TyTM Cable Ties
12 Fiber SC Splice Cassette pre-loaded with discrete pigtails
• (12) 40mm Discrete Splice Sleeves
• (4) Pan-TyTM Cable Ties
12 Fiber SC Splice Cassette pre-loaded with ribbon pigtails
• (1) 40mm Ribbon Splice Sleeve
• (4) Pan-TyTM Cable Ties
Splice Only Cassette
• (24) 40mm Discrete Spice Sleeves
• (4) 40mm Discrete Splice Sleeves
• (8) Pan-TyTM Cable TIes
Additional splice protectors available from PANDUIT:
• FOSP40-C: Single Fiber Splice Protectors (100 pcs)
• FOWPR40-L: Rribbon Fiber Splice Protectors (50 pcs)

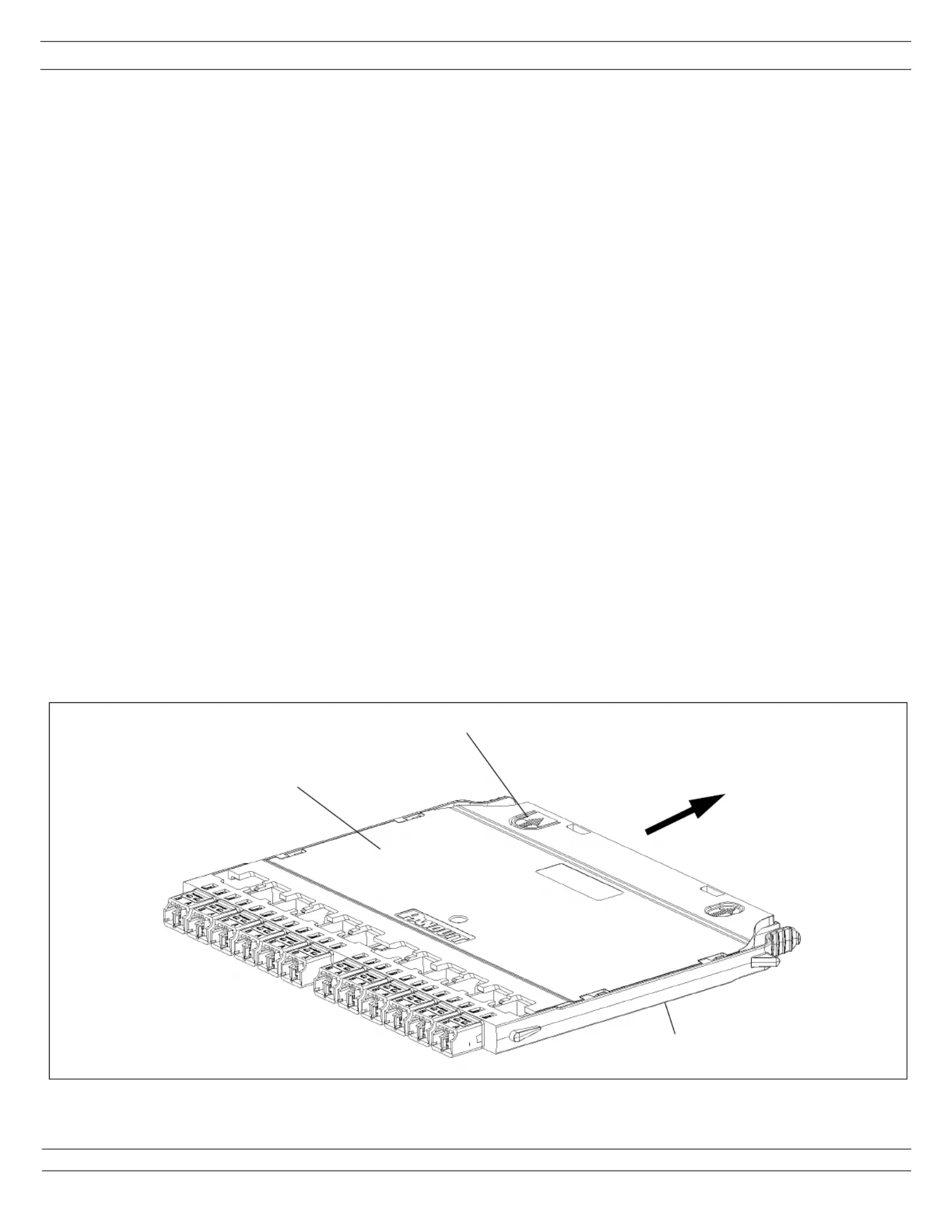

Cover Removal Latch
Cover
Figure 1
Base
Remove the cover, by pressing down on the cover removal latch, then sliding the cover back, in the direction of the arrow.
