Instruction Manual

Congratulations on your purchase!

To get optimum performance of your CLH-930 Closed Hi-Hat Holder,

please read this Instruction Manual before playing.

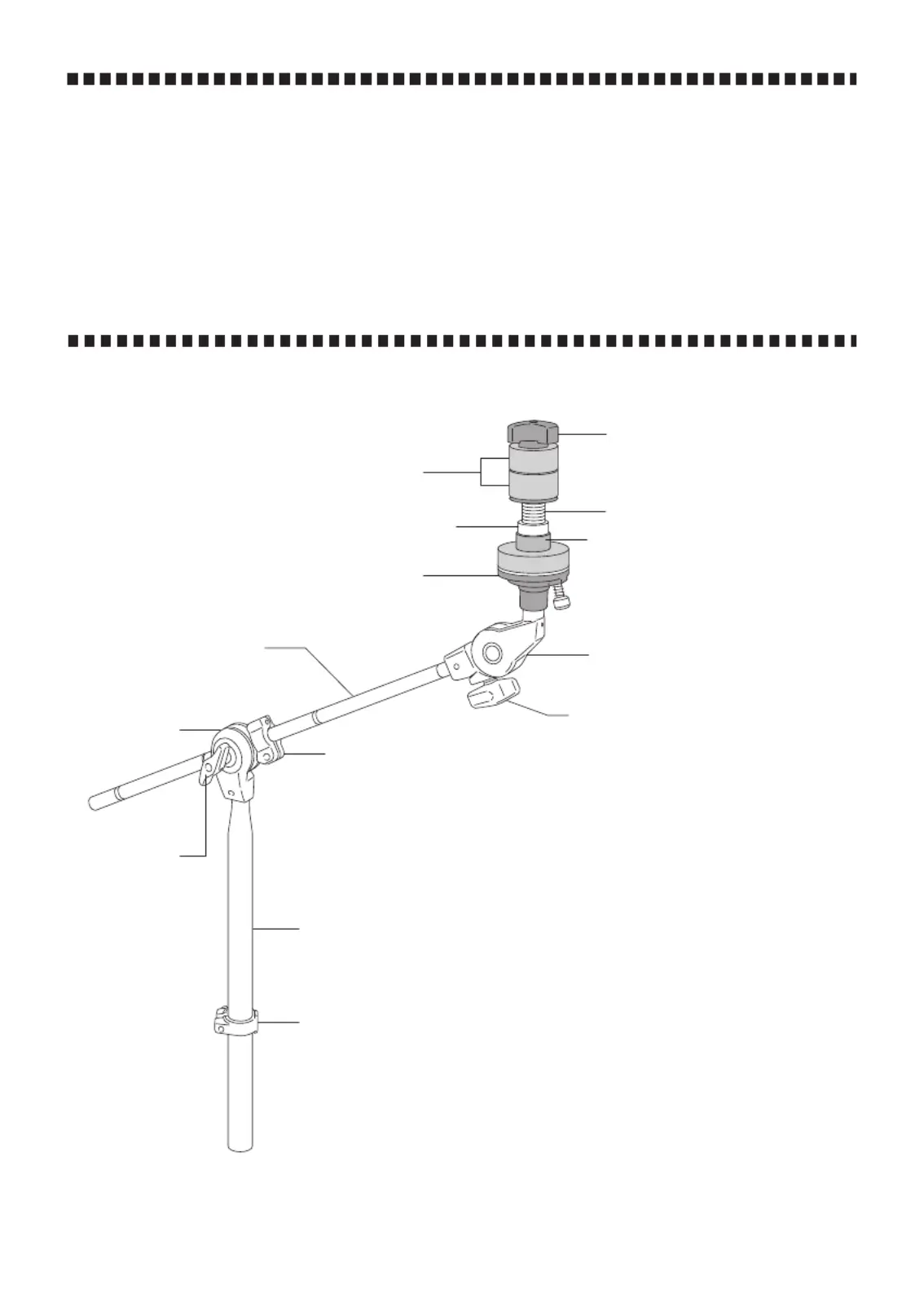

CLH-930

PEARL CLOSED HI-HAT HOLDER

Plastic Sleeve with Spring

Pipe

Stop Lock

Wing Nut

Boom Arm

Boom Gear

Hi-Hat Cup

Felt

Nut

Felt

Reversible Nut

Wing Bolt

Tilter

Test the stability of the Holder before using. If

necessary, readjust the length of the boom and / or

the direction of the boom until the Holder is

sufficiently stable.

CAUTION

Attaching the CLH-930 to Adaptor/Pipe Clamps

Loosen the Key Bolt on the Stop Lock on the Pipe with a

Tuning Key to allow the Stop Lock to slide but don't

remove it. Insert the Pipe into an Adaptor or Pipe Clamp

that accommodates 22.2 mm (7/8") diameter pipes. Adjust

the height and tighten the Adaptor / Pipe Clamp. Slide the

Stop Lock against the Adaptor / Pipe Clamp and tighten

the Key Bolt with a Tuning Key. The Boom Arm is housed

inside the Pipe. Loosen the Wing Nut on the Boom Gear

and adjust the length and angle of the Boom Arm. Tighten

the Wing Nut to secure the position. The Boom Arm is

equipped with a Stop Lock that prevents the Boom Arm

from slipping or rotating. Loosen the Key Bolt on the Stop

Lock and position the tab on the Stop Lock into the slot in

the Boom Gear. Tighten the Key Bolt to secure. Loosen

the Wing Bolt on the Tilter to change the tilt of the Cym-

bals. Retighten the Wing Bolt to secure the setting.

Attaching the Hi-Hat Cymbals

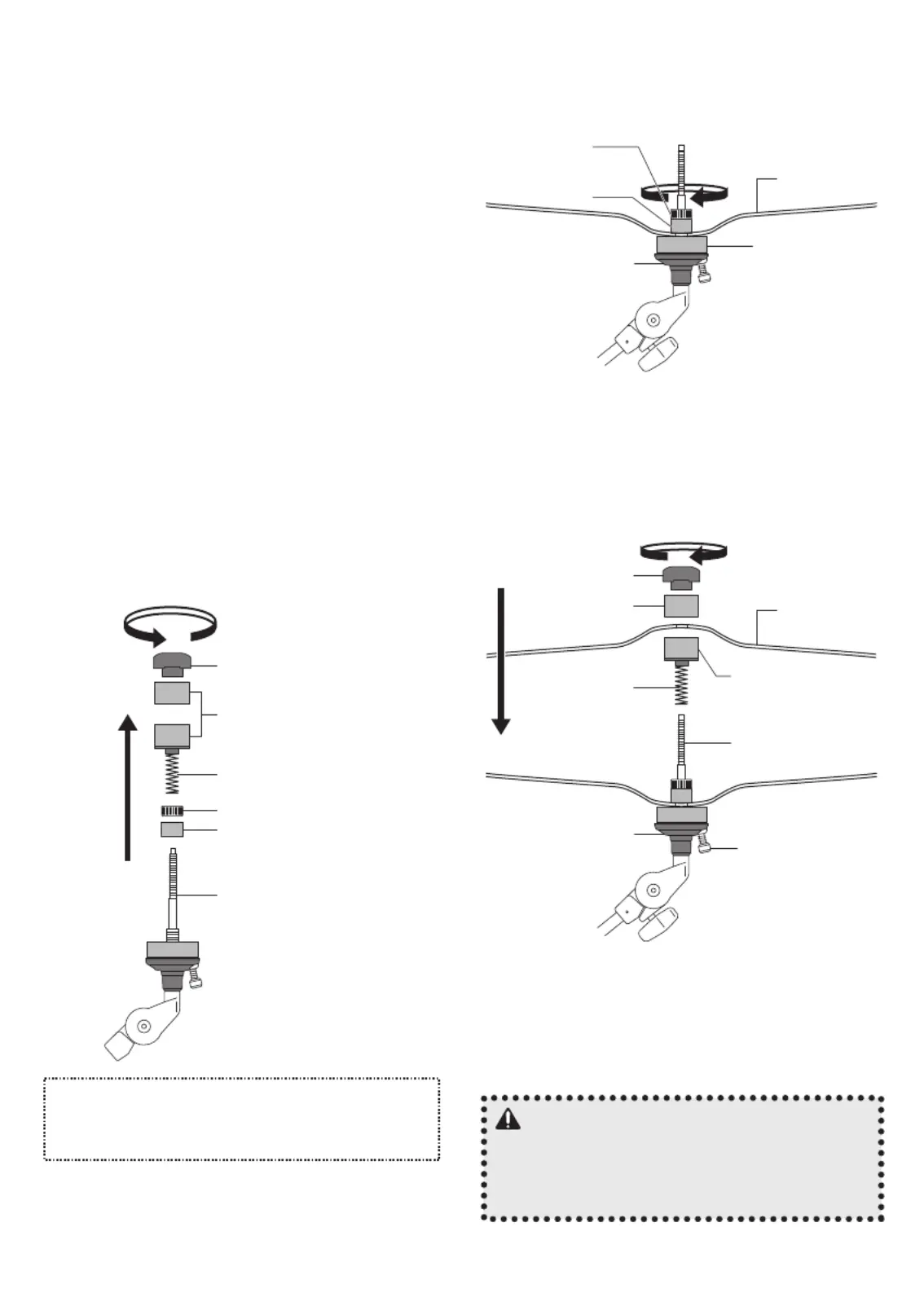

Remove the Reversible Nut, Felts, Pl astic Sleeve with

Spring, Nut, and Felt in the order shown (Fig. 1).

Fig. 1

Note

If the Spring comes off from the Plastic Sleeve, reattach it

securely to the post at the bottom of the Plastic Sleeve

before proceeding.

Reversible Nut

Felt

Cymbal Post

Nut

Plastic Sleeve with Spring

Place the Bottom Cymbal on the lower Felt as shown.

Thread the upper Felt and Nut on the Cymbal Post and

tighten the Nut to secure (Fig.2).

Place the Plastic Sleeve with Spring over the Cymbal Post

followed by the lower Felt and the Top Cymbal as shown.

Press the Top Cymbal downward and attach the upper

Felt and Reversible Nut as shown. Adjust the tightness of

the Reversible Nut to control the amount of tightness or

looseness of the Cymbals (Fig.3).

Fig. 2

Fig. 3

Felt

Nut

Felt

Cymbal Cup

Bottom Cymbal

Reversible Nut

Felt

Plastic Sleeve

with Spring

Felt

Cymbal Post

Knob

Top Cymbal
