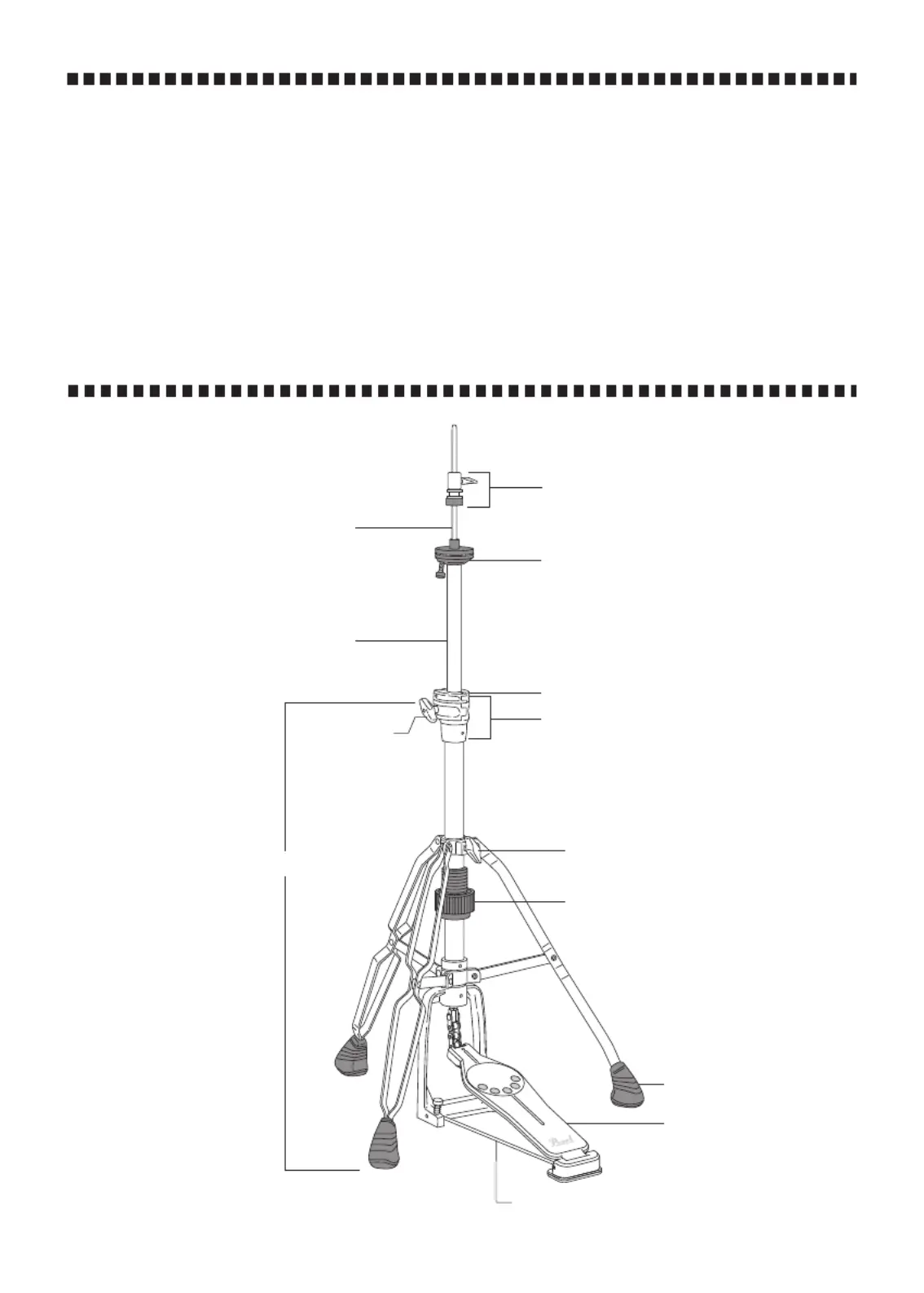

Base

Upper Tube

Pull Rod

Rubber Tip

Footboard

Radius Rod

Wing Bolt

Spring Tension Adjustment Dial

Hi-Hat Clutch

Hi-Hat Cup

Wing Nut

StopLock

Congratulations on your purchase!

To get optimum performance from your H-830 / H-930 Hi-Hat Stand,

please read this Instruction Manual before playing.

H-830/H-930

PEARL HI-HAT STAND

Instruction Manual

(Illust：H-930)

Die-Cast Joint

Radius Rod

Hole

Support Casting

Wing Bolt

Fig. 1

Footboard Attachment / Base Assembly

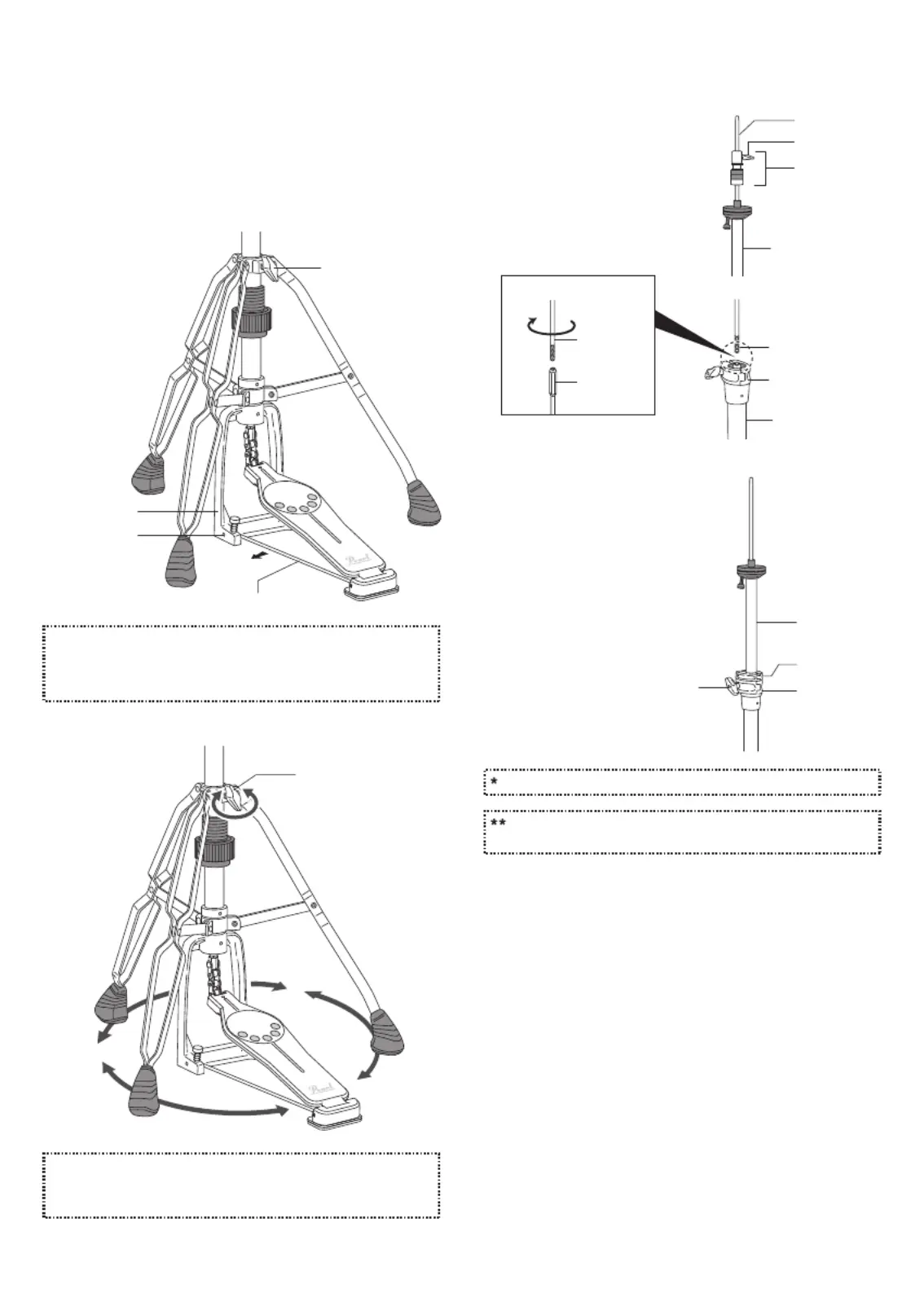

Lay the Base Assembly horizontally on the floor. Squeeze

the Radius Rods together and insert the ends into the

Holes in the Support Casting as shown (Fig.1). Loosen the

Wing Bolt and open the legs. Stand the Base Assembly

vertically and adjust the legs to form a stable tripod. The

Support Casting should be flat on the floor. Tighten the

Wing Bolt to secure.

Wing Bolt

Fig. 2

Upper Section Assembly

Remove the Pull Rod from the

Upper Tube. Loosen the Wing

Bolt on the Hi-Hat Clutch and

remove it from the Pull Rod.

Thread the Pull Rod into the

Connector inside the Die-Cast

Joint of the Base as shown and

tighten securely (Fig.3, 3-A).

Fig. 3

Fig. 4

StopLock

Die-Cast Joint

Upper Tube

Hi-Hat Clutch

Wing Bolt

Pull Rod

Upper Tube

BASE

Pull Rod

Connector

Fig. 3-A

Wing Nut

Next, loosen the Key Bolt on

the StopLock* and insert the

Upper Tube into the Die-Cast

Joint. Adjust the height of the

Upper Tube to your preference

and tighten the Wing Nut/Wing

Bolt** on the Die-Cast Joint.

Slide the StopLock against the

Die-Cast Joint and tighten the

Key Bolt (Fig.4).

Note

The legs can be swivelled to accommodate multi-pedal

set-ups. Loosen the Wing Bolt and swivel the legs to the

desired position (Fig. 2).

CAUTION

Make sure that the tripod is stable and the Wing Bolt is

securely tightened before playing.

H-830 is not equipped with a StopLock.

The H-930 is equipped with a Wing Nut on the Die-Cast

Joint, and the H-830 is equipped with a Wing Bolt.
