PEARL DRUM PEDAL

P-2050C/P-2050B

Congratulations on your purchase!

To get optimum performance of your "P-2050C / P-2050B" Drum Pedal,

please read this Instruction Manual before playing.

Instruction Manual

Control Core Quad Beater

Wing Bolt

(for Hoop Clamp)

Power Plate

Heel Plate

Key Bolt

(for PowerShifter)

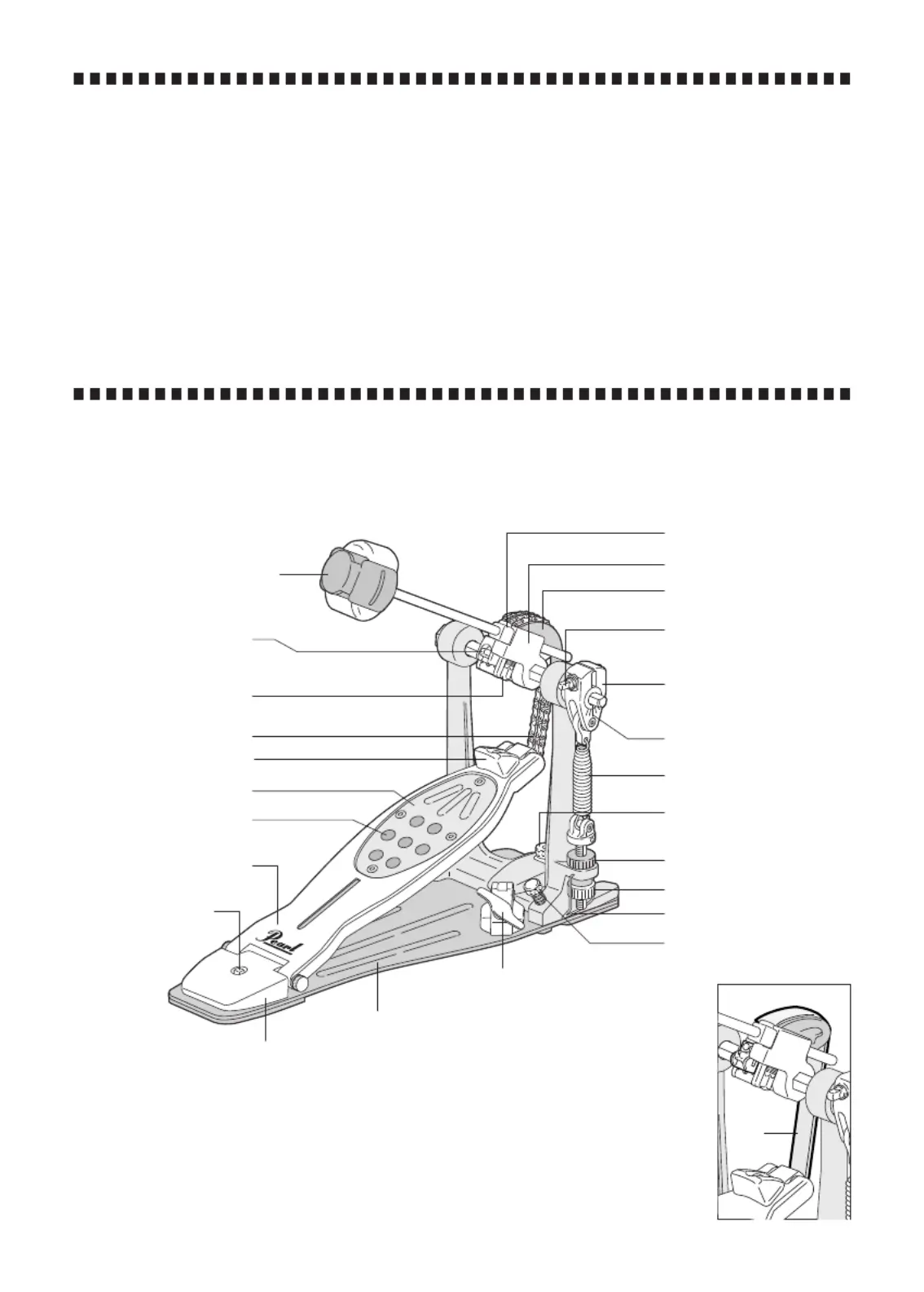

Footboard

Traction Grip

Traction Plate

Dual Chain

Key Bolt

(for Footboard Angle

Adjustment )

Key Bolt

(for Beater Setting)

Toe Stopper

Beater Holder Link

Interchangeable Cam

Key Bolt (for Beater

Angle Adjustment)

Uni-Lock Beater

Angle Cam

Spring

Upper Nut

Lower Nut

Click Lock

Anchor Screw

Adjustment Knob

(for Hoop Clamp)

Beater Setting Stopper

Gauge

P-2050C

P-2050B

Belt

D C

Beater Holder Link

Beater Setting

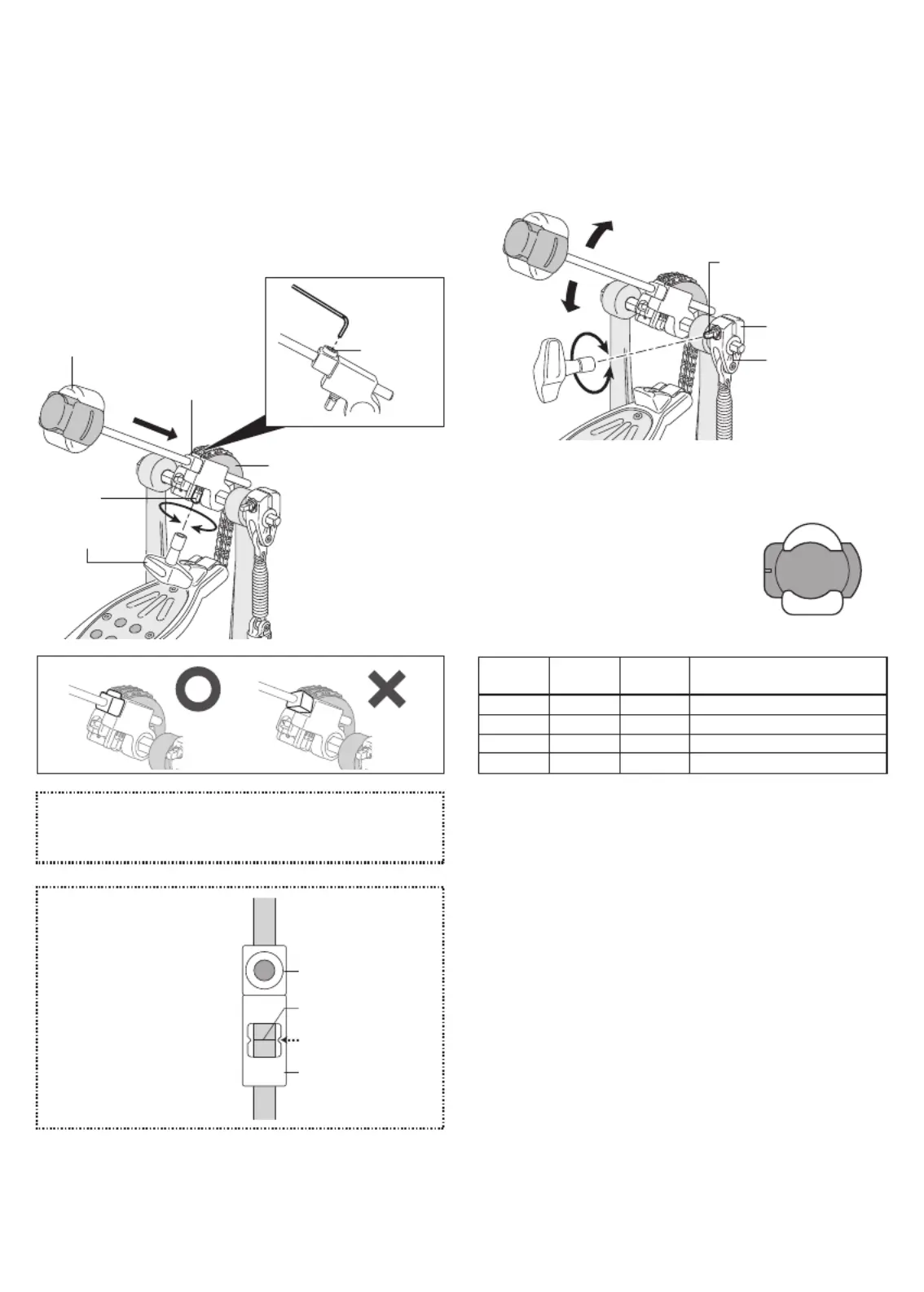

Insert the Control Core Quad Beater into the Beater Holder

Link with the desired face toward the bass drum head until

it stops against the Beater Setting Stopper. Tighten the Key

Bolt with a Tuning Key to secure (Fig.1-A). Make sure that

the Beater Setting Stopper is flush against the Beater

Holder Link (Fig.1-B). To adjust the height of the Quad

Beater, loosen the Allen Screw on the Beater Setting

Stopper with the provided hexagonal wrench. Set the Quad

Beater to the desired height and re-tighten the Allen Screw

(Fig. 1-C).

Uni-Lock Beater

Angle Cam

Gauge

Beater Angle Adjustment

The beater angle can be adjusted by loosening the Key Bolt

on the Uni-Lock Beater Angle Cam. Adjust to desired

setting and tighten Key Bolt to secure. For small incremen-

tal changes or to index settings use the Gauge located on

the Uni-Lock Beater Angle Cam.

Tip

The Beater Setting Stopper preserves the height setting if the

beater is removed when transporting the pedal.

Tip

Beater Setting Stopper

Marking on the shaft

Index Mark

Fig.2

Fig.3

Key Bolt

Control Core Quad Beater

The Control Core Quad Beater has

four striking surfaces, each capable

of producing a different sound.

Please refer to the following chart to

determine the sound best suited to

your playing style (Fig. 4).

Fig.4

A Felt Vertical Warm Sound with Sharp Attack

B Felt Horizontal Warm Sound with Fat Attack

C Plastic Vertical Bright Sound with Sharp Attack

D Plastic Horizontal Bright Sound with Fat Attack

Surface Sound

Surface

Material

Contact

Area

In the initial factory setting,

the Index Mark on the

Beater Holder Link and

Marking on the Shaft is

aligned in the Window as

shown (Fig. 2).

Control Core Quad Beater

Beater Setting Stopper

Beater Holder Link

Fig.1-A

Key Bolt

Tuning Key

Fig.1-B

Fig.1-C

Allen screw
