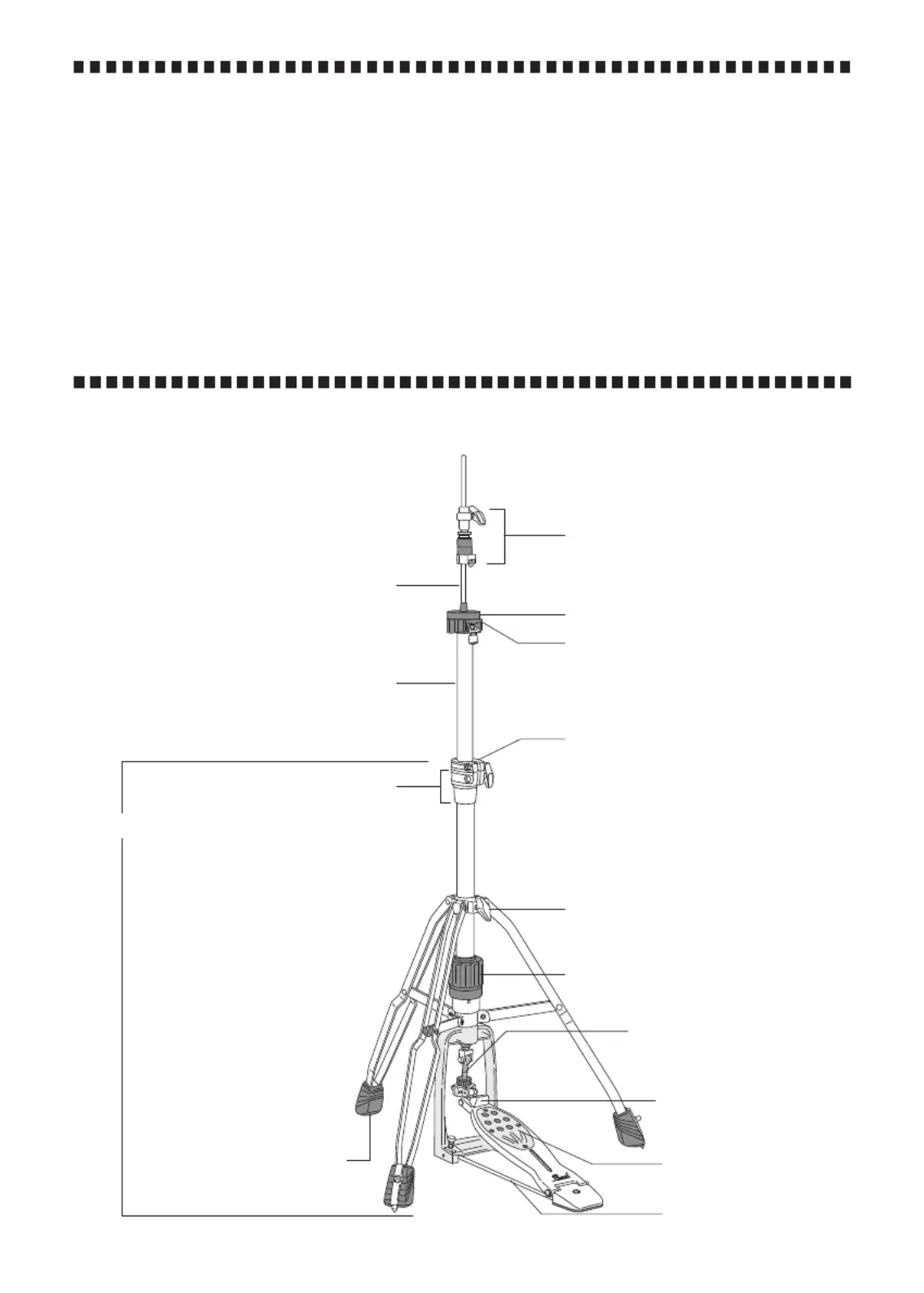

Hi-Hat Clutch

Felt Washer

Hi-Hat Cup

TractionPlate

w/Traction Grips

Reversible Spiked / Rubber

Tipped Feet

Spring Tension Adjustment Dial

Base

Upper Tube

Upper Pull Rod

Die-Cast Joint

StopLock

Wing Bolt

Adjustment Ring

(for Footboard Angle)

Toe Stopper

Radius Rod

H-1050

Instruction Manual

Congratulations on your purchase!

To get optimum performance of your H-1050 Hi-Hat Stand,

please read this Instruction Manual before playing.

PEARL HI-HAT STAND

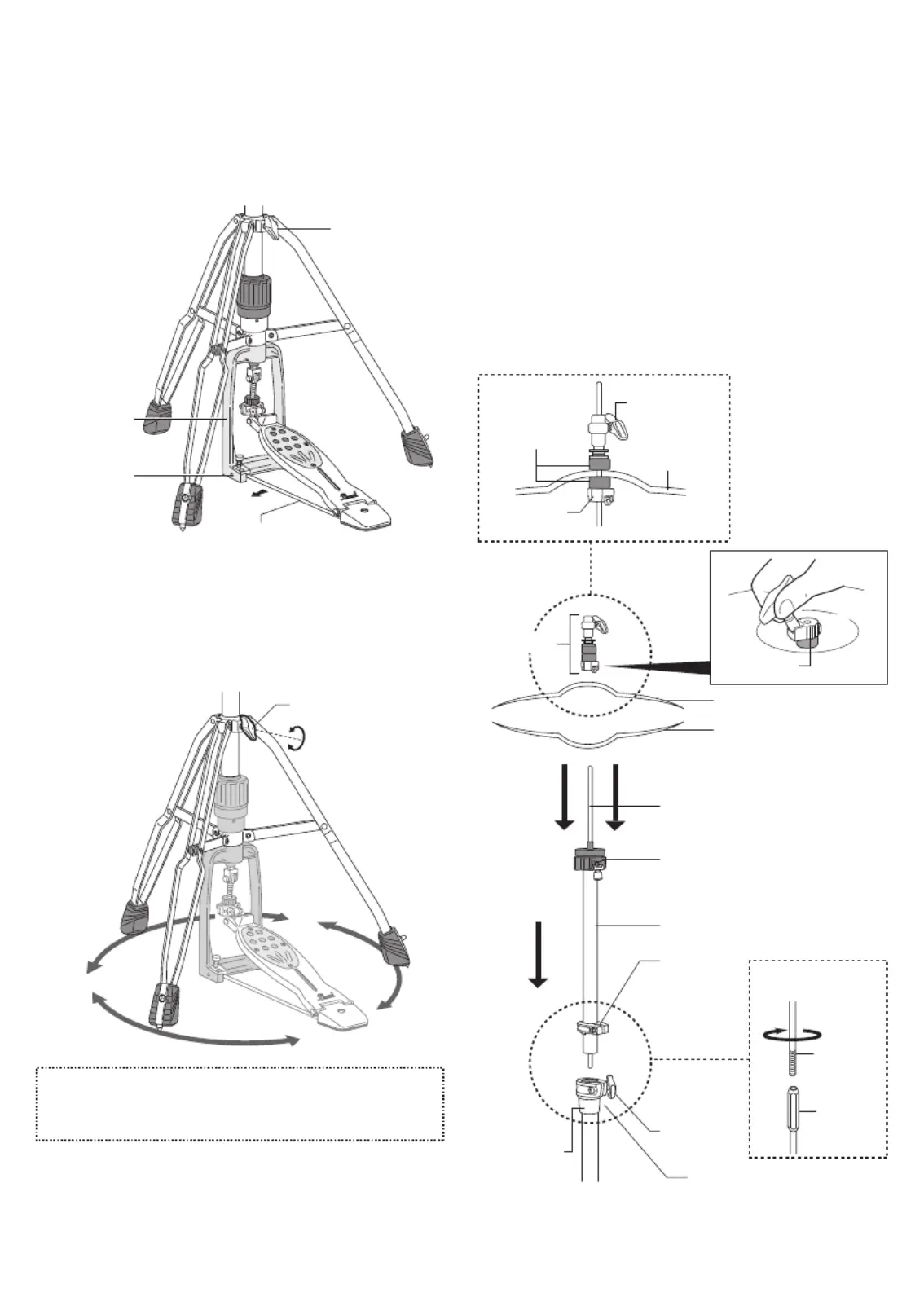

Footboard Attachment

Squeeze the Radius Rods together and insert the ends into

the Holes in the Support Casting as shown. Loosen the

Wing Bolt and spread the legs. Stand the hi-hat base

vertically and set the bottom of the Support Casting

squarely on the floor to form a solid tripod. Tighten the

Wing Bolt to secure the Base section (Fig.1).

Swivel Leg Adjustment

The legs can be swiveled to the desired position. To do so,

loosen the Wing Bolt and adjust the position of the legs.

When set, make sure the tripod is stable and tighten the

Wing Bolt (Fig.2).

Fig. 2

Radius Rod

Support Casting

Wing Bolt

Hole

Fig. 1

Wing Bolt

Tip

Test the stability of the hi-hat before playing. Readjust the legs as

necessary to achieve a stable tripod before proceeding.

Upper Section Assembly

Thread the Upper Pull Rod into the Connector inside the

Die Cast Joint as shown in (Fig.3-A) and tighten securely.

Insert the Upper Tube into the Die Cast Joint and set the

height to your preference then tighten the Wing Nut. Set the

Stop Lock by loosening the Key Bolt and sliding the Stop

Lock against the Die Cast Joint, then retighten the Key Bolt.

Thread the Lower Hi-Hat Cymbal through the Upper Pull

Rod and place it on the Hi-Hat Cup. Assemble the Top

Hi-Hat Cymbal and the Hi-Hat Clutch as shown in (Fig.3-B).

Tighten the Key Bolt on the Bottom Nut (Fig.3-C) to prevent

it from loosening during performance. Mount the Clutch with

the Top Hi-Hat Cymbal attached to the Upper Pull Rod.

Adjust the distance between the top and bottom cymbals to

your preference then secure the Clutch by tightening the

Wing Bolt.

Fig. 3-B

Fig. 3-C

Fig. 3-A

Top Cymbal

Bottom Nut

Felt

Washers

Upper Tube

Upper Pull Rod

Stop Lock

Top Hi-Hat Cymbal

Lower Hi-Hat Cymbal

Hi-Hat Clutch

Die-Cast Joint

Wing Nut

Hi-Hat Cup

Bottom Nut

Connector

Upper

Pull Rod

Attaching the

Upper Pull Rod

Wing Bolt

Die-Cast Joint
