Architects specifications:

The Ceiling Plate shall be a Peerless model and shall be attached where indi-

cated on the plans. It shall have a 1 1/2 - 11.5 NPS threaded fitting to accept a Peerless

flush mount tube or extension column. It shall be constructed of 12 gauge cold rolled steel

and finished in black or white fused epoxy. It shall be U.L. Listed. Assembly and installa-

tion shall be done according to the instructions provided by the manufacturer.

See page 2 for specifications / Jumbo 2000 Mount compatibility.

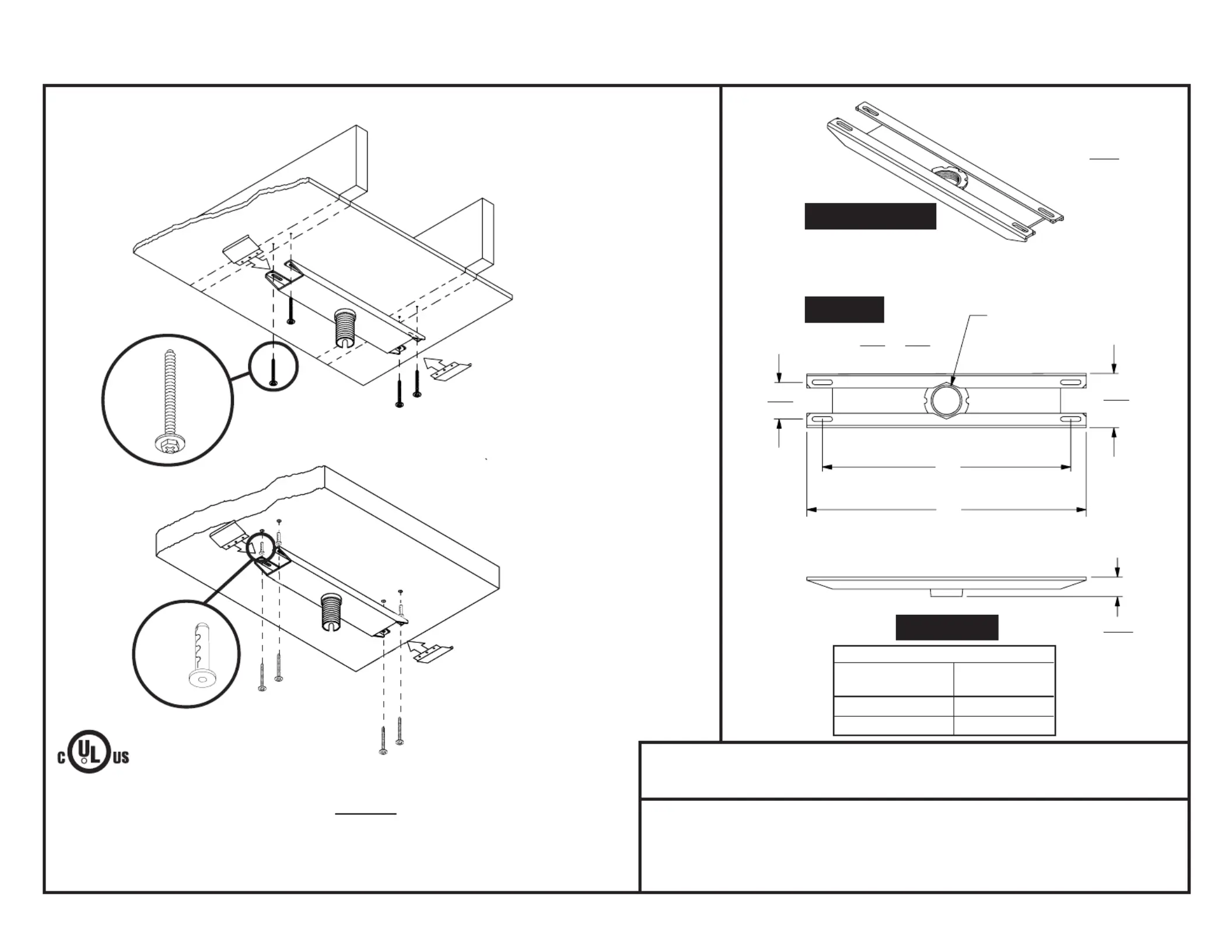

Finished Ceiling Installation -

Wood screws Included.

MODELS: CMJ 480, CMJ 480W, CMJ 490, CMJ 490W

Peerless Industries, Inc.

3215 W. North Ave. phone: (708) 865-8870

Melrose Park, IL 60160 fax: (708) 865-2941

ISSUED: 10-23-95 SHEET NO: 128-9502-5 02-28-07

TECHNICAL DATA SHEET

CEILING PLATE FOR JUMBO 2000 MOUNTS

TOP VIEW

4 SLOTS

1.35

.35

1 1/2 - 11.5 NPS

THREADED FITTING

2.5

3.5

1.375

ALL DIMENSIONS:

INCH

ISOMETRIC VIEW

FRONT VIEW

MODEL NUMBER

CMJ 480 CMJ 490

CMJ 480W CMJ 490W

A20" (508 mm) 24" (610 mm)

B22" (559 mm) 26" (660 mm)

page 1 of 2

concrete

anchor

Structural Ceiling Installation -

Concrete anchors not Included.

The Ceiling Plate for Jumbo

2000 Mounts can be attached

to a finished ceiling (wood

joists) or wood beam using the

four washer head wood screws

included, or a structural ceiling

(concrete) using concrete

anchor accessory kit ACC 204

(sold separately).

Produkt Specifikationer

Mærke:	Peerless-AV
Kategori:	Flad panel støtte
Model:	CMJ490
Bredde:	660 mm
Vægt:	2600 g
Produktfarve:	Sort
Kontroltype:	Ikke tilgængelig
Monteringstype:	Loft
Harmoniseret systemkode (HS):	85299097
Kompatible produkter:	Jumbo 2000
Maksimal vægtkapacitet:	136 kg
