Installation and Assembly:

Ceiling Mount for 15" - 40" Flat Panel Displays

Features:

• VESA

75 / 100 / 200x100 / 200x200 compatible

• Three adjustable extension lengths:

PC930A/PC932A models - 9.8" - 13.9"

PC930B/ PC932B models - 13.78" - 21.89"

PC930C/ PC932C models - 20.24" - 34.02"

• Adjustable tilt of +20/-5°

• 360° of mountable adjustment

• Internal cable management

• Safety catch designed into extension channels to ensure user and equipment safety

ISSUED: 11-29-07 SHEET #: 202-9263-2 08-17-11

2300 White Oak Circle • Aurora, Il 60502 • (800) 865-2112 • Fax: (800) 359-6500 • www.peerlessmounts.com

Models

Screen Size Range Max UL Load Capacity

PC930A, PC930A-S, PC930A-W, PC930B, PC930B-S, PC930B-W,

PC930C, PC930C-S, PC930C-W

15" to 24" 50 lb (22.7 kg)

PC932A, PC932A-S, PC932A-W, PC932B, PC932B-S, PC932B-W,

PC932C, PC932C-S, PC932C-W

15" to 40" 80 lb (36.3 kg)

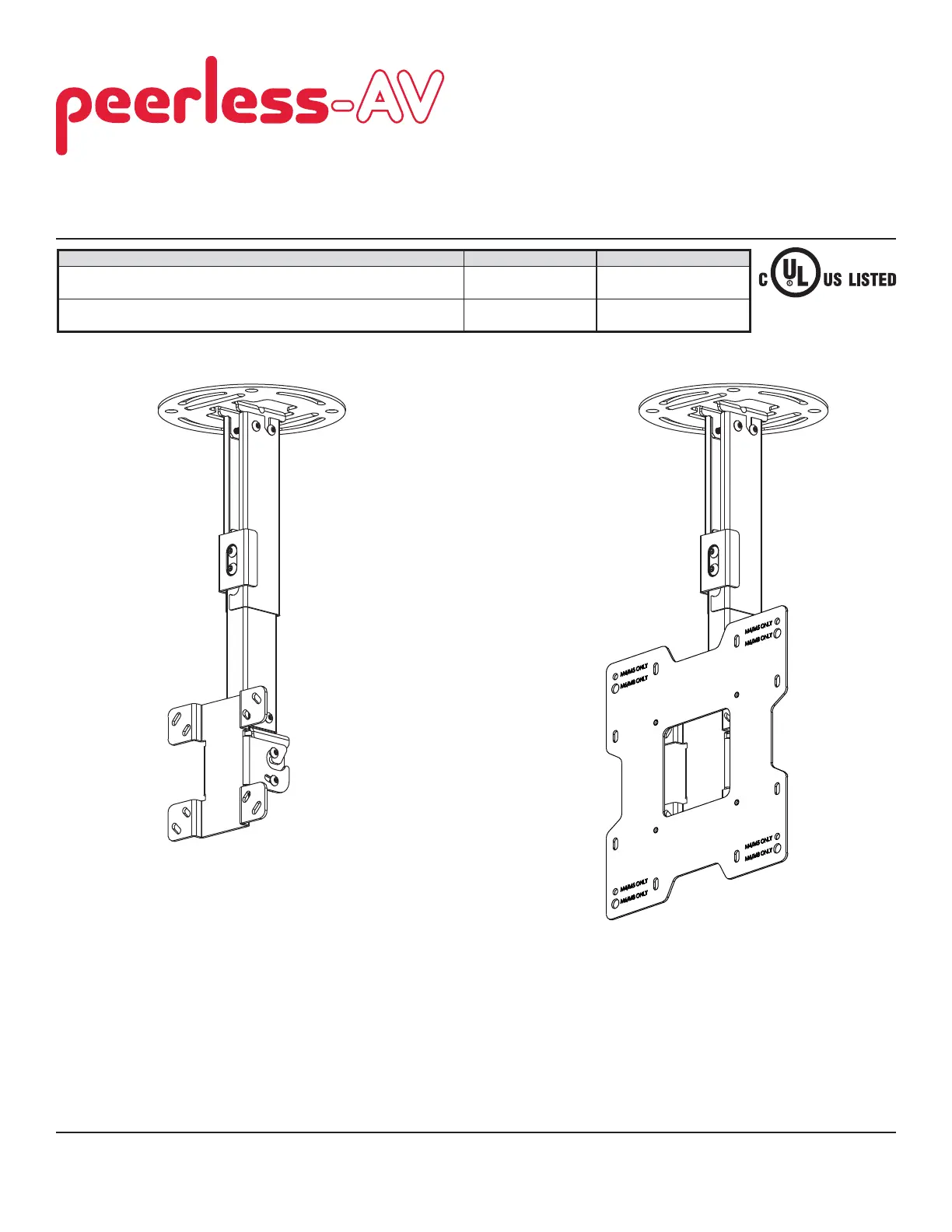

PC930 Series PC932 Series

2 of 35

ISSUED: 11-29-07 SHEET #: 202-9263-2 08-17-11

Note: Read entire instruction sheet before you start installation and assembly.

Table of Contents

Parts List............................................................................................................................................................................ 3, 4

Install Outer Channel to Ceiling Plate.....................................................................................................................................4

Installation to Wood Joist ........................................................................................................................................................5

Installation to Concrete Ceilings .............................................................................................................................................6

Installing Inner Channel and Routing Cables .........................................................................................................................7

Attaching Mounting Plate to Display with VESA 75 or 100 Mounting Pattern ........................................................................8

Attaching Adapter Plate to Display with VESA 200 x 100 or 200 x 200 Mounting Pattern .....................................................9

Installing Flat Panel Display ............................................................................................................................................... 10

Adjusting Mount Extension .................................................................................................................................................. 10

Adjusting Display ..................................................................................................................................................................11

Install Cable Covers .............................................................................................................................................................11

Tools Needed for Assembly

• stud ﬁ nder ("edge to edge" stud ﬁ nder is recommended)

• drill

• level

• 5/16" bit for concrete

• 5/32" bit for wood joist

• phillips screwdriver

• Do not begin to install your Peerless product until you have read and understood the instructions and warnings

contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, for US

customers please call Peerless customer care at 1-800-865-2112, for all international customers, please contact

your local distributor.

• This product should only be installed by someone of good mechanical aptitude, has experience with basic building

construction, and fully understands these instructions.

• Make sure that the supporting surface will safely support the combined load of the equipment and all attached

hardware and components.

• Never exceed the Maximum UL Load Capacity. See page one.

• If mounting to wood ceiling studs, make sure that mounting screws are anchored into the center of the studs. Use

of an "edge to edge" stud ﬁ nder is highly recommended.

• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.

• Tighten screws ﬁ rmly, but do not overtighten. Overtightening can damage the items, greatly reducing their holding

power.

• This product is intended for indoor use only. Use of this product outdoors could lead to product failure and personal

injury.

• This product was designed to be installed on the following ceiling construction only;

CEILING CONSTRUCTION HARDWARE REQUIRED

• Wood Stud, Joist Included

• Wood Beam Included

• Solid Concrete Included

• Cinder Block Contact Qualiﬁ ed Professional

• Metal Stud Do not attach except with Peerless accessory kit for metal studs;

Contact Customer Service for Peerless accessory kit for metal studs.

(not evaluated by UL)

• Brick Contact Qualiﬁ ed Professional (not evaluated by UL)

• Other or unsure? Contact Qualiﬁ ed Professional

WARNING

Produkt Specifikationer

Mærke:	Peerless-AV
Kategori:	Flad panel støtte
Model:	PC932A-W
Bredde:	165 mm
Dybde:	165 mm
Højde:	353 mm
Vægt:	2070 g
Produktfarve:	Hvid
Panel montering grænseflade:	75 x 75,100 x 100,200 x 100,200 x 200 mm
Monteringstype:	Loft
Drejevinkel område:	0 - 360 °
Hældningsvinkelområde:	-5 - 15 °
Skærmstørrelse kompatibilitet:	15 - 40 "
Maksimal vægtkapacitet:	36.3 kg
Maksimal skærmstørrelse kompatibilitet:	40 "
Maksimal afstand til loftet:	353 mm
Minimal skærmstørrelse kompatibilitet:	15 "
Montering interface kompatibilitet (min.):	75 x 75 mm
Montering interface kompatibilitet (maks.):	200 x 200 mm
