Side 1/18

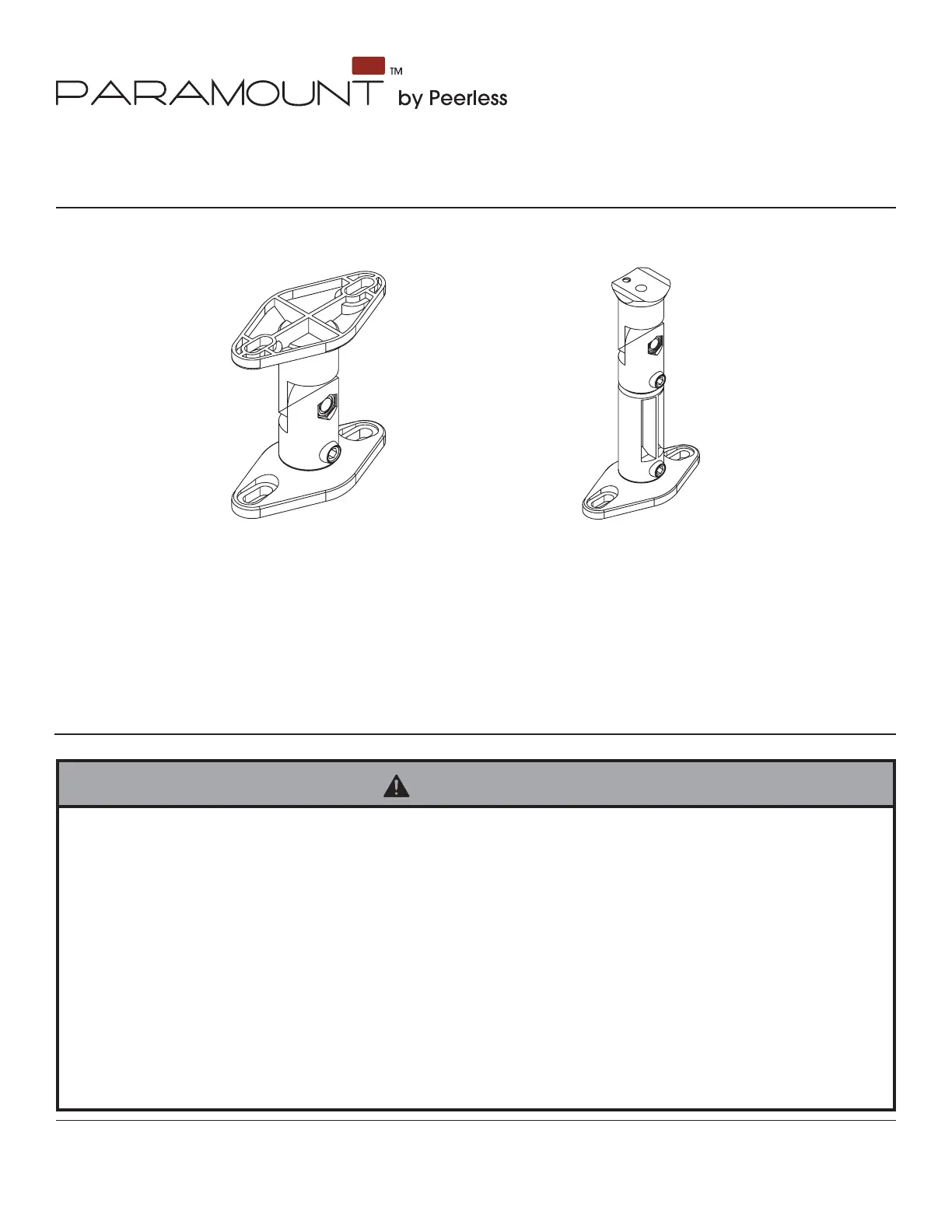

3215 W. North Ave. • Melrose Park, IL 60160 • (800) 865-2112 or (708) 865-8870 • Fax: (708) 865-2941 • www.peerlessmounts.com

Installation and Assembly:

Universal Speaker Mounts

Features:

• Colors: Black- PSP2 & PSP5 White- PSP2-W & PSP5-W

• Universal design fits most satellite speakers

• Easily mounts to wall or ceiling. Includes extensions for ceiling mounting

• Pivot and swivel capabilities make it easy to position speaker for optimal sound quality

• Maximum load capacity: 8 lb (3.62 kg)

• Available in packs of two (PSP2 & PSP2-W) or five (PSP5 & PSP5-W)

Maximum Load Capacity:

8 lb (3.62 kg)

Note: Read entire instruction sheet before you start installation and assembly.

• Do not begin to install your Peerless product until you have read and understood the instructions and warnings

contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, please

call Peerless customer care at 1-800-865-2112.

• This product should only be installed by someone of good mechanical aptitude, has experience with basic building

construction, and fully understands these instructions.

• Make sure that the supporting surface will safely support the combined load of the equipment and all attached hard-

ware and components.

• Never exceed the Maximum Load Capacity of 8 lb (3.62 kg).

• If mounting to wood wall studs, make sure that mounting screws are anchored into the center of the studs. Use of an

"edge to edge" stud finder is highly recommended.

• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.

• Tighten screws firmly, but do not overtighten. Overtightening can damage the items, greatly reducing their holding

power.

WARNING

MODELS: PSP2, PSP2-W, PSP5, PSP5-W

ISSUED:10-23-07 SHEET #: 087-9016-1

Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-729-0307 or 708-865-8870.

2 of 18

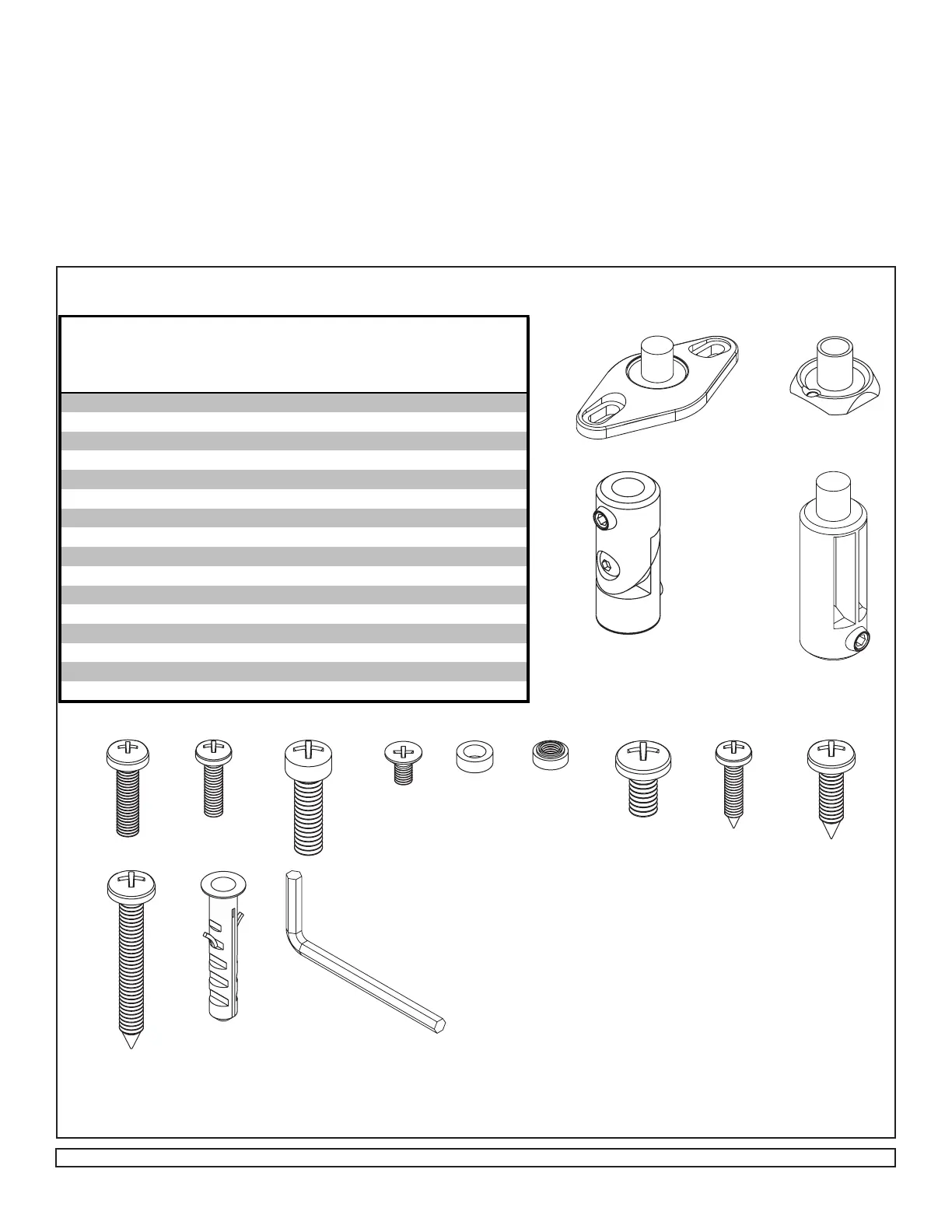

A B

IEFGH JK LM

NOP

Before you begin, make sure all parts shown are included with your product.

Parts may appear slightly different than illustrated.

Tools Needed for Assembly

• stud finder ("edge to edge" stud finder is recommended)

• phillips screwdriver

• drill

• 1/8" bit for wood stud wall

• 5/16" bit for concrete and cinder block wall

• level

• tape measure

PSPK2 PSPK5

PSPK2-W PSPK5-W

Description Qty. Qty.

A double hole mounting plate 4 10

B single hole mounting plate 2 5

C arm 2 5

D arm extension 2 5

E M5 x 20 mm phillips screw 2 5

F 8-32 x 5/8" phillips screw 2 5

G 1/4"-20 x 7/8" phillips screw 2 5

H M4 x 8 mm flat head phillips screw 2 5

I M5 x 1/8" plastic washer 2 5

J 8-32 round key hole nut 2 5

K 1/4"-20 x 1/2" phillips screw 4 10

L #8 x 3/4" self tapping screw 2 5

M #12 x 3/4" self tapping screw 4 10

N #12 x 1-3/4" self tapping screw 4 10

O #12-14 Alligator concrete anchor 4 10

P allen wrench 1 1

Parts List

Produkt Specifikationer

Mærke:	Peerless-AV
Kategori:	højttalerstøtte
Model:	PSP5-W
Bredde:	85 mm
Dybde:	137 mm
Højde:	44 mm
Vægt:	1280 g
Produktfarve:	Hvid
Placering:	Ceiling, Wall
Harmoniseret systemkode (HS):	85189000
Hældningsvinkelområde:	-90 - 90 °
Maksimal vægtkapacitet:	3.62 kg
Drejevinkel:	360 °
Afstand til væggen (min.):	83 mm
Afstand til væggen (maks.):	137 mm
Mængde pr. kasse:	5 stk
