ISSUED:03-26-03 SHEET #: 087-9012-4 06-14-07

Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-729-0307 or 708-865-8870.

1 of 4

IMPORTANT! Read entire instruction sheet before you start installation and assembly.

Models:

SPK 811, SPK 811W

MAXIMUM LOAD CAPACITY:

20 lb (9 kg) each mount.

For customer service, call 1-800-729-0307 or 708-865-8870.

Description

mounting base

extension

cap

ball

M4 x .7 x 10 mm phillips screw

M5 x .8 x 8 mm phillips screw

M6 x 1 x 10 mm phillips screw

1/4-20 x 1/2 phillips screw

10-32 x .313 phillips screw

#10 x 3/4 phillips wood screw

1/4-20 serrated locknut

#10 flat washer

1/4-20 keyhole adapter

1/4-20 to M5 reducer

1/4-20 to M4 reducer

1/4-20 coupling

mounting plate

toggler

#10-24 x 2" phillips screw

plastic #10 screw plug

concrete anchor

#10 x 1 1/2" wood screw

M4 KEPS hex nut

M4 serrated washer

M4 x 16 mm socket pin screw

Qty.

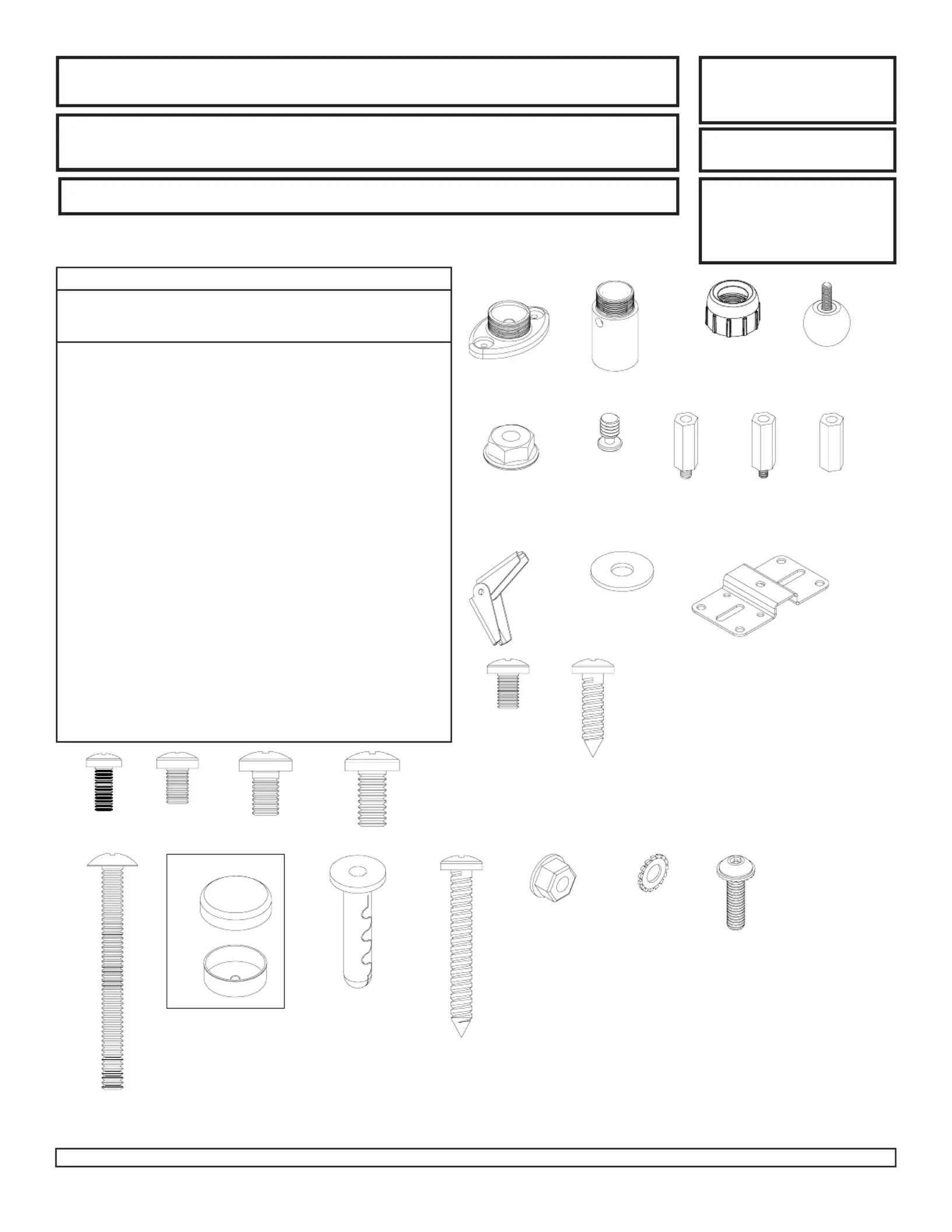

Parts List

A B C

M N O

G H

Tools Required: Drill,

screwdriver, two 7/16"

open end wrenches,

channel locks, hammer,

pencil, tape measure, level.

Assembly Instructions - Universal Speaker Mounts

If you are missing a fastener, please contact our customer service department before returning the speaker mounts to store from which they

were purchased.

SPK 811

590-1144

590-1145

590-1146

590-1147

504-9012

570-0005

520-9401

510-9108

520-1173

500-9006

530-1021

540-9400

580-1026

580-1027

580-1028

580-1029

087-1037

560-9717

520-2078

590-1158

590-0097

510-9163

530-1041

540-1033

510-1087

SPK 811W

590-2144

590-2145

590-2146

590-2147

520-2027

520-9530

520-9524

520-9511

520-2173

500-2014

530-2021

540-9442

580-2026

580-2027

580-2028

580-2029

087-2037

560-9717

520-2078

590-2158

590-0097

500-2002

530-2041

540-2033

510-2087

ISSUED:03-26-03 SHEET #: 087-9012-4 06-14-07

Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-729-0307 or 708-865-8870.

2 of 4

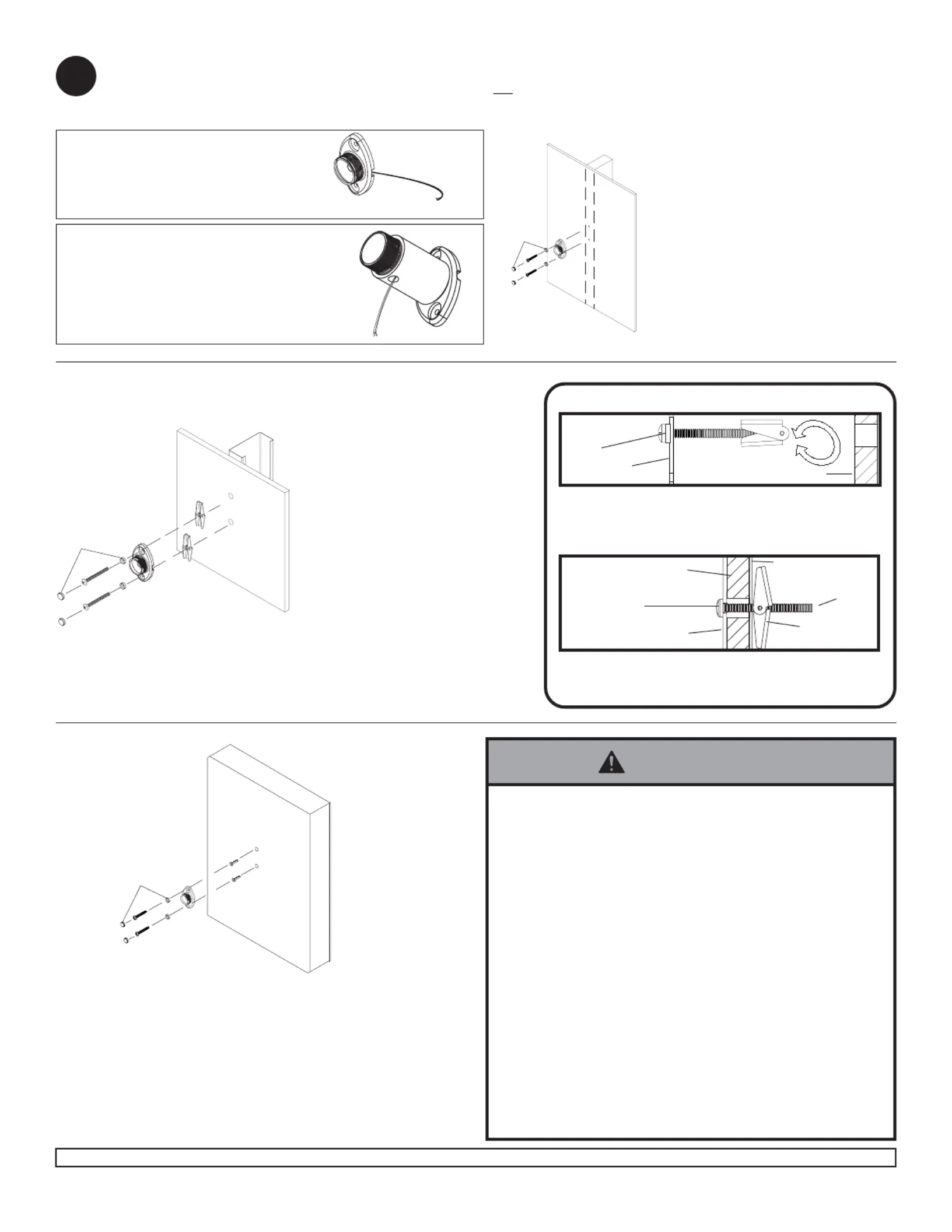

For Attachment to Metal Stud Walls

or Direct Attachment to Drywall for

Speakers Over 10 lb: Use a stud

finder to locate center of stud. Drill two

5/8" (16 mm) dia. holes through metal

stud. Attach mounting base unit (A) to

center of metal stud using two #10-24

phillips screws (S), two plastic screw

plugs (T) and two togglers (R) as

shown in DETAIL ONE.

IMPORTANT: Make sure mounting

base (A) is level on wall. Product must

be mounted through drywall that has a

minimum thickness of 1/2" and into

metal studs, 26 gauge or heavier.

Pull screw back until toggler is flush with metal stud and

hold. Thread screw through with fingers and tighten

securely. Place top of plastic screw plug (T) over screw.

Place screw (S) through bottom of plastic screw plug (T)

and mounting base (A). Partially fasten toggler (R) to

back of screw. Pivot toggler ends 90° and push through

hole in drywall.

Drywall

Metal Stud

DETAIL ONE

Drywall

Bottom of

plastic screw

plug (T)

Top of plastic

screw plug (T)

Note: Ceiling applications must be mounted to a ceiling joist (NO Drywall Only).

Extension column will be used mostly with ceiling applications.

Attachment of Base Unit to Wall or Ceiling

If bringing wire in from behind wall,

make sure that wires are run through

wire management slot* before mounting

base unit (A) to wall or ceiling.

When using extension column, be sure to mount

base unit (A) with wire management slot* facing

right so that wire management hole in extension

( )B

** is facing down. Remember to run wires

through wire management hole before mounting

base unit (A) to wall or ceiling.

For Attachment to Wood Stud Walls:

Use a stud finder to locate center of

stud. Drill two 3/16" (5 mm) dia. holes to

a minimum depth of 2" (51 mm). Attach

mounting base unit (A) to center of

wood stud using two wood screws (V)

and two plastic screw plugs (T) as

shown left.

IMPORTANT: Make sure wall bracket is

level on wall.

For Attachment to Concrete or Direct Attachment to Drywall

for Speakers Under 10 lb: Drill one 1/4" (6 mm) dia. hole to a

minimum depth of 2" (51 mm). Insert one anchor (U) in hole flush with

wall. Place mounting base unit (A) over anchor (U) and secure with

one wood screw (V) and one plastic screw plug (T). Make sure wall

bracket is level, mark other hole and repeat steps with other

fasteners. Tighten all fasteners.

IMPORTANT: Make sure wall bracket is level on wall.

•When installing Peerless wall mounts on cinder block,

verify that you have a minimum of 1 5/8" of actual

concrete surface in the 1/4" diameter hole to be used

for the concrete anchors. It is suggested that a

standard electric drill on slow setting is used to drill

the hole instead of a hammer drill to avoid breaking out

the back of the hole when entering a void or cavity. Do

not drill into mortar joints!

•Never attach concrete expansion anchors to concrete

covered with plaster, drywall or other finishing material.

If mounting to concrete surfaces covered with a

finishing surface is unavoidable, the finishing surface

must be counterbored.

•Tighten concrete anchor bolt firmly, but do not over-

tighten. Overtightening can damage the bolt, greatly

reducing its holding power.

•Never tighten in excess of 80 in • lb (9 N.M.).

WARNING

Produkt Specifikationer

Mærke:	Peerless-AV
Kategori:	højttalerstøtte
Model:	SPK811W
Bredde:	83 mm
Dybde:	51 mm
Højde:	101 mm
Vægt:	300 g
Produktfarve:	Hvid
Placering:	Ceiling, Wall
Harmoniseret systemkode (HS):	85189000
Hældningsvinkelområde:	-37.5 - 37.5 °
Højde (min.):	43 mm
Højde (maks.):	101 mm
Maksimal vægtkapacitet:	9 kg
Drejevinkel:	360 °
