1 of 1 Issued:07-22-91 Sheet #:087-9008-2 07-27-05
Model:
SPK815

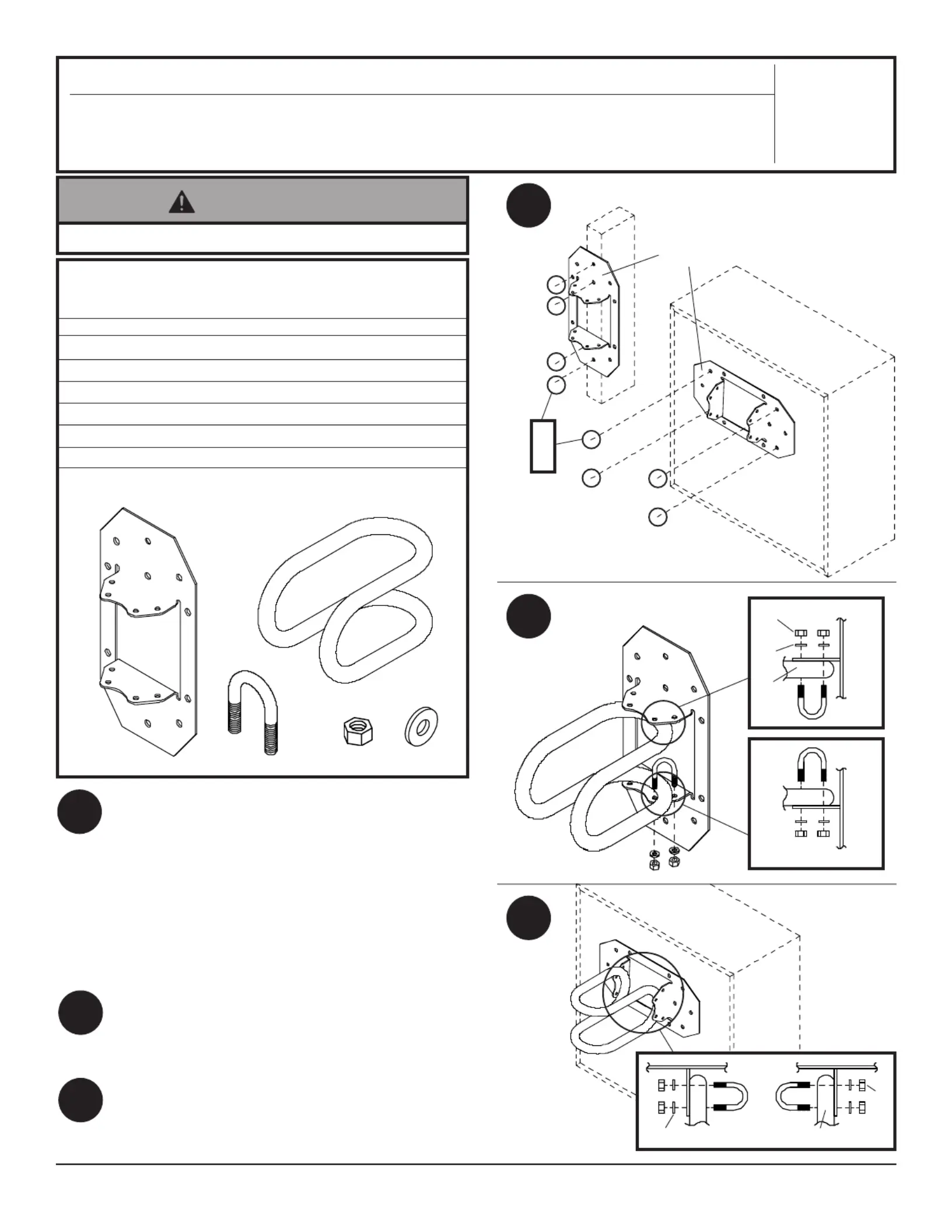

Installation and Assembly - Radial Cube Speaker Mount
Note: Read entire instruction sheet before
you start assembly and installation.
Peerless Industries, Inc.
3215 W. North Avenue
Melrose Park, IL 60160
For customer service call:
1-800-865-2112
Visit the Peerless web site at:
www.peerlessmounts.com
A,B C
D
PART # QTY. DESCRIPTION
A087-1038 1 black mounting plate
B087-2038 1 white mounting plate
C6100-172 1 tubing
D520-9242 8 U-bolt
E530-9302 16 hex nut
F540-9402 16 split washer
Parts List Before you start make sure all parts
listed are included with your product.
Note: Some parts may appear slightly different than illustrated.
1
Mounting plates (A & B) come in two colors - white and
black. Mount plates according to the color configuration
of speakers / wall.
Note: Fasteners for attaching mounting plates to wall
and speaker are NOT included. It is the installers
respondsibility to securely attach plates to wall and
speaker using appropriate fasteners.
Vertically mount plate (A or B) to wallstud.
(If possible use a stud finder to locate stud.)
Horizontally mount plate (A or B) to speaker.
1
E
F
A or B
3Attach speaker/plate assembly to tubing (C) using
remaining U-bolts (D), hex nuts (E) and washers (F).
Hand tighten hex nuts (E). Adjust speaker position.
Once speaker is properly positioned, securely tighten
all hex nuts (E).
2Attach tubing (C) to plate on wall using four U-bolts (D)
eight hex nuts (E) and eight washers (F) as shown.
Hand tighten hex nuts (E). Leave hex nuts (E) loose
until speaker has been mounted and proper aimed.
!
2
C
D
E
F
3
D
E
F
C
C
C
• Speaker weight shall not exceed 75 lb (34 kg).
WARNING
© 2005 Peerless Industries, Inc. All rights reserved.
Peerless is a registered trademark of Peerless Industries, Inc.
All other brand and product names are trademarks or registered trademarks of their respective owners.
