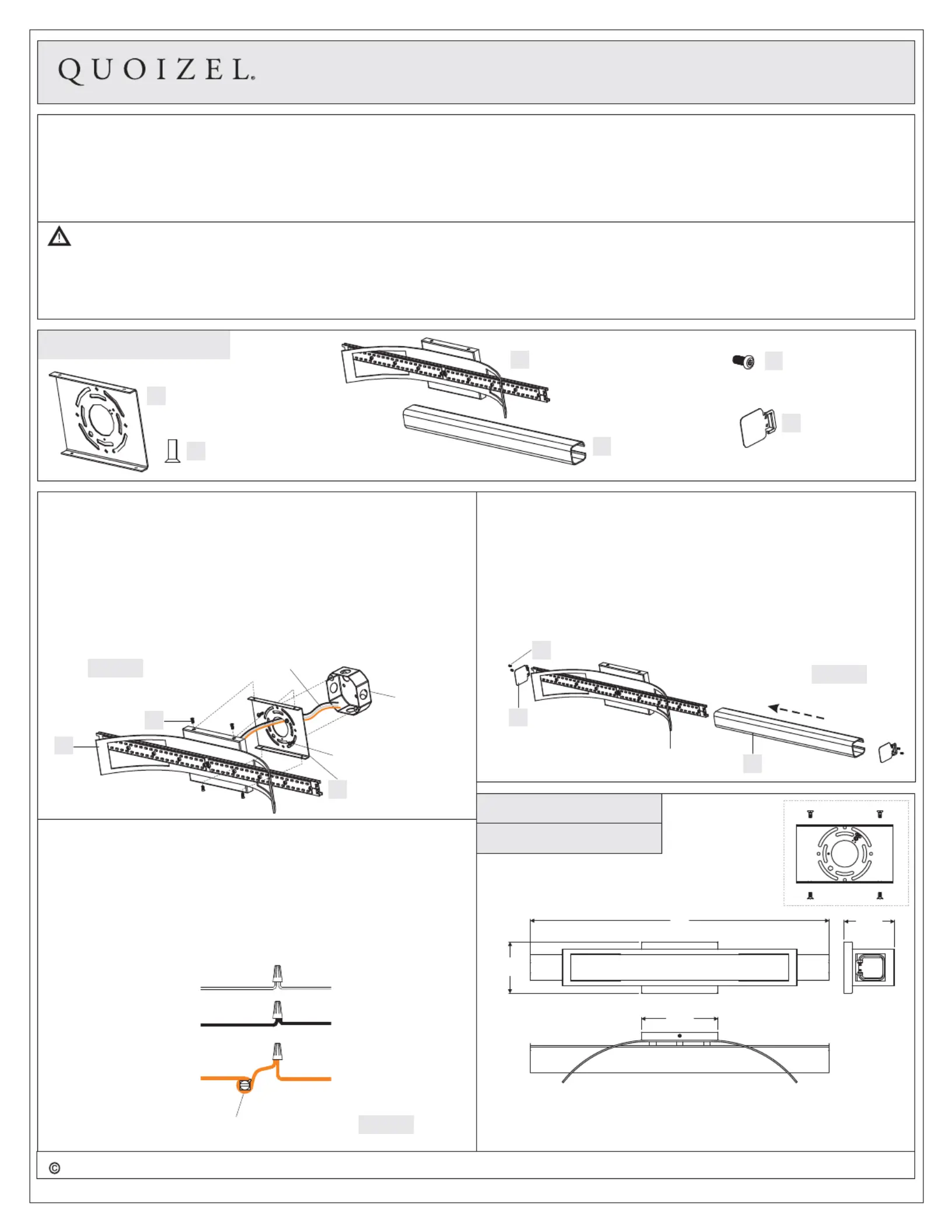

Side 1/1

Please go to for product cleaning tips. Go to the selection.

Flathead screwdriver, Phillips screwdriver, pliers, wire cutters, wire strippers, electrical tape, safety glasses.

Integrated LED 33W

20-30 minutes

Identify and inspect all parts before beginning installation. Check package content list and diagrams below to ensure all parts are

present. If any parts are missing or damaged, do not attempt to assemble, install, or operate the fixture. Contact your original place of purchase.

www.quoizel.com Care + Maintenance

Tools Required:

Light Source:

Estimated Assembly Time:

Preparation:

1of1

PCBD8519EK

FINISH: EARTH BLACK

NOTE: ALL DIMENSIONS ARE ROUNDED UP

TO THE NEAREST 1/4"

Package Contents

Mounting Screw

x 4

Inner Backplate

x 1

Fixture Body

x 1

Shade

x 1

Bracket

x 2

19”

Shade Holder

STEP 1 Install Inner Backplate and Fixture Body-

A. Pass the supply wires and ground wire through the Inner Backplate

(A). Attach the Inner Backplate (A) to outlet box with the head of

green ground screw facing you. Secure it with outlet box screws

(not included). Tighten until snug

B. Refer to Step 2 for wiring connections.

C. Attach the Fixture Body (C) over the Inner Backplate (A) and secure

with Mounting Screws (B). Tighten until snug with screwdrivers.

Figure 1

Outlet Box Screw

(not included)

STEP 3 Install Shade to Fixture Body-

A. Insert Shade (D) into the Shade Holder properly.

B. Place Bracket (F) over the side of the Shade Holder, line up the hole

on the Bracket (F) and the mounting hole on the Shade Holder,

secure by threading Lock Screw (E) into the mounting hole, tighten

until sung.

Your fixture is now assembled and ready to use. Enjoy!

Lock Screw

x 4

4.5”

6.5”

4.5”

For Style PCBD8519EK

Installation Guide #IS-PCBD8519EK

Warnings and Cautions

Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.

These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly

recommend that a licensed, professional electrician perform the installation.

2019 QuoizelInc.

ReleasedDate:2019-01-22

visit us on-line at www.quoizel.com

Outlet Box

Supply Wires and

Ground Wire

STEP 2 - Wire Connections

A. Wrap bare or green ground wire around green ground screw on the

crossbar, no less than 2 inches from the end of the wire. Tighten the

green ground screw.

B. Use standard wire connectors (not included) to make all wire

connections. Twist connectors until wires are tightly joined together.

Wrap each connection with approved electrical tape and carefully

stuff all the connected wires into the Outlet Box.

Figure 2

Green Ground Screw

on the Crossbar

White wire

from outlet box

White wire

from fixture

Black wire from

outlet box (or Red)

Black wire

from fixture

Bare, or Green

Ground wire

from outlet box

Ground wire

from Fixture

Figure 3
