Assembly Instruction Sheet #IS-PCWR1615C

For Style PCWR1615C

Package Contents

Mounting Screw

x 3

Inner Backplate

x 1

Figure 1

2017 QuoizelInc.

ReleasedDate:2017-11-07

Warnings and Cautions

Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.

These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly

recommend that a licensed, professional electrician perform the installation.

Please go to for product cleaning tips. Go to the selection.

Flathead screwdriver, Phillips screwdriver, pliers, wire cutters, wire strippers, electrical tape, safety glasses.

Integrated 33W LED

: LutronAYCL-153P or Lutron DVCL-153P.

www.quoizel.com Care + Maintenance

Tools Required:

Light Source:

Compatible Dimmer Switches

EstimatedAssembly Time:

Preparation:

20-30 minutes

Identify and inspect all parts before beginning installation. Check package content list and diagrams below to be sure all parts are

present. If any parts are missing or damaged, do not attempt to assemble, install, or operate the fixture. Contact customer service for replacement

parts.

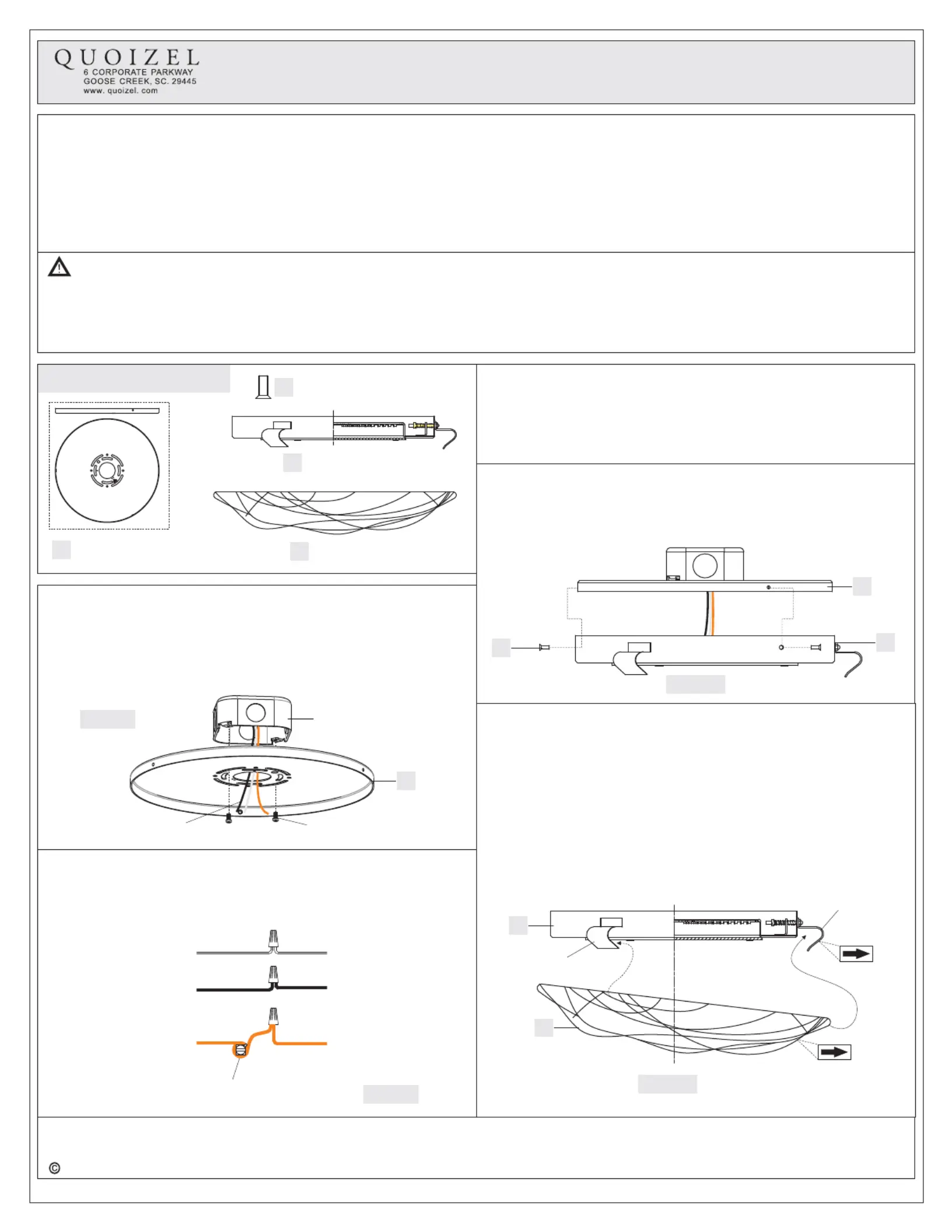

STEP 1 -Install Inner Backplate and Fixture Body

A. Pass the supply wires and ground wire through the Inner Backplate

(A). Attach the Inner Backplate (A) to Outlet Box with the head of

Green Ground Screw facing you. Secure it with Outlet Box Screws

(not included). Tighten until snug.

Thank you for purchasing a Quoizel product.

Need assistance with parts or assembly? Call Quoizel customer service at 1-800-645-3184

or visit us on-line at www.quoizel.com

Fixture Body

x 1

Glass Shade

x 1

Outlet Box

Outlet Box Screw

(not supplied)

Supply Wires

and Ground Wire

STEP 2 Make Wire Connections-

Wrap ground wire around green ground screw on the

inner backplate, no less than 2 in from the end of the wire.

Tighten .

A. bare or green

ches

the green ground screw

Figure 2

Green Ground Screw

on the Inner Backplate

White wire

from outlet box

White wire

from fixture

Black wire from

outlet box (or Red)

Black wire

from fixture

Bare, or Green

Ground wire

from outlet box

Ground wire

from Fixture

(Step 2 Continued)

B. Use standard wire connectors (not included) to make all wire

connections. Twist connectors until wires are tightly joined together.

Wrap each connection with approved electrical tape and carefully

stuff all the connected wires into the Outlet Box.

STEP 3 Install Fixture Body-

A. Attach the ceiling canopy and the Fixture Body (C) over the Inner

Backplate (A) and secure with Mounting Screws (B). Tighten until

snug with screwdrivers.

Figure 3

STEP 4 Install Glass Shade-

A. Align the arrow label on the Glass Shade (D) to the arrow label on

the adjustable glass holder. Insert the Glass Shade (D) to two fixed

glass holders first. Pull the adjustable glass holder out of the ceiling

canopy and Fixture Body (C). Attach the Glass Shade (D) against

the ceiling canopy. Carefully release the adjustable glass holder to

make sure it is engaged to the Glass Shade (D).

Your fixture is now assembled and ready to use. Enjoy!

Fixed Glass

Holder

Adjustable

Glass Holder

Arrow Label

Figure 4

2of2

2017 QuoizelInc.

ReleasedDate:2017-11-07

Thank you for purchasing a Quoizel product.

Need assistance with parts or assembly? Call Quoizel customer service at 1-800-645-3184

or visit us on-line at www.quoizel.com

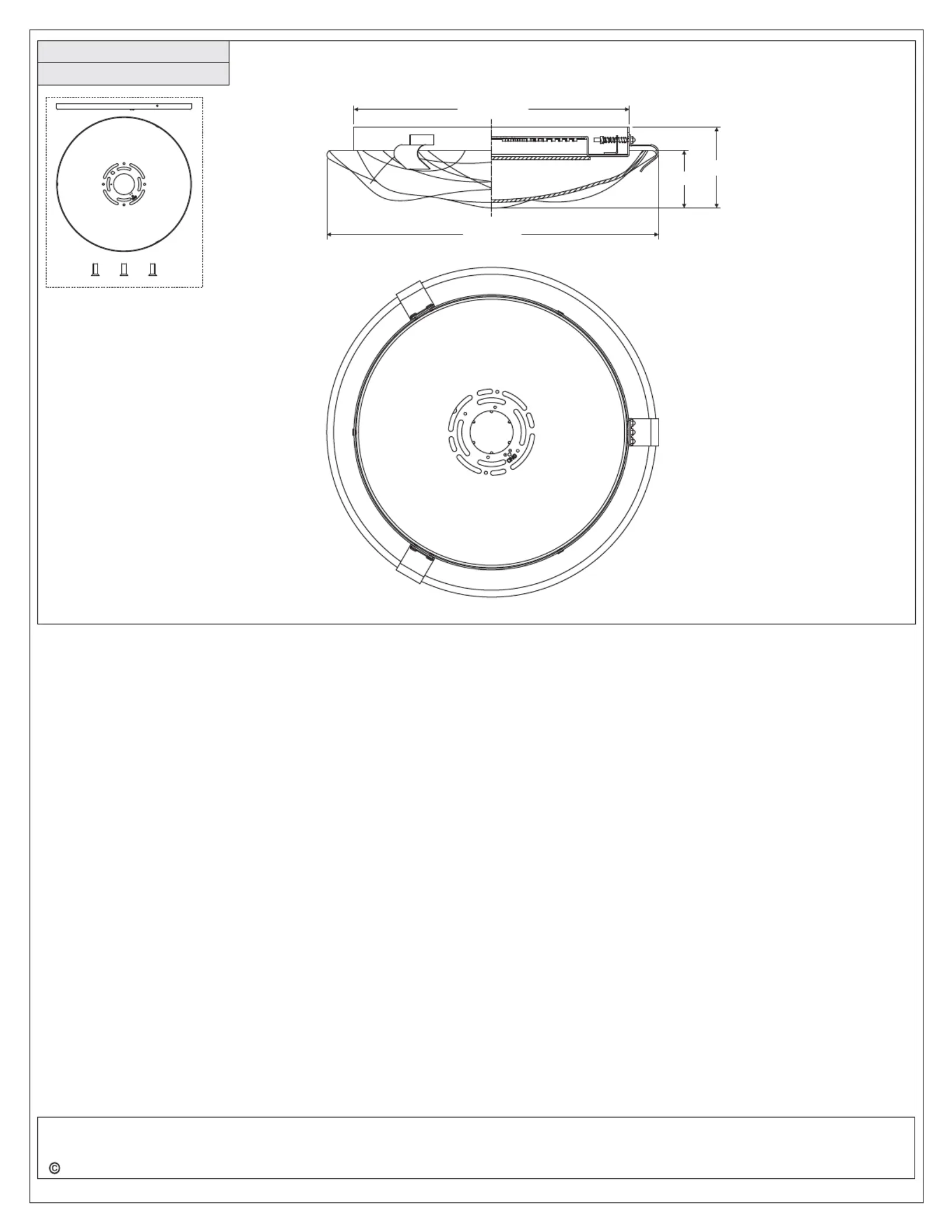

NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/4"

PCWR1615C

FINISH: POLISHED CHROME

14.5” Dia.

3.25”

2.25”

11.75” Dia.

Produkt Specifikationer

Mærke:	Quoizel
Kategori:	Lys
Model:	PCWR1615C
