Pleasegoto forproductcleaningtips.Gotothe selection.

(1)A19MediumBase150WMaximum.

30-45minutes

Identifyandinspectallpartsbeforebeginninginstallation.Checkpackagecontentlistanddiagramsbelowtobesureallpartsare

present.Ifanypartsaremissingordamaged,donotattempttoassemble,install,oroperatethefixture.Contactcustomerserviceforreplacement

parts.

www.quoizel.com Care+Maintenance

LightSource:

EstimatedAssembly Time:

Preparation:

ToolsRequired:Flatheadscrewdriver, Phillips screwdriver,pliers,wirecutters,wirestrippers,electricaltape,safetyglasses.

Warnings and Cautions

1of2

Assembly Instruction Sheet #IS-CSE1910

For Style CSE1910PN, CSE1910EK

6 CORPORATE PARKWAY

GOOSE CREEK SC 29445

www quoizel com

2016 QuoizelInc.

Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.

These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly

recommend that a licensed, professional electrician perform the installation.

Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal.

Package Contents

ReleasedDate:2016-10-13

Thank you for purchasing a Quoizel product.

Need assistance with parts or assembly? Call Quoizel customer service at 1-800-645-3184

or visit us on-line at www.quoizel.com

Fixture

Body

Hardware Contents

Crossbar

Lock Washer

Hex Nut

Nipple

Canopy

Chain Loop

Canopy Lock

Ring

Ceiling Canopy

Quick Link

Fixture Chain

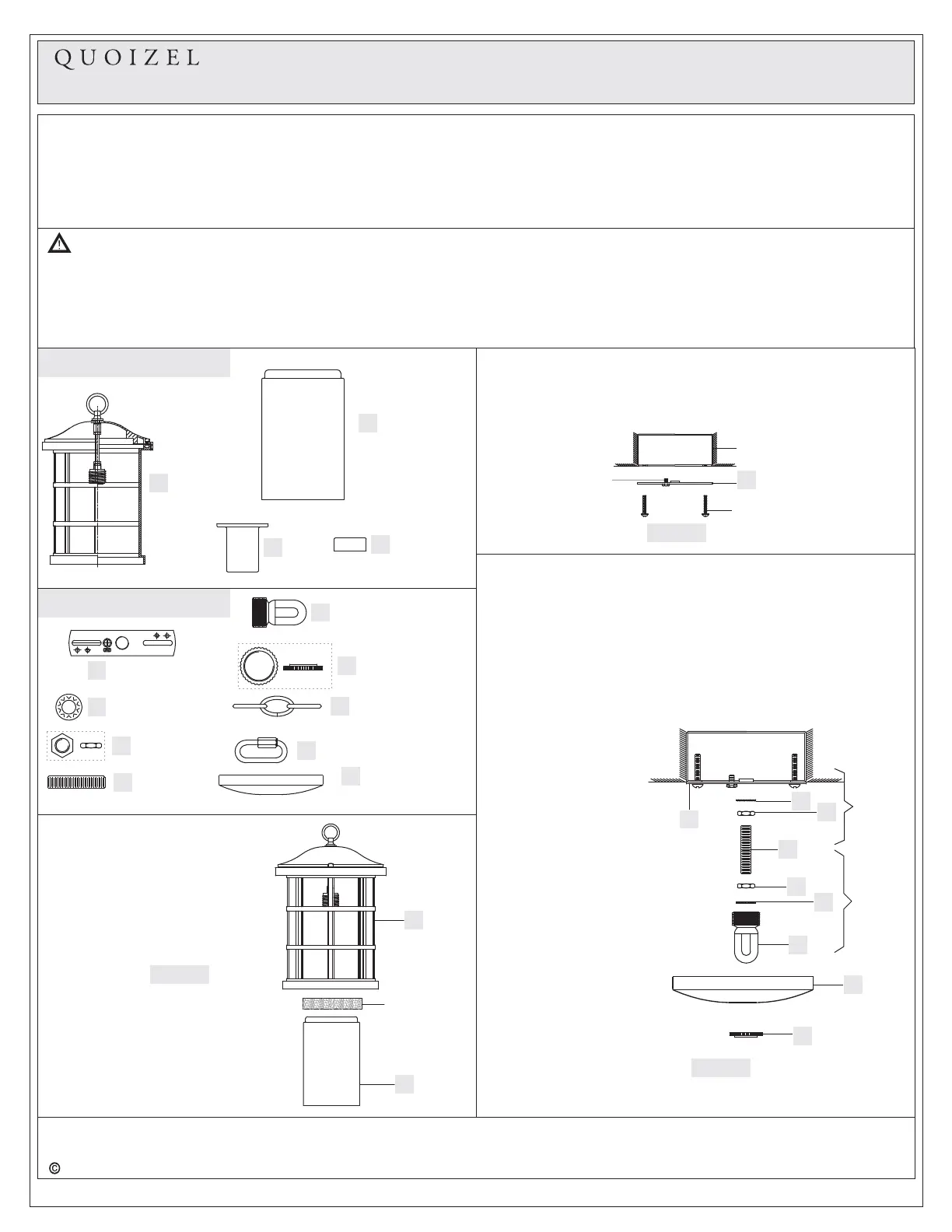

Figure 1

STEP 1 - Remove Styrofoam

inside of the Fixture Body

A. Remove the Styrofoam and

Shade (B) inside the Fixture

Body (A).

STEP 3 Install Canopy Chain Loop and Nipple-

* Pliers is required for this step.

A. Thread one Hex Nut (CC) to one end of the Nipple (DD) until it is at

least 0.25” from the end. Pass one Lock Washer (BB) over the end of

the Nipple (DD) and thread the Canopy Chain Loop (EE) onto the

Nipple (DD). By using pliers, thread the Hex Nut (CC) against the

Canopy Chain Loop (EE) and hand tighten until snug.

B. Thread another Hex Nut (CC) to the middle of the Nipple (DD). Place

another Lock Washer (BB) over the Nipple (DD) and then thread the

Nipple (DD) into the Crossbar (AA) until the Nipple (DD) is about

Step B

Step A

Figure 3

0.375” above the

Crossbar (AA).

C. Remove the Canopy

Lock Ring (FF) from the

Canopy Chain Loop

(EE). Place the Ceiling

Canopy (II) over the

Canopy Chain Loop (EE)

against the ceiling to

determine the correct

position of the Nipple

(DD). Thread the

Canopy Lock Ring onto

the Canopy Chain Loop

(EE). Adjust the Nipple

(DD) to allow the Ceiling

Canopy (II) to rest

against the ceiling when

held in place by the

Canopy Lock Ring (FF).

D. Remove the Canopy

Lock Ring (FF) and the

Ceiling Canopy (II).

Tighten the Hex Nut

(CC) against the

Crossbar (AA) to secure

in place.

Shade

Steel

Collar

Socket

Collar

Styrofoam

Figure 2

Outlet Box

Outlet Box Screw

(not included)

Green Ground

Screw

STEP 2 Install Crossbar-

A. AA)Attach the Crossbar ( to the Outlet Box with the head of the

Green Ground Screw facing you. Secure it with Outlet Box Screws

(not included) Tighten until snug..
