Side 1/16

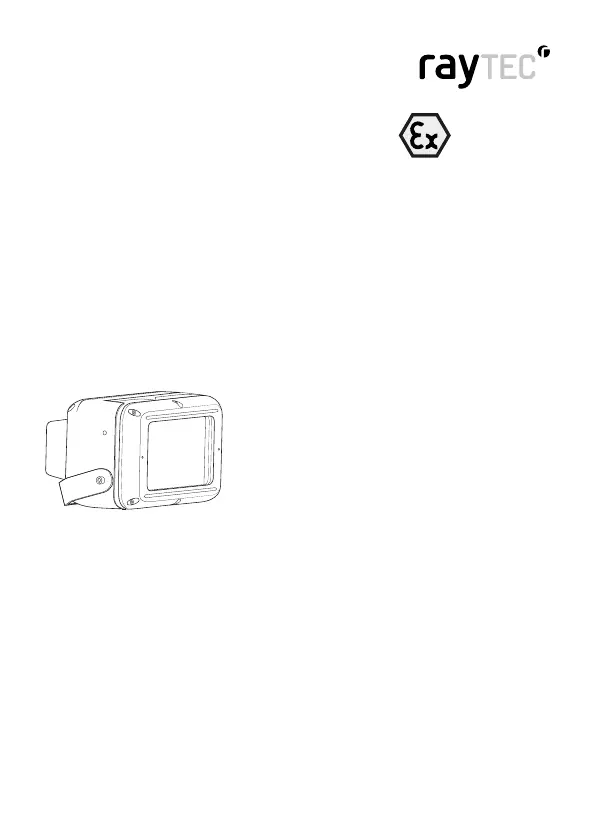

SPARTAN

Floodlight Range Installation Guide

CML13ATEX3007 IEC Ex CML14.0001

This installation guide provides instructions for installing the Infra-Red and

White-Light SPARTAN SPX series of explosion protected oodlights.

Text in Bold is specic for emergency variants

Overview

1 Safety Instructions

2 Installation

3 Maintenance

4 Technical Specication

5 Trouble Shooting

The SPARTAN series of explosion protected oodlights are specialist devices,

certied for use in specic operating environments.

The units must be installed in accordance with these instructions, must be correctly

certied for the specic operating environment and must be installed by suitably

qualied personnel.

Emergency oodlights will require the fuse to be reconnected upon

installation and the oodlight subjected to three 24 hour charge/discharge

cycles to bring the battery up to peak capacity.

If you have any queries about the installation or the certication of the unit – please

contact Raytec for immediate assistance and advice.

910-M-0094-2

Important information

2 www.rayteccctv.com UK / Europe Tel: +44 (0) 1670 520055

Americas Tel: +1 613 270 9990

1. Safety instructions

1. Read this leaet carefully before commencing to install the SPARTAN unit and

retain it for future use. Installation can only be carried out by suitably qualied

personnel.

2. Check the certication to ensure that the mains supply and the ambient

temperature present is suitable for the unit being installed.

3. If the SPARTAN unit is to be installed in areas of high vibration, please consult

with Raytec.

4. The SPARTAN unit housing is constructed from marine grade aluminium and

toughened glass. The end user must ensure that these materials are suitable

for the environment the SPARTAN unit will be installed in; Zone 1 and Zone 2

Hazardous areas.

5. Check certication nameplate on side of oodlight to ascertain type of threaded

cable entry on the luminaire. Select suitably certied ATEX/IEC Ex cable glands

and stopper plugs, these must be parallel thread, have a minium of 5 full thread

engagement and be of a medium/ne tolerance to ISO965-1 and ISO965-3. The

cable entry devices selected must maintain the IP rating of the luminaire

6. The incoming mains cable should not exceed a temperature rise of 20°C above

the ambient conditions; select suitable cable.

Install in a well

ventilated area

Do not continually

stare at lamp

Isolate mains before

removing cover

1.5m

Produkt Specifikationer

Mærke:	Raytec
Kategori:	Lettelse
Model:	Spartan
Kode for international beskyttelse (IP):	IP66, IP67
Vekselstrømsindgangsspænding:	110 - 254 V
Vekselstrømsindgangsfrekvens:	50 - 60 Hz
Bredde:	291 mm
Dybde:	183 mm
Højde:	502 mm
Vægt:	16000 g
Brugervejledning:	Ja
Produktfarve:	Sølv
Lampe type:	Platinum Elite SMT LED
Driftstemperatur (T-T):	-50 - 55 °C
Husmateriale:	Aluminium, Glass, Stainless steel
Strømkilde:	Vekselstrøm
Certificering:	ATEX, IEC\nCML13ATEX3007 & IEC Ex CML 14.0001\nUL/CSA, C1D2\nII 2GD Ex emb IIC T5/T4 Gb\nII 2GD Ex emb IIC T6 Gb\nNEMA 4x, UL50E, UL8750, UL 1203 C22.2 No\n15-LD1364539-1-PD
Monteringstype:	U-beslag
Lyskildeteknologi:	LED
Lysfarve:	Infrarød
Antal lyskilder:	48 pære(r )
Total effekt:	136 W
Kompatible typer af pærer:	LED
Strøm faktor:	0.95
Egnet til udendørs brug:	Ja
Lysvinkel (vandret):	50 °
Lysvinkel (lodret):	50 °
