PA202

Mini 20 + 20 watt

Power Amplier

Quick Start Guide

Salt Lake City, Utah

4/20

PA202

Mini Power Amplier

• RCA Inputs

• Dual volume controls

• Pluggable Screw terminal in and out

• Low noise, e󰀩cient operation

• Small compact size

• Class D high e󰀩ciency amp

The PA202 is a very compact 20 + 20 watt high e󰀩ciency amp

with barrier strip terminals for the balanced input and speaker out-

puts. The unit is perfect for small speakers in small environments.

Great for in ceiling and projector applications where small size is

needed along with class D low radiated heat locations.

The bridge - stereo function of the PA202 is a way of converting the unit

from two channels at 20 watts each to one channel at 40 watts. To do

this depress the CONFIGURATION SWITCH and follow the silk screen-

ing on the chassis for the mono-bridge operation.

Bridge or Stereo Operation:

WARNING: THE MINIMUM SPEAKER IMPEDANCE FOR

STEREO (2 CHANNEL OPERATION) IS 4 OHMS EACH.

WARNING: THE MINIMUM SPEAKER IMPEDANCE FOR

MONO/BRIDGE IS 8 OHMS.

IF YOU CONNECT AND USE THE PA202 WITH A LOWER

SPEAKER IMPEDANCE THAN LISTED ABOVE YOU

WILL DAMAGE THE UNIT AND POSSIBLY OTHER

EQUIPMENT THAT IS CONNECTED TO THE PA202.

PWR

LEFT

RIGHT

LEFT

RIGHT

- + - +

LIMITER

off

CHANNEL VOLUME

LEFT

RIGHT

BRIDGE INPUTS

RIGHT

LEFT

BRIDGE

INPUTS

BRIDGE

OUTPUTS

STEREO

CONFIGURATION

BRIDGE:

STEREO:

VDC

PA202

Mini Two Channel Amp

20 + 20 watts

OUTPUTS:

WARNING: DO NOT GROUND THE SPEAKER OUTPUT

TERMINALS. THE SPEAKER TERMINALS MAY NOT BE

AT GROUND POTENTIAL.

PWR

LEFT

RIGHT

LEFT

RIGHT

- + - +

LIMITER

off

CHANNEL VOLUME

LEFT

RIGHT

BRIDGE INPUTS

RIGHT

LEFT

BRIDGE

INPUTS

BRIDGE

OUTPUTS

STEREO

CONFIGURATION

BRIDGE:

STEREO:

VDC

PA202

Mini Two Channel Amp

20 + 20 watts

OUTPUTS:

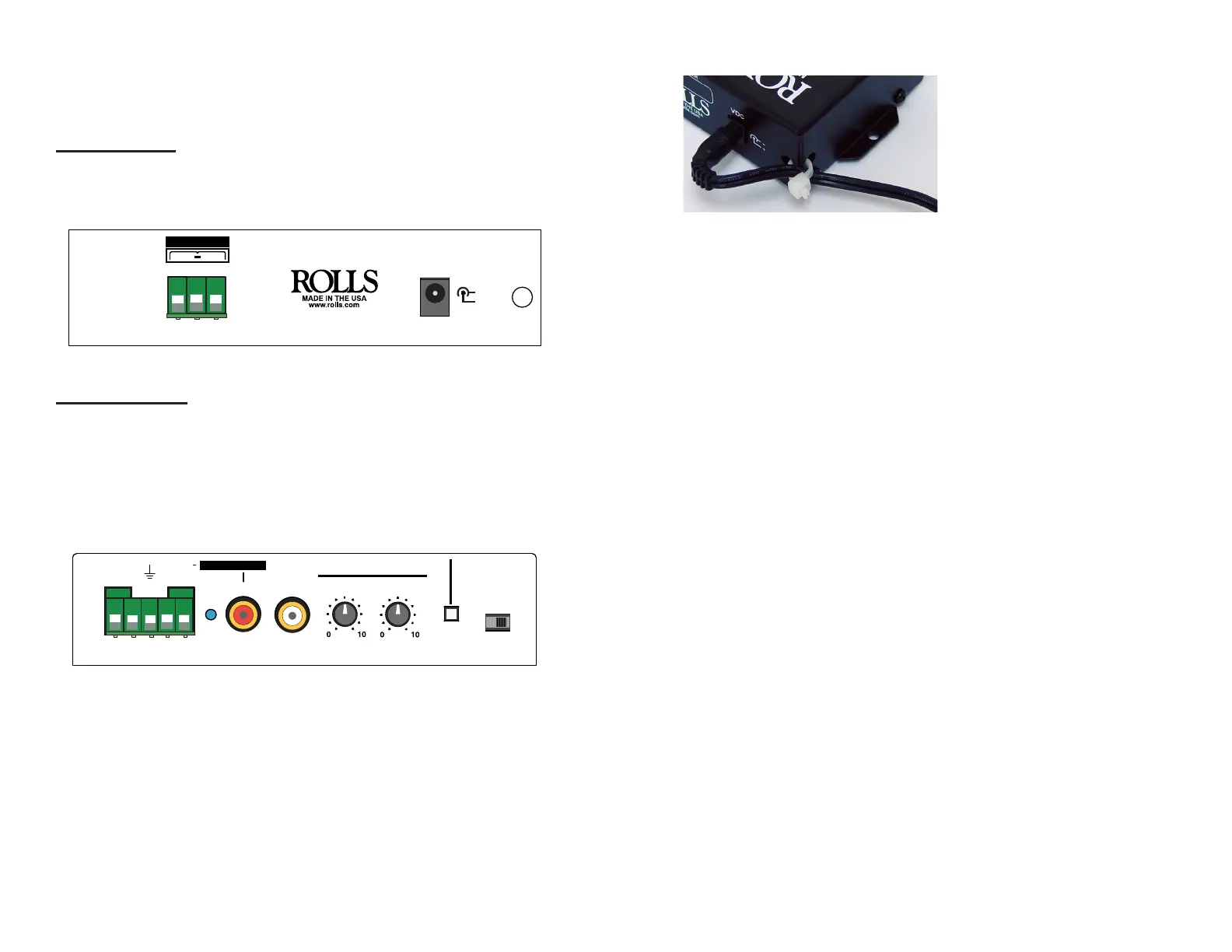

REAR PANEL

SPEAKER OUTPUT: Pluggable screw terminals.

VDC: For connection to the included power supply.

FRONT PANEL

CHANNEL VOLUME: Adjusts the level of signal from the Line Input to

the Line/Power and Speaker outputs.

INPUTS: RCA line level inputs and balanced pluggable screw terminals

BRIDGE/MONO SWITCH: For selecting the operation of stereo or mono

bridge input and output operation.

LIMITER SWITCH: For selecting on or o󰀨 of the limiter circuit.

CONNECTION / OPERATION

Connect input sources such as CD player, DVD player or projector out-

puts to the inputs of the PA202.

Select the bridge or stereo function. The PA202 is shipped from the

factory in stereo mode. To select bridge mode push in the switch until it

locks into position.

Connect the outputs from the PA202 to your speakers. The stereo and

bridge outputs are labeled on the silk screening of the unit.

We recommend selecting the LIMITER ON function, but the circuit may

be disabled by selecting the OFF position.

SPECIFICATIONS

Line Input Impedance: 47K Ohms

Power Output: 20 Watts X 2 (4 Ohms)

Voltage Gain: 32 dB

Maximum Supply Voltage: 30 VDC

THD: .05% typical

EIN: 3 mV

E󰀩ciency: 85%

Input Sensitivity: 28 mV

Bandwidth: 20Hz - 25 kHz

Size: 6" x 3.5" x 1.5"

Weight: 1 lb.

NOTE: THIS MANUAL ASSUMES THE USER HAS A WORKING KNOWL-

EDGE OF AUDIO ELECTRONICS, BALANCED AND UNBALANCED CON-

NECTIONS, AND PROPER SIGNAL LEVEL SETTING.

The limiter is a function that will not allow very loud signals to pass

through the PA202 by limiting their volume temporarily to a normal level,

preventing damage to the speakers or the unit its self. It is important to

note that the limiter utilizes a circuit that decreases the amount of very

loud signals it does not cut out all potentially loud signals. Proper instal-

lation and setup is crucial. If you are experiencing distortion turning the

Limiter on may help but it is not intended for total dynamics control. Its

primary function is to help prevent one time very loud signals like drop-

ping a microphone or loud program material that is temporary.

LIMITER EXPLANATION:

The holes in the back and

side of the PA202 are for the

attachment of a zip tie (not

included). For power cord

strain relief as needed.

PWR

LEFT

RIGHT

LEFT

RIGHT

- + - +

LIMITER

off

CHANNEL VOLUME

LEFT

RIGHT

BRIDGE INPUTS

RIGHT

LEFT

BRIDGE

INPUTS

BRIDGE

OUTPUTS

STEREO

CONFIGURATION

BRIDGE:

STEREO:

VDC

PA202

Mini Two Channel Amp

20 + 20 watts

OUTPUTS:

PWR

LEFT

RIGHT

LEFT

RIGHT

- + - +

LIMITER

off

CHANNEL VOLUME

LEFT

RIGHT

BRIDGE INPUTS

RIGHT

LEFT

BRIDGE

INPUTS

BRIDGE

OUTPUTS

STEREO

CONFIGURATION

BRIDGE:

STEREO:

VDC

PA202

Mini Two Channel Amp

20 + 20 watts

OUTPUTS:
