INTRODUCTION

CONTROL BOX DESCRIPTION

1. FUSE

2. POWER SUPPLY

3. PUMP/VALVE CONTROL OUTPUT

4. BOILER DELAY - JUMPER SETTINGS

5. BOILER CONTROL OUTPUTPRODUCT COMPLIANCE

SAFETY INFORMATION

1. Cartridge fuse - 5 x 20 mm T10A (replaceable)

2. Power supply - 230V

3. Pump/Valve supply - 230V

4. Boiler delay - jumper settings

5. Boiler control output - volt-free

6. Heating / Cooling - 230V input for Heat/Cool Changeover

7. Heating / Cooling - volt-free contact for Heat/Cool Changeover

8. Dew point sensor connection - volt-free

9. NC Actuators output connections - 230V

10. Thermostats connections

11. CB500X extension connection

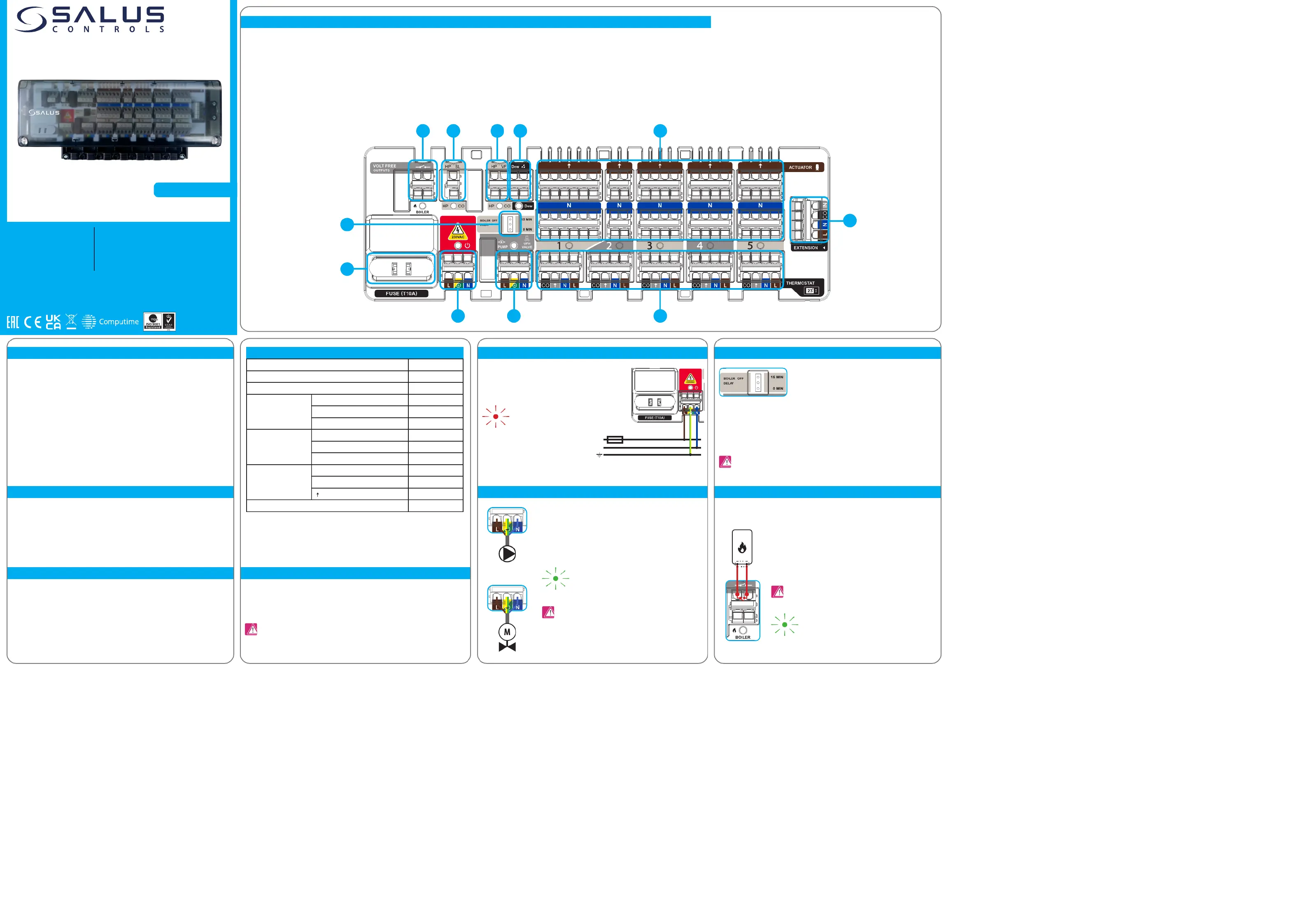

The new CB500CO control box is the main element of the underoor heating/cooling control system.

It has a built-in module that controls the heat and cool sources. The control box allows you to control

5 dierent zones. The number of controlled zones can be increased up to 20 zones by using additional

CB500X extension modules (CB500CO main control box + three CB500X extension modules). Each

individual zone can be operated by one thermostat. The thermostat which requires a 230V power

supply has to be powered directly from the control box. The CB500CO has volt-free contacts designed

to control a boiler. The CO-Contact from the heat pump allows you to switch from Heating to Cooling.

The CO Contact can be volt-free or 0 respective 230V. It is equipped with 230V voltage outputs for a

pump and actuators. The spring clamps provide quick and convenient wiring connections. The control

box is designed to work with NC (normally closed) type actuators. It is recommended to mount it on

a surface or on a DIN rail.

Main fuse is located under the housing cover next to power supply terminals and secures the control

box and the devices connected to it. Use ceramic tube slow blow 250 V ROHS fuses (5x20 mm) with

nominal max current 10A. To replace fuse remove the fuse holder with a at screwdriver and pull out

the fuse.

Power supply for control box is 230 V ~ 50Hz.

Three wire installation should be made in

accordance with the current applicable regulations.

PUMP/VALVE output - this is a 230 V AC output that controls the pump and

valve of the heating and cooling systems. If any of thermostats connected

to the CB500CO send heating / cooling signal - PUMP/VALVE output will

be activated after 3 minutes. If all of the thermostats connected to the

CB500CO stop sending heating / cooling signal - PUMP/VALVE output will

be deactivated after 3 minutes.

This jumper sets the turn o delay time of the BOILER control

outputs.

Boiler output - this is a volt-free output (COM / NO) which controls heating

system boiler. If any of thermostats connected to the control box sends

signal for heating, BOILER output is activated after 3 minutes delay, giving

permission for boiler to turn ON. If all thermostats connected to the control

box stop sending signal for heating, then BOILER output is deactivated -

this is the signal for boiler to turn OFF (BOILER output can work with 0min

or 15min delay - please refer to chapter 4).

Boiler ON/OFF contacts

(according to the

boiler’s manual)

When the Pump/Valve control output is activated, the

LED shows a constant green light

When the BOILER output is activated, the LED shows a

constant green light.

WARNING!

Before starting the installation, disconnect the 230V power supply!

The LED will illuminatered

inidicating that the control box is

connected to the power supply.

NOTE: Replacement of the fuse to be carried out only when the control box is disconnected

from power supply (230 V ~).

NOTE: When the jumper is set to 15 minutes delay time you must ensure hydraulic ow in the

system when all actuators are closed. Use a bypass or dierential pressure valve.

This product complies with the essential requirements and other relevant provisions of the following

EU Directives: EMC 2014/30/EU, Low Voltage Directive LVD 2014/35/EU, RoHS directive 2015/863/

EU. The full text of the EU Declaration of Conformity is available at the following internet address:

www.saluslegal.com.

Use in accordance with current national and EU regulations. The product is intended for indoor use

only in dry conditions. The CB500CO should not be installed in areas where it may be exposed to

water or damp conditions. Installation must be carried out by a qualied person in accordance to

current national and EU regulations. Before attempting to setup and install, make sure that CB500CO

is not connected to any power source. Incorrect installation may cause damage to the control box.

3 10

5 6 7 8 9

max

5(2) A

L N

When the jumper is set to position (default setting) then the BOILER output (volt-free “0 MIN”

relays) are deactivated immediately when thermostats stop heating.

When the jumper is set to position then the BOILER outputs (volt-free relays) are“15 MIN”

deactivated 15 minutes after thermostats stop heating.

Quick Guide

SALUS Controls is a member of the Computime Group

Maintaining a policy of continuous product development SALUS Controls plc reserve the right to change specication,

design and materials of products listed in this brochure without prior notice.

SALUS Controls

Units 8-10, Northeld Business

Park, Forge Way, Parkgate

Rotherham, S60 1SD

E: techsupport@salus-tech.com

T: +44 (0) 1226 323961

SALUS CONTROLS GMBH

Dieselstrasse 34

63165 Mühlheim am Main

Tel: +49 (0) 6108 825850

Email: info@salus-controls.de

V01

02/2024

www.saluscontrols.com

Control box (5 zones) 230 V

Model: CB500CO

230 V AC

TECHNICAL INFORMATION

Power Supply 230 V AC 50 Hz

Total Load Max 7 (2) A

Pump / Boiler / Heat Pump Relay Load Max 5 (2) A

Inputs Heat/Cool changeover 230 V AC

Heat/Cool changeover Volt-free

Dew point sensor Volt-free

Outputs Boiler control Volt-free

Pump/Valve control 230 V AC

Actuators 230 V AC

Thermostat connections (L, N) Power Supply 230 V AC

(CO) Output Heat/Cool changeover 0 - 230 V AC

( ) Input Actuators 0 - 230 V AC

Dimensions [mm] 270 x 110 x 55

WARNING!

DO NOT use 230V AC!

6. HEATING / COOLING - 230V INPUT FOR HEAT/COOL CHANGEOVER

7. HEATING/COOLING - VOLT-FREE CONTACT FOR HEAT/COOL CHANGEOVER

8. DEW POINT SENSOR CONNECTION

9. ACTUATORS CONNECTION

10. THERMOSTAT CONNECTION

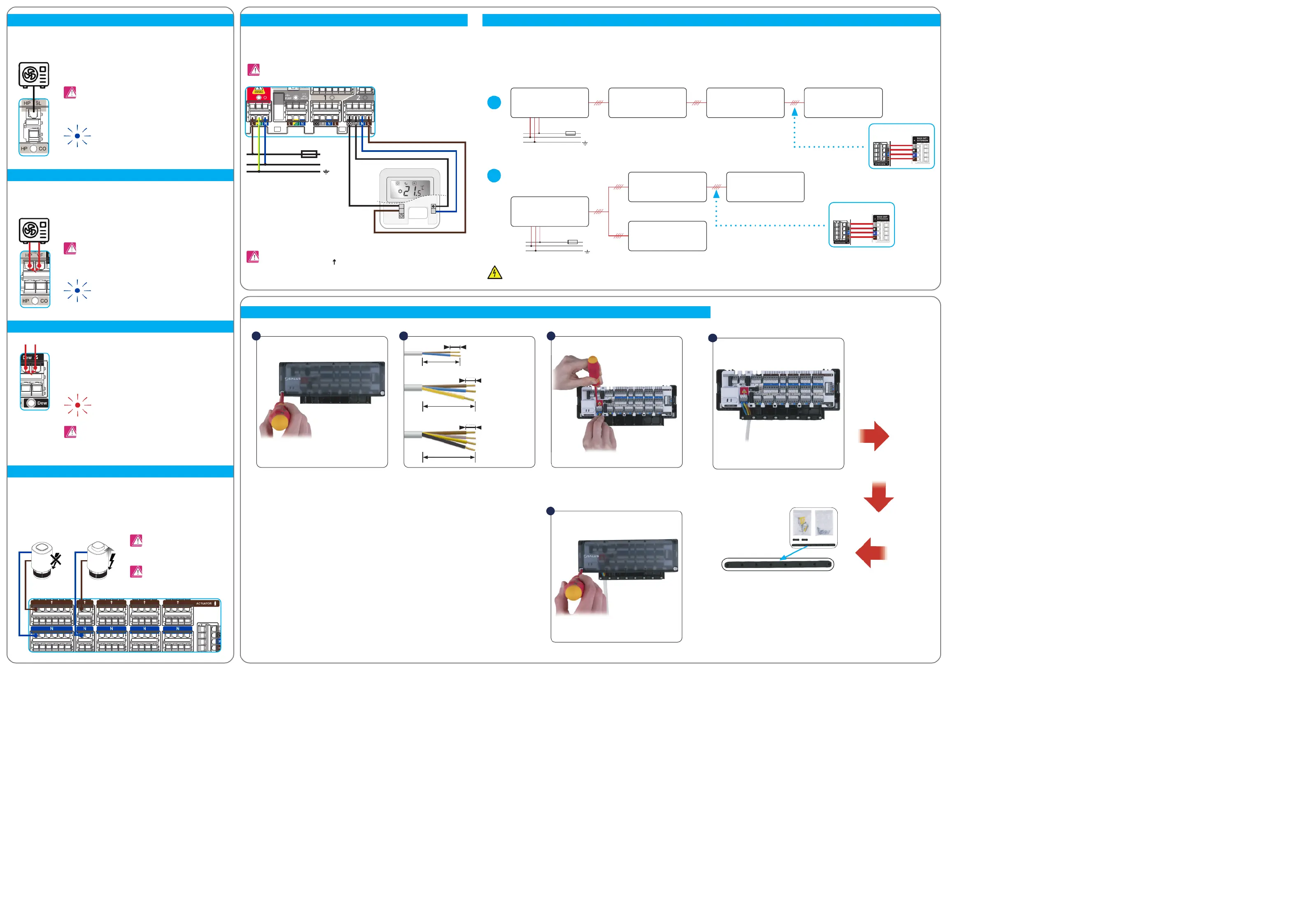

INSTALLATION

11. CONNECTION BETWEEN CB500CO AND CB500X

Connect the wirest o the spring clamps according to the

wiring diagrams.You canr un the wiresi n the tunnel under

control box housing.

Controlb ox power

supply and pump

(min. 3 x 1,0 mm

230 V

max. 3 x 1,5 mm

230 V)

Thermostats wires

and extension module

(min. 4 x 0,75 mm

230 V

max. 4 x 1,5 mm

230 V)

Wiresf or boiler, HP /

chiller,heating/ cooling

changeover andd ew

point control

(min. 2 x 0,75 mm

230 V

max. 2 x 1,5 mm

230 V)

40 mm

5 mm

Remove the appropriate piece of insulation from the wires.Remove the top cover of the control box.

Fors afety use fastening strapt op revent power supply /

thermostats wires from falling out.

Make sure that all the wiresa re properly connected,m ount

topc over and poweru p the controlb ox- the power red

indicator LED will be illuminated.

If there is a need to increase the number of zones of the CB500CO control box, it is possible to connect the CB500CO and CB500X units using the EXTENSION connector. A maximum of three CB500X extension

modules can be connected to the CB500CO control box to have 20 zones. The connection between CB500CO and CB500X can be made in one way, in series as explained in point 1 or in parallel as explained

in point 2.

230V AC power is supplied only to the main CB500CO control box. Please pay attention to the terminal markings. All thermostats connected to the CB500CO or CB500X have an impact on the system module

which controls the heat / cool sources in the main CB500CO control box.

WARNING! DO NOT connect power supply to the CB500X power supply input when it is connected together with CB500CO. CB500X power supply input have to be used only when control box

extension works as standalone device.

HP VF contact - volt-free relays for Heat/Cool Changeover

When the Heat Pump changes into cooling mode will close the contact

and switch the CB500CO into cooling mode enabling 230V on all CO

contacts.

If the installation is equipped with a dew point sensor, it should be con-

nected to the DEW POINT contacts. When condensation is detected (DEW

POINT contacts closed), PUMP and HP/CHILLER contacts are switched o

immediately to prevent oor damage. DEW POINT contact is only active

in cooling mode.

Actuators wires should be plugged into the spring clamps of the respective zones. The maximum

current load for each zone is designed to handle up to 6 actuators with a power of 2W each. With

more actuators in one zone, an additional relay should be used to make sure that actuators output

will be not overloaded.

CB500CO only supports switching the thermostats between heating and cooling modes if their ther-

mostats support that feature (like our HTRP230V, HTRS230V, HTR230V, BTRP230V, and BTR230V). If

there will be live 230V on the CO terminal, the thermostat knows it has to switch to the cooling mode.

Example based on T30NC230 actuators

When the Dew point sensor contact is closed, the LED

shows a constant light.red

NOTE: Depends on the thermostat

heating/cooling state - 230 V AC may

appear on the actuators output

NOTE: Use only volt-free connection!

CB500X

230 V AC

CB500CO CB500X CB500X

CB500CO

CB500X

CB500CO

When the Heat/Cool Changeover volt-free contact is

closed, the LED shows a constant light (cooling blue

mode).

WARNING!

DO NOT use together with 230V SL Heat/Cool Changeover!

Heat Pump volt-free

contact (according to the

Heat Pump’s manual)

230 V AC

Example based on HTRS thermostat

CB500X

HP SL contact - Switched Live (SL) contact from Heat Pump (HP)

When the Heat Pump changes into cooling mode will switch the CB500CO

into cooling mode and send 230V on this contact enabling 230V on all CO

contacts

Heat Pump 230V output

(according to the Heat

Pump’s manual)

When the Heat Pump input send 230V, the LED shows a

constant blue light (cooling mode).

WARNING!

DO NOT use together with volt-free Heat/Cool Changeover!

NOTE: When contact senses humidity above 95% will stop cool

mode and change immediately to Heat mode (careful that ther-

mostats are not set higher than room temperature, will keep the

actuator open)

NOTE: Only thermostat which have a CO contact can be used for cooling which require 230V

Input signal to changeover

NOTE:

• Minimum 3 contacts, L, N and “switch live” to work;

• When used also for cooling, CO needs to be connected;

• 0V on CO = Heatmode | 230V on CO = Coolmode
