HEAD OFFICE

S Con

trol

s, U

nits

8-10,

Nort

hfield Bus iness

Par

Forge

Way, Par

ate

Rot

herha

S60

SALUS Contro a me ofls is mber e Co ime th mput Group

Mai taining a cy co tin ou pr ct ve op nt n poli of n u s odu de l me

SA Prot ct whic is mad LU Co tr d SaLUS e h e up SA S n o anls fe4

reserves the right to change specific ti design d a on, an

materials of pr lis products ted wit utho ior

notice.

UK: tech@salus-tech.com

DE / NL: info@salus-controls.de

FR: technicalsupport@saluscontrols.fr

RO: tehnic@saluscontrols.ro

DK: Support@salus-controls.dk

www.saluscontrols.com

SALUS Controls GmbH,

Dieselstrasse 34,

63165 Mühlheim am Main,

Germany

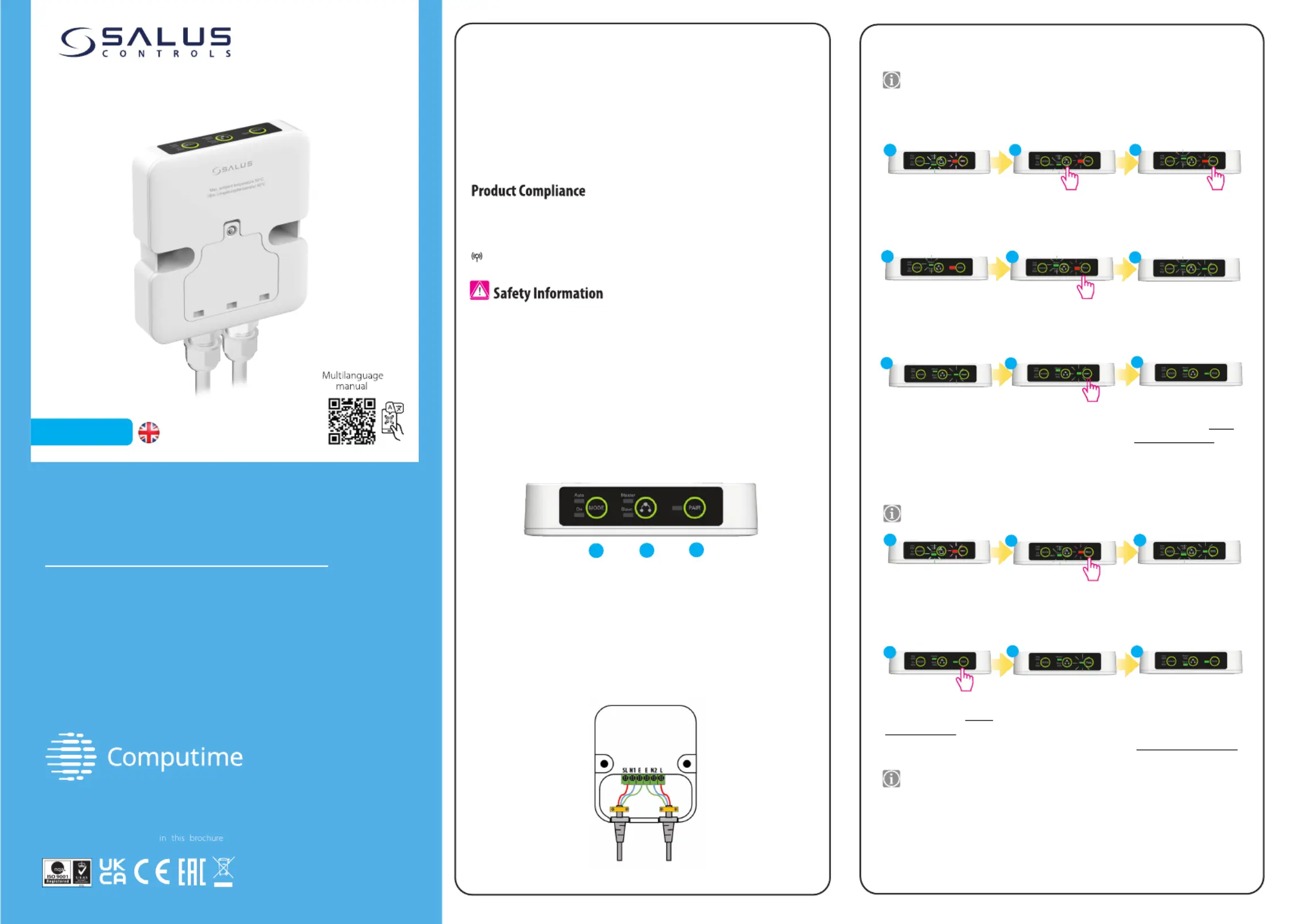

ZIGBEE RECEIVER

Model: WQ615RX

V01

XII/2024

Receiver buttons

The SALUS WQ615RX receiver designed for effective management of electric is

heating systems utilizing the Zigbee protocol. The receiver can be set

up as a master

unit, allowing it to connect with up to four additional slave receivers, thereby

creating a unified and synchronized network for controlling multiple infrared

panels. Each WQ615RX receiver can function as either a master or a slave,

depending on the system's requirements, ensuring smooth control and

integration.

This flexibility allows for effortless management of the entire heating

or cooling system, improving the efficiency and responsiveness of your setup.

2405-2480MHz, <14dBm

Wiring diagram

1. MODE button: Auto/On/Off selection

2. Master/Slave selection: Master can control up to 4 slaves

3. PAIR button for quick pairing procedure

Power supply

Infrared panel

Quick Guide

Th product compl with the essential requirements and other relevant provisions of is ies

Directives 2014/53/EU and 2015/863/EU. The full text of the EU Declaration of Conformity is

available at the following internet address: www.saluslegal.com.

To ensure both safety and optimal performance, the WQ615RX receiver should be used in

accordance with all relevant regulations. Th device designed exclusively for indoor is is

use and must not be installed in environments exposed to extreme temperatures or

other harsh conditions. Keep the receiver completely dry; any inadequate installation

may cause damage or malfunction. Always disconnect the power before cleaning and use

a dry cloth only. For safe operation, position install the WQ615RX receiver at a and

convenient height to allow easy access. The device' maximum operating temperature is s

50°C, so avoid placing them in locations that may exceed this limit to prevent overheating.

Note: The WQ615TX thermostat comes prepaired with the WQ615RX receiver, which

can also be linked to an additional 4 more receivers (5th slave will be rejected), all

connected to infrared heating panels. To start a new pairing

process, it is necessary to

factory reset the devices.

•Resetting the master: master deletes the thermostat, all slaves and coordinator

information.

•Resetting the slave: slave deletes its own connection information and leaves the

ZigBee network.

Pairing process

Press and hold the PAIR button

for 10 seconds to reset the

master receiver.

10 s

Short press the Master/Slave

button to change to Master.

1111

Power up the receiver. PAIR

LED will flash red. Slave LED

will flash green.

The PAIR LED will show

solid red for 5 seconds then

will start flashing red.

Press and hold the PAIR

button for 5 seconds to start

pairing the master receiver.

Master LED and PAIR LED will

both flash green.

A few seconds later, Master LED

will show solid green. PAIR LED

will keep flashing green.

5 s

Both PAIR and Master LEDs

show solid green. Master

receiver is now paired.

Press and hold the PAIR

button for 5 seconds.

Pairing a slave receiver (optional)

Press and hold the PAIR button

for 10 seconds to reset the

slave receiver.

10 s

Power up the slave receiver.

PAIR LED will flash red.

Slave LED will flash green.

Note: Skip steps 10 - 15 if you only pair one master receiver. Resume pairing from step 16.

The Slave LED and

PAIR LED will both

start flashing green.

Press and hold the PAIR

button for 5 seconds ON THE

MASTER RECEIVER to start

pairing the SLAVE receiver.

The PAIR LED on the master

receiver will start flashing

green.

Master receiver

Wait until Slave LED and

PAIR LED both show solid

green on the slave receiver.

Slave receiver is now paired.

Note: Repeat the slave pairing process to connect up to a maximum of 4 slaves.

Master receiver

Introduction

230V AC 50Hz

Power Supply Receiver

Local comm. via ZigBee 2.4 GHz

Rating max 10(5)A

Outputs

230V SL

Note: If the user wants to replace one or more existing paired slave receiver, user

MUST let the WQ610TX thermostat, master and slave receivers do

factory reset and pair

again. In case of mistake or broken receivers, user will need to do factory reset of Master

and then redo all pairing process of WQ610TX and Slaves.

Note: If master/slaves do not receive RF signal from master for over 1 hour in Auto mode,

they will enter fail safe mode. In the fail safe mode, they will turn on relay for 5 min and

turn off again for 55 min and repeat until RF signal is reconnected. When reconnected,

slaves are re-controlled by master again. In manual ON or OFF mode, no fail safe mode.

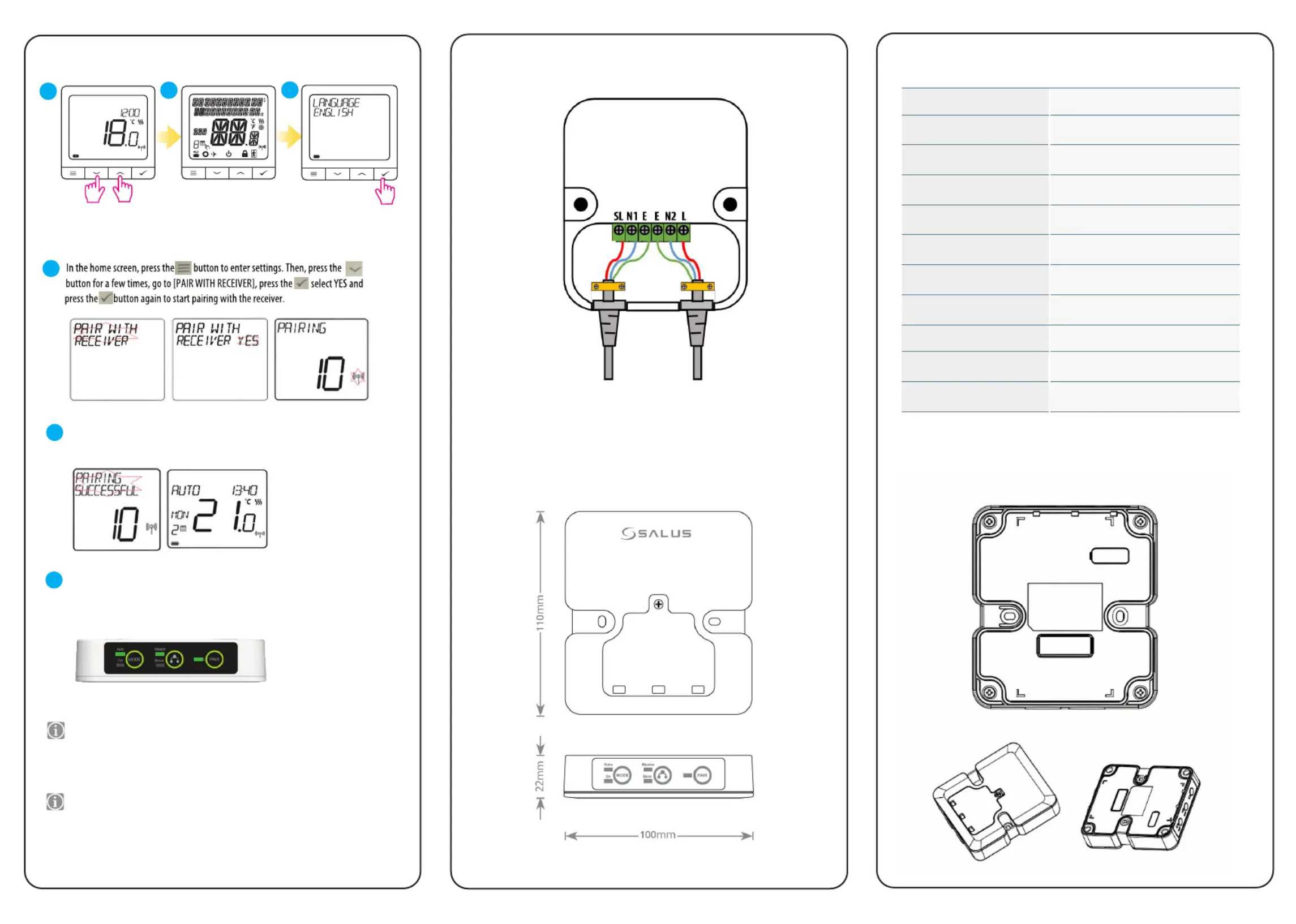

If paired successfully, will display [PAIRING SUCCESSFULL], then, after a the termostat

few seconds, will go to the home screen.

Press and hold the UP and

DOWN buttons for 5 seconds

to reset the thermostat.

Display will show all icons.

Choose English and

press the YES . button

After setting the temperature on the thermostat, receiver will show solid GREEN

LEDs (AUTO, MASTER/SLAVE, PAIR).

0°C to 50°C+

IP54

100mm(W) x 110mm(H) x 22mm (D)

Dimensions

Wiring diagram

Power supply

Infrared panel

Receiver specifications

White, Gloss plastic

Safety approval

Class II

Dimensions

100mm(W) x 110mm(h) x 22mm (D)

Connectivity

Operating temperature

Storage temperature

-25 +6°C to 0°C

Radio frequency

Ingress protection rating

2.4 GHz

Material (Housing)
