Side 1/2

RF RECEIVER (868 MHz)

Model: SSR868

www.saluscontrols.com

UK: tech@salus-tech.com

DE / NL: info@salus-controls.de

FR: technicalsupport@saluscontrols.fr

RO: tehnic@saluscontrols.ro

DK: Support@salus-controls.dk

INPUT: 230V AC, +/- 10%, 50Hz

SWITCHING CAPACITY: 16(5)A

SALUS Controls GmbH,

Dieselstrasse 34,

63165 Mühlheim am Main,

Germany

V01

XII/2024

Quick Guide

Safety Information

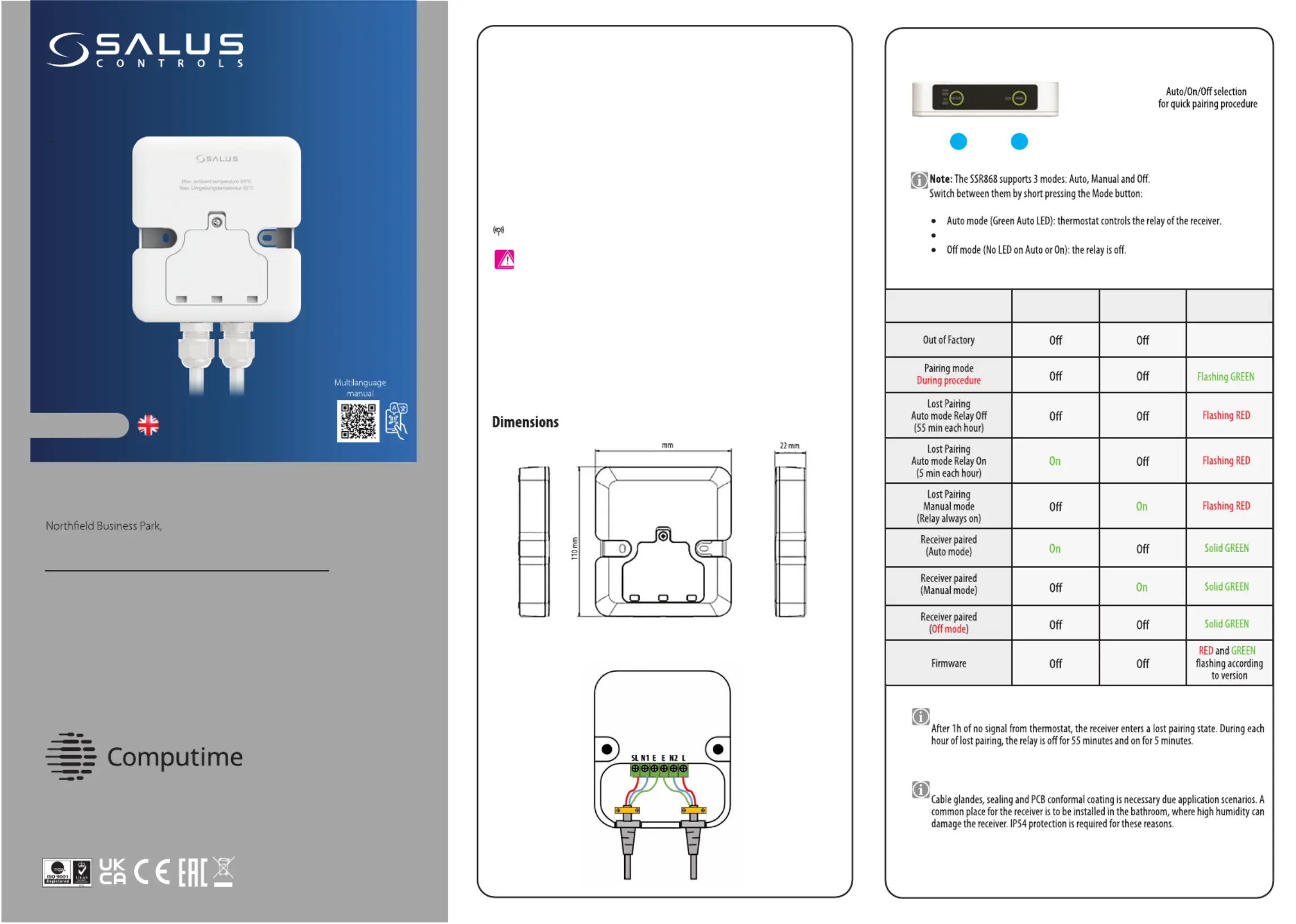

Wiring diagram

LED Operation

Auto LED ON LED Pair LED

1. MODE button:

2. PAIR button

Button functions

HEAD OFFICE

SALUS ont C rols, Un ,its 8-10

For Wayge , Parkgate

Ro rham, Dthe S60 1S

Fail safe protection

Waterproof protection

Introduction

The SALUS SSR868 is a super slim receiver (only 22 mm) that is designed to control electrical

infrared panels. The receiver has a 10A relay and is compatible with most IR panels on the

market. It includes a 3M cable and has IP54 rating protection. It can be installed in bathrooms

or rooms with high humidity levels. The SSR868 receiver is compatible with our 868MHz

range of thermostats: RT310TX, RT510TX, RT520TX, 091FLRERT20TX, ST325TX and F(TX).

Product Compliance

This product complies with the essential requirements and other relevant provisions of

Directives 014/53/EU and 201 / /EU. The full text of the EU Declaration of Conformity is 2 5 863

available at the following internet address: www.saluslegal.com.

To ensure both safety and optimal performance, the SSR868 receiver should be used in

accordance with all relevant regulations. This device is designed exclusively for indoor use and

must not be installed in environments exposed to extreme temperatures or other harsh

conditions. Keep the receiver completely dry; any inadequate installation may cause damage

or malfunction. Always disconnect the power before cleaning and use a dry cloth only.

For safe operation, install the SSR868 receiver at a convenient height to allow easy access. The

device's maximum operating temperature is 50°C, so avoid placing them in locations that

may exceed this limit to prevent overheating. Adhering to these guidelines will ensure the

long-term reliability and safety of the receiver.

Power supply

Infrared panel

100

Flashing YELLOW

SALUS Controls is a member of the Computime Group.

aintaining a policy of continuous product development SALUS Controls plc

reserve the right to change specification, design and materials of products listed

in this brochure without prior notice.

Manual mode (Green ON LED): the relay is always activated.

868.0 MHz -

868.6 ; <13dBmMHz

ERT20TX

RT520TX

RT510TX

RT310TX

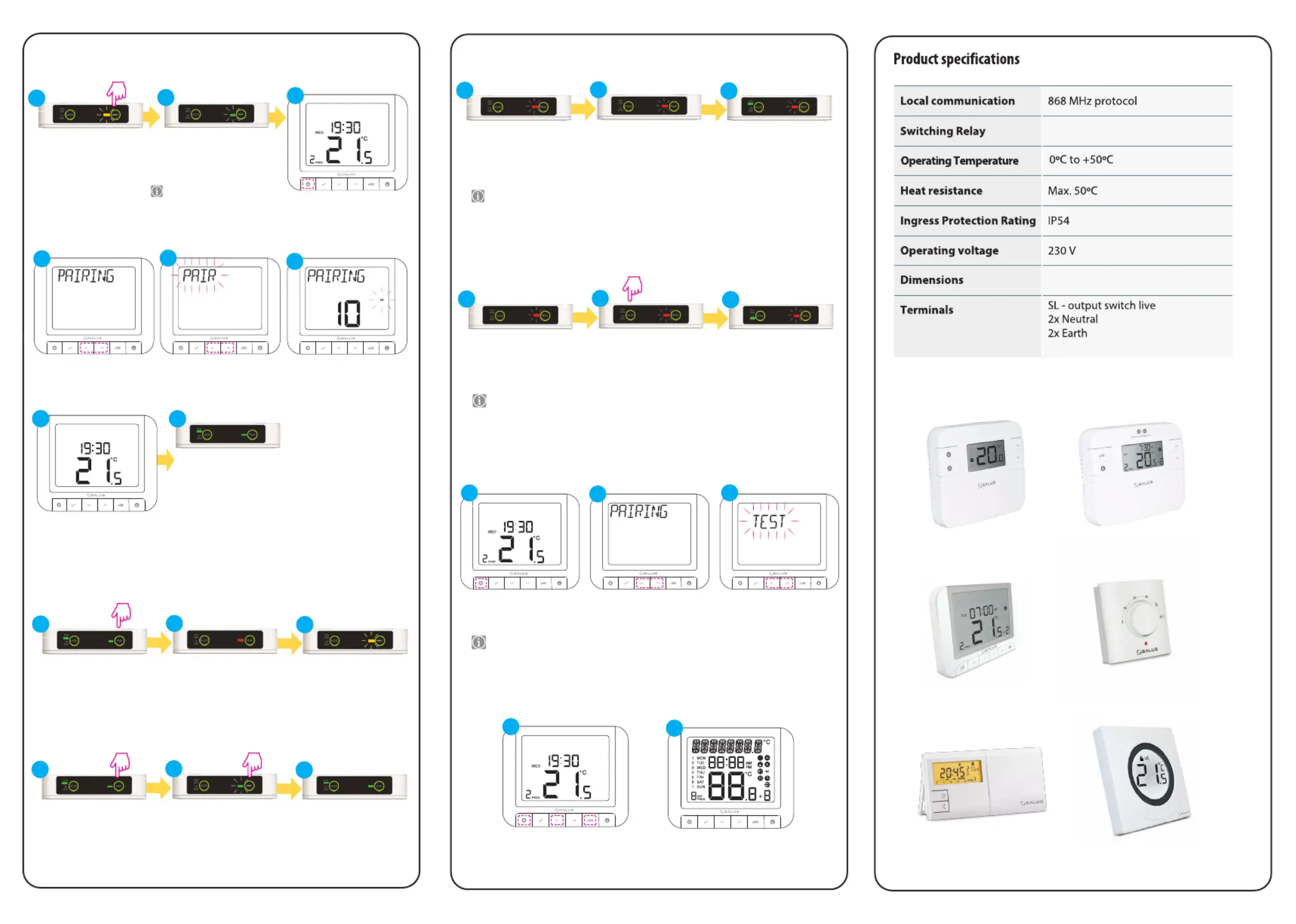

The pairing process

takes up to 10 minutes.

After all, thermostat will go

back to the main screen.

Using UP or DOWN, select

PAIR and press SELECT.

Press MENU.

Using UP or DOWN, navigate to

Pairing submenu and press

SELECT.

Pairing process

5 s

Pair LED – Flashing Green –

Receiver in Pairing mode

Note:

0 minutes in this mode.

After 10 minutes, if no pairing is

successful, revert to solid RED.

Pairing process needs to start again.

Pair LED – Solid Green –

Receiver is linked with a

thermostat

Auto LED – Solid Green –

Default mode for a paired

receiver

Factory reset

10s long press the Pair

button to factory reset the

receiver.

Solid Red LED then it resets.

Flashing yellow after reset.

Relay is inactive.

10 s

10(5)A

The device will be reset and will

start up automatically.

To reset the thermostat, press MENU,

DOWN and BOOST simultaneously

for 5 seconds.

Thermostat f

actory r

eset

Using UP or DOWN, select

TEST and press SELECT.

Press MENU. Using UP or DOWN, navigate to

Pairing submenu and press SELECT.

Test pairing

If pairing started by mistake

5 s

Pair LED – Solid Green –

Thermostat linked with a

thermostat. Press 5 sec to put

the receiver in Pairing mode.

Pair LED – Flashing Green –

Receiver in Pairing mode

Press 5s the Pair button to

exit pairing mode.

Keep the previous pairing code.

5 s

Note: The testing process can take approximately 10 minutes.

If pairing is lost (change mode)

Pair LED – Flashing Red –

Receiver lost link with

thermostat

Relay is 55 minutes out of one

hour inactive.

Relay is active the remaining

5 minutes of the hour. Then

the cycle restarts. When

connection is reestablished,

receiver is checking the

thermostat demand and

acts accordingly.

Note: Lost link appears

after 1h of failed

communication.

If pairing is lost

Pair LED – Flashing Red –

Receiver lost link with

thermostat

Relay is 55 minutes out of one

hour inactive.

By short pressing the Mode

button we can put the

receiver into On (relay is

always on) mode.

Thermostat in On mode -

Relay is always on. Pair LED

is flashing to state the lost

connection. When

connection is reestablished,

Pair LED becomes solid red.

Note: Lost link appears

after 1h of failed

communication.

short press

PAIR LED - - flashing yellow

Default position out of

factory. Receiver is not

paired. Press for 5 sec to put

the receiver in Pairing mode.

Compatibility with other SALUS 868 MHz thermostats

110/ /22 in mm (L/W/H)100

ERT20TX

ST325TX

091FLRF(TX)

L - live of supply power
