ZigBee network wireless wiring centre (8 zones),

24 V AC

Model: KL08RF 24V

Importer:

SALUS Controls Plc

Units 8-10 Northﬁeld Business Park

Forge Way, Parkgate, Rotherham

S60 1SD, United Kingdom

www.saluscontrols.com

SALUS Controls is a member of the Computime Group.

intaining a policy of continuous product development SALUS Controls plc reserve the right

to change speciﬁcation, design and materials of products listed in this brochure without prior notice.

Introduction

1. Fuse

Wiring centre description

2. Power Supply

3. Thermostat grouping status

4. Network Status diode

5. Pair button

6. Reset button

10RF (optional)

7. Delay jumper

8. INT/EXT antenna jumper

9. NC/NO actuators jumper

Technical information

Product compliance

Safety information

This product complies with the essential requirements and other relevant provisions of Directives: EMC

2014/30/EU, LVD 2014/35/EU, RED 2014/53/EU and RoHS 2011/65/EU. The full text of the EU Declaration

of Conformity is available at the following internet address: www.saluslegal.com.

Use in accordance with the regulations. Indoor use only. Keep your device completely dry. Disconnect your device

before cleaning it with a dry cloth. This accessory must be tted by a competent person, and installation must

comply with the guidance, standards and regulations applicable to the city, country or state where the product

is installed. Failure to comply with the relevant standards could lead to prosecution.

This function is only available in Oine mode (together with CO10RF coordinator)

- it means MASTER thermostats will aect to SLAVE thermostats within specic group,

which is possible only when thermostats are paired with one KL08RF wiring centre

(optional + KL04RF) and have been assigned to gr. 1 or gr. 2.

How it works: If all thermostats of a given group will operate in automatic mode, then each of the thermostats

in a given group will work in the same way as the MASTER of this group. For example, if the MASTER thermostat

of Group 1 according to it’s programmed schedule maintains a comfort mode - all SLAVE type thermostats from

Group 1 will also maintain the comfort mode (the temperature is set individually for every thermostat). Similarly,

if the MASTER thermostat is set to Party or Holiday mode - SLAVE thermostats in his group will also work in

these modes.

The mains fuse is located under the housing cover, at the main terminals and protects the wiring centre and

devices powered by it. Use cartridge fuse-type 5 x 20 mm - nominal burn rate 12 A. To remove the fuse, lift

the socket with a at screwdriver and pull out the fuse.

- (LED is steady lit) - it means wiring centre is added to the ZigBee network and paired with CO10RF

or UGE600

- Checking the address of the wiring centre in the Zigbee network. To check the address of the

wiring centre in the ZigBee network (when using more than one) press the Pair button.

The wiring centre number is indicated by the number of LEDs at the zones:

LED diode statuses:

Functions of the Pair button:

- The wiring centre reset

(this function is described in detail on the second page of the manual).

- It is used to refresh the data, after moving jumpers 7,8 or 9.

The Reset button does not remove the wiring centre from the ZigBee network.

- (LED diode is blinking) - it means wiring centre is not connected to the network, but it is ready

for pairing with the coordinator (CO10RF) of the ZigBee network or the Internet gateway (UGE600)

The wiring centre is designed to be supplied with 24V

~, 50Hz voltage.

Installation features:

• three-wire, with PE protective conductor,

• made in accordance with applicable regulations.

The KL08RF 24V wiring centre has a built-in 230V /

24V power supply, so actuators should be used with

a voltage of 24V. A maximum of 24 actuators can be

connected to the KL08RF 24V wiring centre.

tional, wireless device control module that can be used

example - when we can’t use cable between the KL08RF

wiring centre and the boiler.

Boiler o delay time.

There is an option to connect the 08RFA external antenna to the wiring centre.

If you use an additional antenna, place the jumper in the EXT position.

Select the type of the thermoelectric actuator connected to the wiring centre:

NC – actuator normally closed

NO – actuator normally opened

The KL08RF 24V wireless wiring centre is a part of the iT600RF system. In combination with the wireless

thermostats from iT600RF series, KL08RF 24V provides comfortable and reliable heating control. It is equipped

with the control outputs for the pump and boiler and has been designed to work with NC or NO actuators.

In Oine mode, communication with the wireless thermostats from iT600RF series must be done through the

CO10RF co-ordinating unit, which is in the package together with the wiring centre. To work in Online mode (via

the SALUS Smart Home app) KL08RF 24V must be connected to the Internet gateway UGE600. In one ZigBee

network (Online or Oine) up to 9 KL08RF 24V wiring centres can be connected. KL08RF 24V increases ZigBee

network range.

1 2

5 7

11 1217 13 14 15 16

8 9 1063

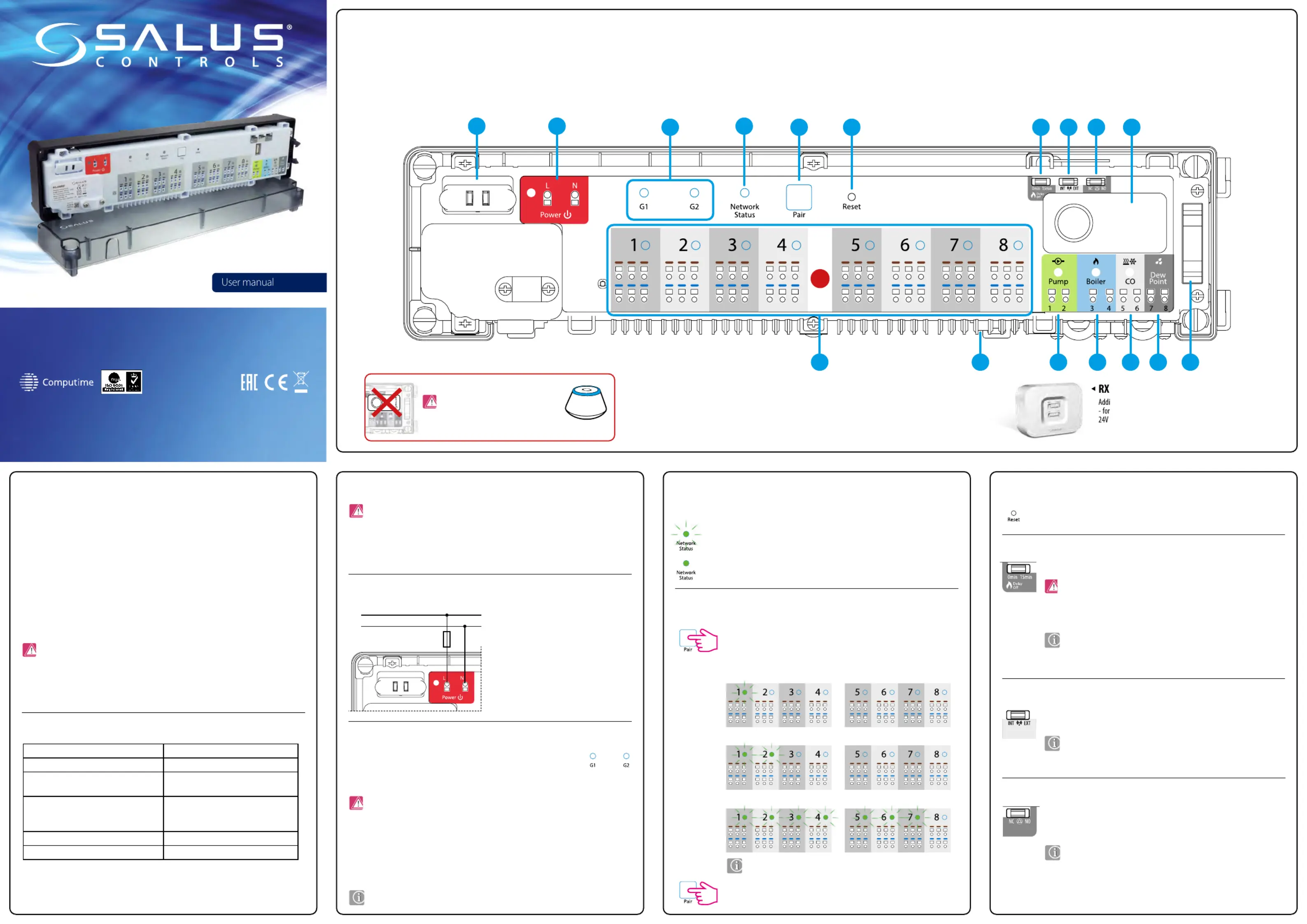

1. Cartridge fuse 5 x 20 mm 12 A

2. Power Supply

3. Thermostat grouping status

4. Network Status diode

5. Pair button

6. Reset button

7. Delay jumper

8. INT/EXT antenna jumper

9. NC/NO actuators jumper

10. ZigBee network coordinator

11. Terminals for actuators

12. Pump control output

13. Boiler control output

14. CO terminal

15. Dew point sensor input (humidistat)

16. Serial connector for the KL04RF 24V extension

17. External antenna connector

15 sec.

Jumper position change must be refreshed in the memory by pressing the Reset

button (short press).

Note: Within one group there may be only one MASTER thermostat (programmable) and the rest

must be SLAVE thermostats (non-programmable).

Note: Fuse replacement should be done when the wiring centre is disconnected from power supply

24 V AC.

Note: Pump (Pump output) and boiler (Boiler output) always starts 3 minutes after

receiving the heating signal from any thermostats paired with wiring centre. Pump

stops after 3 minutes, when the last thermostat stops sending demand for heat,

while the heat source (Boiler) will turn o after the time set with the jumper.

Jumper position change must be refreshed in the memory by pressing the Reset

button (short press).

Jumper position change must be refreshed in the memory by pressing the Reset

button (short press).

The grouping function is optional - thermostats do not have to be grouped, they can operate

independently.

Address 9 is indicated by lighting up 8 LEDs of all the zones and the Network

Status LED.

24 V AC

Adress 1

Adress 2

Adress 7

Power supply 24 V AC

Max load 3 A

Inputs CO terminal

Dew point sensor (humidistat)

Outputs Pump control

Boiler control

Terminals for actuators

Radio frequency ZigBee 2,4 GHz

Dimensions [mm] 355x83x67

Note: Don’t use CO10RF coordinator

with UGE600 simultaneously!

CO10RF

CO10RFCO10RF

UGE600

02 2021 [ENG]

24V

Finish

Name this equipment

KL08RF wiring centre

CO terminal Diode Mode

Opened contacts

Red Heating

Closed contacts

Blue Cooling

13. Boiler control output

14. CO terminal (input)

15. Dew point sensor input (humidistat)

16. Serial connector for the KL04RF 24V extension

Identication of the wiring centre

Factory reset

17. External antenna connector

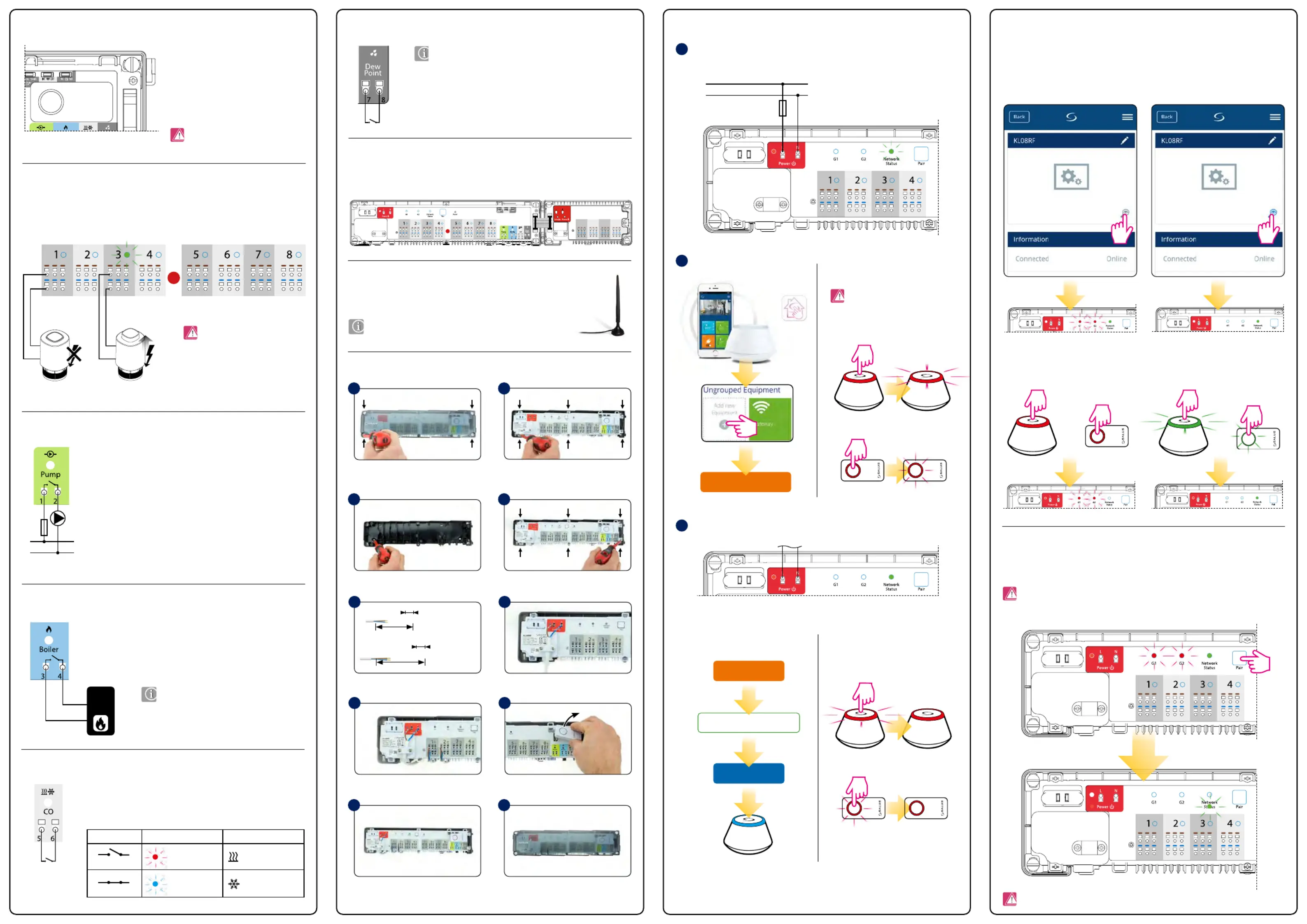

INSTALLATION

MOUNTING

12. Pump control output

Pump output - this is a volt free output (COM / NO) that controls the circulation pump

in the heating / cooling system. The output closes (pump starts) always after 3 minutes

after receiving the heating / cooling signal from any of thermostats paired with wiring

centre. The output opens (pump stops) after 3 minutes, when the last thermostat stops

sending heat / cold demand.

Connect the wiring centre to the 24 V AC power supply. The Network Status LED will blink.

Remove the top cover of the wiring centre.

To start identication

When wall mounting, unscrew the main part of

the housing (see picture). When mounting on

the DIN rail tilt the hooks on the back of the housing.

To stop identication

Attach the back of the wiring centre to the wall. Screw the main part of the wiring centre

to the back of the housing.

Remove the appropriate section of insulation

from the wires.

Wiring centre

power supply

110 mm

50 mm

10 mm

Additional devices

(e.g. pump, boiler)

Connect the power cord.

Connect the rest of the wires. Remove the CO10RF coordinator if you use

the UGE600 internet gateway..

Make sure that all the wires are properly connected

then connect the power cord to the 24 V AC power

supply - red LED diode will light up.

After nishing installation mount the top cover

of wiring centre.

To restore the factory settings, press and hold the Pair button for 15 seconds. G1 and G2 diodes will turn red

and go out.

To identify the wiring centre in the ZigBee network, follow the steps below:

In Online mode (using the SALUS Smart Home app):

In Oine mode:

Wiring centre will connect to the network automatically. The Network Status LED will turn solid green.

Opened CO input contacts (Changeover) means that whole system works in the

heating mode. Short circuit at the input CO will automatically switch the whole system

to cooling mode (wiring centre and paired thermostats).

Shorting the contacts at the dew point sensor input (too high humidity) causes

switching o all zones in the wiring centre and Pump control outputs.

It is used for communication between the KL08RF 24V wiring centre and the KL04RF 24V extension module.

KL04RF 24V extension module increases functionality and expands support up to 12 zones.

The external antenna connector 08RFA is located underneath the wiring centre under

zones 7 and 8. After connecting an additional antenna, place the jumper in the EXT

position.

Boiler output - this is a volt free output (COM / NO) that controls the boiler in the

heating system. The output closes and the boiler turns on but always after 3 minutes

after receiving the heating signal from any of thermostats paired with wiring centre.

The output opens and the boiler switches o when the last thermostat stops sending

heat demand (after the time set on the Delay jumper).

24 V AC

max

1 A

Dew point sensor input is active only in cooling mode (with closed CO

contacts).

24 V AC

Scan for equipment

Open the ZigBee network

Close the ZigBee network

Online

Oine

OR OR

SALUS

Smart

Home

5 sec.

1 sec.

5 sec.

Note: Do not use CO10RF coordinator

with UGE600 simultaneously.

5 sec.

Connect equipment

15 sec.

Note: If you restore the factory settings of the wiring centre, all paired devices will be removed from

the ZigBee network - you will have to synchronize them again.

10. ZigBee network coordinator

11. Terminals for actuators

Wires of thermoelectric actuators should be plugged into self-locking connectors in appropriate zones. Three

actuators can be connected directly to one zone. The current load of one zone is designed to operate up to 3

thermoelectric actuators with a power of 2 W. A maximum of 24 actuators can be connected to the KL08RF 24V

wiring centre.

The ZigBee network coordination unit CO10RF is used

for Oine mode and it’s included with the wiring

centre. CO10RF enables wireless control of all devices

installed in one network. Within one network can be

connected max 9 wiring centres. It means that if in the

network there are more than one wiring centre, you

can use one coordinator and put the remaining ones

in a safe place.

Note: Do not use CO10RF coordinator with

UGE600 simultaneously.

Note: On the actuator contacts, there

is voltage 24 V AC during their work.

The operation was explained on the example of T30NC actuators.

The output is inactive in cooling mode.

Jumper position change must be refreshed in the memory by pressing

the Reset button (short press).

1 sec.

11 12

24V

Note: After restoring factory settings, to re-enter pairing mode, click the “Reset” button.

Produkt Specifikationer

Mærke:	Salus
Kategori:	Ikke kategoriseret
Model:	KL08RF 24V

Har du brug for hjælp?

Hvis du har brug for hjælp til Salus KL08RF 24V stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

Ikke kategoriseret Salus Manualer

Salus KL08RF 24V Manual

13 August 2025

12 August 2025

12 August 2025

12 August 2025

30 Juli 2025

29 Juli 2025

29 Juli 2025

29 Juli 2025

Salus TRV10RAM Manual

24 Juli 2025

Salus THB2430 Manual

24 Juli 2025

Ikke kategoriseret Manualer

Nyeste Ikke kategoriseret Manualer

Eliminator Lighting Electro 86 Manual

13 August 2025

American Audio Accu Roller 250 Manual

13 August 2025

Moulinex Inicio IM1226 Manual

13 August 2025

Adj Eco UV Bar Plus Manual

13 August 2025

American Audio Q-SD Manual

13 August 2025

Tefal Pro Minute Anti-Calc GV8800 Manual

13 August 2025

American Audio Tri Star Manual

13 August 2025

American Audio CDI-500 Manual

13 August 2025

Rowenta Gourmet Pro OC7878 Manual

13 August 2025

Plus More MO-T008 Manual

13 August 2025
