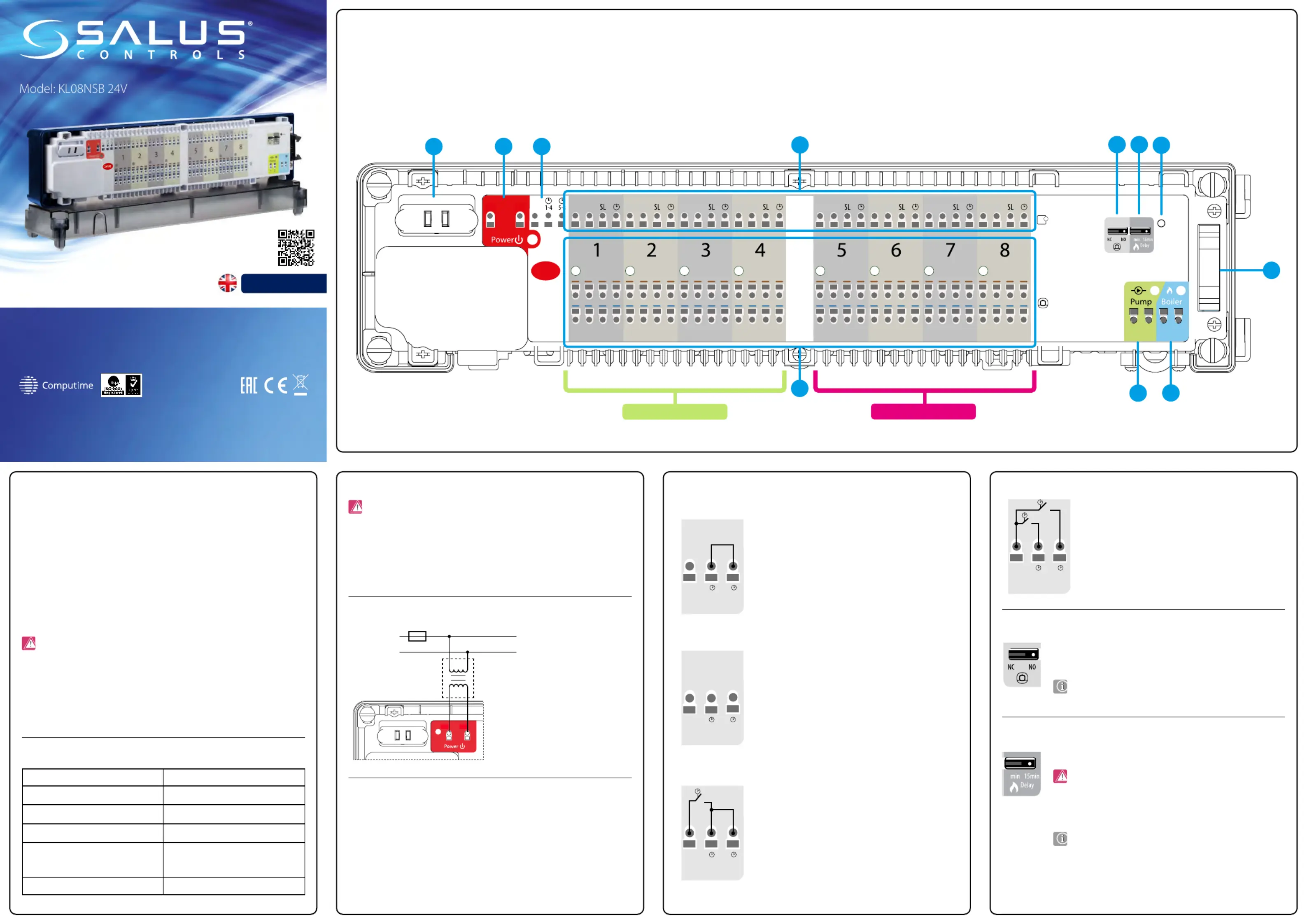

Wiring centre (8 zones) 24 V

Manual

PRODUCER:

SALUS Controls Plc Units 8-10

Northfield Business Park Forge

Way, Parkgate, Rotherham S60

1SD, United Kingdom

XII 2020 [ENG]

Technical Information

Safety information

www.saluscontrols.com

SALUS Controls is a member of the Computime Group.

Maintaining a

policy of continuous product development SALUS Controls plc reserve the right to

change speciﬁcation, design and materials of products listed in this brochure without prior notice.

Introduction

The KL08NSB 24V wiring centre forms the heart of a Underoor Heating controls system. It allows

easy and quick connection of thermostats and actuators. It has integrated pump and boiler control

module and overload protection. KL08NSB 24V wiring centre is adapted to work with NC and

NO type actuators (normally closed and normally open). Up to 8 thermostats can be connected

to the KL08NSB 24V, while KL04NSB 24V extension allows to connect additional 4 thermostats (12 in

total). 24V/230V transformer is included with the set with the control box!NOTE!

Product compliance

This product complies with the essential requirements and other relevant provisions of the following

EU Directives: EMC 2014/30/EU, Low Voltage Directive LVD 2014/35/EU, RoHS directive 2011/65/EU.

The full text of the EU Declaration of Conformity is available at the following internet address:

www.saluslegal.com.

Use in accordance with national and EU regulations. Device is intended for indoor use only

in dry conditions. Product for indoor use only. Installation must be carried out by a qualied

person in accordance to national and EU regulations.

Before attempting to setup and install, make sure that KL08NSB 24V is not connected to any

power source. Installation must be carried out by a qualied person. Incorrect installation may

cause damage to the wiring centre. The KL08NSB 24V should not be installed in areas where it

may be exposed to water or damp conditions.

Power Supply 24 V AC 50 Hz

Total Load Max 5 A

Pump / Boiler Relay Load Max 3 A

Inputs

External clock (24 V)

Outputs Pump control (NO/ COM)

Boiler control (NO/COM)

Terminals for actuators (24V)

Dimensions [mm] 355x 85x 67

1. Fuse

Wiring centre description

Note: Replace the fuse only when the wiring centre is disconnected from power supply

(24 V ~).

Note: Pump (Pump output) and boiler (Boiler output) always starts

3 minutes after receiving the heating signal from any thermostats

connected to wiring centre. Pump stops 3 minutes after the last call for

heating sent by the thermostat and the heat source (boiler) will turn o

after the time set on Delay jumper.

Jumper position change must be refreshed in the memory by pressing

the Reset button (short press).

Jumper position change must be refreshed in the memory by pressing

the Reset button (short press).

Main fuse is located under the housing cover next to power supply terminals and secures the wiring

centre and the devices connected to it. Use ceramic tube fast blow 250 V ROHS fuses (5x20 mm) with

nominal max current 12,5 A. To replace fuse remove the fuse holder with a at screwdriver and pull

out the fuse.

Select the type of the thermoelectric actuator connected to the wiring centre:

NC – actuator normally closed

NO – actuator normally opened

Boiler o delay time.

One Master thermostat which is common for thermostats from Group 1

and Group 2 (one programmable thermostat e.g. HTRP(50) 24V, other

thermostats are non-programmable e.g. HTR(20) 24V).

Two external clocks. One for Group 1 and one for Group 2 (two external

clocks + non-programmable regulators e.g. HTR(20) 24V)).

Two Master thermostats. One for Group 1 and one for Group 2 (two

programmable thermostats e.g. HTRP(50) 24V, other thermostats are

non-programmable e.g., HTR(20) 24V)).

One external clock which is common for thermostats from Group 1

and Group 2 (one external clock + daily regulators e.g. HTR(20) 24V)).

NSB function application in combination with thermostats grouping.

• OPTION 1

• OPTION 4

• OPTION 2

• OPTION 3

2. Power Supply

4. NC/NO jumper

5. Delay jumper

3. NSB (Night Set Back reduction) function and thermostats grouping

NSB function is activated in non-programmable Salus thermostats of the Expert, HTR series via

external signal. NSB 24 V signal (night-time temperature reduction) is sent via an external timer

or programmable thermostat connected to the KL08NSB 24V wiring centre. Non-programmable

thermostats are receiving NSB signal and reducing setpoint temperature (by switching to eco mode).

All thermostats have to be connected using a 4-wire cable

(min. 4 x 0,75 mm

, max. 4 x 1,5 mm

L 1-4

jumper

5-8

no jumper

L 1-4

5-8

L 1-4

5-8

L 1-4

5-8

O

1. Cartridge fuse 5 x 20 mm 12 A

2. Power supply

3. NSB function terminals

4. NC/NO jumper (actuator type)

5. Delay jumper

6. Boiler control output

7. Pump control output

8. Actuators connection

9. Serial connector for the KL04NSB 24V extension

10. Reset button

11. Thermostats connection

O

23 4

Reset

group i

group ii

24VAC

L1 L1 L1 L1 L1 L1 L1L1 L1 L1L2 L2 L2 L2 L2L2 L2 L2L2

Power supply for wiring centre is 24 V ~ 50Hz.

Two wire installation should be made in accordance

with the applicable regulations

230 V AC

230V/24V transformer

(in the set)

L1 L2

Wiring centre power

supply 24V from

transformer

min. 2 x 1,0 mm

max. 2 x 1,5 mm

Thermostats wires

min. 4 x 0,75 mm

max. 4 x 1,5 mm

Wires for the pump

and boiler control

min. 2 x 0,75 mm

max. 2 x 1,5 mm

50 mm

110 mm

12 mm

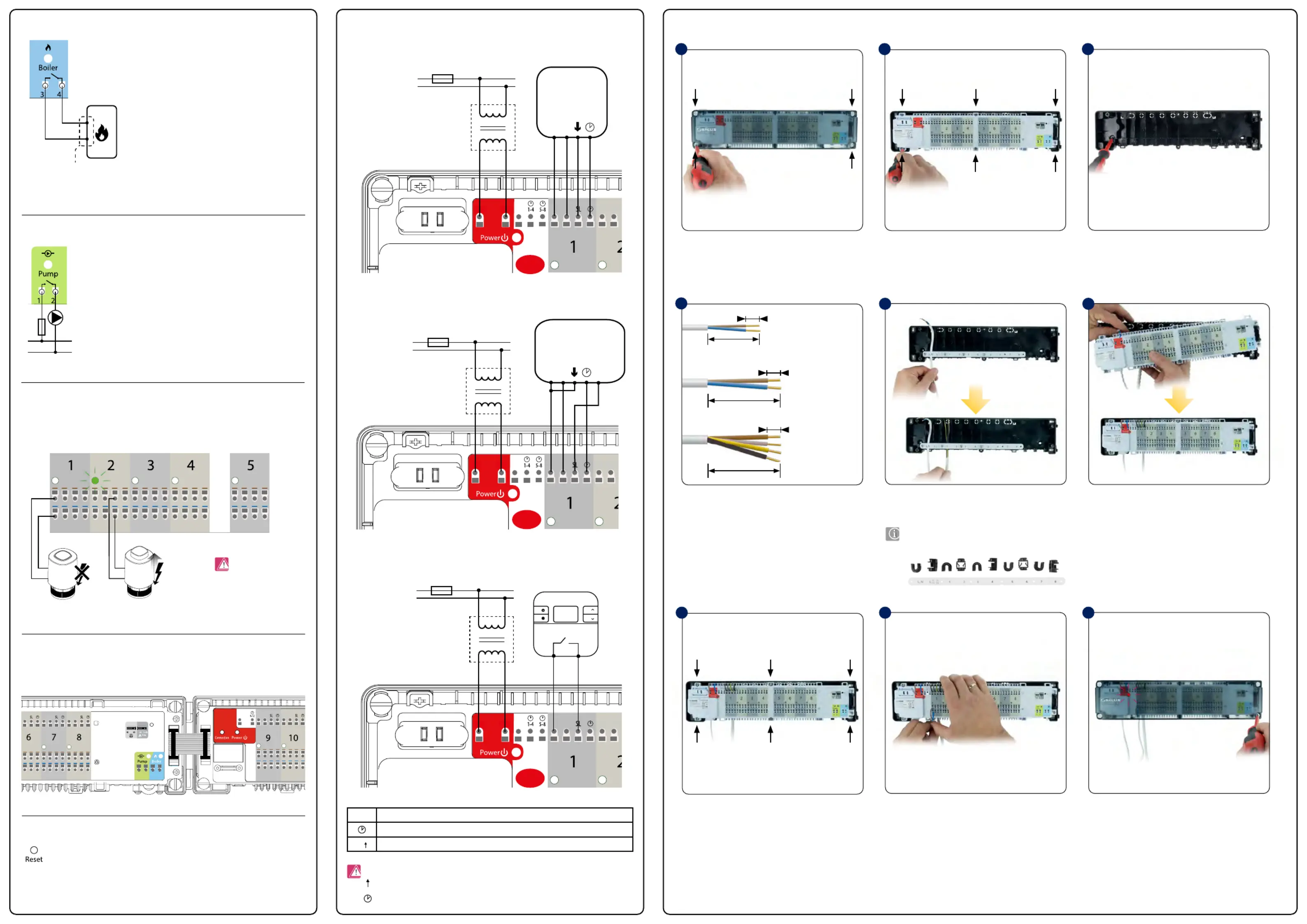

6. Boiler control output 11. Thermostats connection INSTALLATION

Boiler output - this is a volt free output (COM / NO) that controls the boiler in

the heating system. The output closes and the boiler turns on but always after

3 minutes after receiving the heating signal from any of thermostats paired

with wiring centre. The output opens and the boiler switches o when the

last thermostat stops sending heat demand (after the time set on the Delay

jumper).

Remove the top cover of the wiring centre.

Remove the appropriate piece of insulation from the wires.

Adjust the wires and screw the main housing of the wiring

centre to the rear housing.

Unscrew the main housing (see picture).

Thread the wires under the mounting belt in the back part

of the wiring centre.

Thread the wires through the slots in the top part of the wiring

centre and connect it to the terminals.

Connect the thermoelectric actuators wires.

Mount the back side of the housing to the wall.

When mounting on a DIN rail, open the hooks on the back of

the housing.

Make sure that all the wires are properly connected, mount top

cover and power up the wiring centre - the power indicator red

LED will illuminate.

Pump output - this is a volt free output (COM / NO) that controls the circulation

pump in the heating / cooling system. The output closes (pump starts) always

after 3 minutes from the moment of receiving the heating / cooling signal from

any of thermostats paired with wiring centre. The output opens (pump stops)

3 minutes after the last demand for heat/cool sent by the thermostat.

Boiler ON/OFF contacts

(according to the boiler’s

manual)

7. Pump control output

8. Actuators connection

9. Serial connector for the KL04NSB 24V extension

10. Reset button

230 V AC

max

3 A

The actuator wires should be secured with the self locking connectors in the appropriate zone.

Up to 6 actuators with a load of up to 2 Watts each can be connected to a single zone. Should more

than 6 actuators be required in a zone use an additional relay to relieve the output.

The Serial connector is used to connect the KL08NSB 24V with the KL04NSB 24V extension module

to add functionality and support up to12 zones.

- It is used to refresh the data, after switching jumpers 4 or 5.

Example based on T30NC 24 V actuators

Note: 24 V AC voltage

when actuators are live.

• Connecting the RT10 24V thermostat with NSB function use

• Connecting the thermostat of HTR series with NSB function use

L1, L2 24V AC power supply

NSB function terminal

SL ( ) Control signal for 24VAC actuators

Note: In NSB, HTR, ERT, BTR product series follow interchangeable signifying:

= SL

= NSB

1 2 3

5 6

7 8 9

Set includes supplementary accessories (to support

installation proces).

• Connecting ON/OFF battery-powered thermostat with voltage-free COM / NO output contacts

(e.g. 091FL, RT310, RT510)

KL08NSB

230V/24V transformer

(in the set)

230 V AC

L1 L2

HTRP24/HTR24

(N)(H)

230V/24V transformer

(in the set)

230V/24V transformer

(in the set)

230 V AC

L1 L2 NO NC

RT10 24V

COM NO

RT310 THERMOSTAT

L1 L2

L1L1

L2L2

L1 L1L2 L2

L1 L2

24VAC

O

23 4

Reset

KL04NSB

24 V

L2 L2

L1L1
