Relay module

RM-16A

PRODUCER:

SALUS Controls Plc Units

8-10 Northfield Business

Park Forge Way, Parkgate,

Rotherham S60 1SD,

United Kingdom

Relay module SALUS Controls

RM-16A

Symbol meaning selecting electric

electronic gear. Putting used gear with

other waste products is strictly forbid-

den. The declaration of compliance is on

www.salus-controls.pl site

Made in Poland

mounting in

a box Ø60

mounting only

inside buldings

Relay module SALUS Controls

Product code: RM-16A

Relay module RM-16A opens and closes the circuit in order to aect the work of other devices. Some uses

of the module RM-16A with other Salus products are shown below:

1. Connection of the thermostat with the high voltage relay 230V (e.g. VS30/RT200/ERT20/ERT30/ERT50/

VS10) with a gas boiler which requires free-voltage output NO/COM or NC/COM

2. Connection of the SALUS temperature regulator with the NO/COM relay (e.g. 091FL) with the boiler con-

trol which requires NC/COM output (NC/COM output is normally required in the solid fuel boiler controls )

3. Connection of the receiver transmitting power higher than it is allowed by the relay in a regulator. The

maximum electricity consumption of the receiver cannot exeed 16A

4. Connection of the devices other than electro thermal actuators with the wiring centre ( KL06-M/

KL08NSB /KL08RF/KL10/KL10RF) e.g. if you want to connect a pump or an electric heating mat instead

of a electro thermal actuator.

Before connecting the relay module with a dierent device make sure that its parame-

ters are consistent with the RM-16A module specication. Incorrect connection may

cause undesirable action, excessive overheating and combustion hazard. To avert the

hazard make sure that the relay module RM-16A is correctly connected. The connection

of the device can be done only by a qualied installer who has up-to-date eligibility.

COM

NOCOM

VOLTAGE

FREE

INPUT

μ 16

250

4000 VA

16A

INPUT

230

POWER SUPPLY

230

AC / 50 Hz

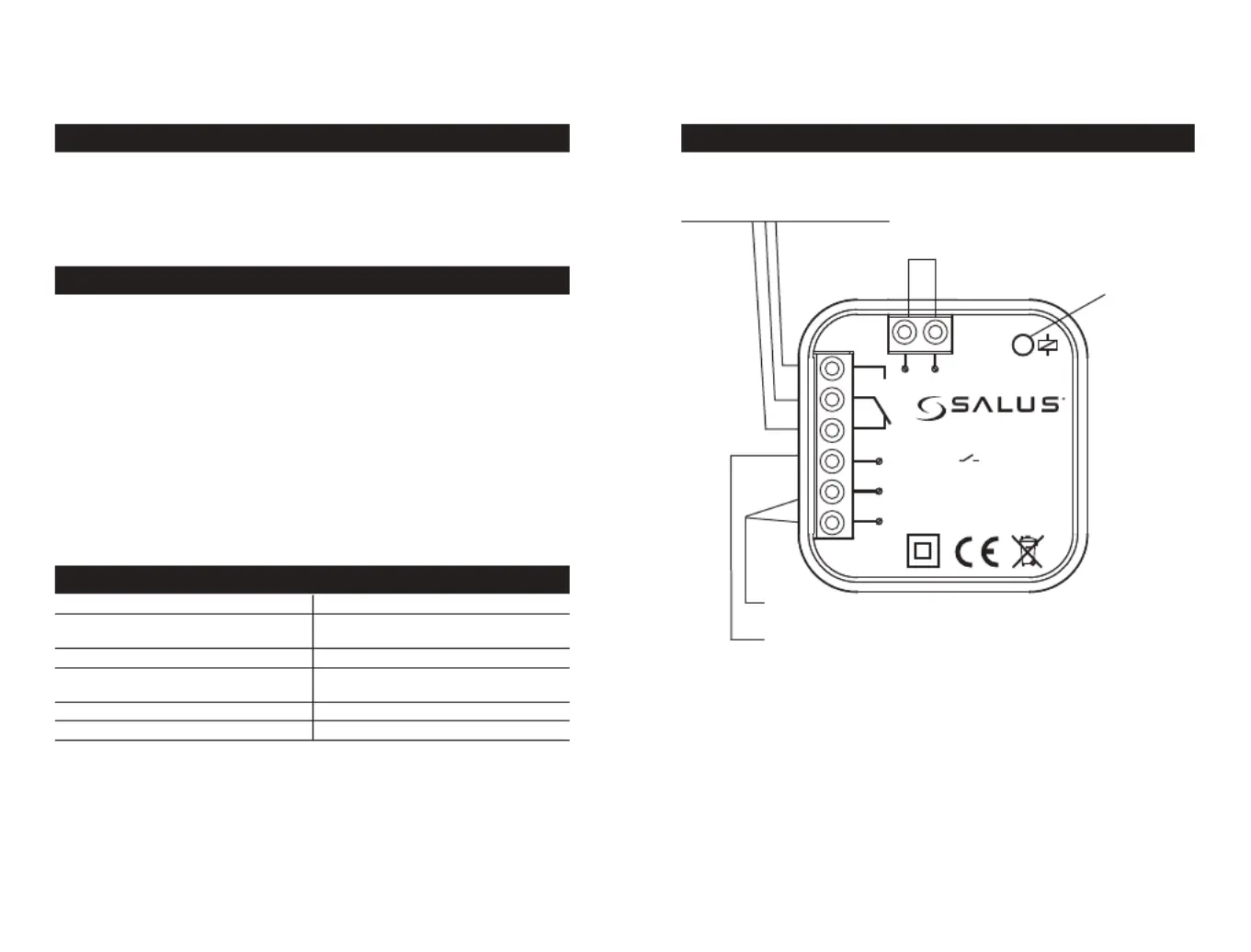

SAFETY INFORMATION VISUAL ASPECT

Power: 16A / 250V AC, 4000VA

INPUT NO/COM:

Connection of a regulator with the free

voltage relay NO/COM

OUTPUT NC/COM/NO:

Output receiver

INPUT SL:

Connection of the regulator with the

voltage relay 230V

POWER SUPPLY N/L:

Power of 230V AC/50Hz

Measurements:

47x47x21

relay output (NO, COM, NC)

INTRODUCTION

Relay module RM-16A opens and closes the circuit in order to aect the work of other

devices. Some uses of the module RM-16A with other Salus products are shown below:

1. Connection of the thermostat with the voltage relay 230V (e.g. VS30/RT200/ERT20/

ERT30/ERT50/VS10) with a gas-red boiler which requires free-voltage output NO/COM

or NC/COM

2. Connection of the SALUS thermostat with the NO/COM relay (e.g. 091FL) with the

boiler control which needs NC/COM output (NC/COM output is normally required in

the solid fuel boiler controls)

3. Connection of the receiver transmitting power higher than it is allowed by the relay

in a regulator. The maximum electricity consumption of the receiver cannot exeed 16A

4. Connection of the devices other than electro thermal actuators with the wiring

centre ( KL06-M/KL08NSB /KL08RF/KL10/KL10RF) e.g. if you want to connect a pump or

an electric heating mat instead of a electro thermal actuator.

PRODUCT SPECIFICATION

Power supply of the modul RM-16A-230V AC

Control input with the voltage output 230V

Control input with free-voltage output

LED signalling short circuitof the relay output
