RT310
Thermostat
RT310 / RT310TX / RT310RF is a digital room thermosat used to control room temperature. Device
launching heating system by shorting terminal blocks, simultaneously informing the action and
showing this information on the LCD display. Before use please read this manual carefully. Use only
AA 1.5 V alkaline batteries in the thermostat. Place the batteries into the battery slot located under the
cover. Do not use rechargeable batteries.
Product compliance
This product complies with the essential requirements and other relevant provisions of the following EU Directives:
EMC 2014/30/EU, LVD 2014/35/EU, RED 2014/53/EU and RoHS 2011/65/EU. Full text of the EU Declaration of
Conformity is available on www.saluslegal.com
Safety Information
Use in accordance to national and EU regulations. Use the device as intended, keeping it in dry condition.
Product for indoor use only. Installation must be carried out by a qualied person in accordance to
national and EU regulations.
Technical specication

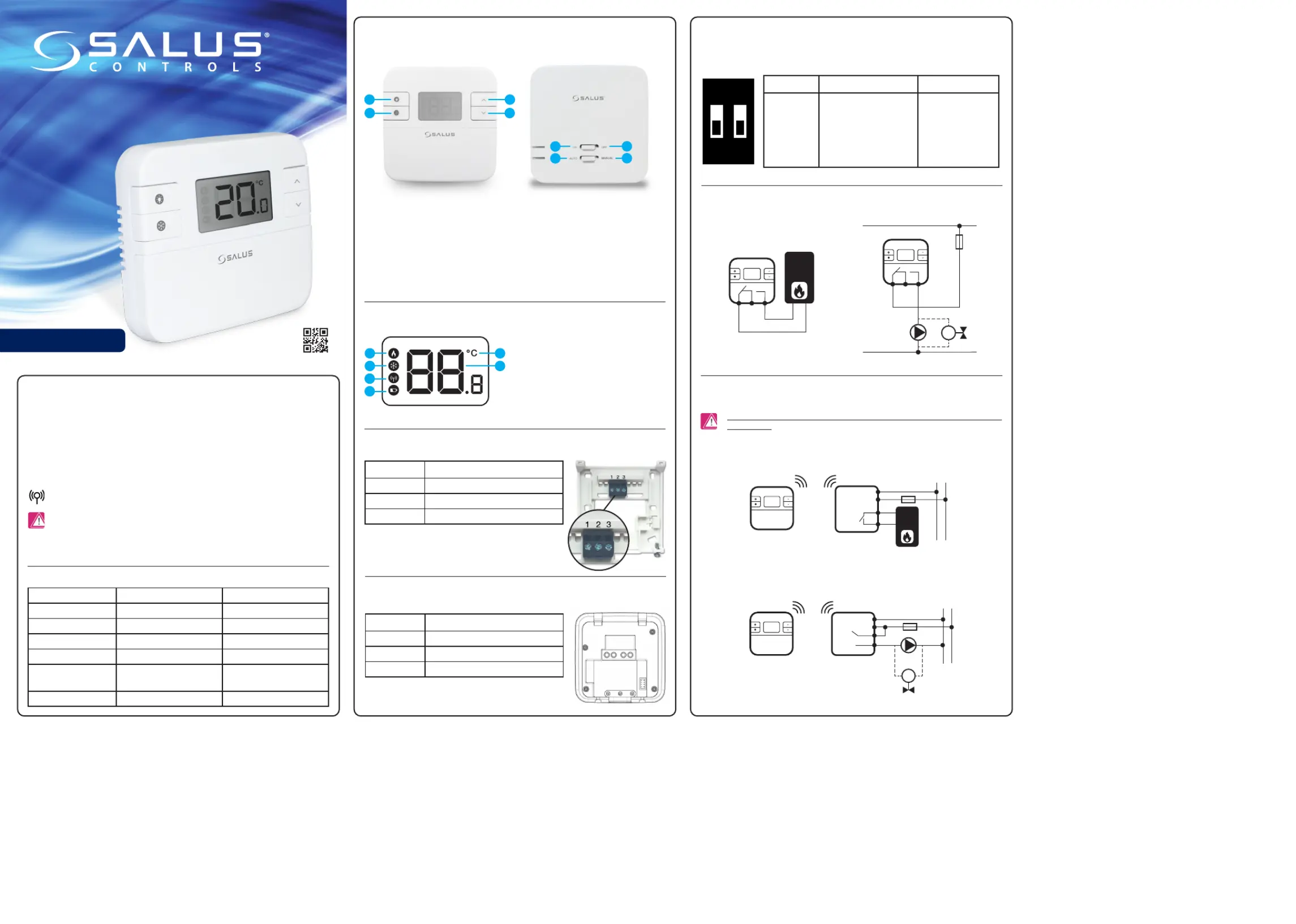

LCD Icon description
Button functions
RT310 Terminals description
RXRT510 Receiver terminals description
RT310 Wiring diagram
RT310RF Wiring diagram
RT310 RT310TX
Thermostat supply 2 x AA alkaline batteries 2 x AA alkaline batteries
Receiver supply - 230 V AC
Thermostat rating max 3 (1) A -
Receiver rating max - 16 (5) A
Outputs
Voltage free
NO / COM /NC terminals
Voltage free
NO / COM terminals
Temperature range 5 - 35°C 5 - 35°C
Terminal Description
1 - COM Common Terminal
2 - NC Switched Live OFF
3 - NO Switched Live ON
Terminal Description
NO Switch Terminal
COM Common Switch Terminal
L, N Supply (230 V AC)
RT310 / RT310TX Thermostat RXRT510 Receiver
1
5
6
7
8
3
2
4
1. Turn on the LCD backlight
2. Turn On/O the Frost Mode
3. Increase button
4. Decrease button
1. Heating Mode ON
2. Frost Protection Mode ON
3. RF signal indicator (only in RT310RF)
4. Low battery status
5. Temperature unit
6. Room / setpoint temperature
5. When in Manual Mode,
ON will turn the boiler on.
6. When in Manual Mode,
OFF will turn the boiler o.
7. Receiver operates in automatic mode
according to the thermostat
8. Receiver output is controlled
by the On/O slide switch.
1 5
6
3
2
4
NO COM L N
DIP Switch Settings
NC
NO
COM
RT310
Thermostat
L
L
RT310TX
Thermostat
NO
N
N
COM
RXRT510
Receiver
AC 230 V
COM
RT310TX
Thermostat
L
L
M
N
N
NO
OR
RXRT510
Receiver
AC 230 V
MAX
16 (5) A
Note: If you are using the RT310RF pack, the pairing between the thermostat and the receiver
is already done.
RT310, RT310TX, RT310RF
1
6CPH TPI
9CPH
Span
±0.25°C
2
ON ON
The DIP Switches can be found on the rear of your thermostat.
Control feature TPI Span
Operation When TPI is selected on DIP
switch № 2, the DIP switch №
1 is functional. You can choose
the Cycles Per Hour between
a lower comfort level (6CPH)
and a higher comfort level
(9CPH).
When Span is selected
on DIP switch № 2,
the DIP switch № 1 is
not functional. The
temperature accuracy of
your thermostat is set to
± 0.25 °C.
868.0-868.6MHz; <13dBm
Quick Guide
ON
AUTO
OFF
MANUAL
ON
AUTO
OFF
MANUAL
TEST / PAIRING
TEST / PAIRING

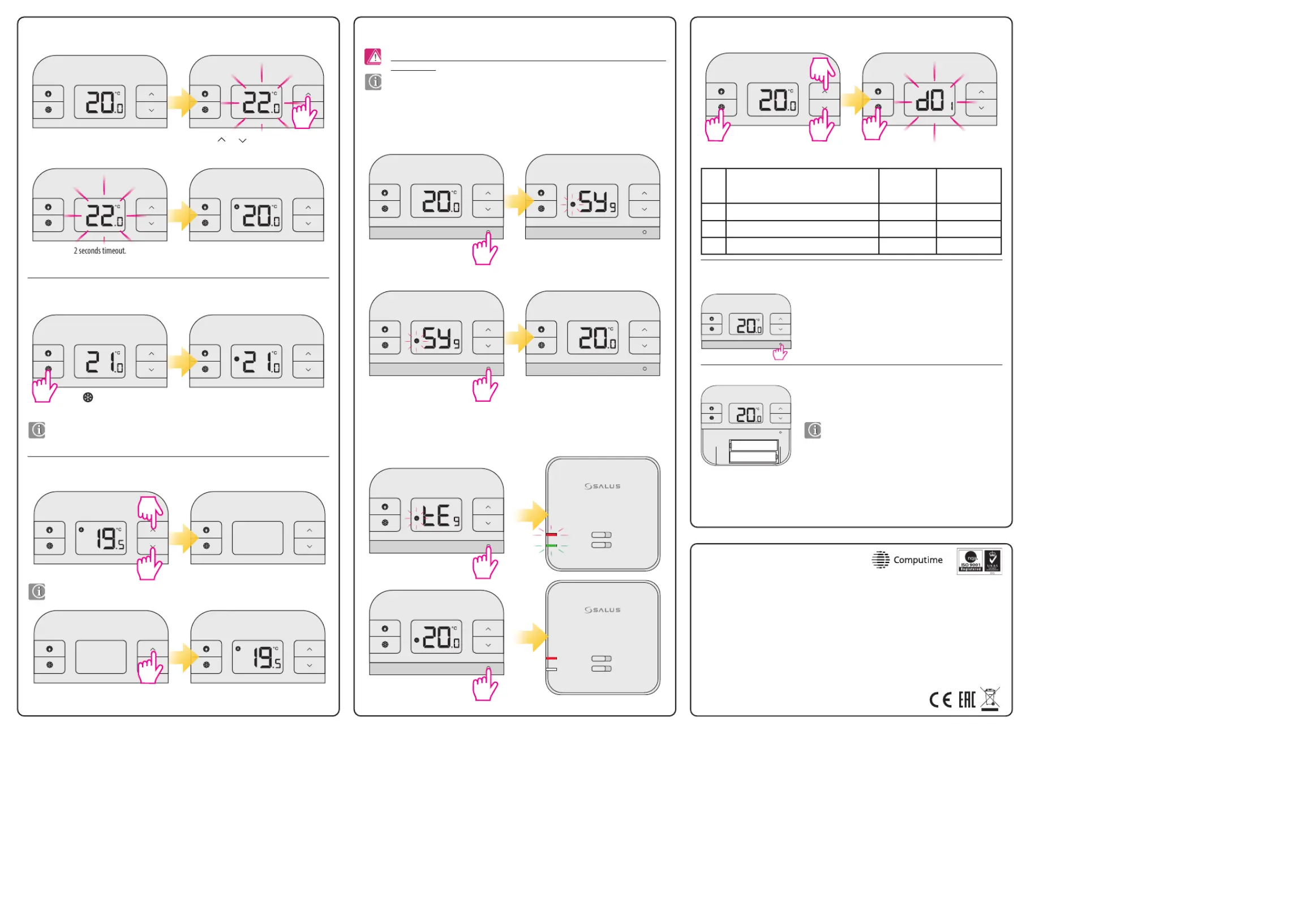

Pairing the RT310TX with the ReceiverChange the Setpoint temperature
Frost Protection
Reset of the RT310 thermostat
Reset of the RT310TX thermostat
Installer Mode
TEST / PAIRING
RESET
TEST / PAIRING
TEST / PAIRING
TEST / PAIRING
Note: If you are using the RT310RF pack, the pairing between the thermostat and the receiver
is already done.
Press the RESET button once. You can use a paper clip.
Your thermostat will be reset and will start up automatically.
Remove the batteries without pressing any button.
Wait 2 minutes and insert the batteries again.
Your device will be restarted.
Pairing process can take up to 9 minutes.Press and hold TEST / PAIRING
button for 3 seconds.
Press TEST / PAIRING button
to check the connection with
the receiver.
Press TEST / PAIRING button again
to return to the main screen.
Once devices are successfully paired,
LED on the receiver will go solid red.
Press and hold TEST / PAIRING button
for 3 seconds to end the pairing
process.
Press three buttons at the same time
for 3 seconds.
Actual room temperature.
Press button to turn
On/O frost protection.
Press any button to stop the Sleep Mode.
Actual room temperature.
3 sec
3 sec
3 sec
3 sec
3 sec
3 sec
3 sec
1 sec
1 sec
If you bought the RT310TX and RXRT510 separately or if you want to re-pair thermostat with the
receiver, make sure that the device is disconnected from the power supply and the switches on the
receiver have been set to AUTO and ON. Then connect the receiver to the power supply and wait for
the red LED to light steadily. Then switch to the OFF position and again to ON position quickly. The
red ashing LED will conrm entering the pairing mode.
The Frostpoint temperature can be reviewed by pressing the UP button once, but can only be
changed in Installer Mode.
When Sleep Mode is active all the thermostat functions will be paused.
When you want to change the batteries your device will use the
internal memory to backup your settings. You have 30 seconds
to change the batteries before losing your settings.
Begin the pairing process
End the pairing process
Test the pairing process
3
dxx Function Parameter Default
value
d01 Temperature display increments 0.1°C or 0.5°C 0.5°C
d02 Temperature oset +/- 3.0°C 0.0°C
d03 Frost Protection setpoint temperature 5.0°C - 17.0°C 5.0°C
TEST / PAIRING
+ −
+ −
Press or to set the temperature.
V020
SALUS Controls is a member of the
Computime Group.
Maintaining a policy of continuous product
development SALUS Controls plc reserve
the right to change specification, design and
materials of products listed in this brochure
without prior notice.
PRODUCER:
S
ALUS Controls Plc Units 8-10
Northfield Business Park Forge Way,
Parkgate, Rotherham S60 1SD, United
Kingdom
www.saluscontrols.com
Issue Date: June 2019
NOTE:
If you do not notice the “low battery” symbol displayed on the screen in time, it will shut down. In
this case, after removing the old batteries, it is necessary to wait 5 minutes before inserting the new
batteries. Otherwise, it is possible that a condenser will remain partially discharged and t can prevent i
the thermostat from restarting.
