PANIC BUTTON
PNK-1
pnk1_en 08/08
The panic button is a device de-
signed to instantly trigger the
alarm and/or initiate the proce-
dure of reporting an emergency
situation in protected facility to
the MONITORING STATION. It
can be used in banks, wholesale
depots, stores, and other
facilities exposed to a direct
assault and robbery.
It can interface with any alarm
control panel which supports the
NC type detectors. Installed
inside the button is a reed relay,
the contacts of which open on
pressing the button.
The button return spring can be
easily removed, thus enabling
the, so-called, mechanical
memory of use. With the spring
removed, the button – after
being pushed in – will remain
inside the casing until it is released with the key. Where a few buttons are
connected to one zone of the alarm control panel, this function makes it
possible to identify the button which triggered the alarm.
INSTALLATION AND CONNECTION
Prior to installation, break off the cable inlet in the base or cover of the
button. The button should be mounted by means of two screws on an even
surface, usually in a concealed place, writing desk. It e.g. under the top of
can be installed either horizontally, or vertically.
If several buttons are connected to one panic zone of the alarm system,
they should be connected in series.
The ends of reed relay should be connected with the cables by means of
field terminals. Three field terminals make it possible to connect the EOL
resistor inside the housing, without the use of a soldering iron.
To make the
installation easier, you can take out the movable button from the base after
slightly deflecting the catches.

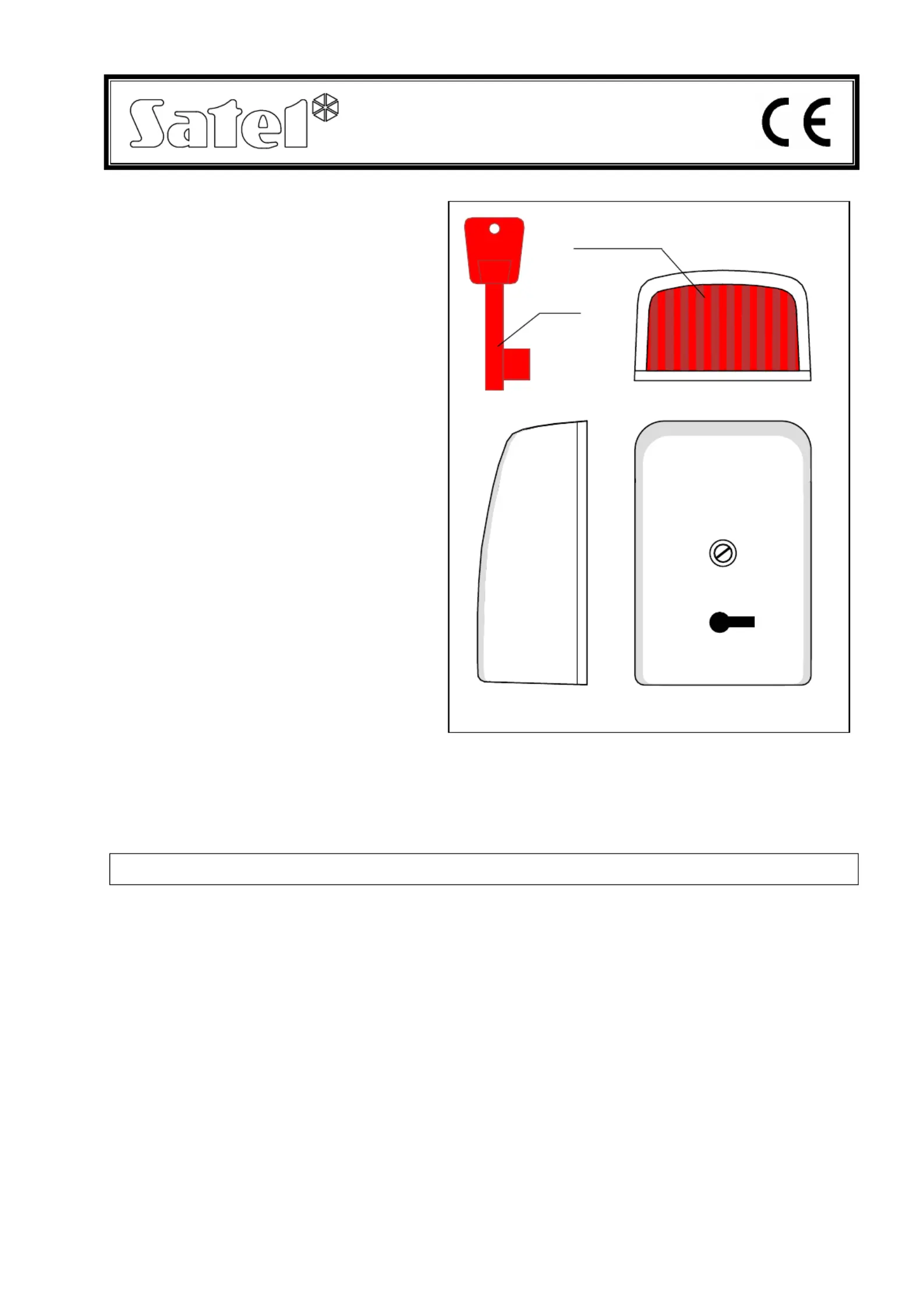

Fig. 1. View of the panic button and key
BUTTON
(side view)
(bottom view)
KEY
CAUTION! Be particularly careful during installation so as not to damage
the glass enclosure of reed relay or the magnet situated on the
button.
SPECIFICATIONS
Maximum switchable voltage, reed relay .............................................. 160V
Maximum switchable current ............................................................. 250mA
Maximum continuous current (not switchable) ....................................... 1.5A
Maximum switchable power....................................................................5VA
Transient resistance .......................................................................... 130mΩ
Contact material ..................................................................... Ru (Rutenum)
Dimensions.............................................................................. 40x60x25mm
Weight .....................................................................................................27g
The latest EC declarations of conformity and certificates are available for
downloading on the website www.satel.pl
SATEL sp. z o.o.
ul. Schuberta 79
80-172 Gdańsk
POLAND
tel. + 48 58 320 94 00
info@satel.pl
www.satel.pl
holes to secure the
base to the surface
cable inlets
button catches
reed relay
field terminals
Fig. 2. View of the panic button base
spring
